Sandvik SCMT 12 04 04-MM 1125 PVD Carbide Turning Insert 10 Pack
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

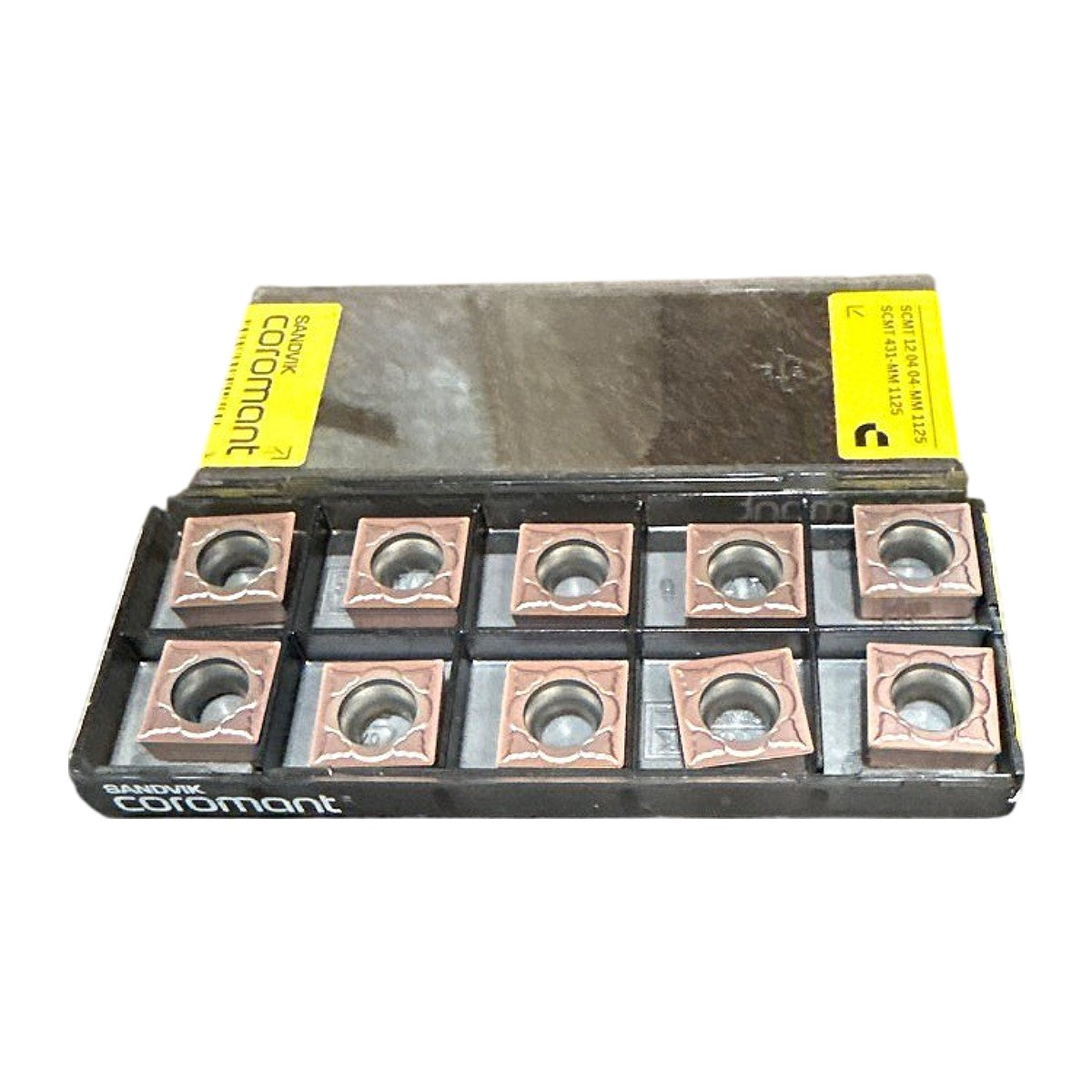

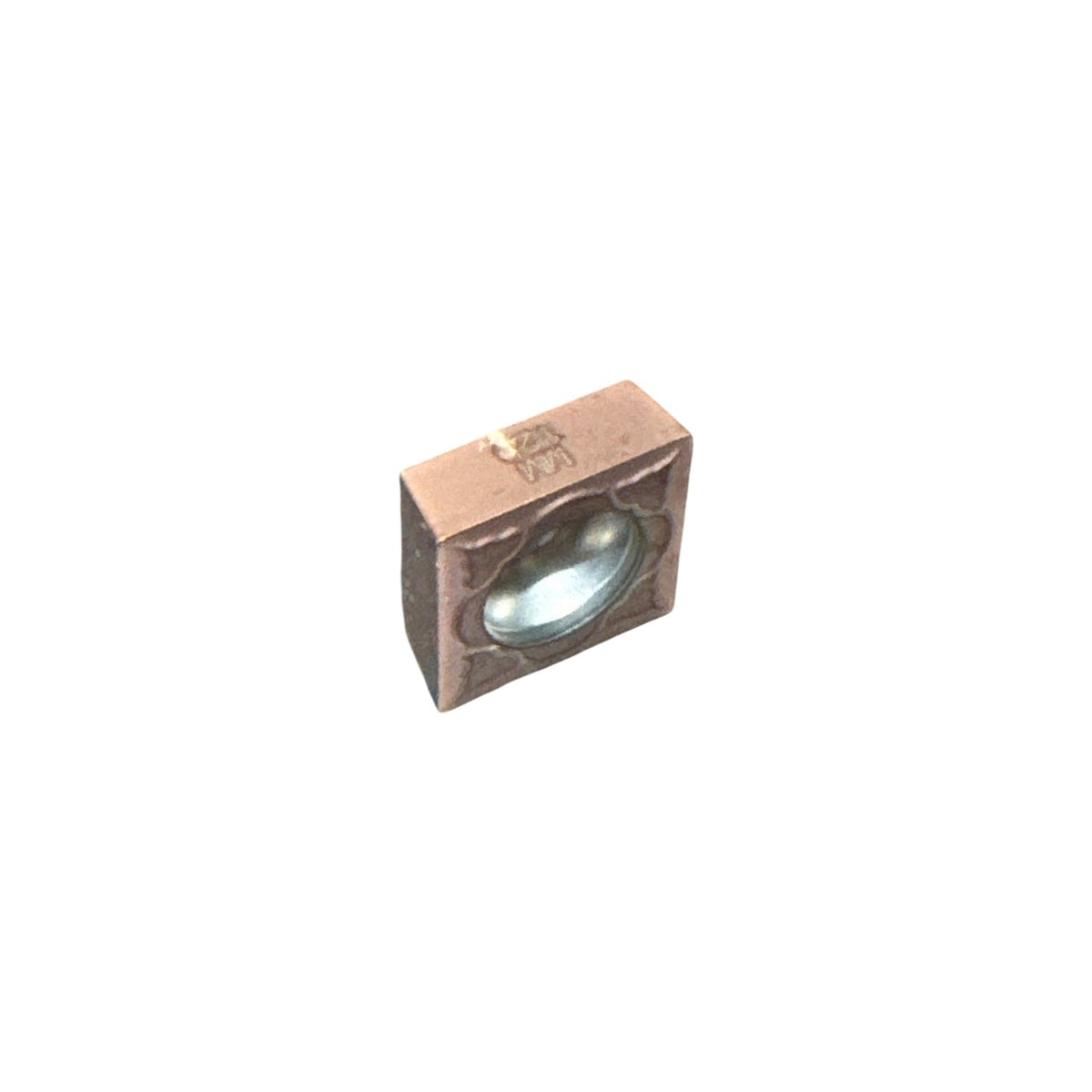

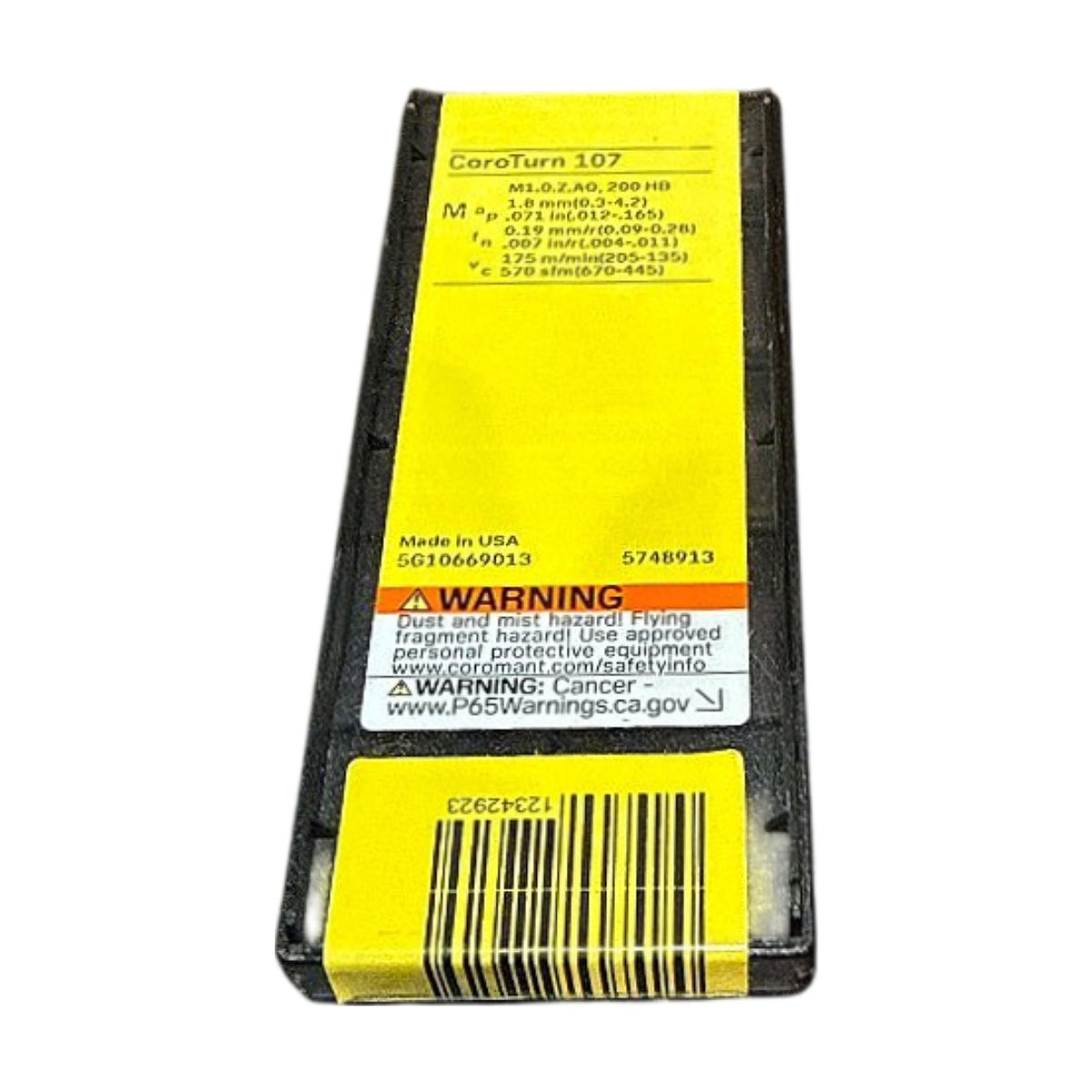

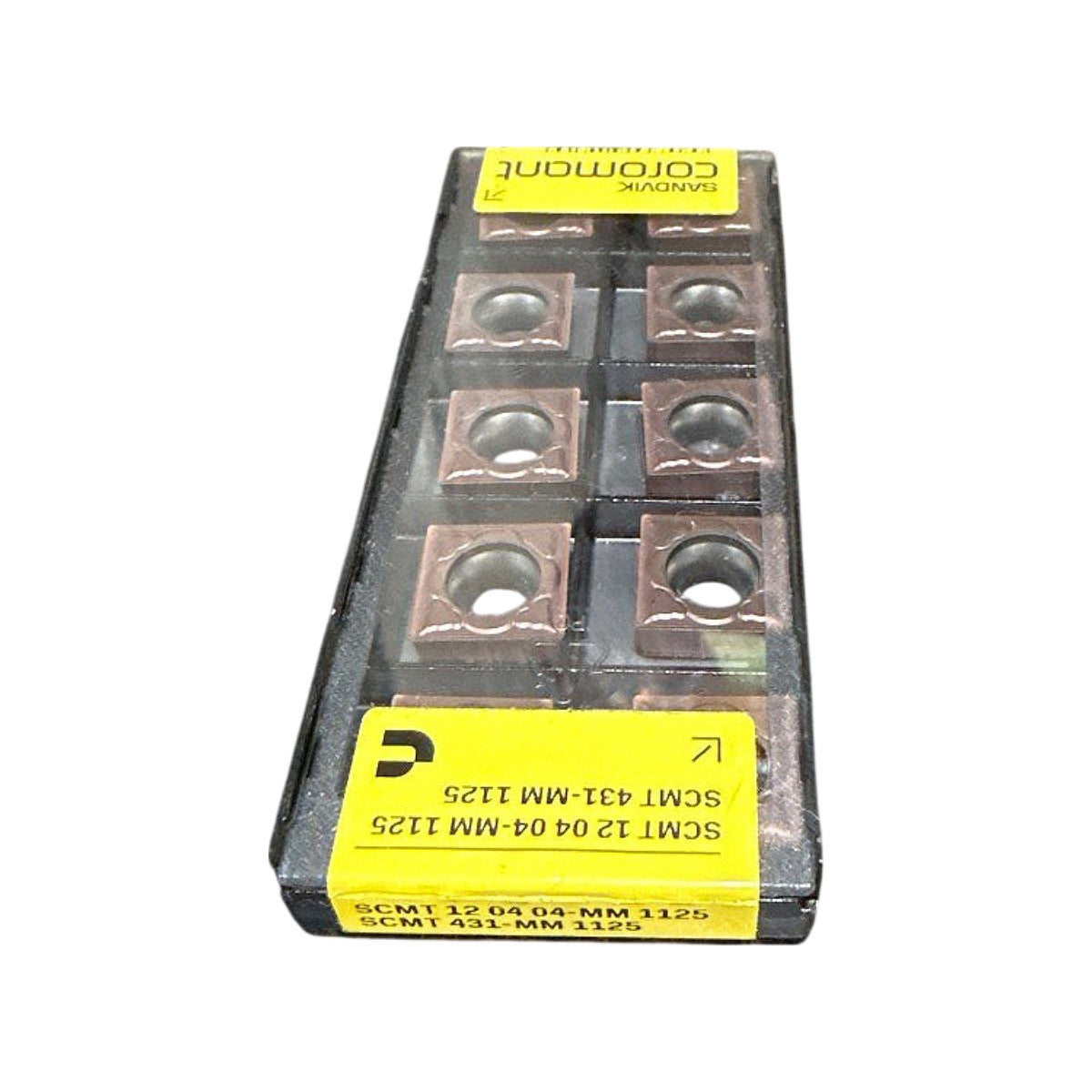

This is a new box of 10 Sandvik Coromant SCMT 12 04 04-MM 1125 (ANSI SCMT 431-MM 1125) carbide turning inserts from the CoroTurn 107 range, made in USA. The insert is a 90° square with a 7° positive clearance, M-class tolerance, a center hole with countersink and a one-sided chipbreaker. It has a 12.7 mm inscribed circle, 4.76 mm thickness and 0.4 mm nose radius, with 4 usable cutting edges. The MM geometry in grade 1125 is aimed at ISO M stainless steel turning, and the pack label gives a starting depth of cut of 1.8 mm (0.3-4.2 mm range), a feed of 0.19 mm/r (0.09-0.28 mm/r) and a speed of 175 m/min (570 sfm), with a 135-205 m/min range, for 200 HB material. It fits screw-clamped toolholders that take SCMT 12 04 04 inserts.
Product Specifications
| Brand | Sandvik Coromant |
| MPN | SCMT 12 04 04-MM 1125 |
| Alternate Part Number | SCMT 431-MM 1125 |
| Item Number | 12342923 |
| Series | CoroTurn 107 |
| Insert Shape | S - Square, 90° |
| Clearance Angle | C - 7° |
| Tolerance Class | M |
| Insert Type | T - Hole w/ countersink, single-sided chipbreaker |
| Inscribed Circle (IC) | 12.7 mm (1/2 in) |
| Cutting Edge Length | 12 mm |
| Thickness | 4.76 mm (3/16 in) |
| Nose Radius | 0.4 mm (1/64 in) |
| Chipbreaker / Geometry | MM |
| Grade | 1125 |
| Material | Carbide |
| Coating | PVD coated |
| Color | Brown/Bronze |
| Number of Cutting Edges | 4 |
| Operation | Turning |
| Workpiece Material | ISO M - Stainless Steel |
| Max Depth of Cut (ap) | 1.8 mm start (0.3-4.2 mm) |
| Feed (fn) | 0.19 mm/r start (0.09-0.28 mm/r) |
| Cutting Speed (vc) | 175 m/min (135-205 m/min), 570 sfm |
| Quantity per Pack | 10 |
| Country of Origin | USA |
