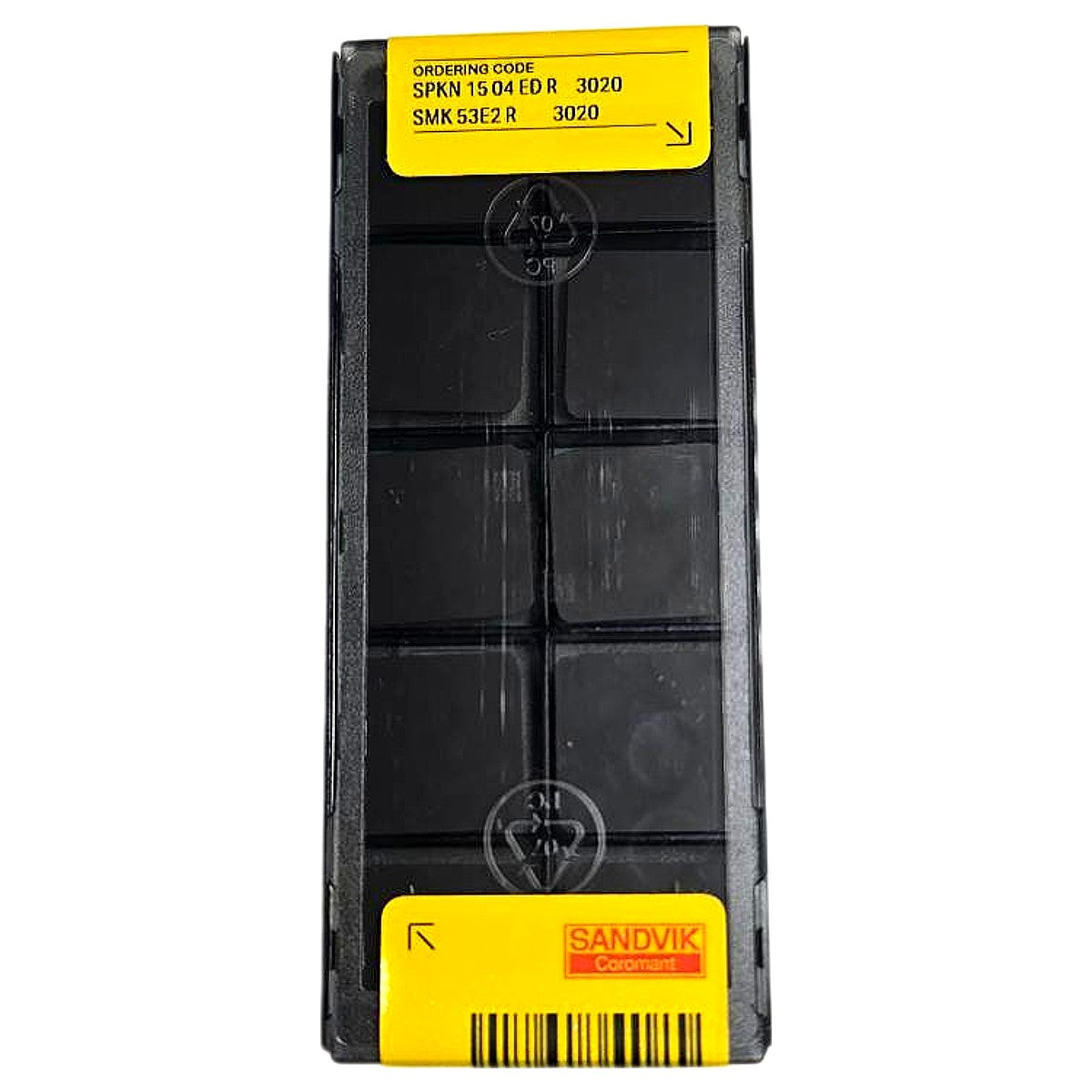

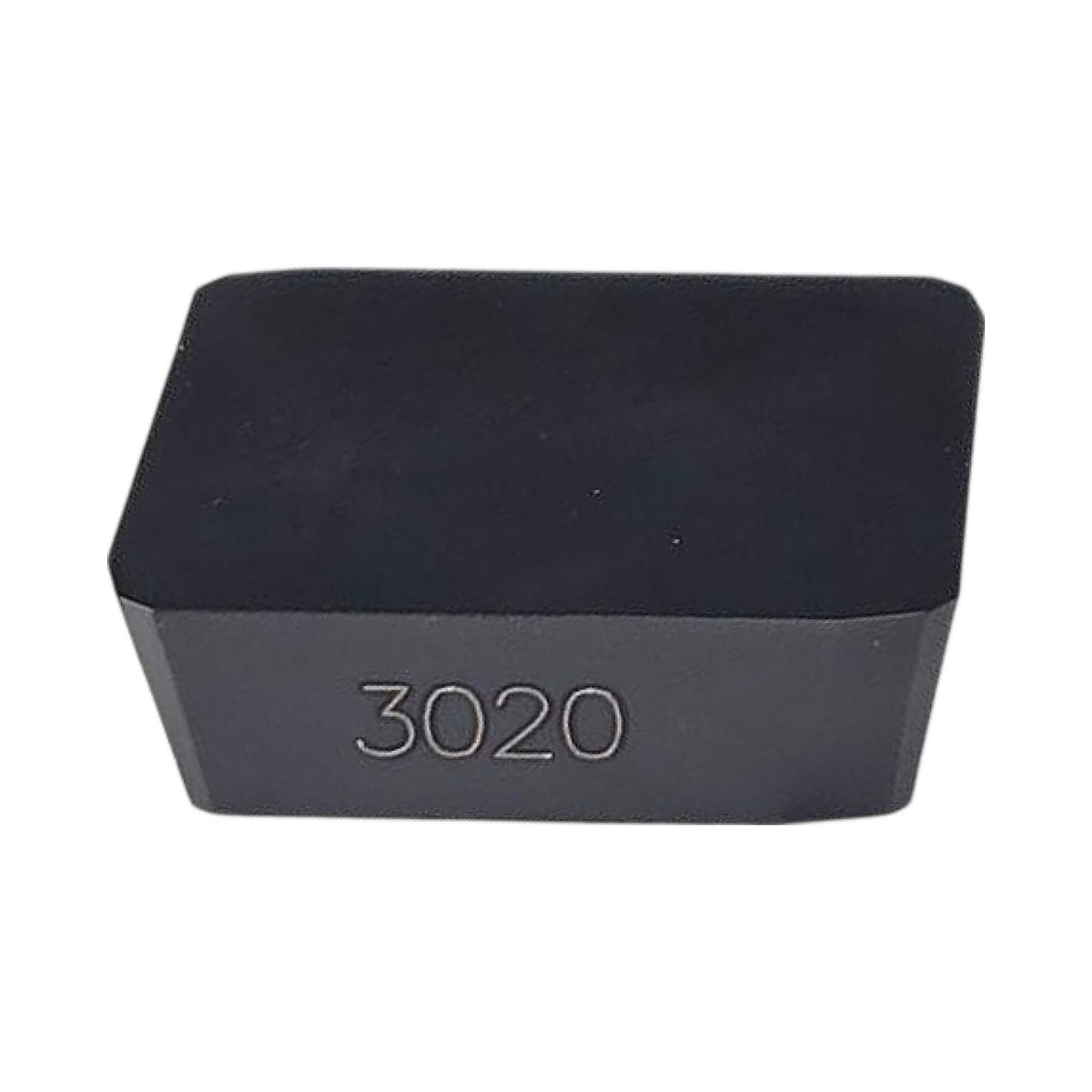

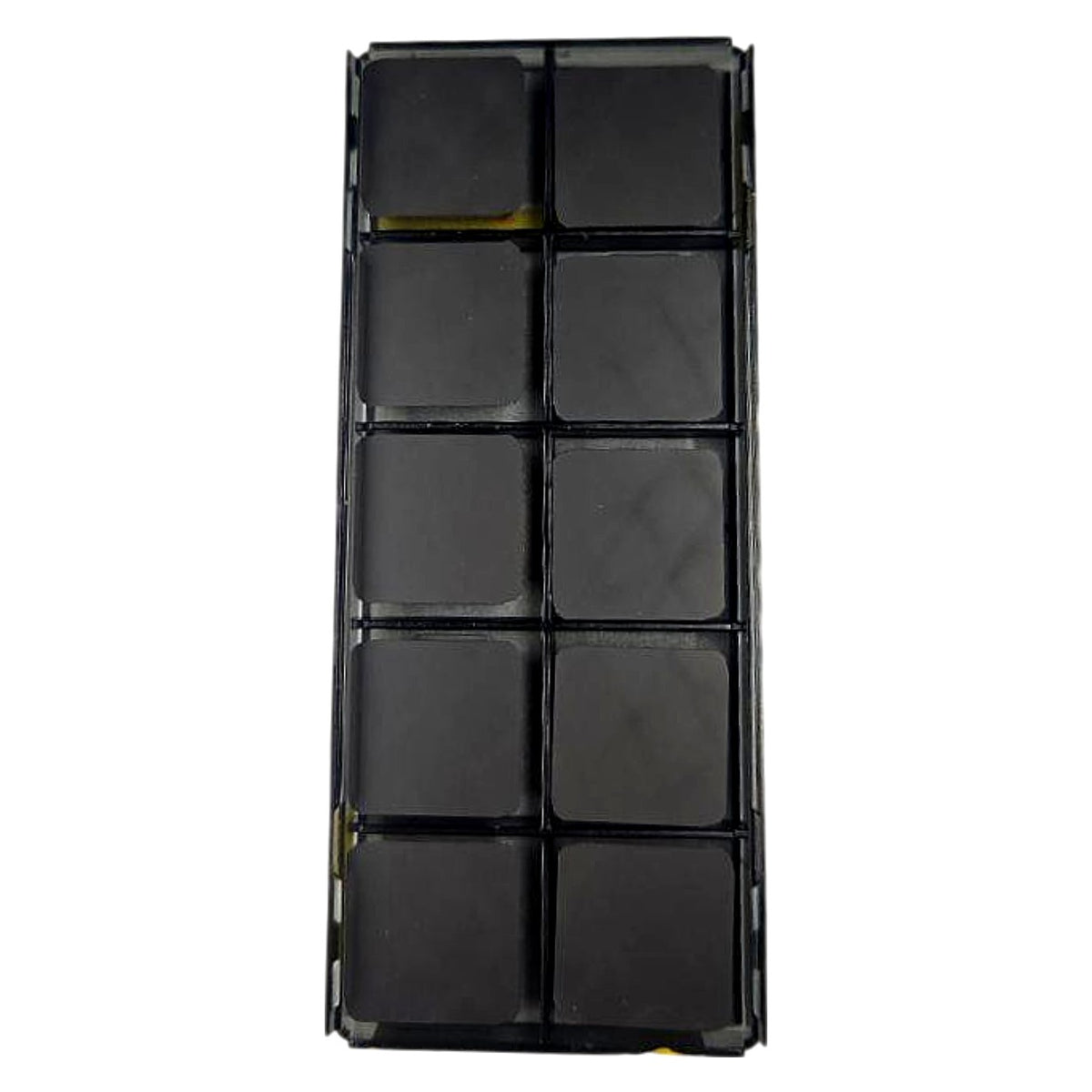

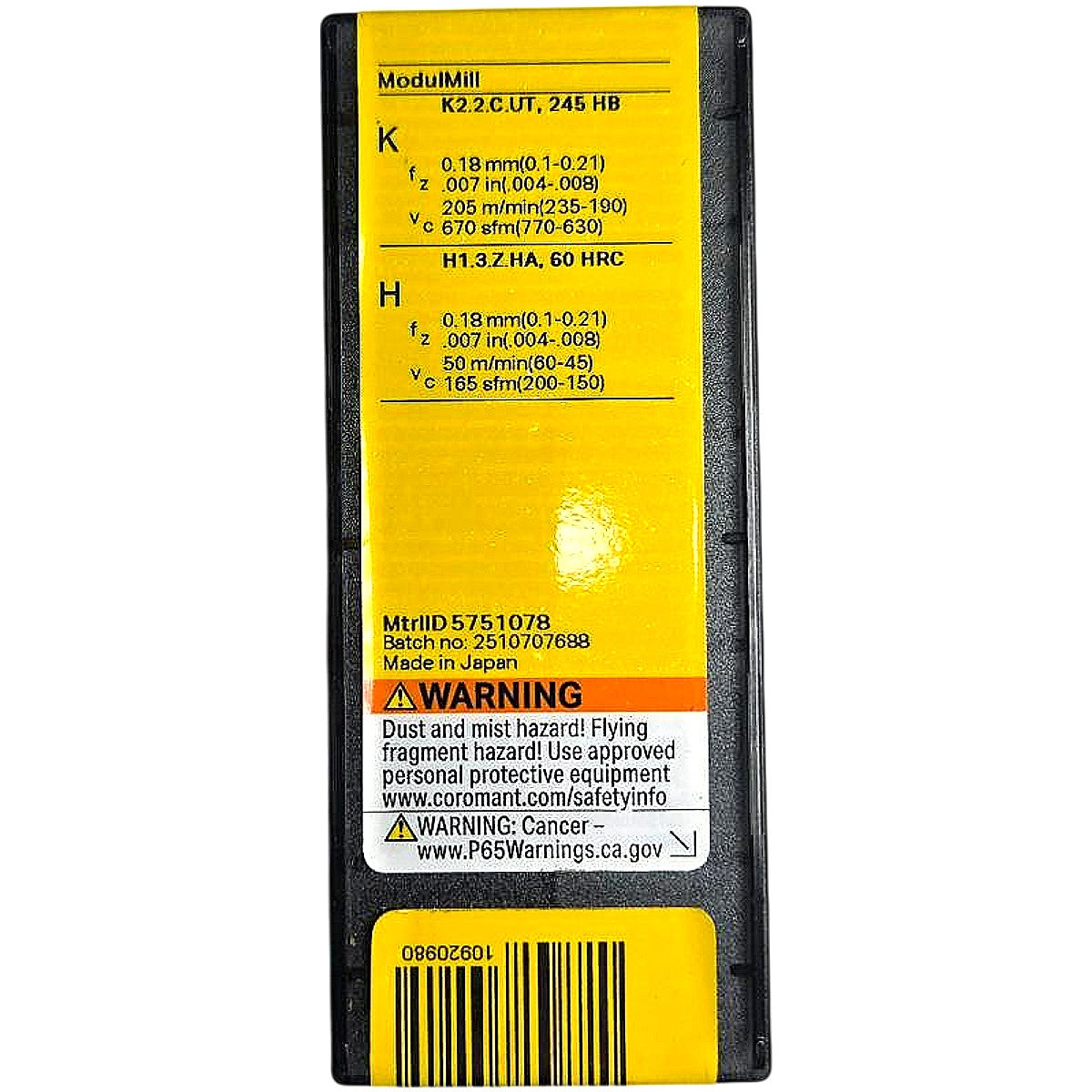

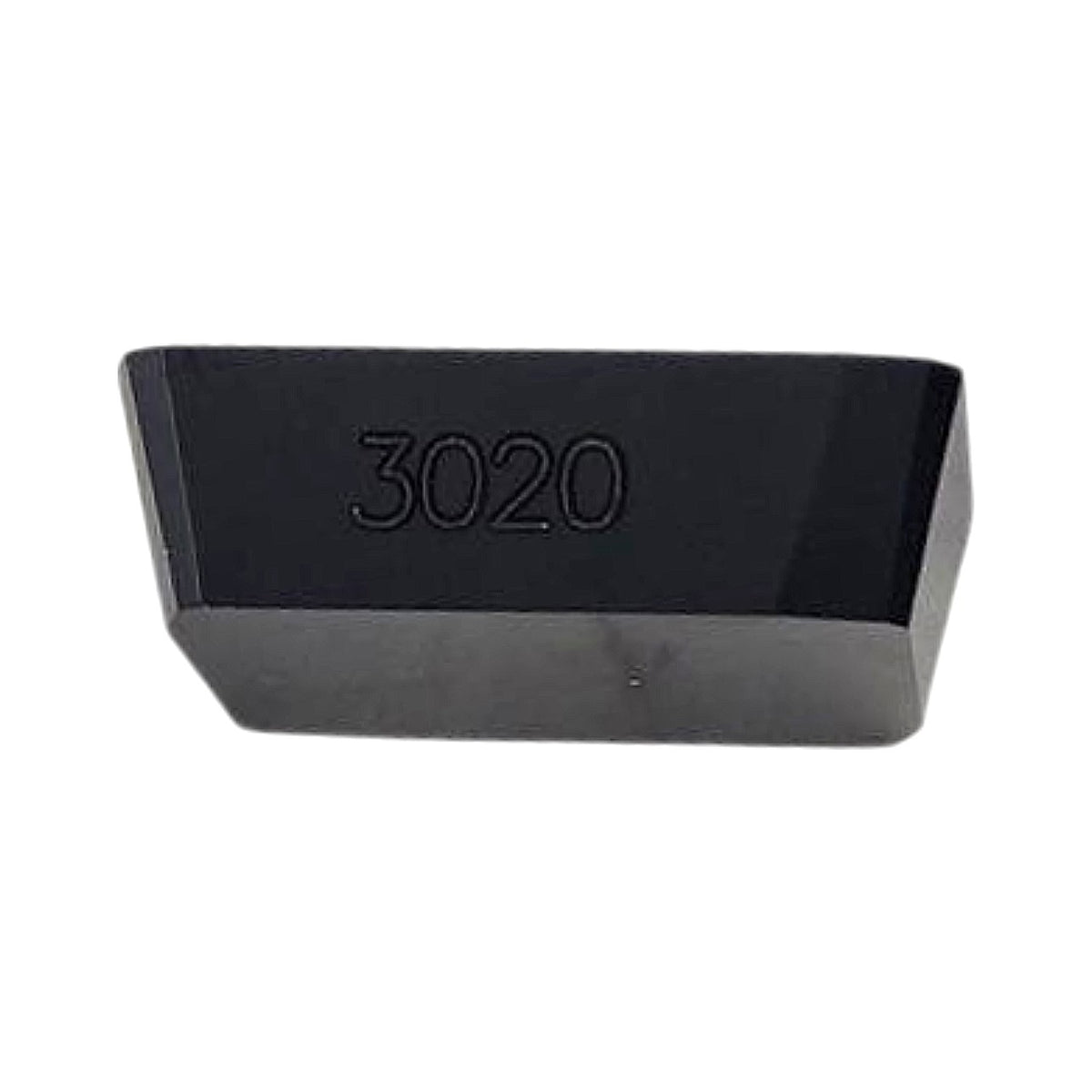

This is a factory-new, sealed box of 10 Sandvik Coromant SPKN 1504EDR 3020 carbide milling inserts (alternate ordering code SMK 53E2 R 3020), designed for the ModulMill face and square shoulder milling system. The insert is an S-shape (square), 15 mm inscribed circle, 04 mm thick, with a negative 0° clearance (N-type), E-tolerance, double-sided geometry, and an EDR chipbreaker optimized for right-hand cutting. Grade 3020 is a PVD-coated (black appearance consistent with TiAlN/TiN-based PVD) uncoated-substrate cemented carbide engineered specifically for hard part milling in ISO K (cast iron, up to 245 HB) and ISO H (hardened steel, up to 60 HRC) material groups. Per the back label, recommended cutting data for K2.2.C.UT (245 HB) is fz 0.18 mm (0.007 in), vc 205 m/min (670 sfm); for H1.3.Z.HA (60 HRC) is fz 0.18 mm (0.007 in), vc 50 m/min (165 sfm). Made in Japan; MtrID 5751078.
Product Specifications
| Brand | Sandvik Coromant |
| MPN | SPKN 1504EDR 3020 |
| Alternate MPN | SMK 53E2 R 3020 |
| Grade | 3020 |
| Insert Shape | S – Square (90°) |
| ISO Shape Code | SPKN |
| Clearance Angle | P – 11° (negative seating, 0° effective) |
| Tolerance Class | K |
| Insert Type / Fixing | N – No hole, no chipbreaker code (EDR geometry) |
| Chipbreaker | EDR |
| Cutting Direction | R – Right-hand |
| Inscribed Circle (IC) | 15.875 mm (5/8 in) |
| Insert Thickness | 4.76 mm (3/16 in) |
| Coating | PVD (black finish) |
| Substrate | Cemented carbide |
| Application System | ModulMill |
| ISO Material Group (K) | K – Cast iron, up to 245 HB |
| ISO Material Group (H) | H – Hardened steel, up to 60 HRC |
| Feed/Tooth – K (fz) | 0.18 mm (0.007 in); range 0.1–0.21 mm |
| Cutting Speed – K (vc) | 205 m/min / 670 sfm; range 630–770 sfm |
| Feed/Tooth – H (fz) | 0.18 mm (0.007 in); range 0.1–0.21 mm |
| Cutting Speed – H (vc) | 50 m/min / 165 sfm; range 150–200 sfm |
| Quantity | 10 pieces |
| Country of Origin | Japan |
| Material ID | 5751078 |
| Condition | New (factory sealed) |
