Sandvik T100-KM105AA-M12 CoroTap 100 M12 6HX Spiral Flute Tap
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

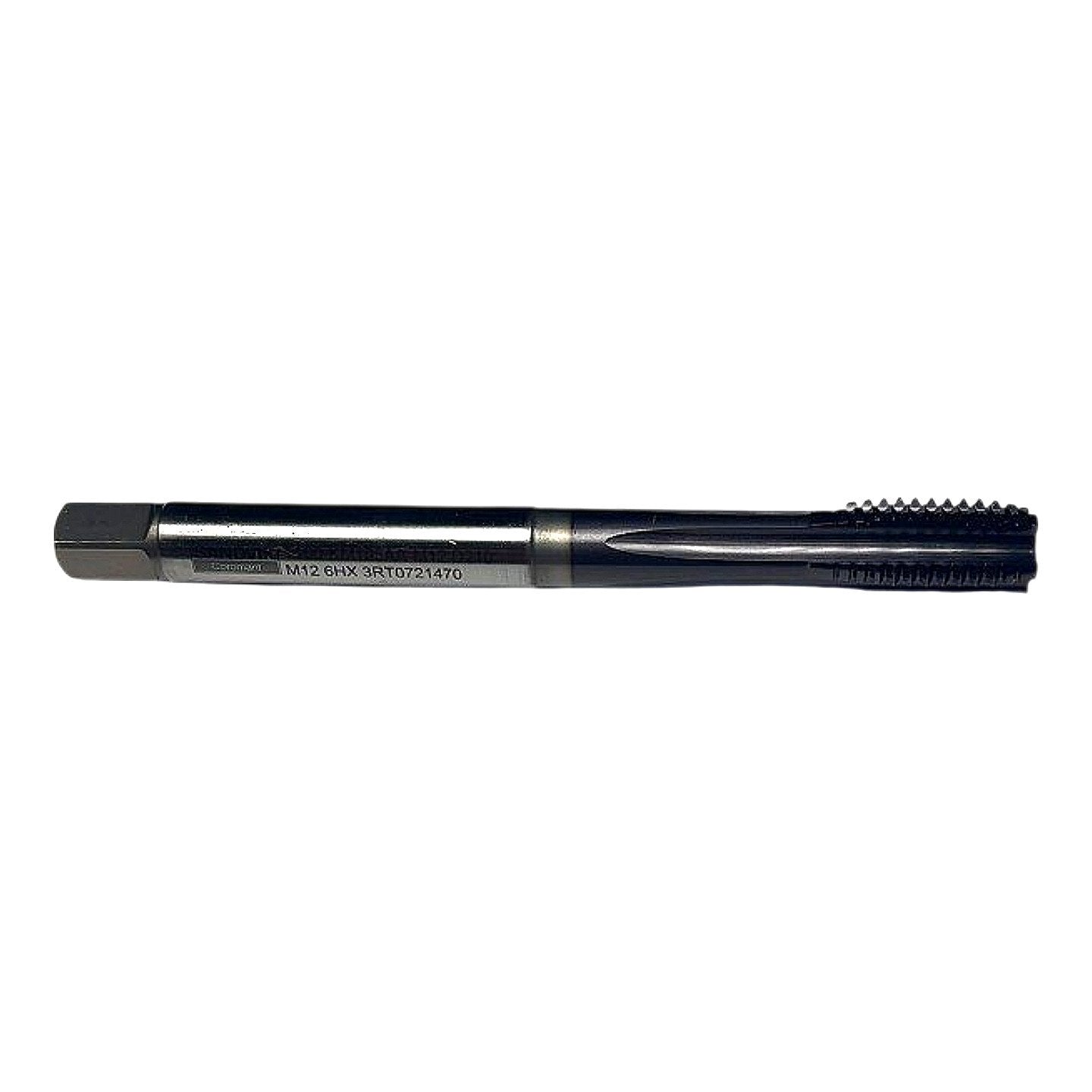

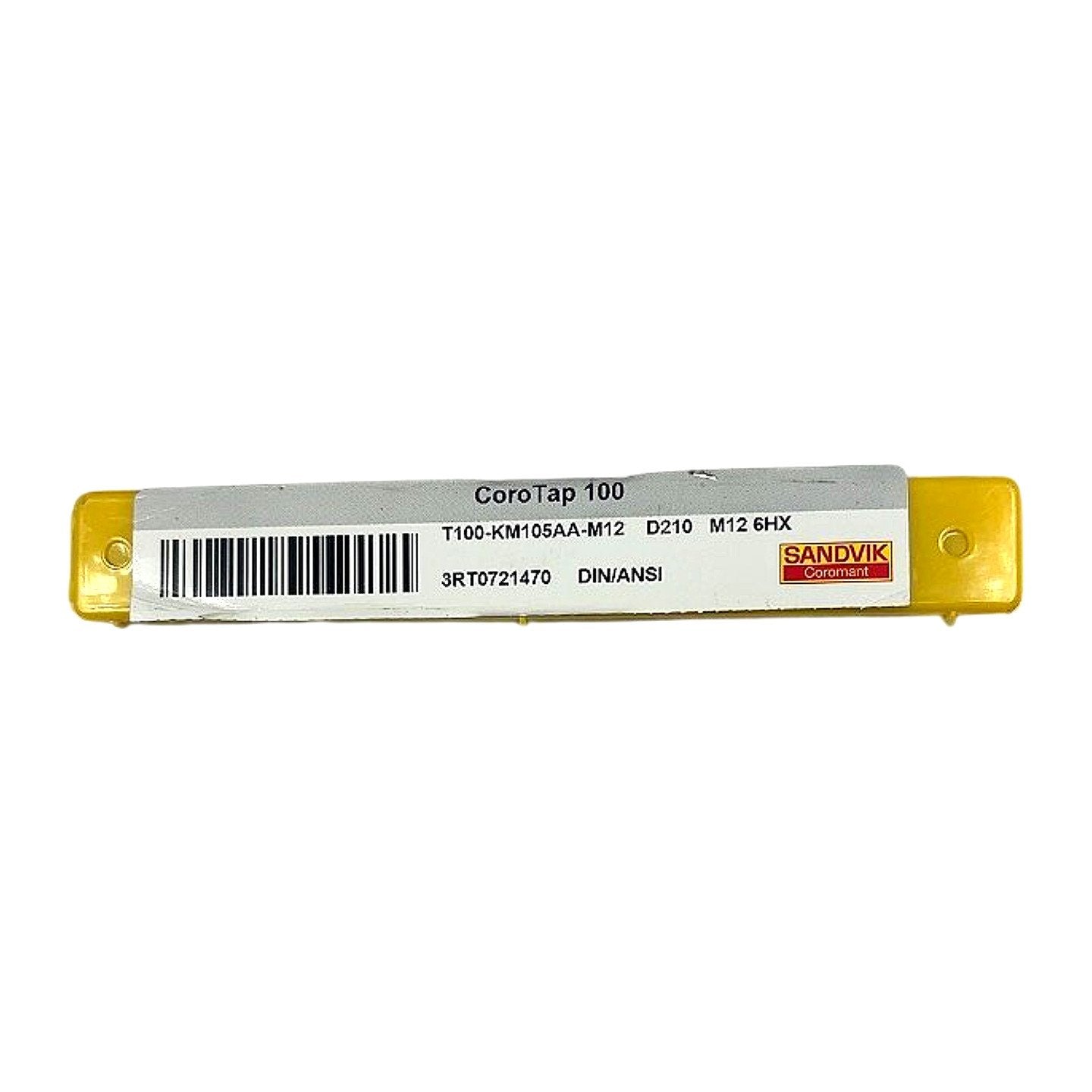

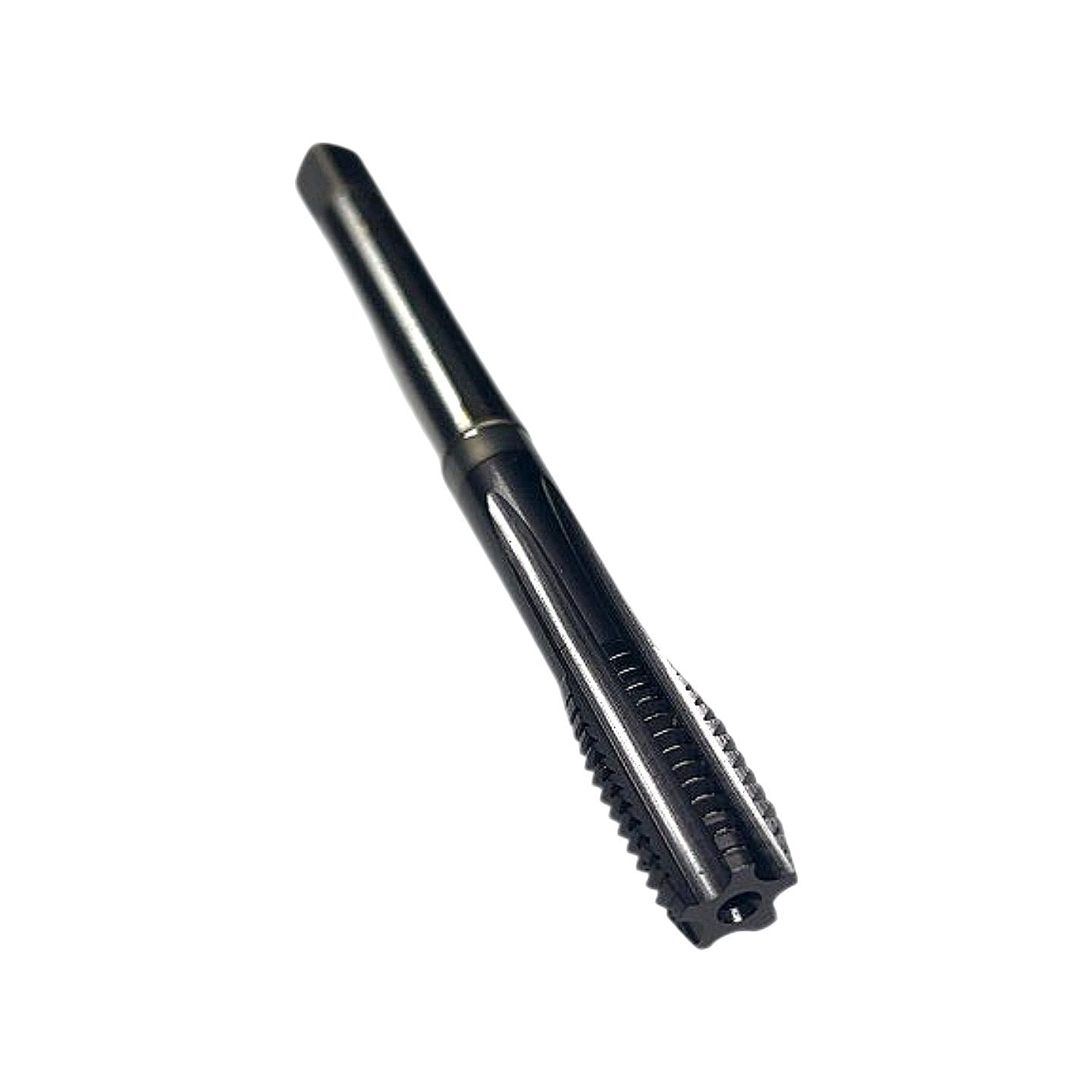

This is a new Sandvik Coromant CoroTap 100 spiral flute machine tap, part number T100-KM105AA-M12, catalog order code 3RT0721470, for cutting M12 threads to a 6HX tolerance class per DIN/ANSI standards. The CoroTap 100 series is designed for through-hole tapping in steel, cast iron, and similar short-chipping materials, using a spiral flute geometry to evacuate chips upward out of the hole during the cut. The D210 designation indicates an overall length of 210 mm, and the KM105AA shank is a cylindrical shank with internal coolant supply through the tap body, enabling high-pressure through-coolant delivery directly to the cutting zone for improved tool life and chip control at elevated spindle speeds in CNC machining centers. The tap features a black oxide/steam-oxide surface treatment visible in the photos, consistent with Sandvik's standard finish for this series, which reduces friction and provides corrosion resistance during storage and use.
Product Specifications
| Brand | Sandvik Coromant |
| Product Line | CoroTap 100 |
| Part Number (MPN) | T100-KM105AA-M12 |
| Order Code | 3RT0721470 |
| Thread Size | M12 |
| Thread Pitch | 1.75 mm (M12 coarse pitch standard) |
| Thread Tolerance Class | 6HX |
| Standard | DIN/ANSI |
| Overall Length | 210 mm |
| Flute Type | Spiral flute |
| Shank Type | Cylindrical w/ internal coolant (KM105AA) |
| Coolant | Through-tap internal coolant |
| Surface Treatment | Black oxide / steam oxide |
| Condition | New |
| Hole Type | Through hole |
