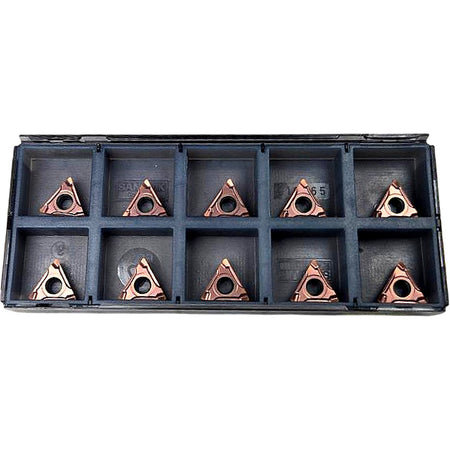

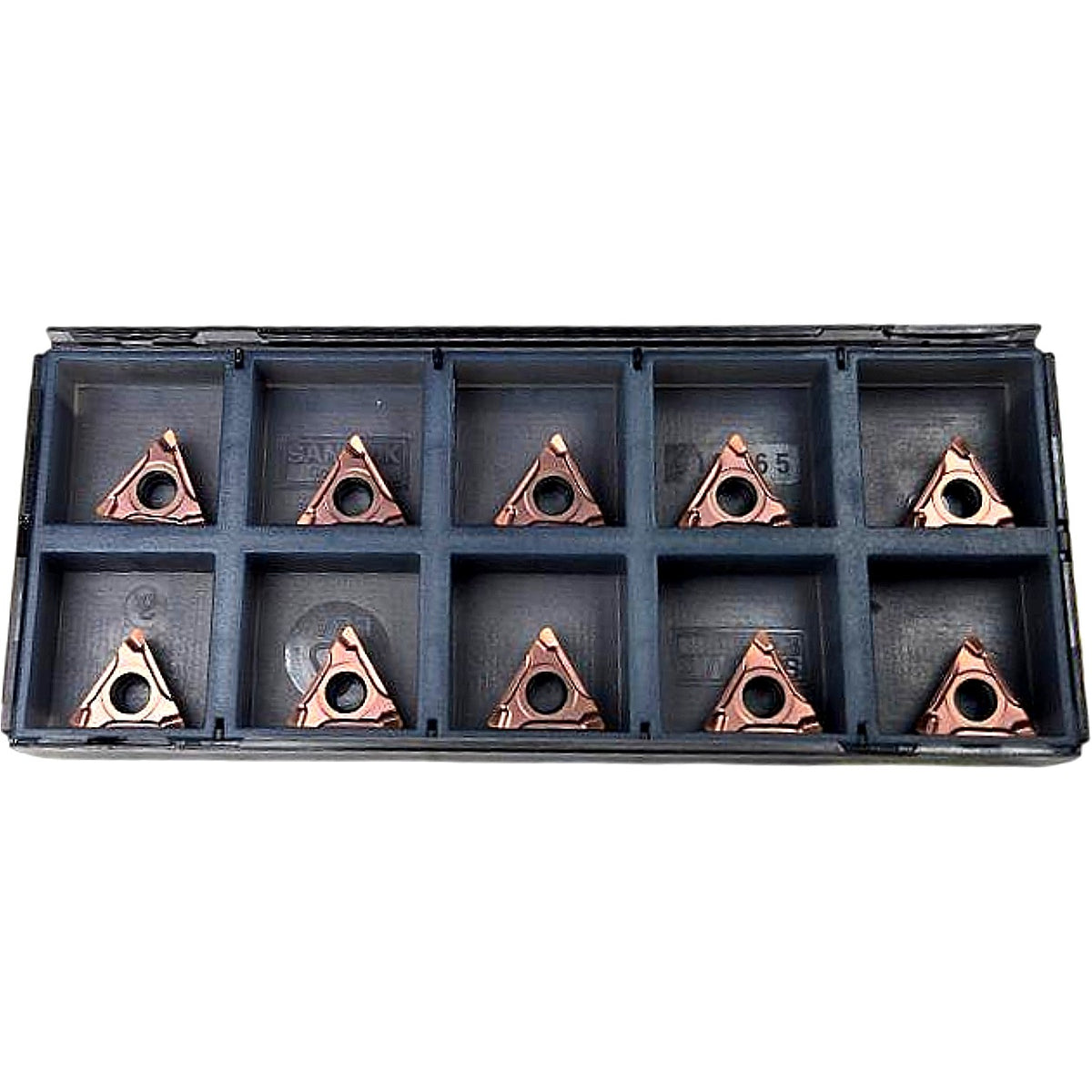

Sandvik TCGX 110304L-WK 1125 CVD Carbide Turning Insert (10 Pcs)

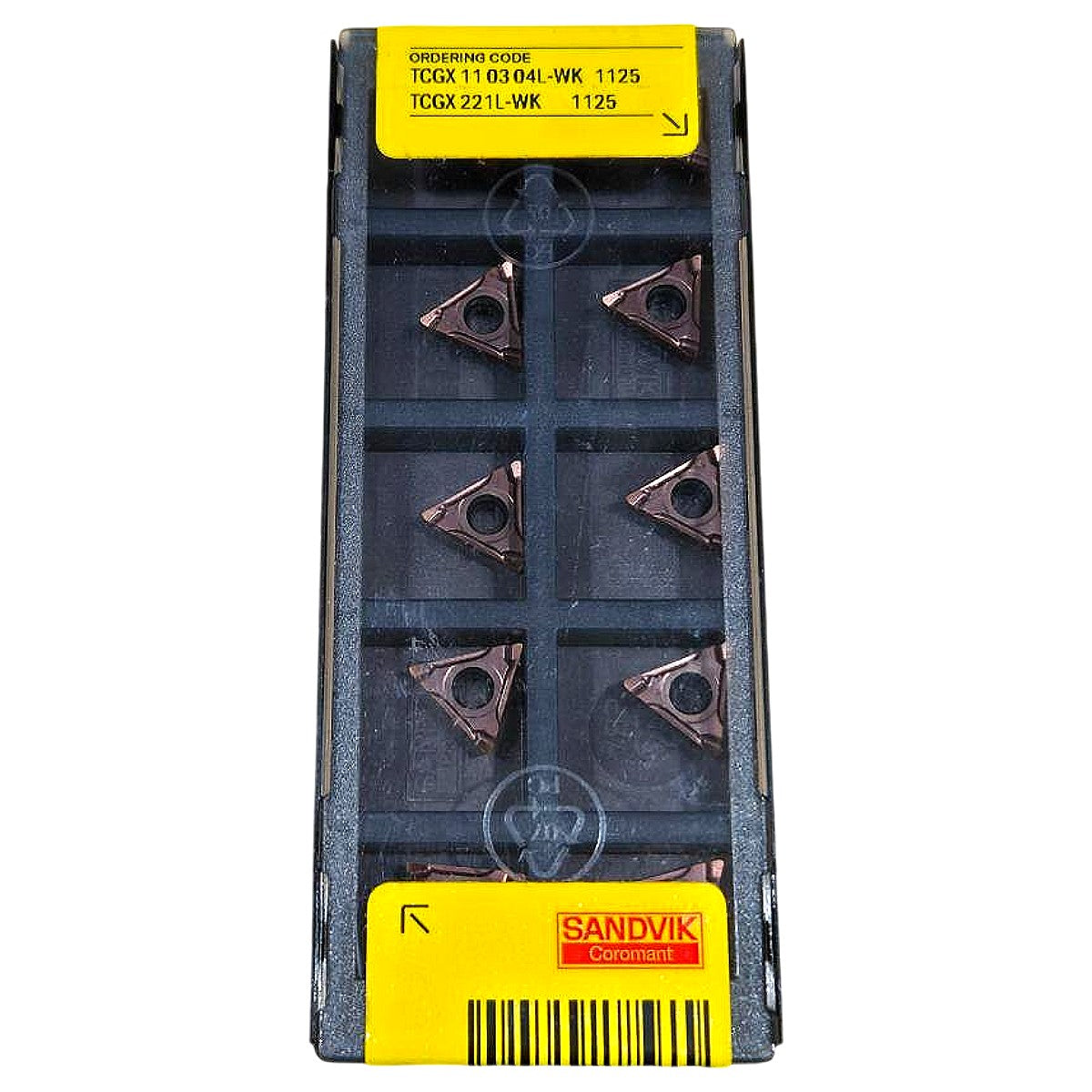

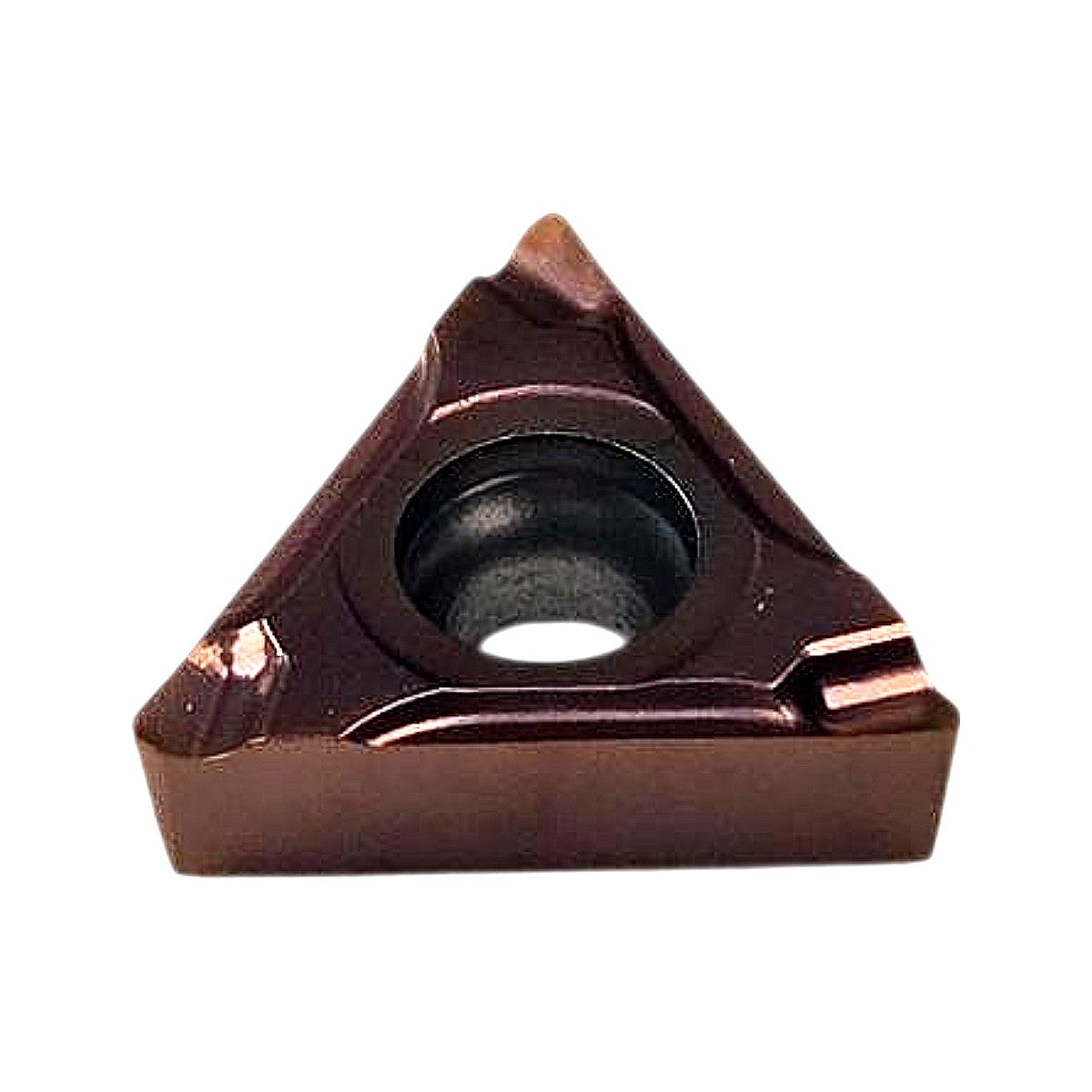

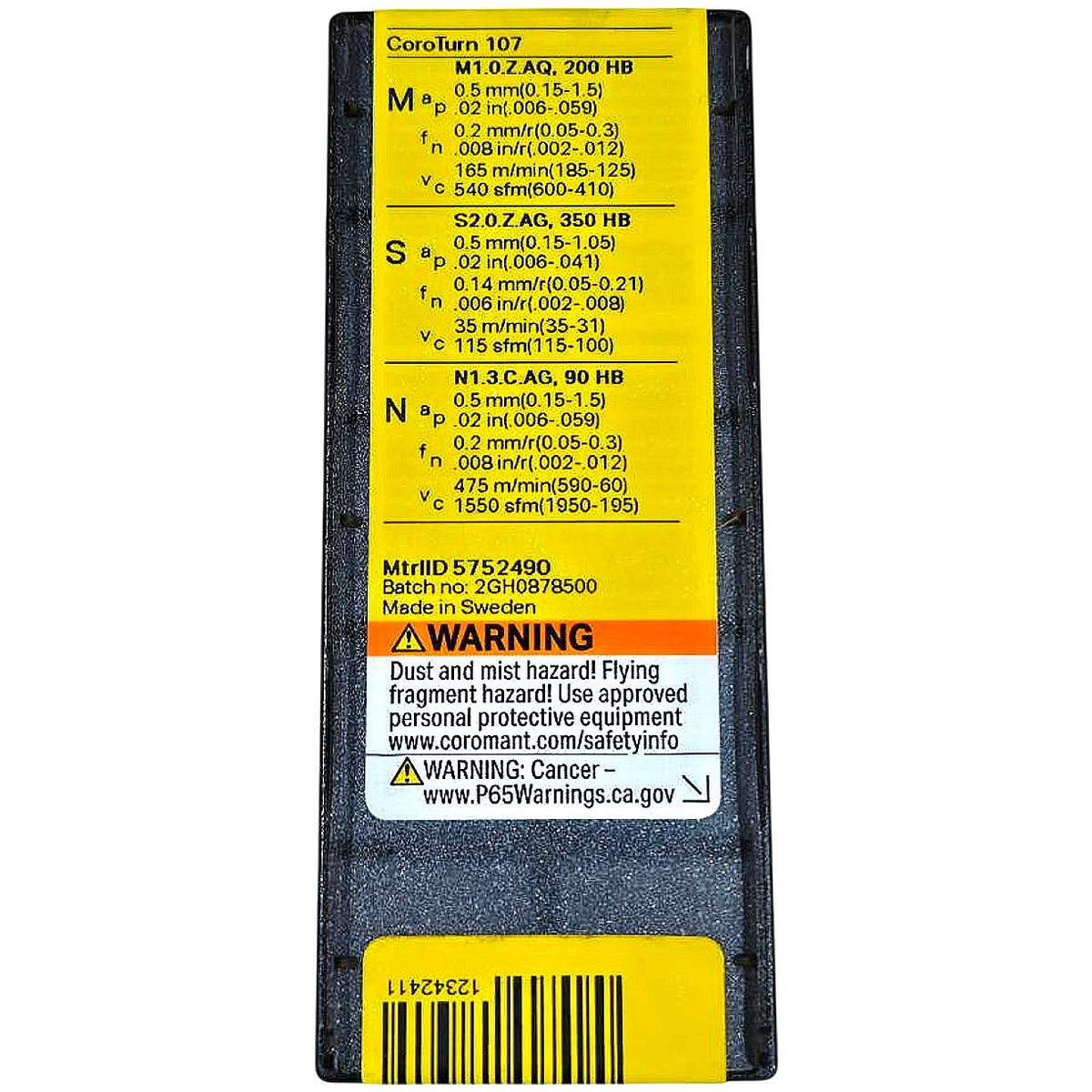

The Sandvik Coromant TCGX 110304L-WK 1125 (also designated TCGX 221L-WK 1125) is a new, ground, triangular carbide turning insert from the CoroTurn 107 product line, designed for positive-rake, light-cutting finish turning operations. ISO designation decodes as: T = triangular (60°), C = 7° clearance angle, G = close tolerance (±0.025 mm on thickness, ±0.013 mm on inscribed circle), X = special chipbreaker/geometry, 11 03 04 = 11 mm inscribed circle / 3.18 mm thickness / 0.4 mm nose radius, L = left-hand cutting direction, WK = Sandvik's sharp, polished chipbreaker geometry optimized for light finishing cuts. Grade 1125 is a PVD-coated cemented carbide featuring a (Ti,Al)N-based coating applied over a fine-grained substrate, delivering superior edge sharpness and wear resistance; it is particularly suited for finishing stainless steel (ISO M), heat-resistant superalloys (ISO S), and non-ferrous/aluminum alloys (ISO N) at the cutting data shown on the label (e.g., Vc up to 540 sfm in stainless, up to 1550 sfm in non-ferrous). Compatible toolholders follow the CoroTurn 107 system accepting TCGX 11 03 inserts, including Sandvik A/C/S-STFCL/R and equivalent S-type boring bars and external holders. This listing contains 10 new inserts in the original Sandvik Coromant packaging tray.

Product Specifications
