Sandvik TLR-4062L H13A Carbide Grooving Insert (10pc)

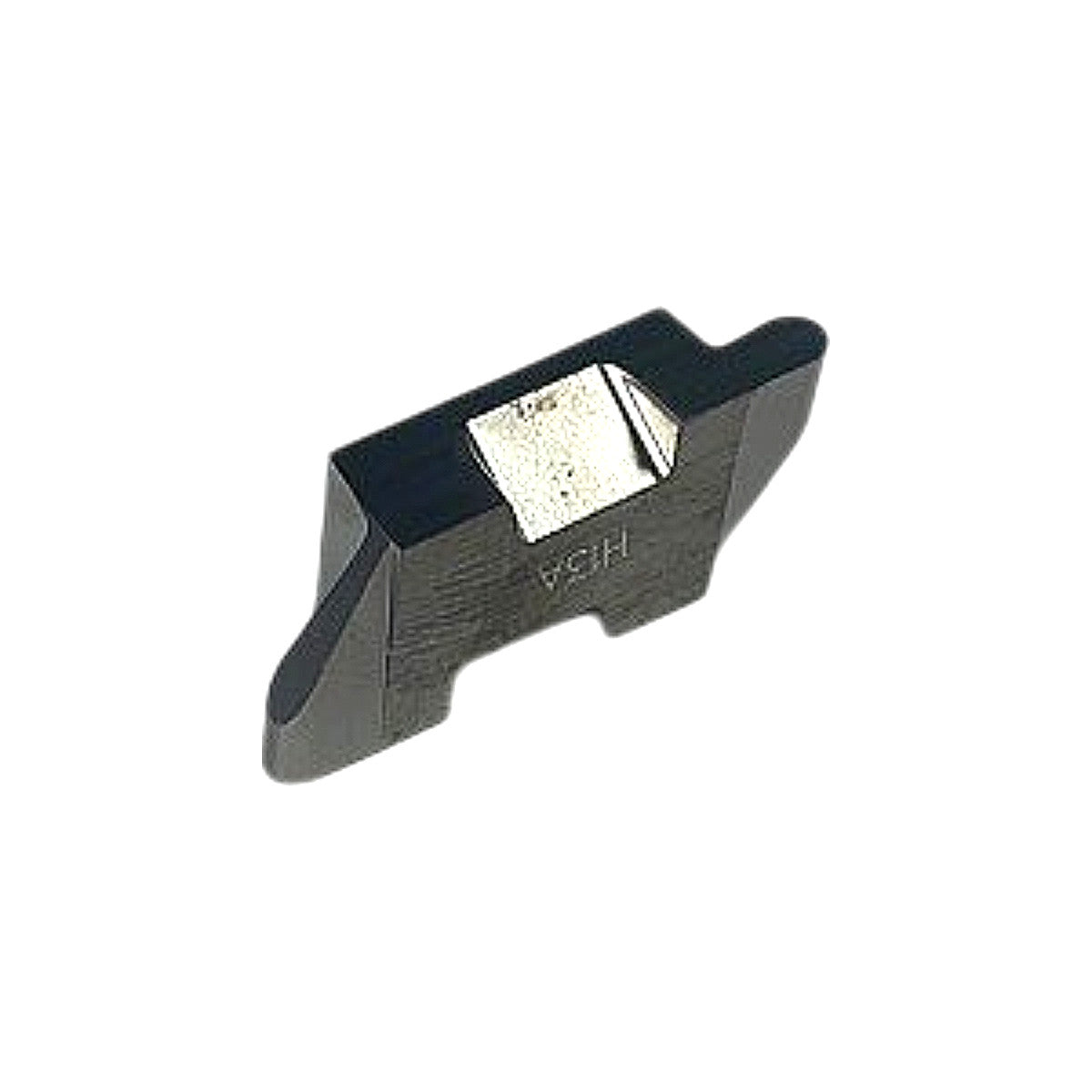

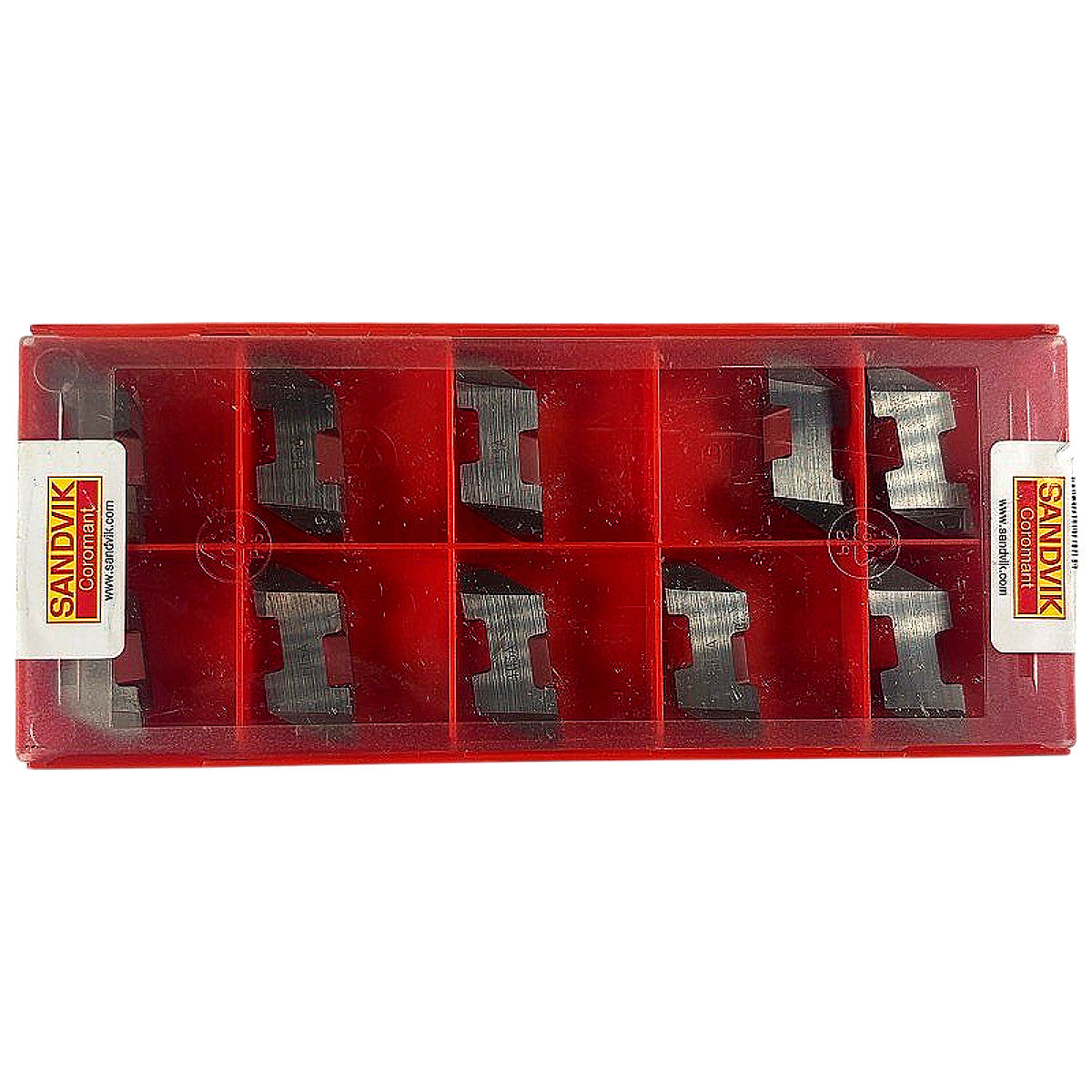

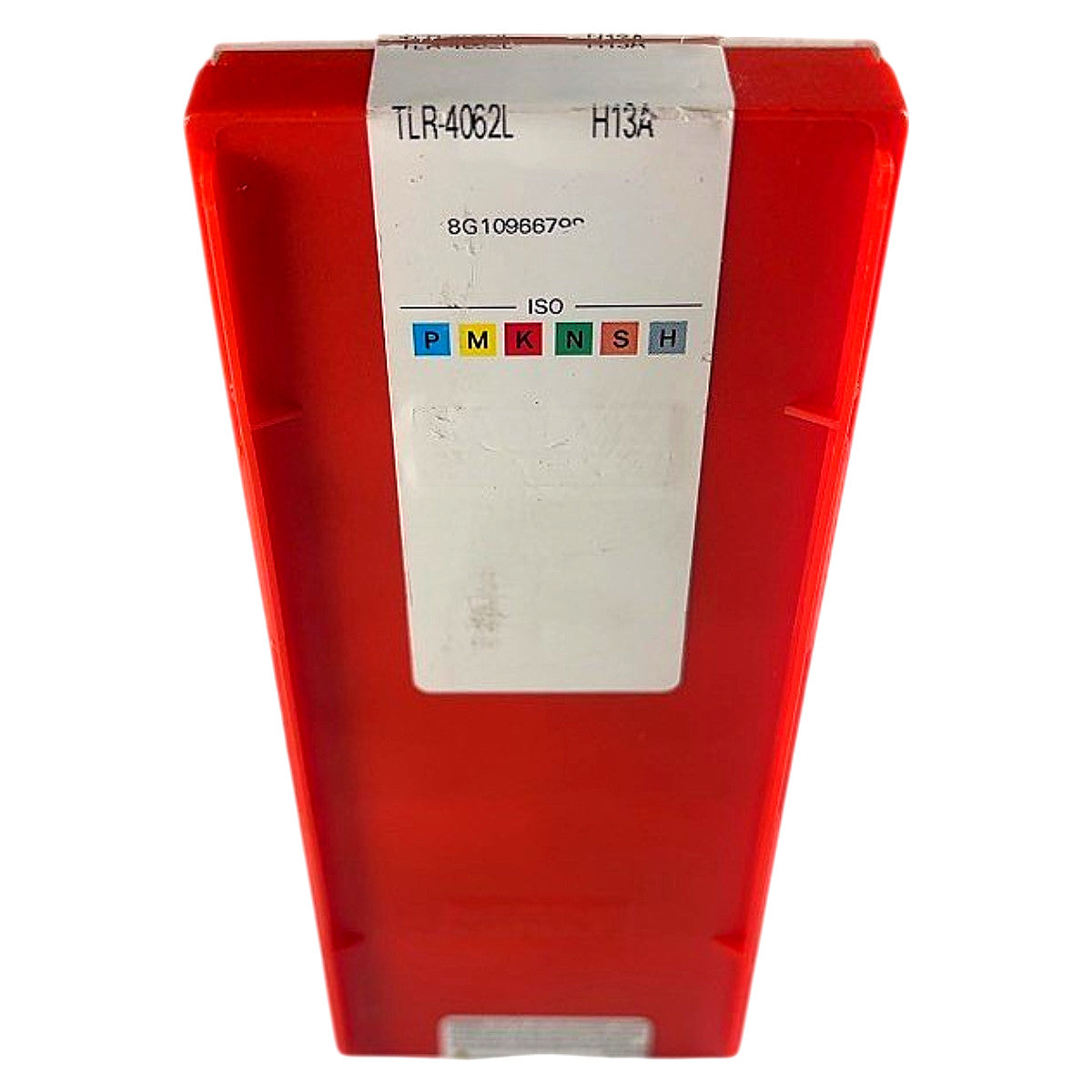

The Sandvik Coromant TLR-4062L is a left-hand carbide grooving/parting insert in grade H13A, designed for use in Sandvik's CoroCut and T-Max Q-Cut toolholder systems. H13A is an uncoated cemented carbide grade optimized for non-ferrous and non-metallic materials — particularly aluminum alloys, copper, brass, plastics, and composites (ISO N material group), where sharp cutting edges and low cutting forces are critical; the label confirms ISO material applicability across P, M, K, N, S, and H groups, with H13A excelling in K and N applications. The "L" suffix designates a left-hand cutting orientation, and the "4062" encodes the insert geometry within the T-Max/CoroCut Q-Cut system, with a 4.0 mm cutting width and a profile suited to external grooving and parting operations. This factory-fresh box contains 10 new inserts in the standard Sandvik red plastic tray, each individually seated, with the grade designation "H13A" stamped directly on the insert body as confirmed in the product photos.

Product Specifications
