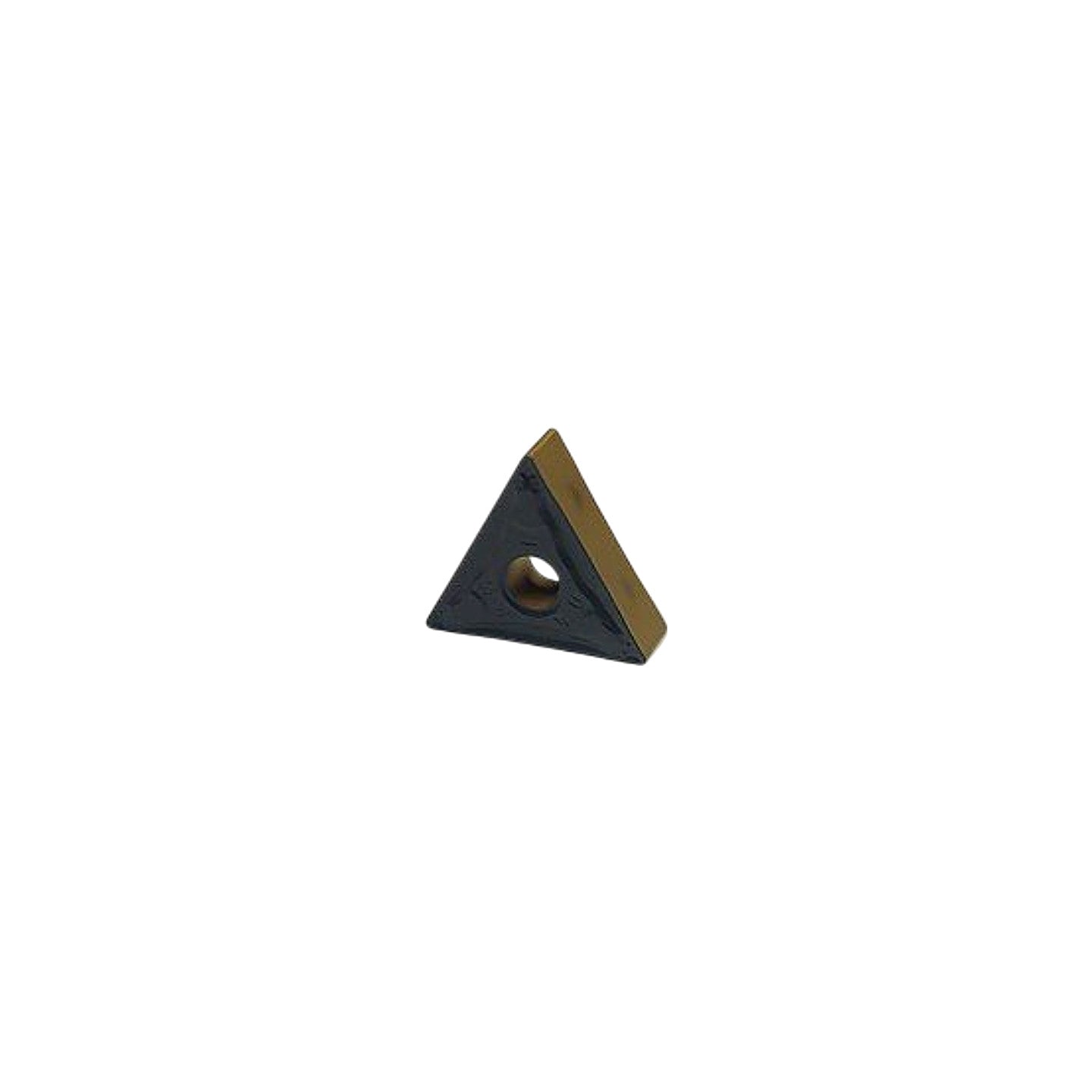

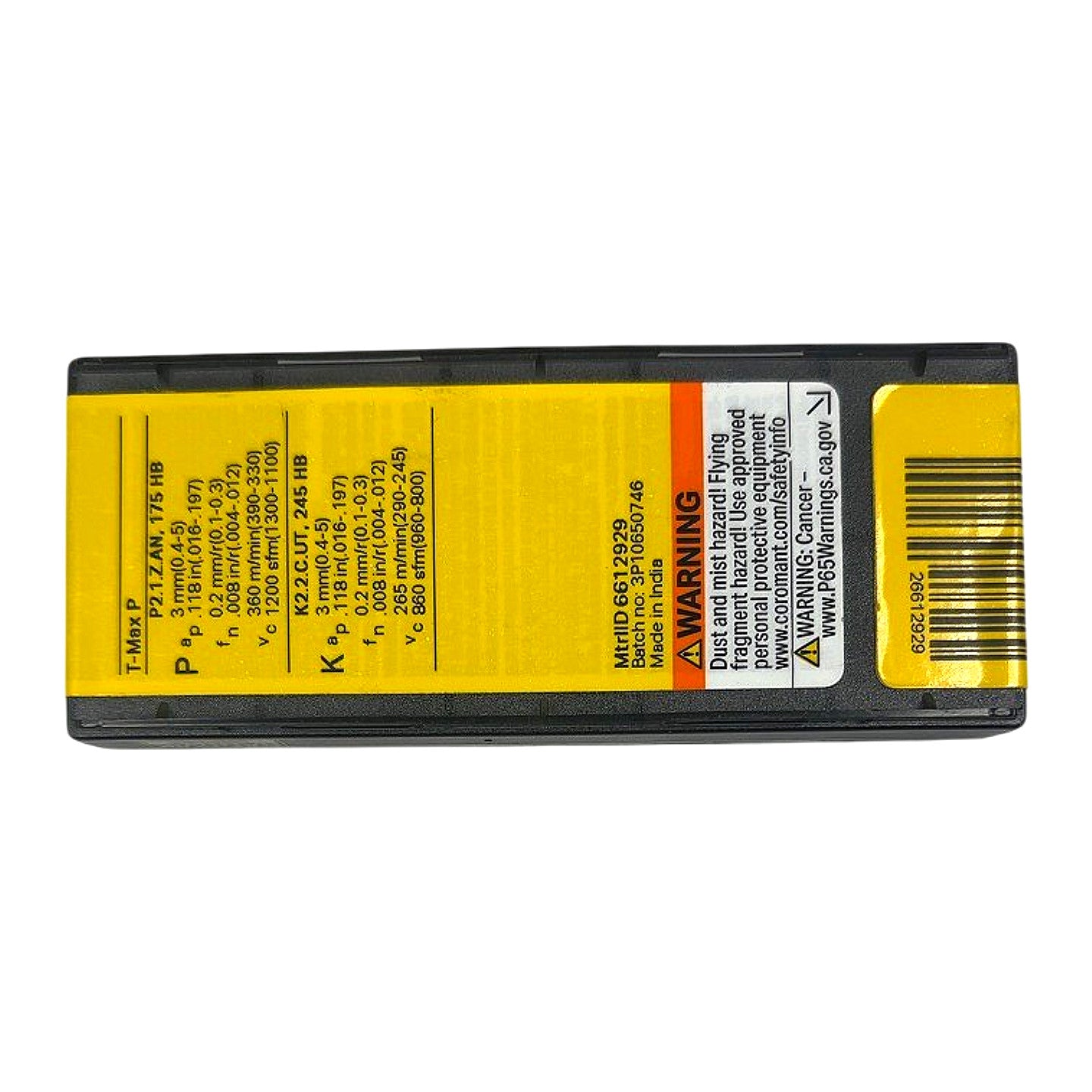

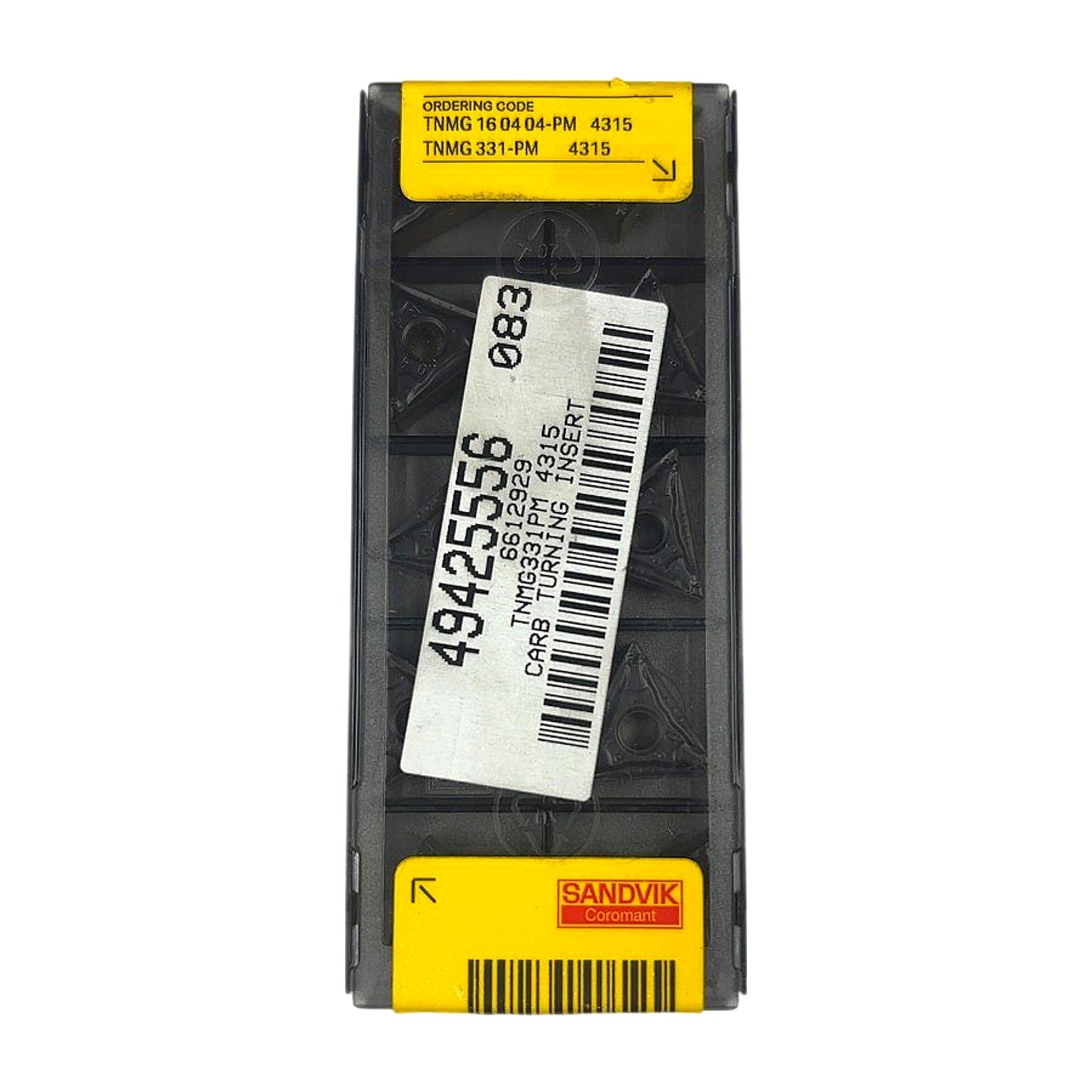

These are new Sandvik Coromant TNMG 160404-PM (TNMG 331-PM) grade 4315 carbide turning inserts from the T-Max P line, sold in the original 10-piece factory cassette. Grade 4315 is a CVD-coated cemented carbide featuring a Ti(C,N)/Al2O3 multilayer coating with a PVD top layer, engineered for the P2.1 steel turning application range with a hardness target of 175 HB, and also rated for K2.2 cast iron cutting up to 245 HB. The PM chipbreaker geometry is a positive-rake medium-finishing chipbreaker suited for depths of cut from 0.4–5 mm, feed rates of 0.1–0.3 mm/r, at cutting speeds of 360–1200 m/min (1300–1100 sfm) in steel and 265–860 m/min (960–800 sfm) in cast iron as printed on the package label. The triangular TNMG shape provides three indexable 60° cutting edges with a 0° clearance angle (negative insert, used with positive-rake toolholders), 9/64 in (3.97 mm) nose radius of 0.4 mm, and fits standard TNMG 16 toolholders such as Sandvik T-Max P holders in the MTJN/PTJN/STFCL families.
Product Specifications
| Brand | Sandvik Coromant |
| ISO Ordering Code (Metric) | TNMG 160404-PM 4315 |
| ISO Ordering Code (Inch) | TNMG 331-PM 4315 |
| Insert Shape | T - Triangular (60°) |
| Clearance Angle | N - 0° (negative) |
| Tolerance Class | M |
| Chipbreaker / Seat | G - with hole, chipbreaker both sides |
| Chipbreaker Geometry | PM - positive medium finishing |
| Inscribed Circle (IC) | 9.525 mm (3/8 in) |
| Insert Thickness | 4.76 mm (3/16 in) |
| Nose Radius | 0.4 mm (1/64 in) |
| Grade | 4315 |
| Coating Type | CVD Ti(C,N)/Al2O3 w/ PVD top layer |
| Substrate | Cemented carbide |
| Product Line | T-Max P |
| ISO Application Range (Steel) | P2.1 |
| ISO Application Range (Cast Iron) | K2.2 |
| Workpiece Hardness - Steel | 175 HB |
| Workpiece Hardness - Cast Iron | 245 HB |
| Depth of Cut (ap) | 0.4–5 mm (0.016–0.197 in) |
| Feed Rate (fn) | 0.1–0.3 mm/r (0.004–0.012 in/r) |
| Cutting Speed Steel (vc) | 360–1200 m/min (1300–1100 sfm) |
| Cutting Speed Cast Iron (vc) | 265–860 m/min (960–800 sfm) |
| Number of Cutting Edges | 6 (3 edges x 2 sides) |
| Quantity per Package | 10 |
| Sandvik Material ID (MtrID) | 6612929 |
| Country of Origin | India |
| Condition | New |
