Sandvik TNMG 433-0M 4315 Carbide Turning Insert (5 Pcs)
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

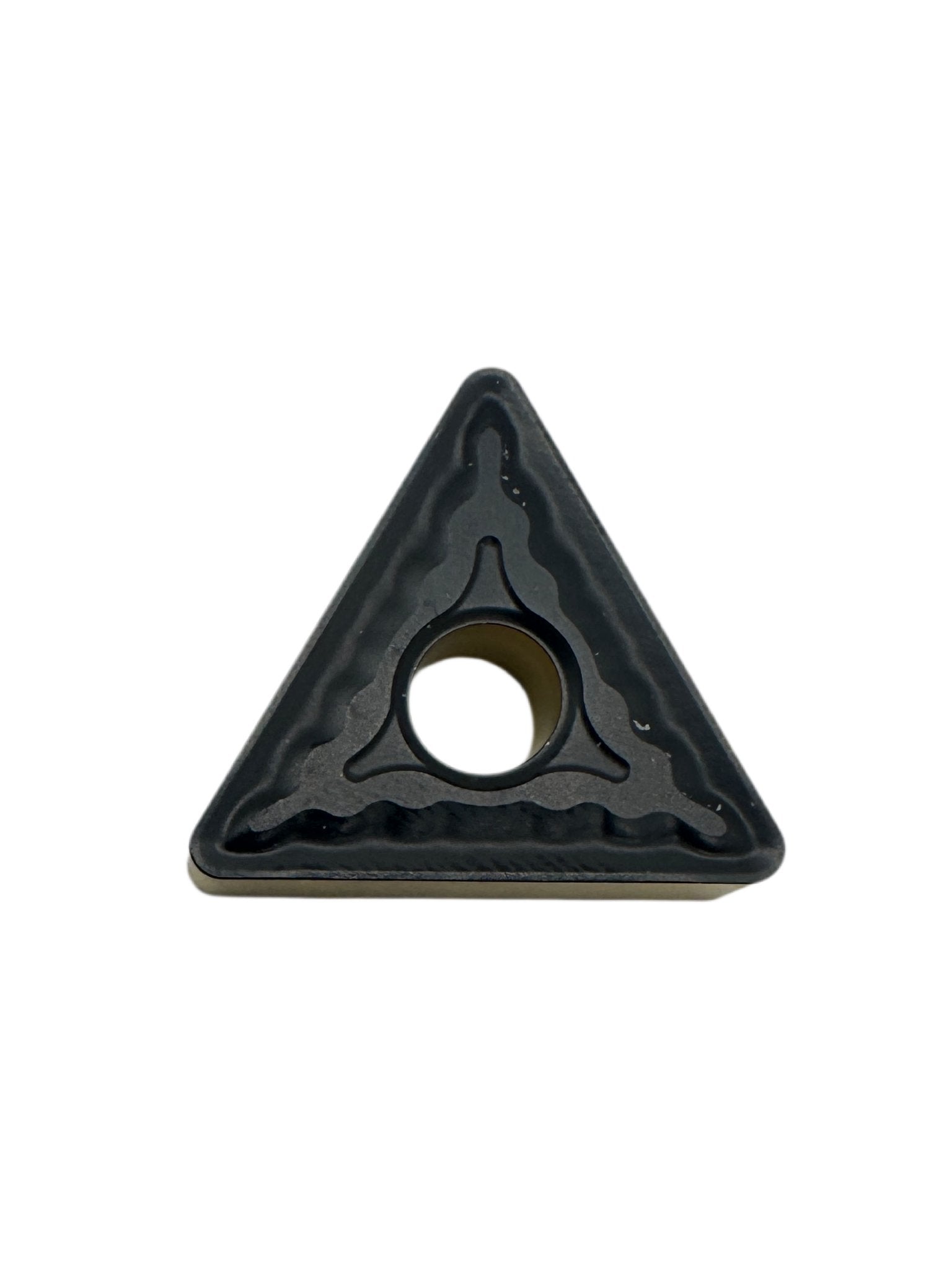

This Sandvik TNMG 433-0M indexable carbide turning insert is engineered for general-purpose machining operations on steel, stainless steel, and cast iron materials. Featuring a triangular geometry with a 12mm nose radius and negative rake angle, this insert delivers excellent finish and reliability across a wide range of turning applications. The 4315 grade carbide composition provides optimal balance between toughness and wear resistance.

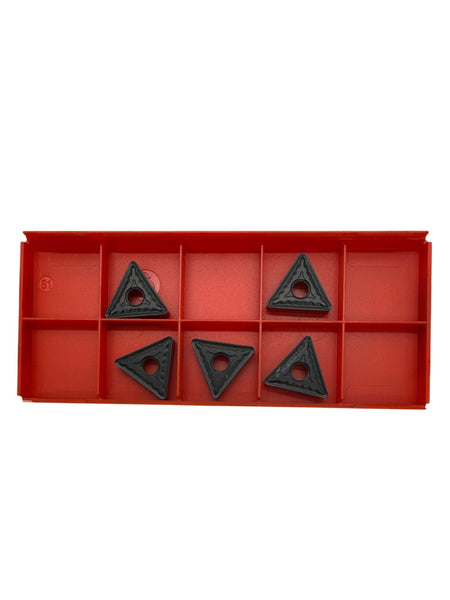

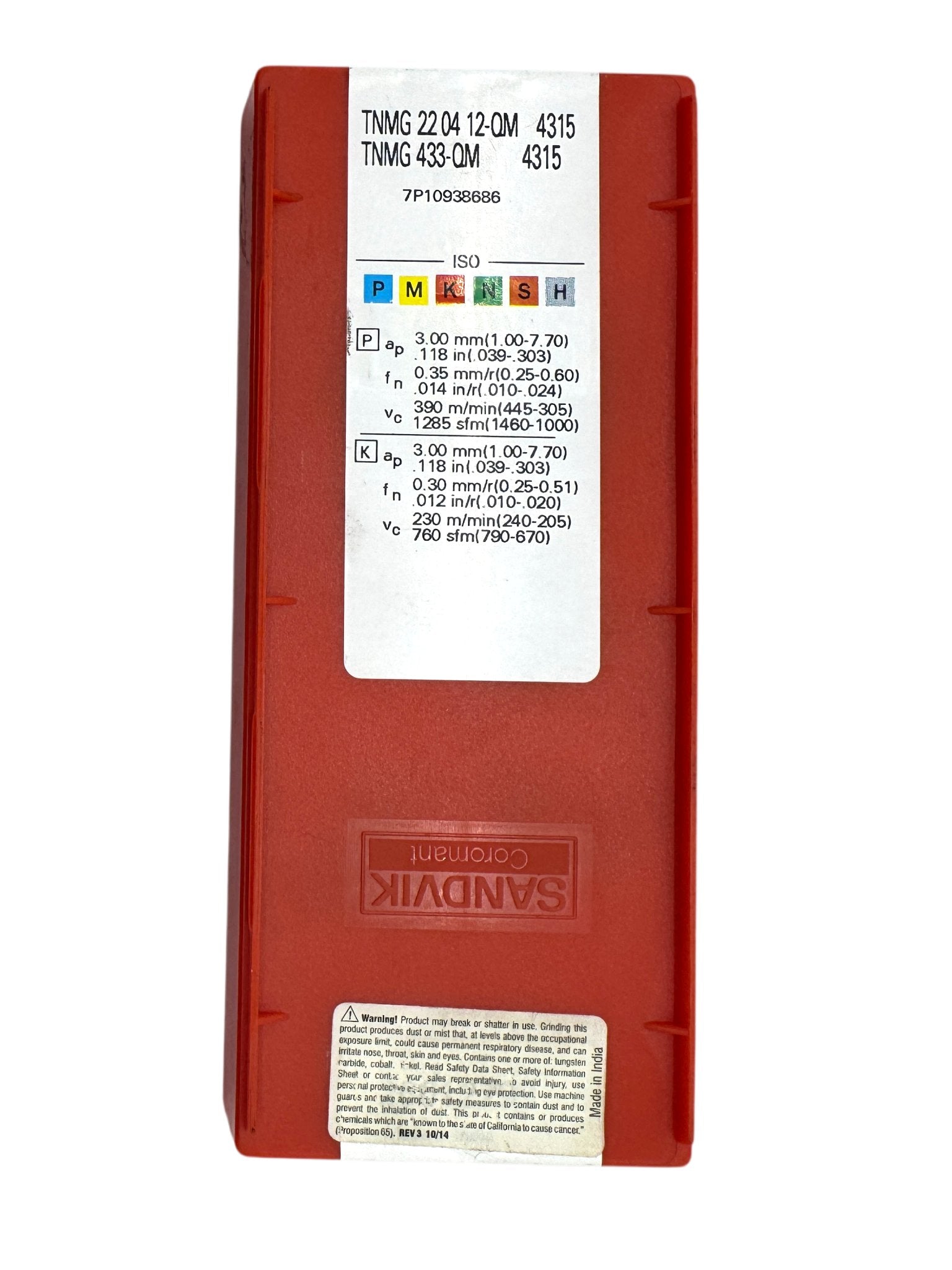

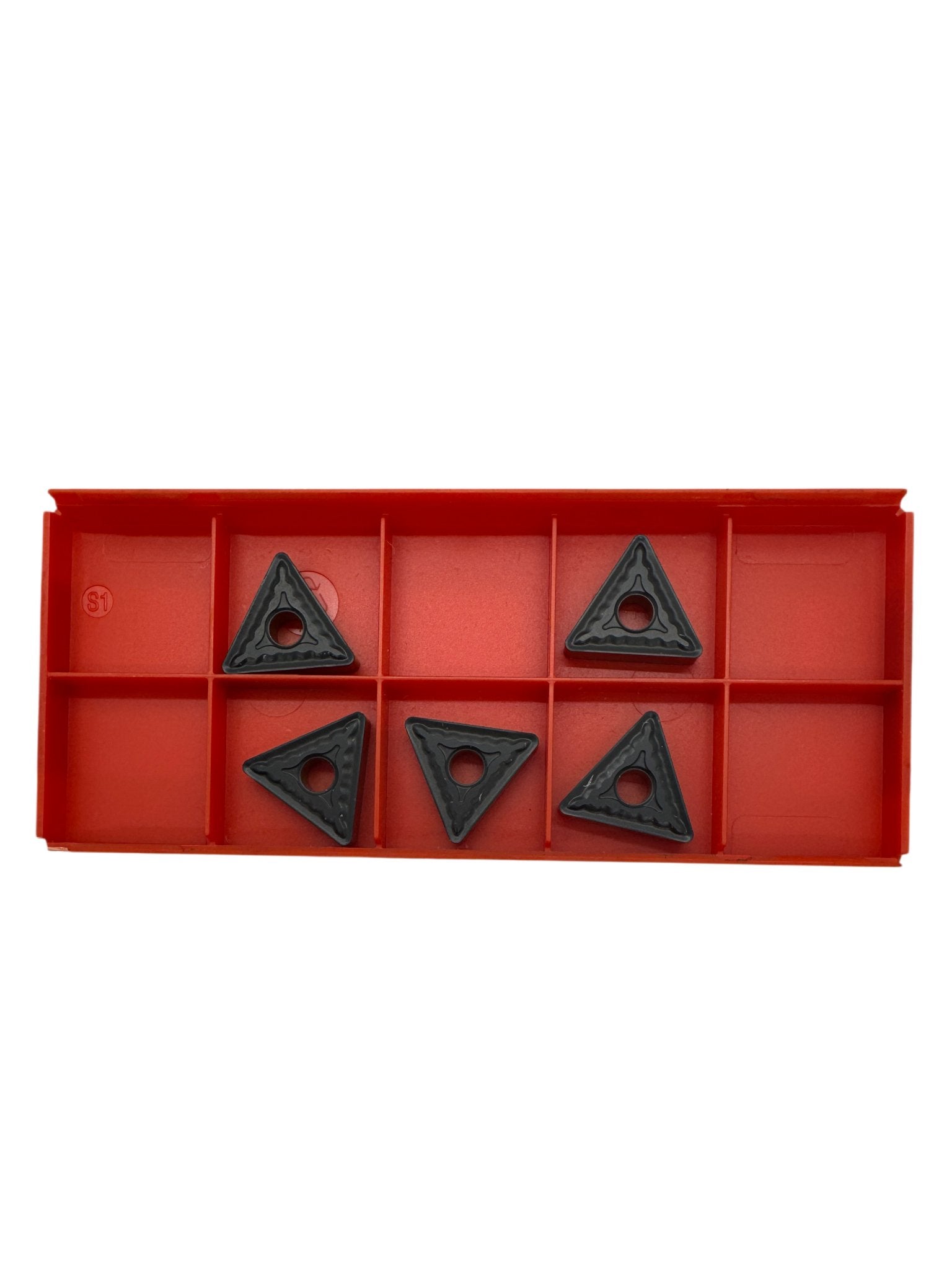

The insert is supplied new in original Sandvik packaging and is ready for immediate production use. With proven performance characteristics and precision manufacturing standards, this insert is suitable for both manual and CNC turning operations. The robust design and consistent edge geometry ensure predictable tool life and dimensional accuracy in production runs.
As a negative-rake insert, it provides strong cutting edges and excellent interrupted cut capability, making it ideal for unstable workholding situations or variable depth of cut scenarios. Stock includes multiple insert orientations for versatile setup configurations.
Product Specifications
| Manufacturer | Sandvik Coromant |
| Part Number | TNMG 433-0M |
| ISO Designation | TNMG 22.04 12-0M |
| Grade | 4315 |
| Insert Shape | Triangle (T) |
| Nose Radius | 1.2 mm |
| Clearance Angle | 0° (Negative rake) |
| Cutting Edge Length | 22.04 mm |
| Insert Thickness | 3.98 mm |
| Hole Diameter | 3.81 mm |
| Chipbreaker Type | Generic (0M designation) |
| Material Grade | Carbide |
| Application | General turning, steel, stainless steel, cast iron |
| Cutting Speed (P) | 390 m/min |
| Feed Rate (P) | 0.35 mm/r |
| Cutting Speed (K) | 230 m/min |
| Feed Rate (K) | 0.30 mm/r |
| Condition | New |
| Quantity per Box | 5 pieces |
