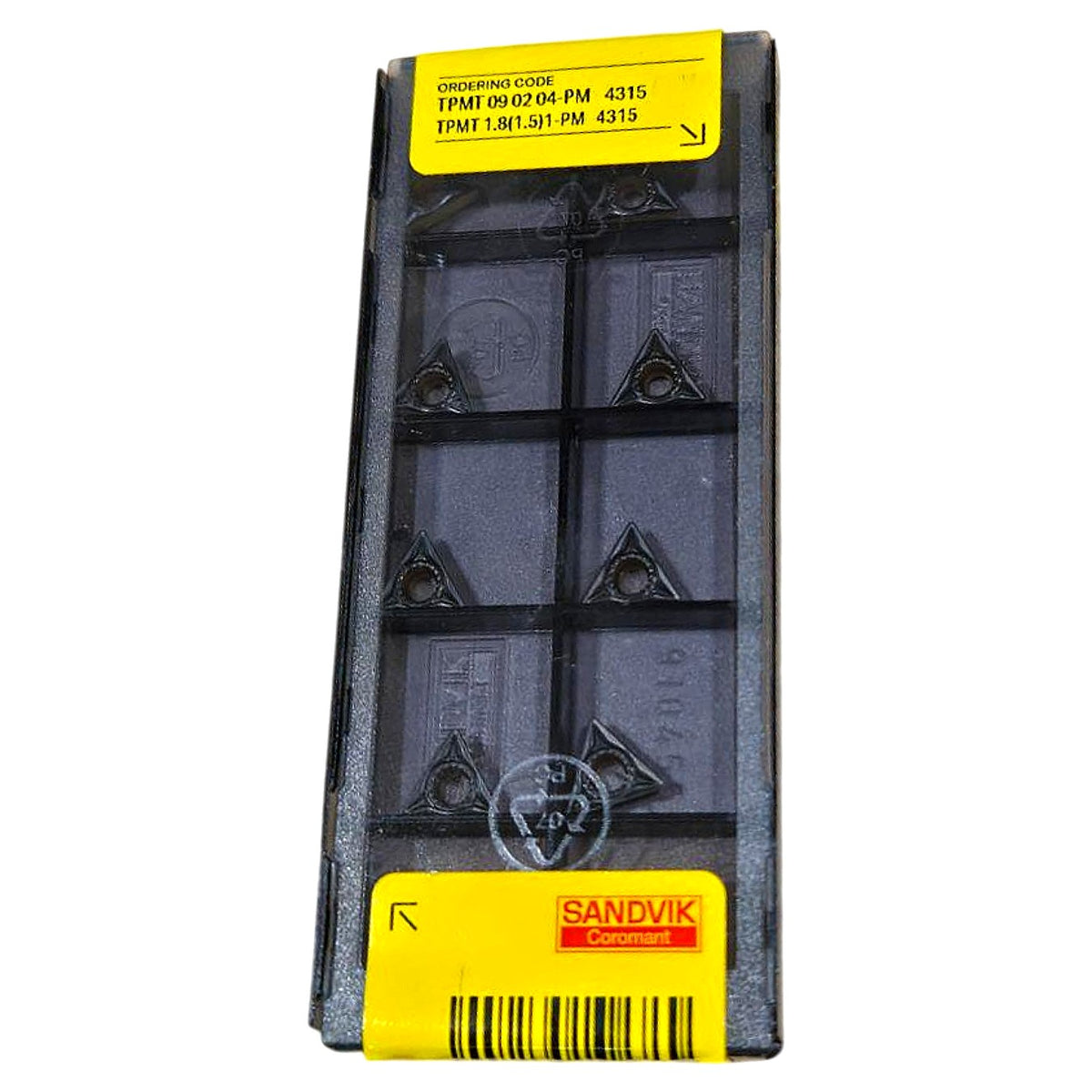

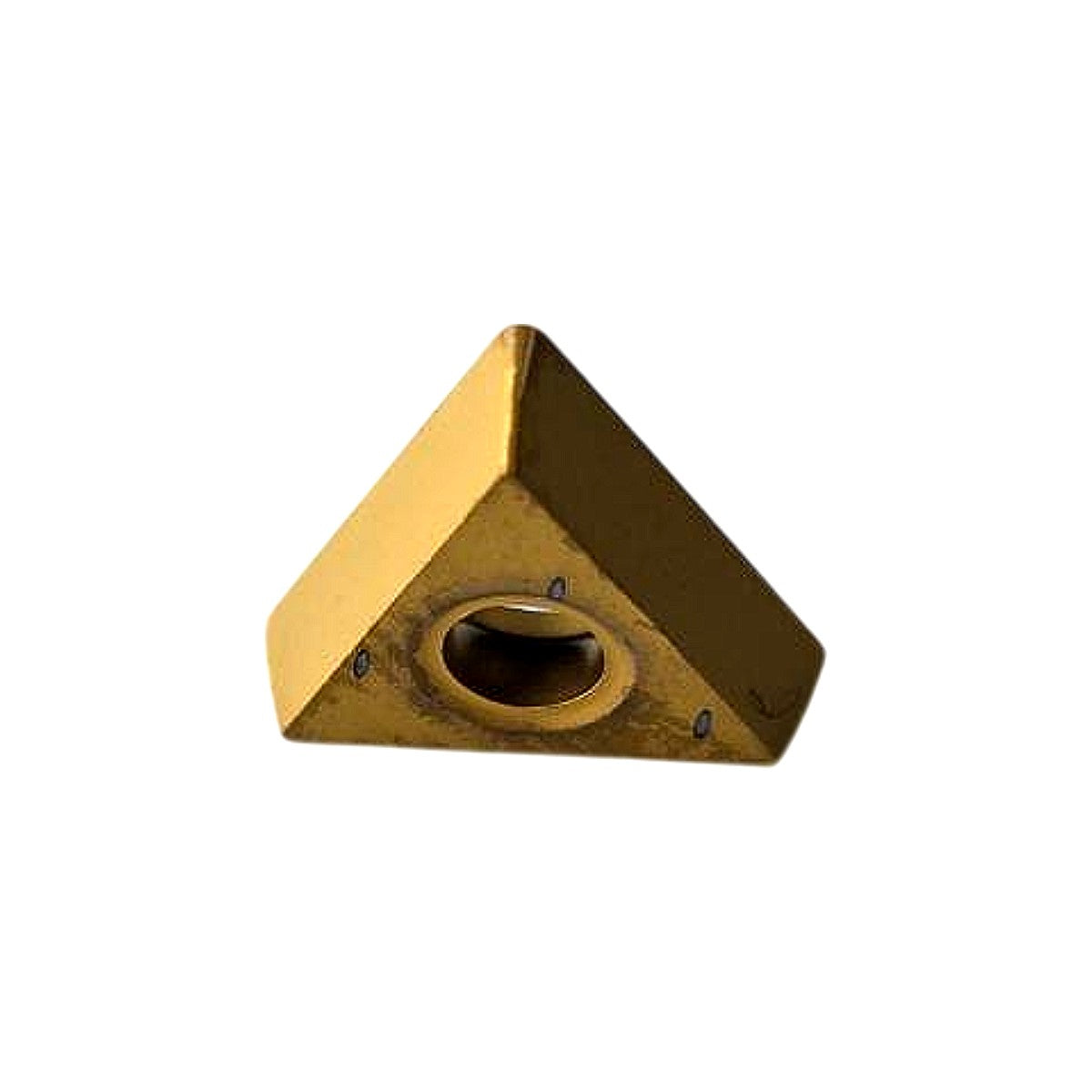

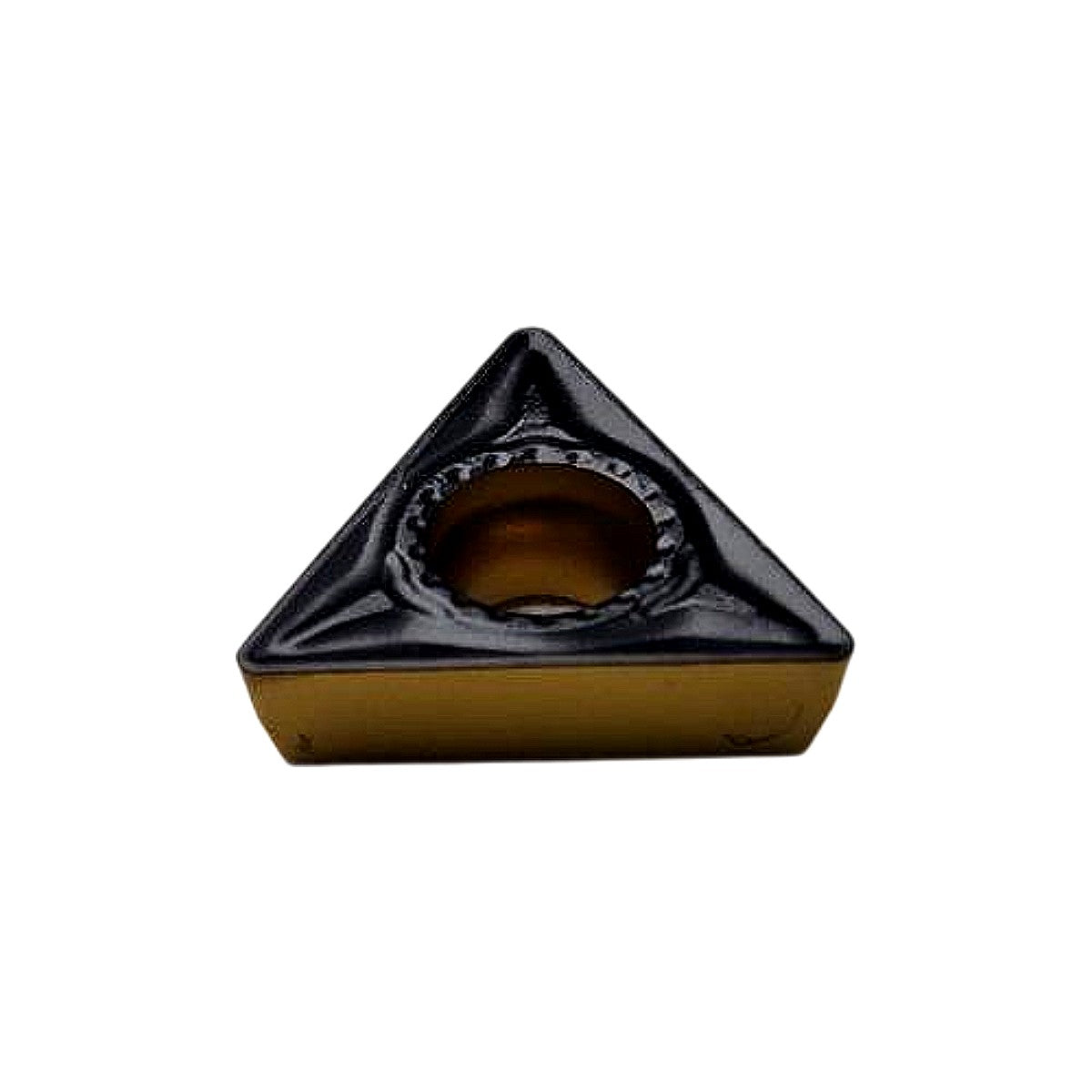

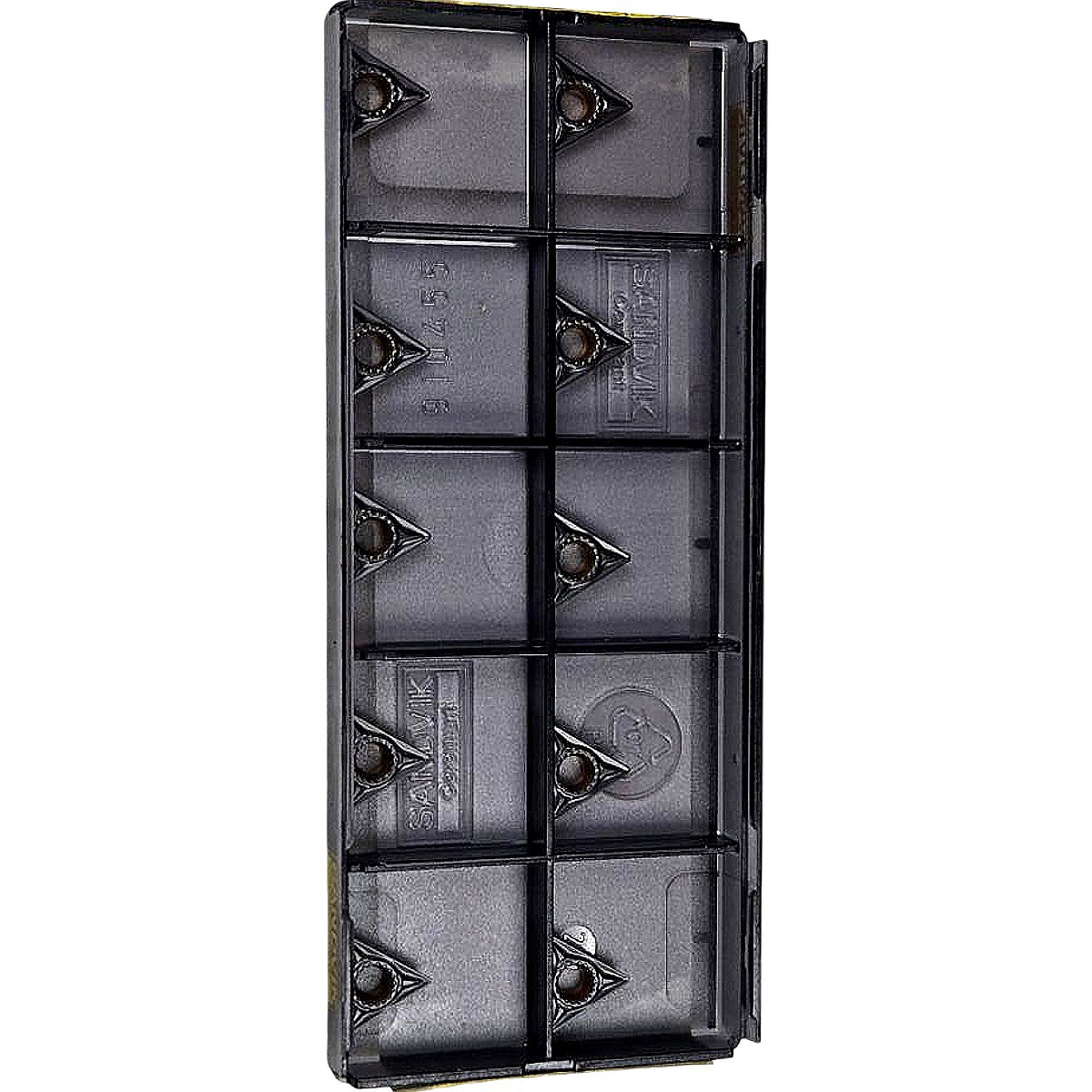

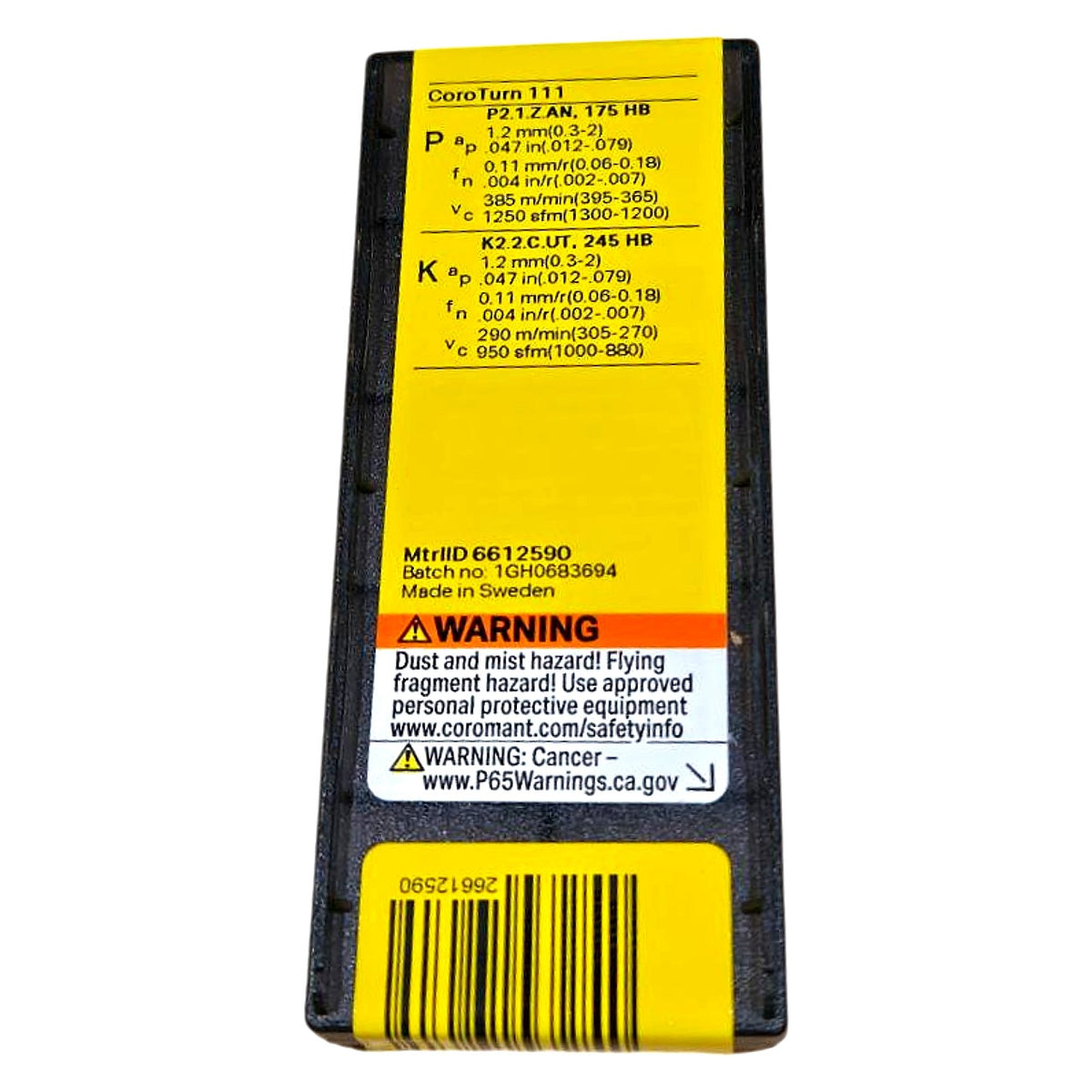

The Sandvik Coromant TPMT 09 02 04-PM 4315 is a triangular (T) positive (P) turning insert with a 11° clearance angle (M), tolerance class T, and a PM chipbreaker geometry, sized 09 02 04 (9.525 mm inscribed circle, 2.38 mm thickness, 0.4 mm nose radius), intended for the CoroTurn 111 toolholder system. Grade 4315 is a CVD-coated cemented carbide (TiCN + Al₂O₃ multilayer coating) in Sandvik's GC4315 series, optimized for finishing to medium turning of steel (ISO P) and cast iron (ISO K) at elevated cutting speeds. Per the box label, recommended parameters for P-class steel (≤175 HB) are ap 0.3–2.0 mm, fn 0.06–0.18 mm/r, vc 395–365 m/min (1300–1200 sfm); for K-class cast iron (≤245 HB): ap 0.3–2.0 mm, fn 0.06–0.18 mm/r, vc 305–270 m/min (1000–880 sfm). This factory-sealed box of 10 new inserts is Made in Sweden (Batch 1GH0683694, MtrIID 6612590) and is compatible with CoroTurn 111 toolholders accepting TPMT 09 insert seats.
Product Specifications
| Brand | Sandvik Coromant |
| MPN | TPMT 09 02 04-PM 4315 |
| ISO Designation | TPMT 09 02 04-PM 4315 |
| Insert Shape | T - Triangular (60°) |
| Clearance Angle | 11° (P) |
| Tolerance Class | M |
| Chipbreaker | PM (Positive Medium) |
| Inscribed Circle (IC) | 9.525 mm (3/8 in) |
| Thickness | 2.38 mm (3/32 in) |
| Nose Radius | 0.4 mm (1/64 in) |
| Grade | 4315 (GC4315) |
| Coating | CVD TiCN + Al₂O₃ multilayer |
| Substrate | Cemented carbide |
| ISO Application | P (steel), K (cast iron) |
| Cutting System | CoroTurn 111 |
| Country of Origin | Sweden |
| Quantity | 10 inserts per box |
| Condition | New (factory sealed) |
| Cutting Depth ap (Steel) | 0.3–2.0 mm (0.012–0.079 in) |
| Feed Rate fn (Steel) | 0.06–0.18 mm/r (0.002–0.007 in/r) |
| Cutting Speed vc (Steel) | 365–395 m/min (1200–1300 sfm) |
| Cutting Depth ap (Cast Iron) | 0.3–2.0 mm (0.012–0.079 in) |
| Feed Rate fn (Cast Iron) | 0.06–0.18 mm/r (0.002–0.007 in/r) |
| Cutting Speed vc (Cast Iron) | 270–305 m/min (880–1000 sfm) |
| Material ID (MtrIID) | 6612590 |
| Batch Number | 1GH0683694 |
