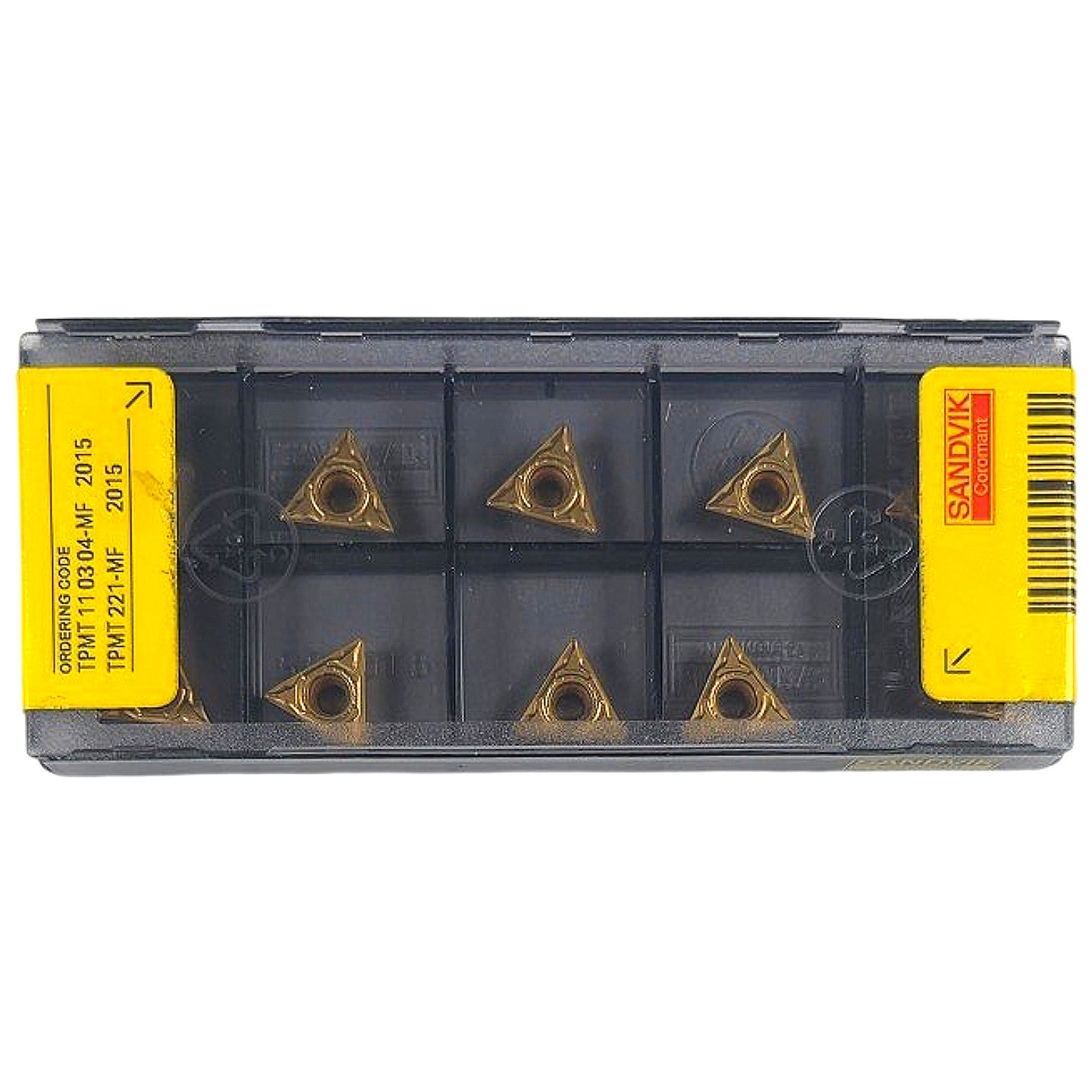

Sandvik TPMT 110304-MF 2015 CoroTurn 111 Carbide Turning Insert (10pc)
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

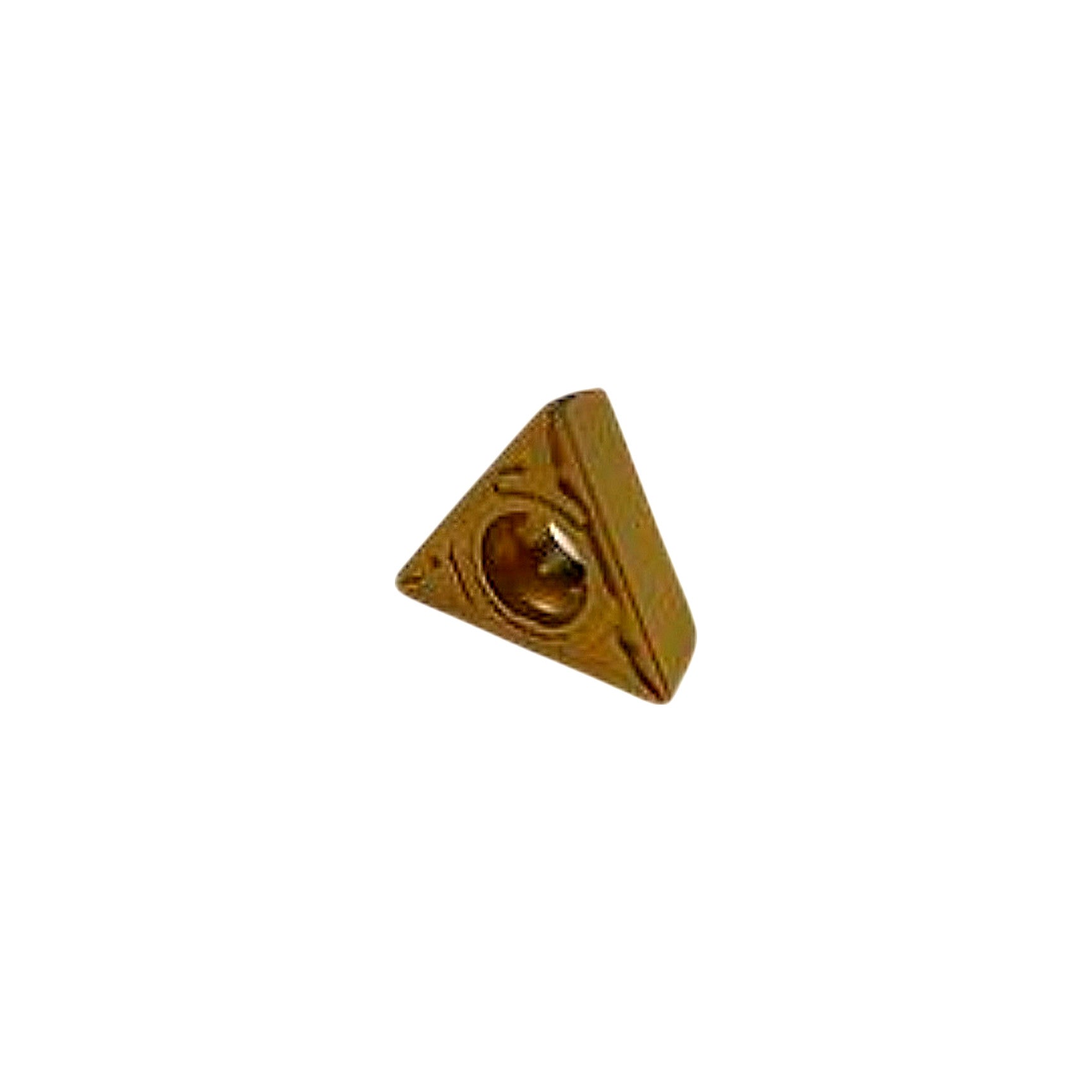

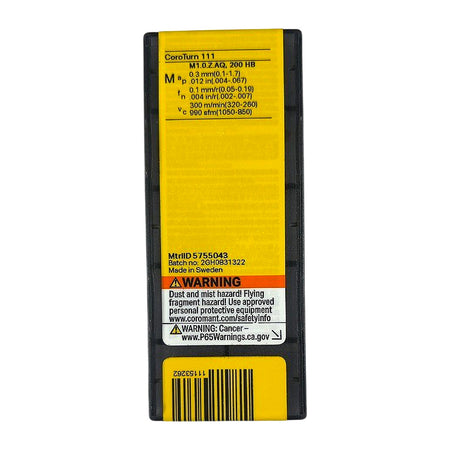

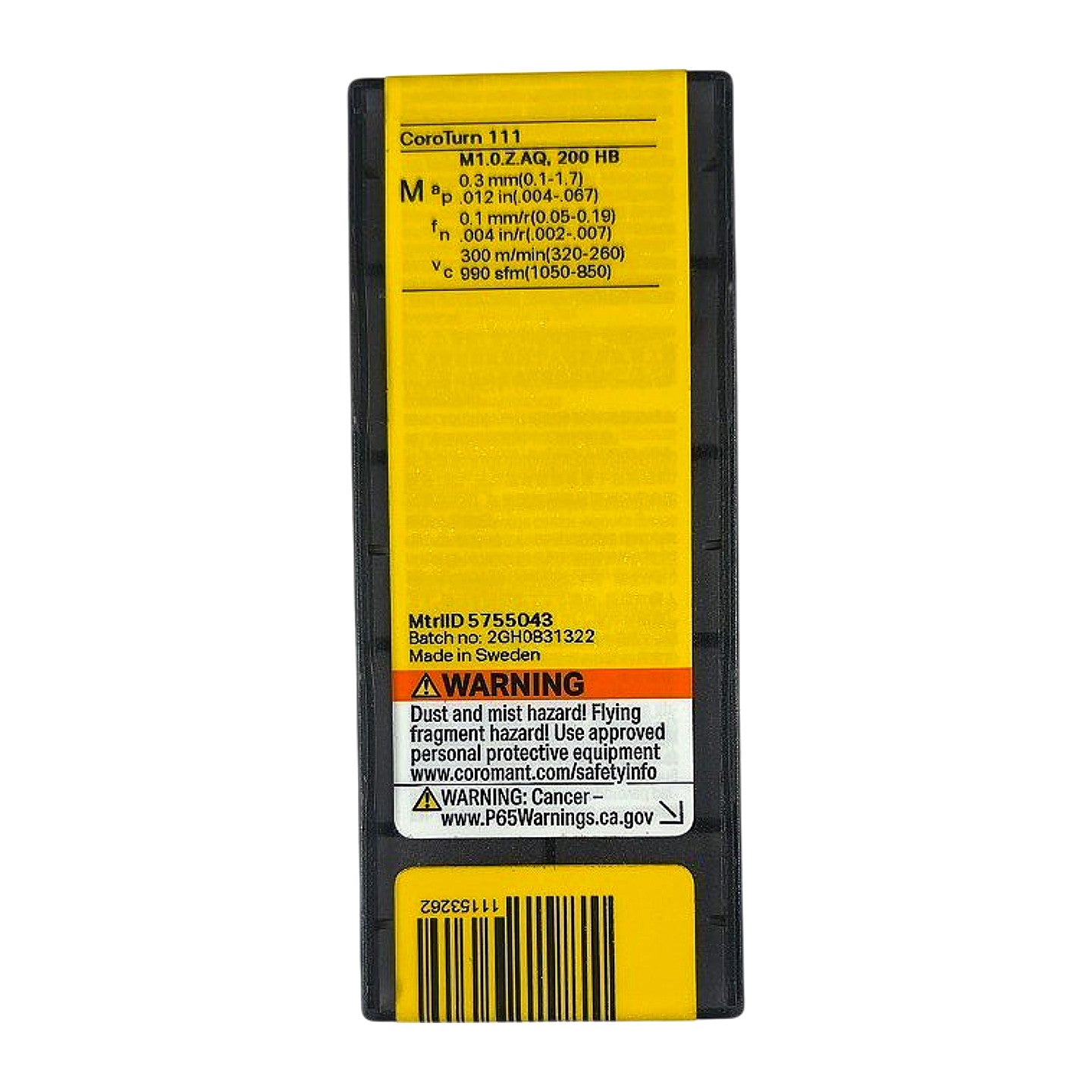

Sandvik Coromant TPMT 110304-MF 2015 is a new, uncoated triangular positive-rake turning insert from the CoroTurn 111 system, designed for internal turning and profiling of small-diameter bores. Decoding the ISO designation: T = triangular (60° included angle), P = 11° clearance angle, M = medium tolerance (±0.08–0.18 mm IC / ±0.05–0.18 mm thickness), T = hole with no chipbreaker land on both faces (countersunk), 11 = 11 mm inscribed circle, 03 = 3.18 mm thickness, 04 = 0.4 mm nose radius; the MF chipbreaker geometry is optimized for medium finishing with low cutting forces on materials including stainless steel, alloy steel, and aluminum. Grade 2015 is Sandvik's CVD TiCN/Al₂O₃/TiN-coated cemented carbide grade targeted at ISO M (stainless/austenitic) and ISO P (steel) workpiece materials, delivering a gold-toned surface finish visible in the photos. The MtrID 5755043 and batch 2GH0831322 are confirmed on the label, and the package contains 10 inserts; compatible toolholders include Sandvik CoroTurn 111 boring bar series (e.g., A05F-STPPR2, A06F-STPPR2) that accept TPMT 11 inserts.
Product Specifications
| Brand | Sandvik Coromant |
| MPN | TPMT 110304-MF 2015 |
| ISO Designation | TPMT 110304-MF |
| Insert Shape | Triangular (T) — 60° included angle |
| Clearance Angle | 11° (P) |
| Tolerance Class | M (±0.08–0.18 mm IC, ±0.05–0.18 mm thickness) |
| Fixing/Chipbreaker Type | T — countersunk hole, chipbreaker both faces |
| Inscribed Circle (IC) | 11 mm (0.433 in) |
| Insert Thickness | 3.18 mm (0.125 in) |
| Nose Radius | 0.4 mm (1/64 in) |
| Chipbreaker | MF (Medium Finishing) |
| Grade | 2015 |
| Coating | CVD TiCN/Al₂O₃/TiN |
| ISO Material Class | M (stainless steel), P (steel) |
| Application | CoroTurn 111 internal turning, small bore profiling |
| Series | CoroTurn 111 |
| Cutting Speed (Vc) | 300 m/min (990 sfm) |
| Depth of Cut (ap) | 0.3 mm (0.012 in) — 1.7 mm (0.067 in) |
| Feed Rate (fn) | 0.1 mm/r (0.004 in/r) — 0.19 mm/r (0.007 in/r) |
| Quantity per Package | 10 inserts |
| Country of Origin | Sweden |
| Condition | New |
