Sandvik WK-AL-30625-R090 H10F 5/8 3FL Corner Radius Carbide End Mill

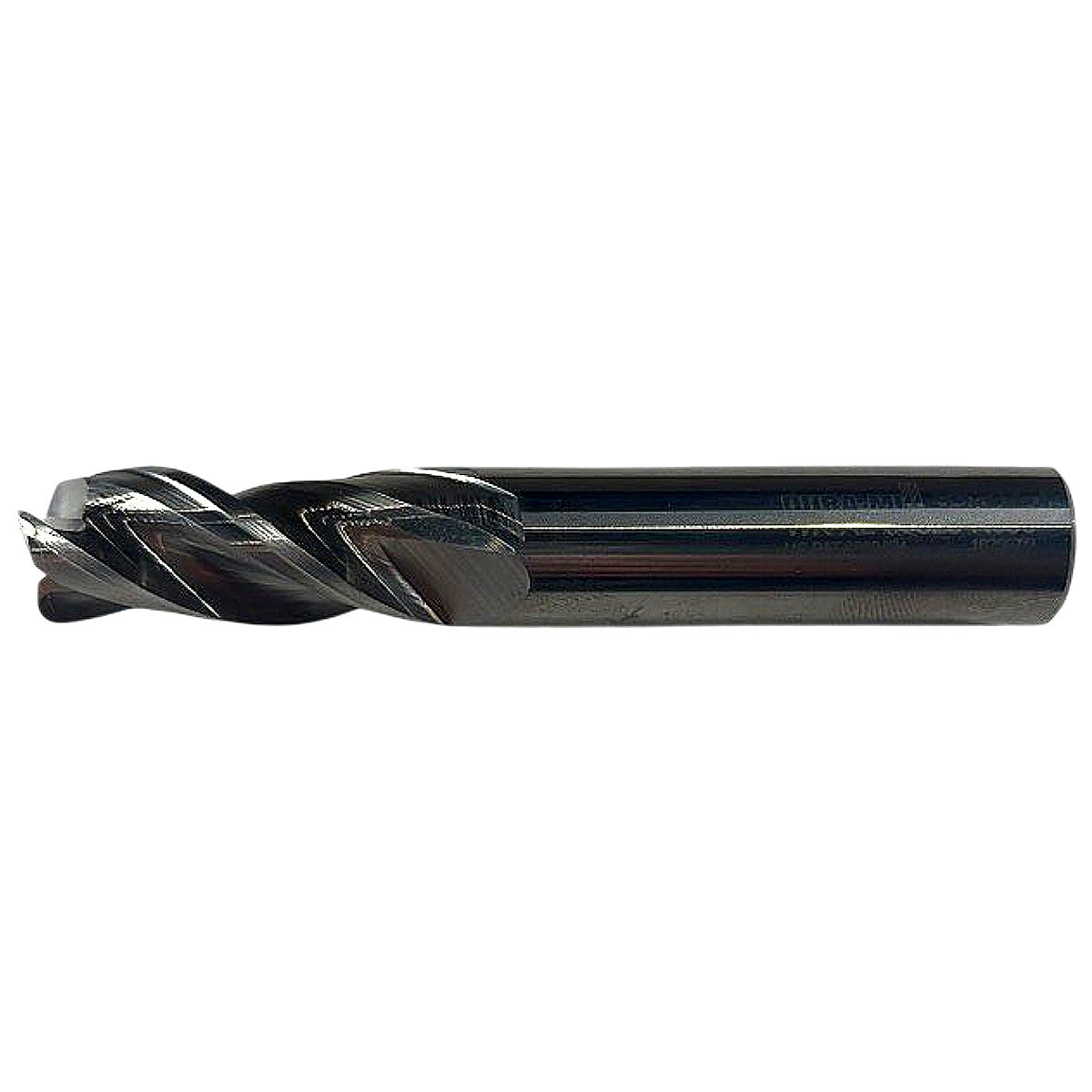

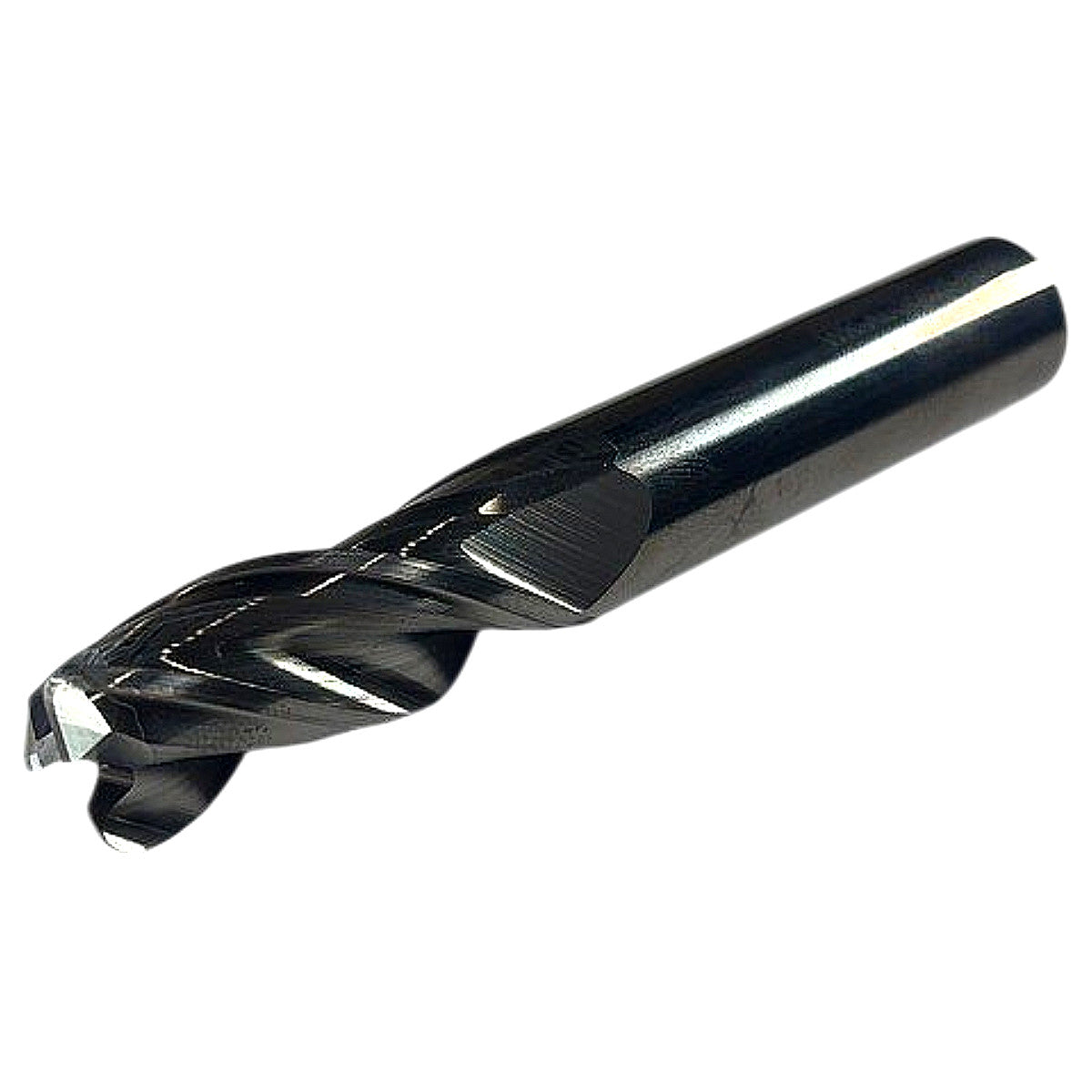

The Sandvik Coromant WK-AL-30625-R090 H10F is a new, solid carbide 3-flute corner radius end mill manufactured in the USA, designed specifically for high-speed machining of aluminum and non-ferrous alloys (the "AL" series designation). The tool measures 5/8 in cutting diameter × 5/8 in shank diameter × 1-5/8 in length of cut × 4 in overall length, with a 0.090 in corner radius (R090) as encoded in the MPN. The H10F grade is an uncoated, ultra-fine grain carbide substrate optimized for aluminum, offering extremely sharp cutting edges that minimize built-up edge and produce superior surface finishes at high spindle speeds; the dark surface appearance visible in the photos is consistent with a DLC or similar anti-friction coating applied over the H10F substrate for aluminum. With 3 flutes (3FL), center-cutting (CC), and a semi-finish/finish geometry (SEMI), this end mill is suited for slotting, profiling, and pocketing in aluminum, brass, and plastics, and is compatible with standard 5/8 in straight-shank collet chucks (ER32, ER40) and end mill holders.

Product Specifications
