Sandvik WK-AL-S-30750-R060 H10F 3/4 in 3-Flute Carbide Corner Radius End Mill

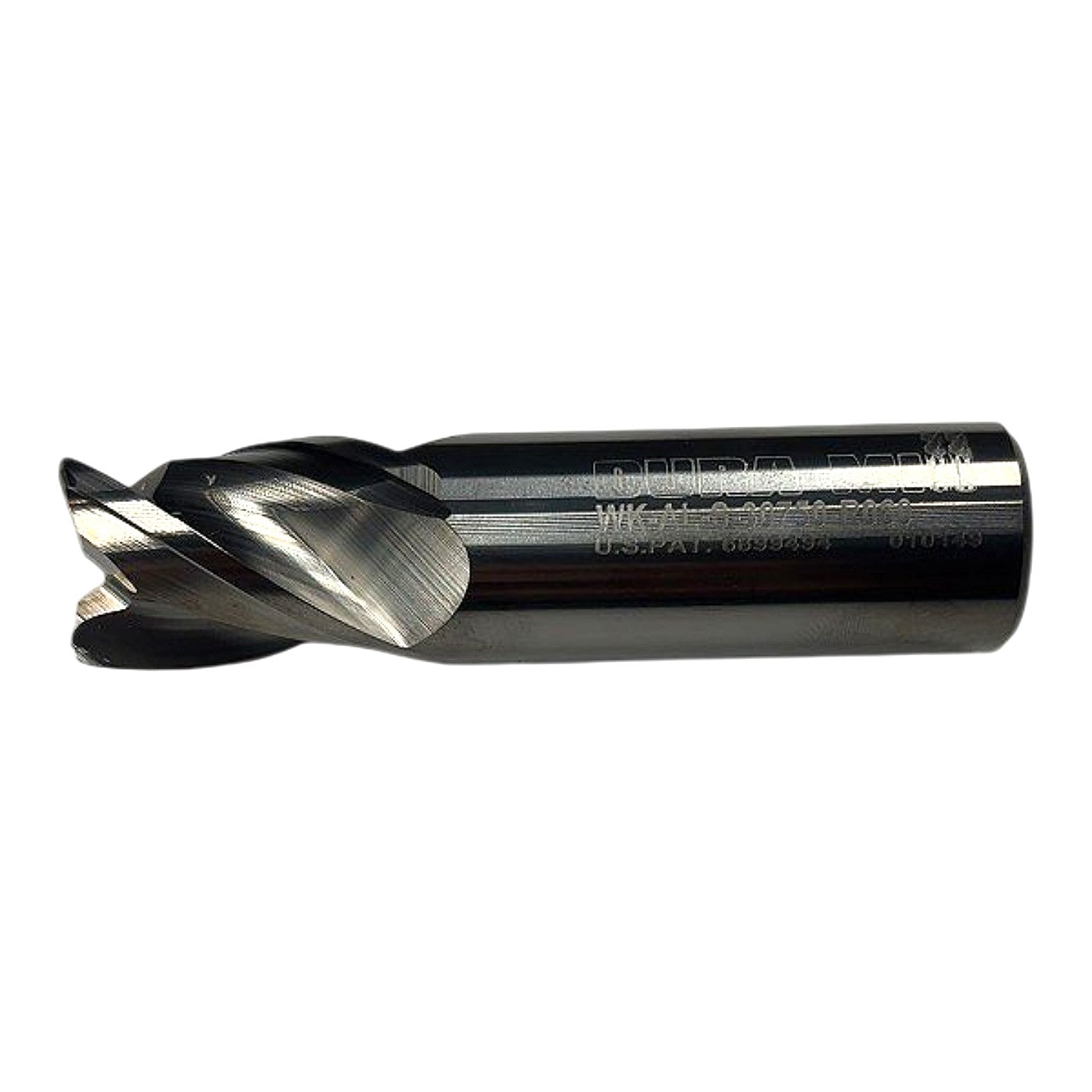

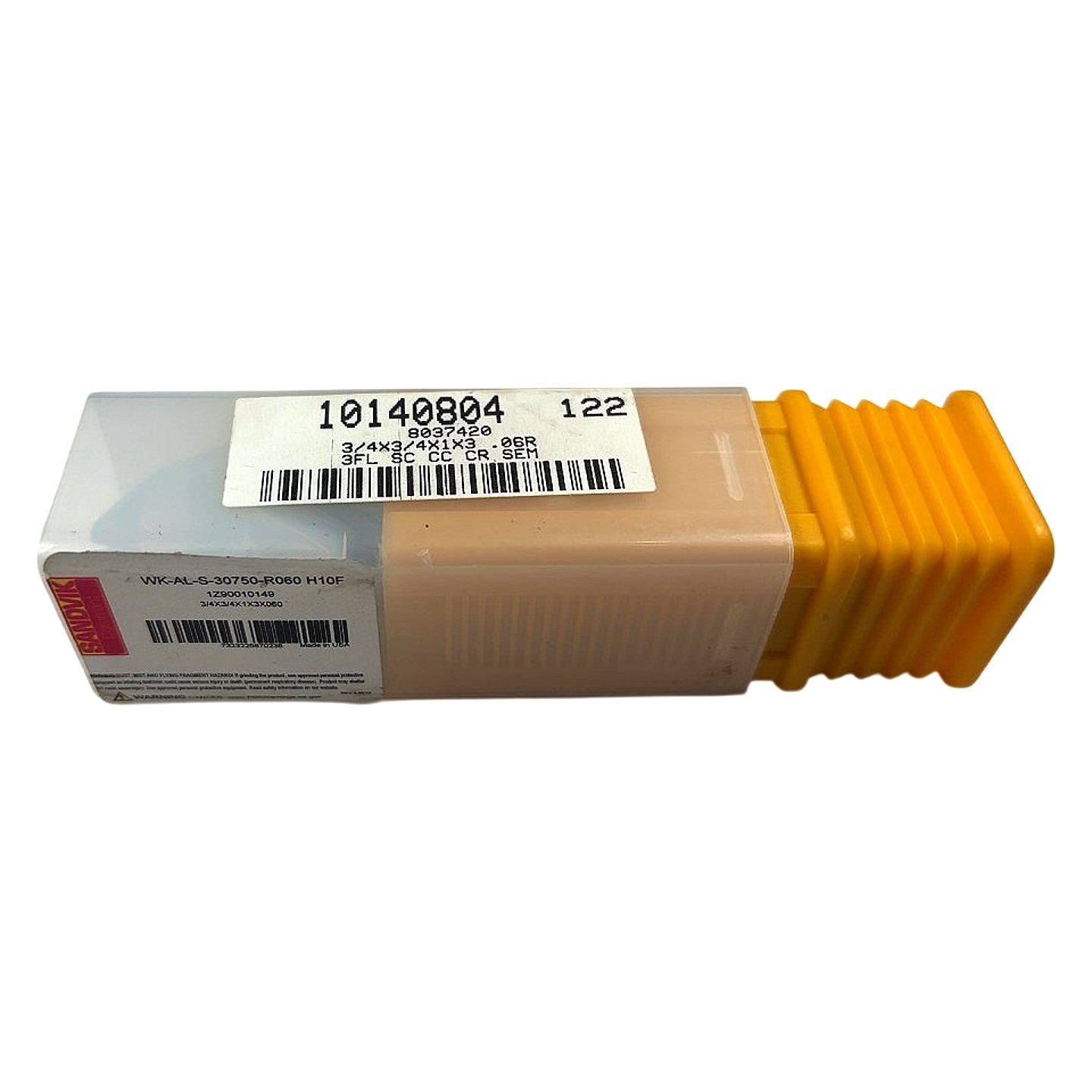

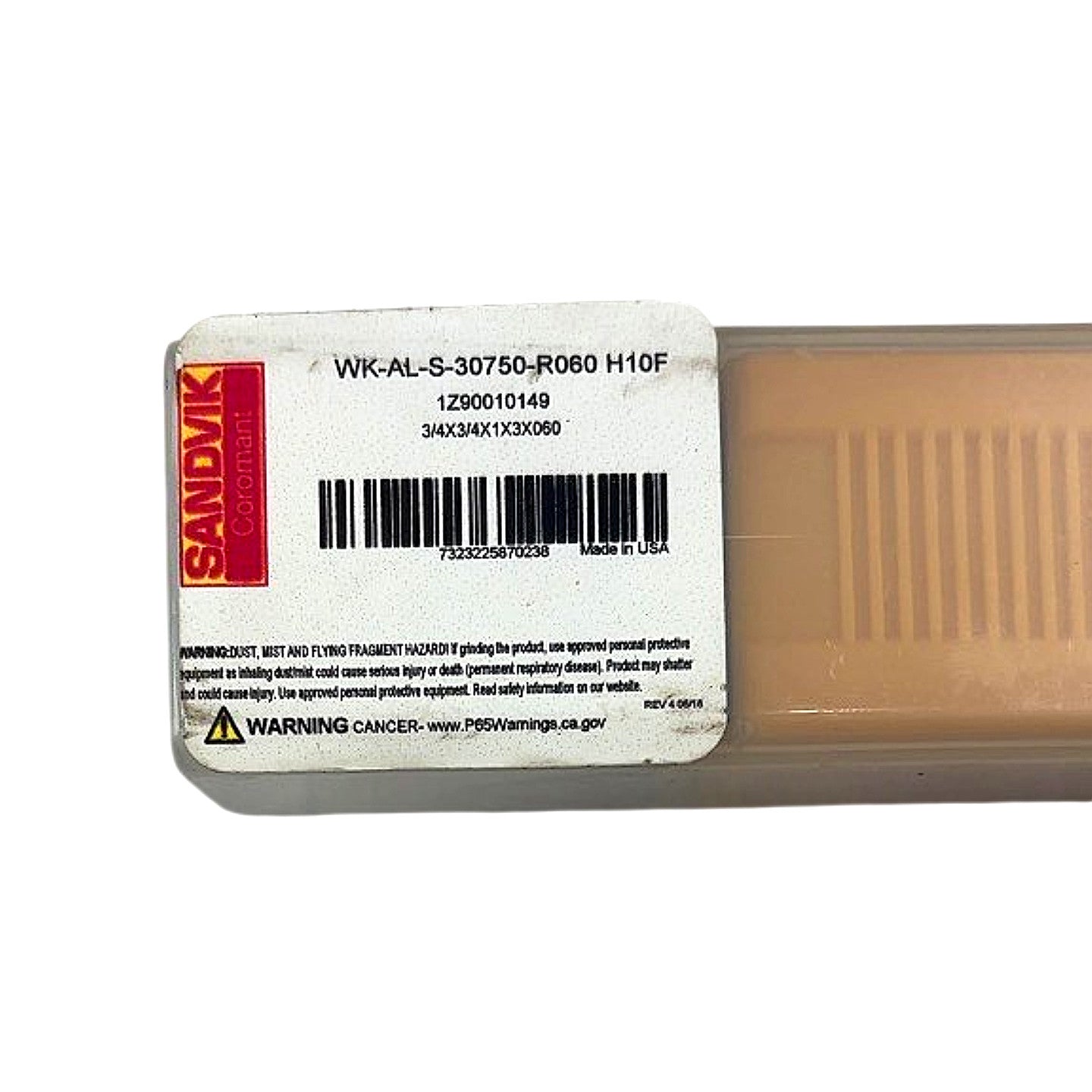

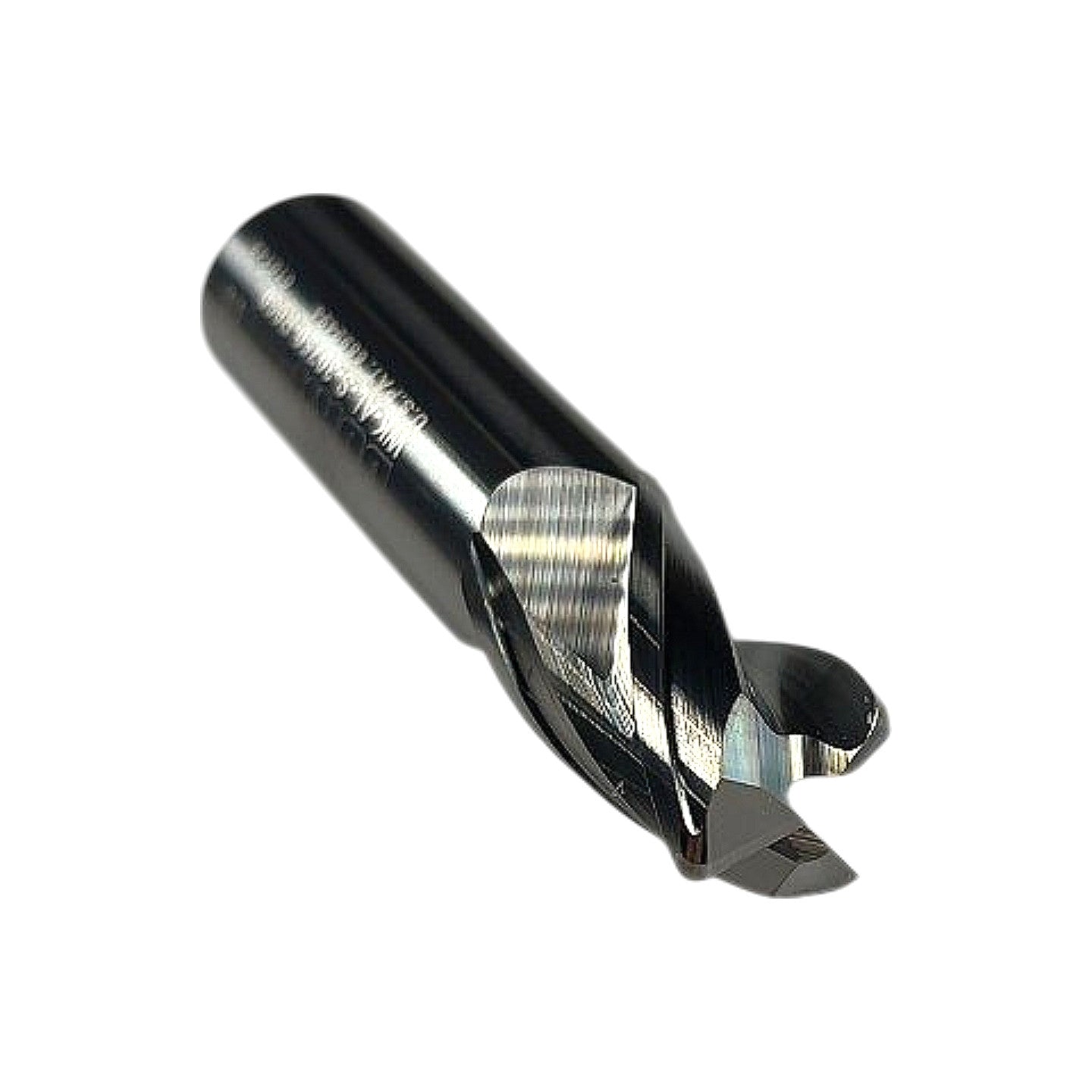

This is a new Sandvik Coromant WK-AL-S-30750-R060 H10F solid carbide corner-radius end mill, catalog number 1Z90010149, Made in USA. The MPN decodes as follows: WK = CoroMill Plura series for aluminum/non-ferrous; AL = aluminum application; S = straight (cylindrical) shank; 30750 = 3/4 in (0.750 in) cutting diameter; R060 = 0.060 in corner radius; H10F = uncoated fine-grain carbide grade optimized for high-speed aluminum and non-ferrous machining. Per the label, the tool is specified as 3/4 in cutting dia × 3/4 in shank × 1 in length of cut × 3 in overall length × 0.060 in corner radius (3/4×3/4×1×3×.06R), 3-flute, solid carbide (SC), center-cutting (CC), corner radius (CR), with a semi-finish/finish geometry (SEM) — all consistent with Sandvik's CoroMill Plura AL family for aluminum, non-ferrous, and composite materials. The H10F uncoated fine-grain carbide substrate delivers exceptional edge sharpness and is compatible with high-speed machining centers using ISO or ANSI straight-shank toolholders (ER collets, milling chucks) at aggressive surface footage typical of aluminum aerospace and precision machining operations. U.S. Patent 6,899,494 is marked on the shank, consistent with Sandvik's variable helix/flute geometry technology visible in the photos.

Product Specifications
