Sandvik WK-AL-S-31000-R125 H10F 1" 4-Flute Carbide End Mill
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

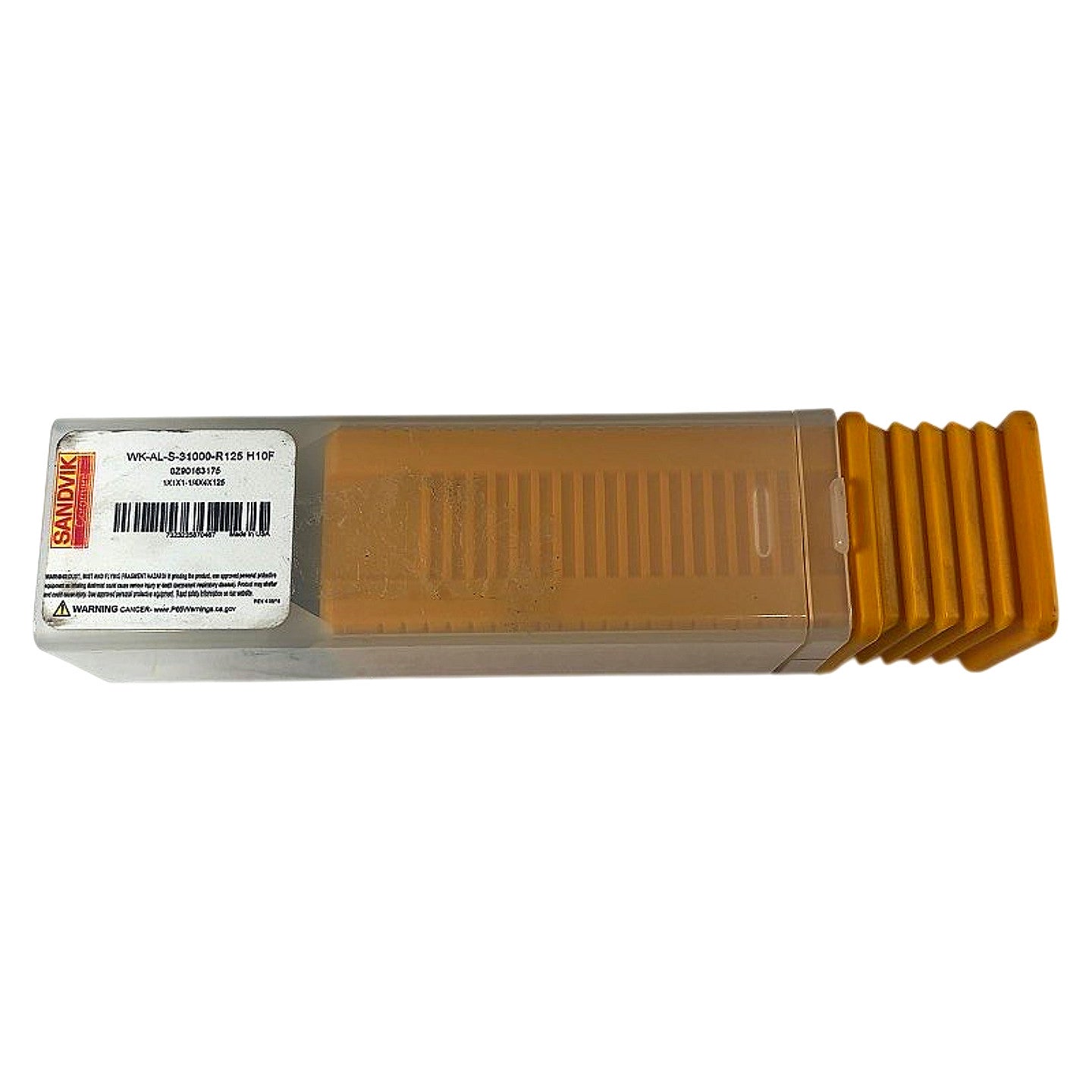

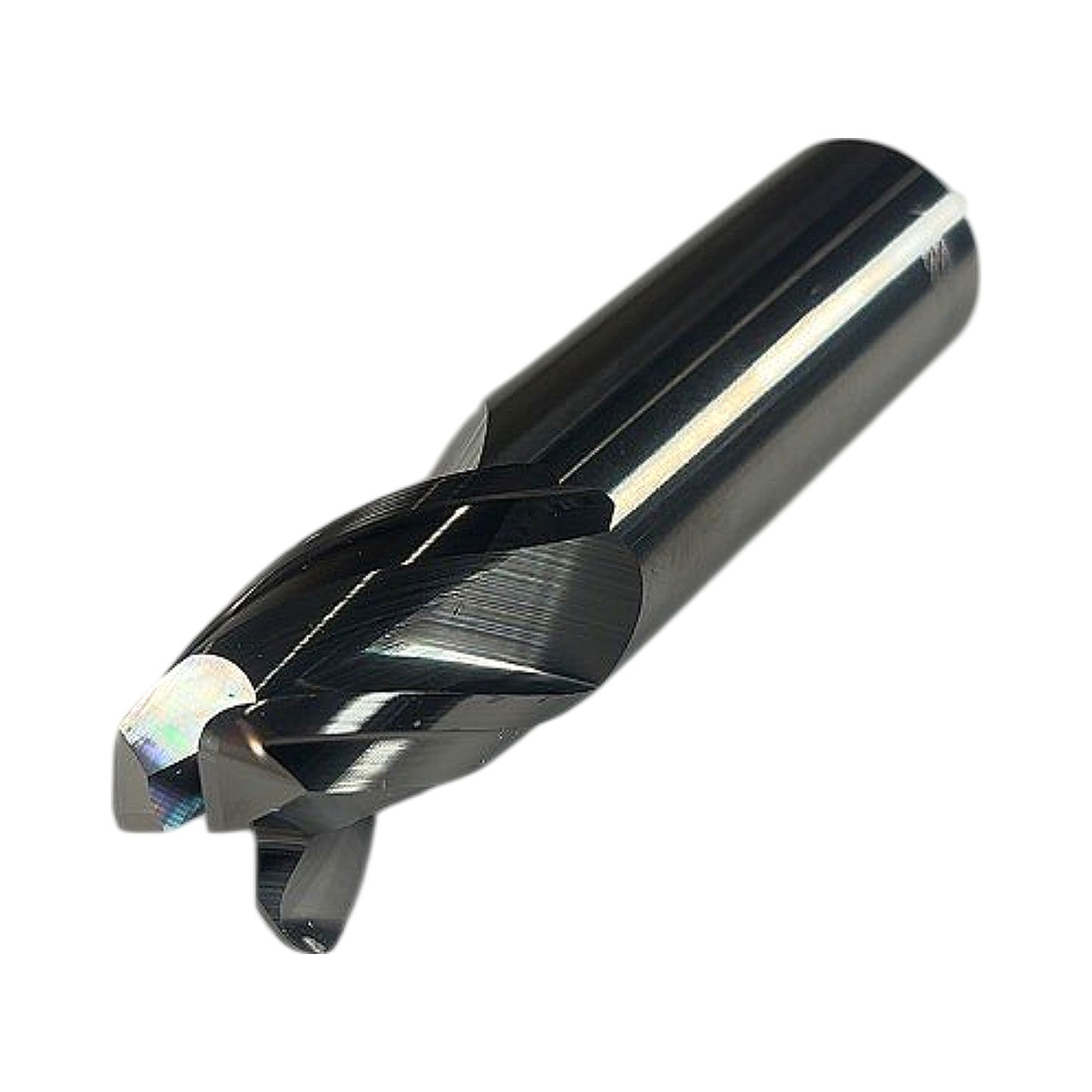

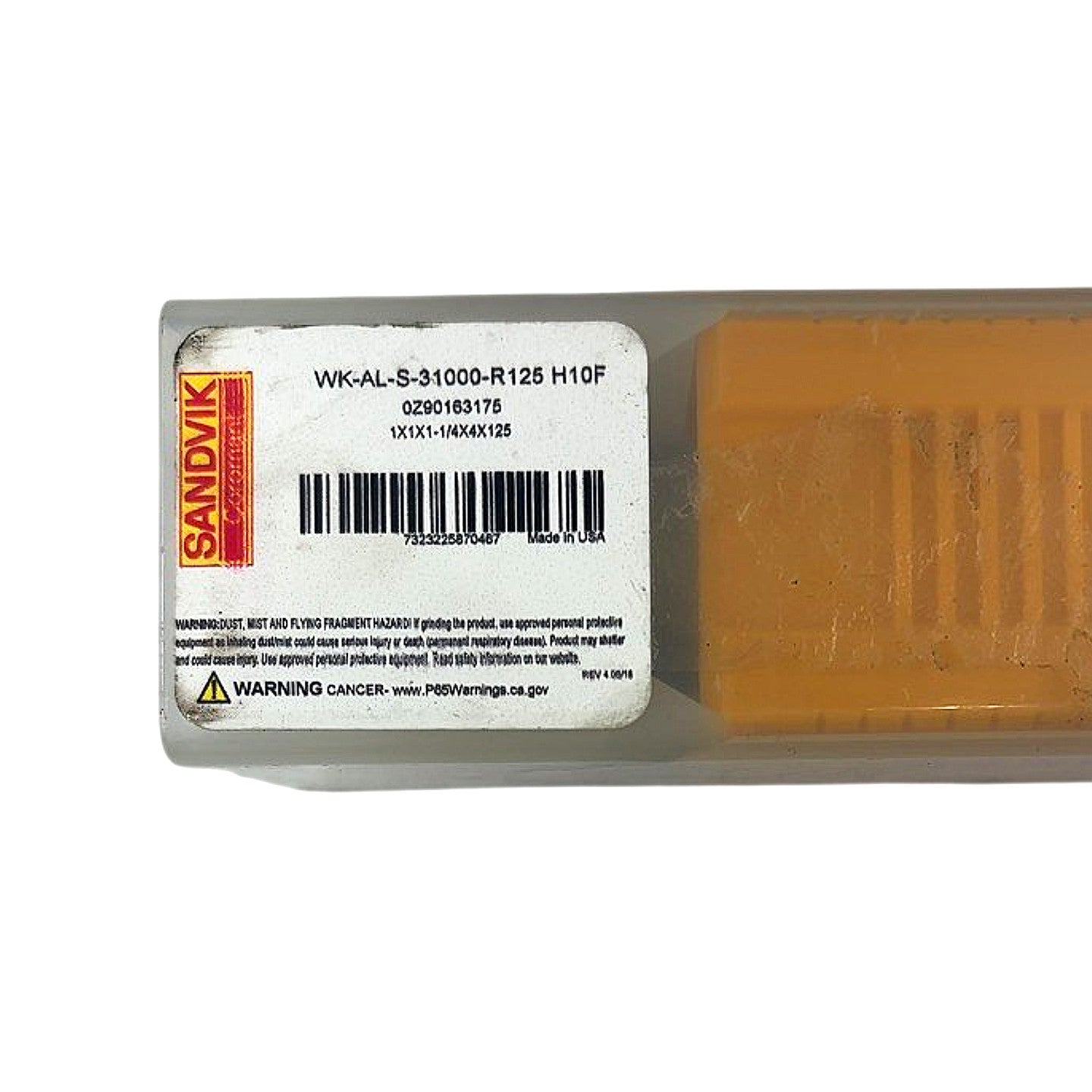

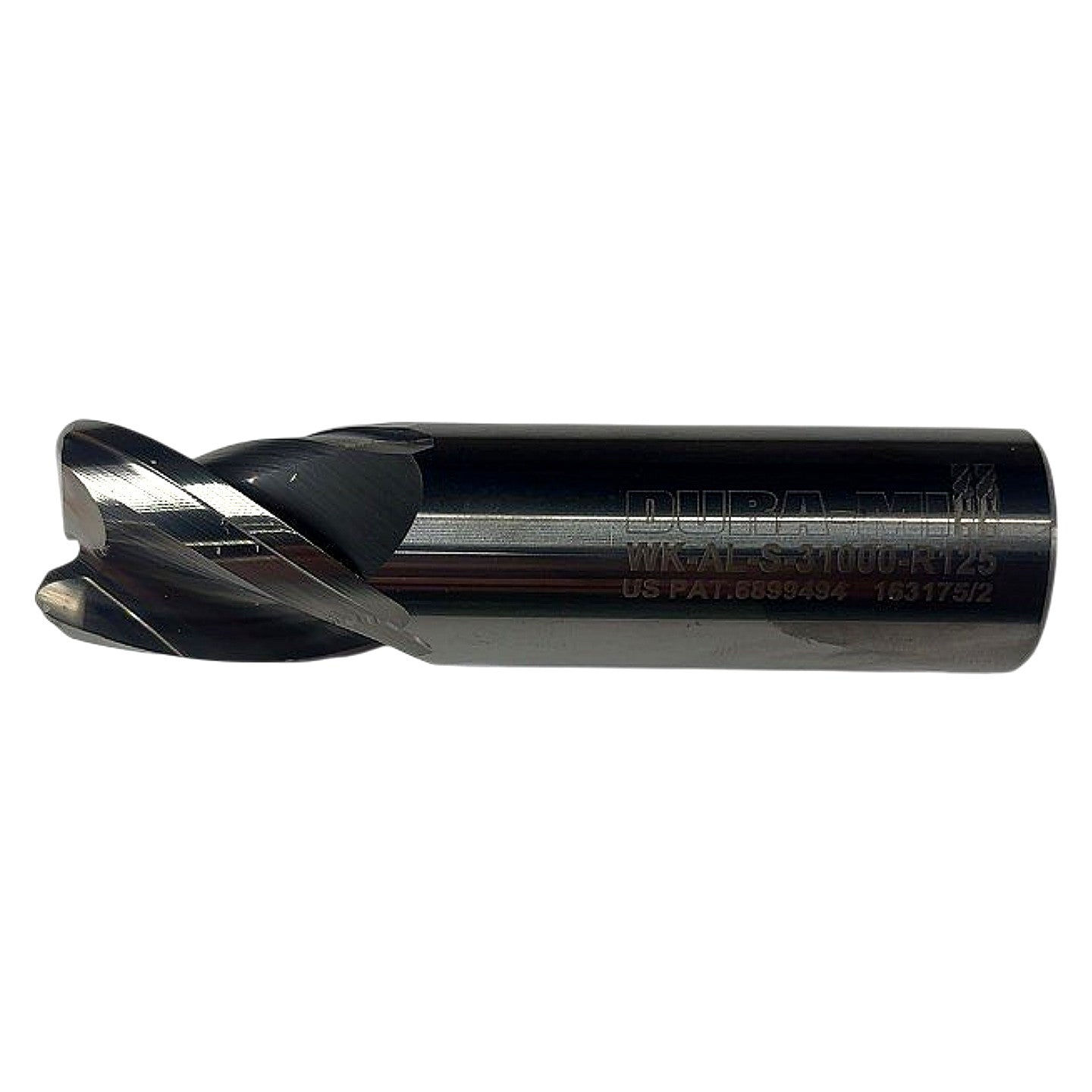

The Sandvik Dura-Mill WK-AL-S-31000-R125 H10F is a new, solid carbide, 4-flute square-end end mill manufactured in the USA, ground from uncoated H10F fine-grain carbide grade optimized for non-ferrous and aluminum milling. The part number decodes as follows: WK = Dura-Mill product family; AL = aluminum/non-ferrous application; S = straight (cylindrical) shank; 31000 = 1.000" (1 inch) cutter diameter; R125 = 0.125" (1/8") corner radius; H10F = uncoated fine-grain tungsten carbide grade (ISO K10 equivalent, fine grain). The label confirms dimensional encoding 1X1X1-1/4X4X125, meaning 1" cut diameter × 1" shank diameter × 1-1/4" length of cut × 4" overall length × 0.125" corner radius. Covered by US Patent 6,899,494, this tool features Sandvik's patented Dura-Mill flute geometry for high-speed machining of aluminum and other non-ferrous alloys, providing excellent chip evacuation and surface finish. Suitable for use in CNC machining centers with ER, CAT, BT, or HSK toolholders accepting a 1" straight shank.
Product Specifications
| Brand | Sandvik Coromant (Dura-Mill) |
| MPN | WK-AL-S-31000-R125 H10F |
| Order Code | 0Z90163175 |
| Cutter Diameter | 1.000 in (25.4 mm) |
| Shank Diameter | 1.000 in (25.4 mm) |
| Length of Cut (Flute Length) | 1.250 in (31.75 mm) |
| Overall Length | 4.000 in (101.6 mm) |
| Corner Radius | 0.125 in (3.175 mm) |
| Number of Flutes | 4 |
| End Style | Corner Radius (Bull Nose) |
| Carbide Grade | H10F (fine-grain, uncoated, ISO K10 equiv.) |
| Coating | Uncoated |
| Application | Aluminum & non-ferrous alloys |
| Shank Style | Straight (cylindrical) |
| Country of Origin | USA |
| US Patent | 6,899,494 |
| Condition | New |
