Sandvik WPMT 040204-PF 4315 Carbide Turning Insert (9pc)
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

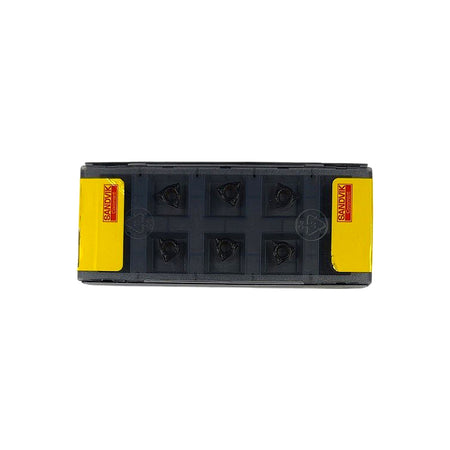

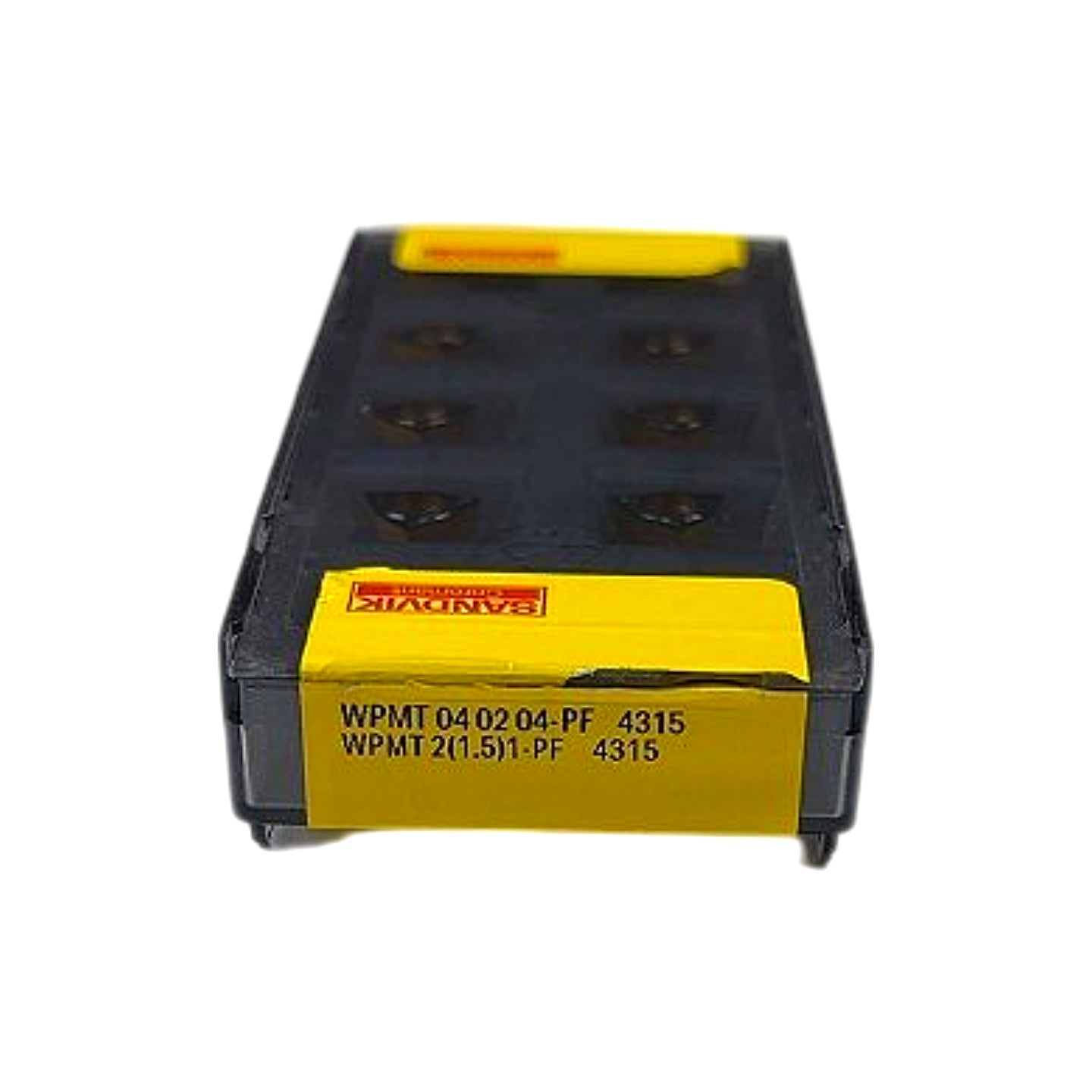

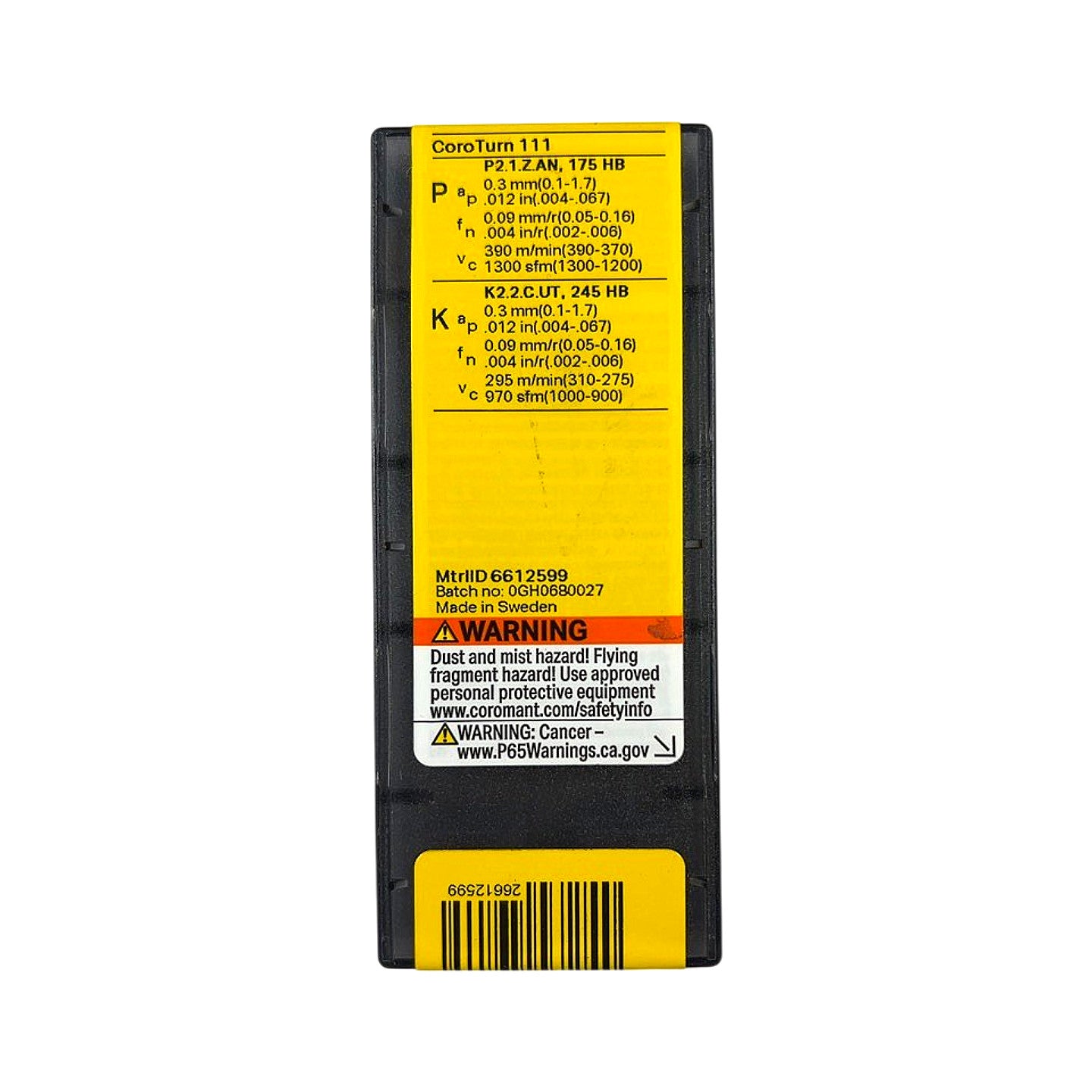

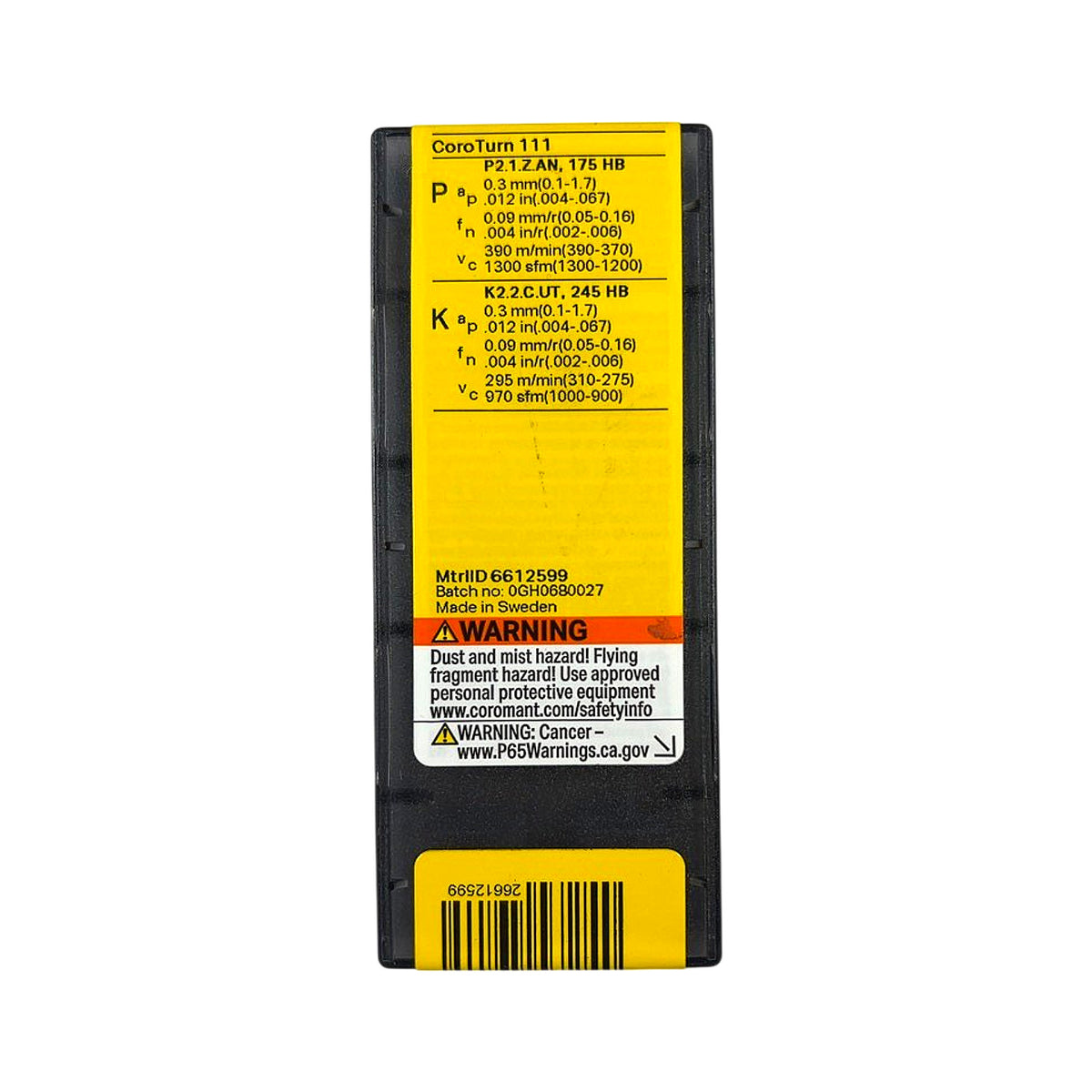

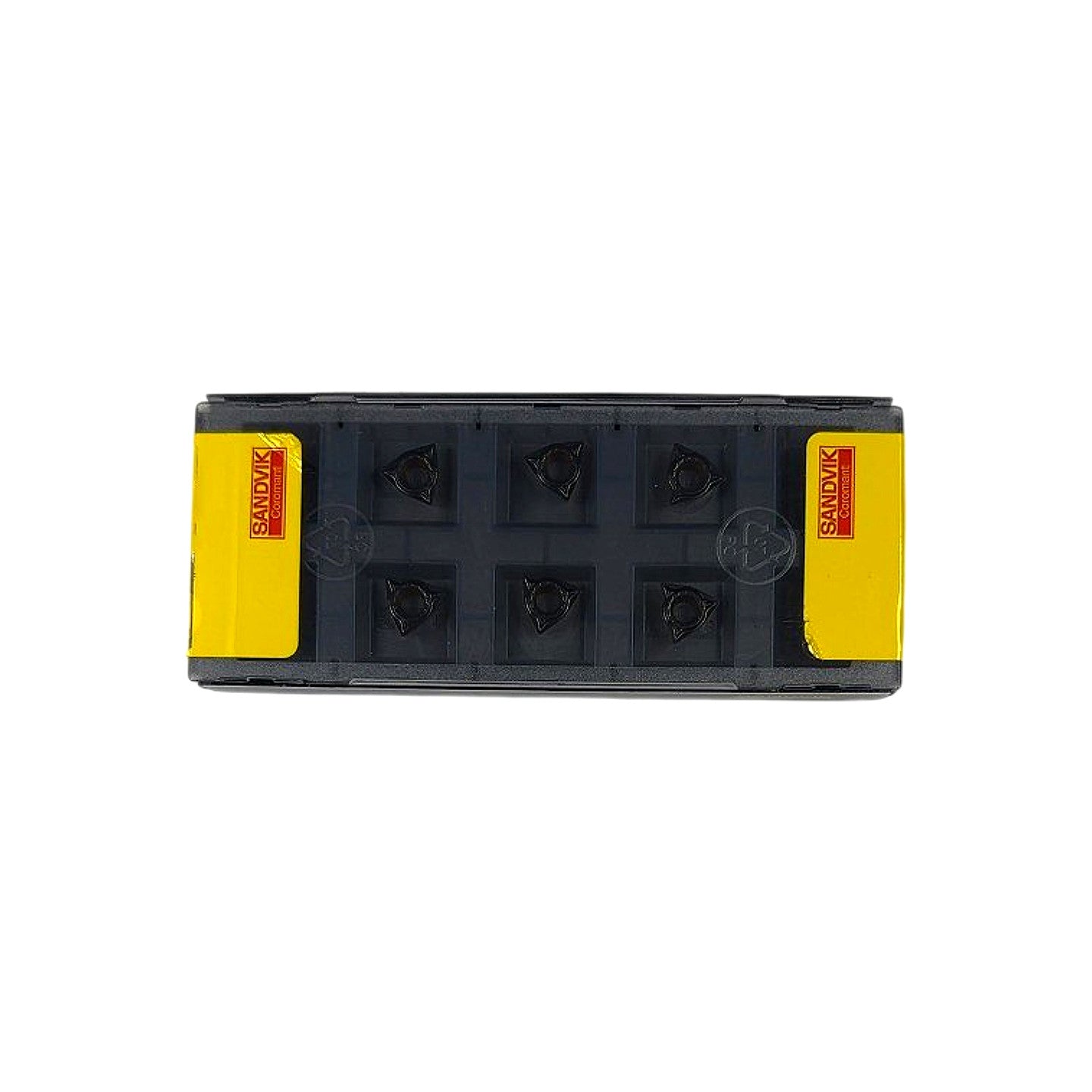

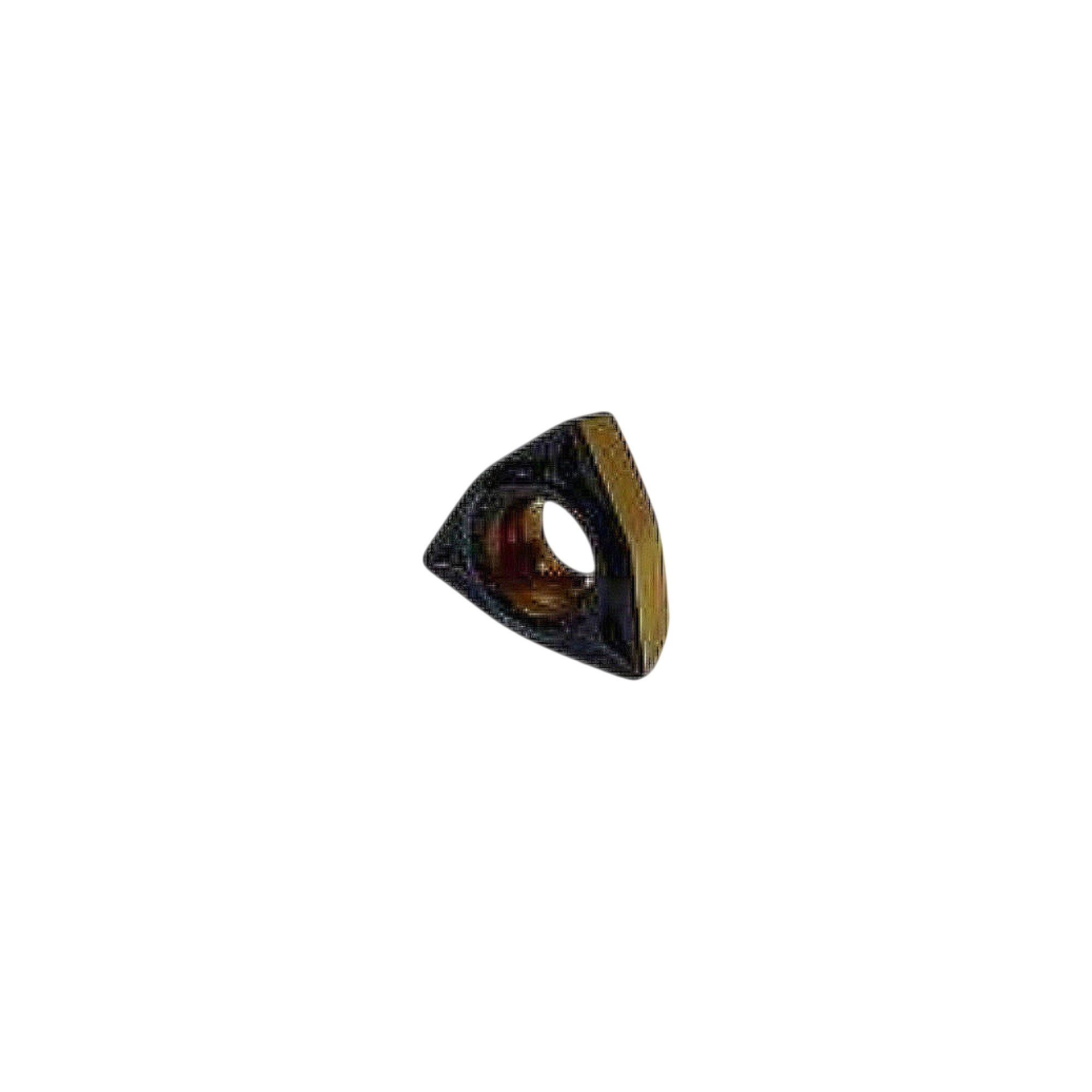

These are new, factory-sealed Sandvik Coromant WPMT 040204-PF 4315 carbide turning inserts for the CoroTurn 111 system, packaged 10 per box and made in Sweden. The W-shape (trigon, 80° included angle) insert features a positive 11° clearance angle (M tolerance), a through-hole (T) for screw clamping, and a PF chipbreaker geometry optimized for light finishing and precision profiling at low depths of cut. Grade 4315 is a CVD-coated cemented carbide (TiCN/Al2O3 multilayer) in the GC4315 family, designed for finishing to light roughing of steel (ISO P) and cast iron (ISO K); the label confirms P2.1.Z.AN at 175 HB and K2.2.C.UT at 245 HB application ranges. Recommended cutting parameters per the box label: depth of cut 0.3 mm (0.012 in), feed 0.09 mm/r (0.004 in/r), cutting speed 390 m/min / 1300 sfm in steel and 295 m/min / 970 sfm in cast iron. These inserts are compatible with Sandvik CoroTurn 111 SWLPR/SWLPL-style toolholders accepting WPMT 04 pocket geometry.
Product Specifications
| Brand | Sandvik Coromant |
| Part Number (ISO) | WPMT 040204-PF |
| Imperial Equiv. Designation | WPMT 2(1.5)1-PF |
| Grade | 4315 (GC4315) |
| Insert Shape | W – Trigon (80° included angle) |
| Clearance Angle | 11° (Code M – positive) |
| Tolerance Class | M |
| Fixing / Chip Control | T – through-hole, screw clamp |
| Chipbreaker | PF (precision finishing) |
| Inscribed Circle (IC) | 4 mm (0.157 in) |
| Insert Thickness | 2 mm (0.079 in) |
| Nose Radius | 0.4 mm (0.016 in) |
| Coating | CVD TiCN/Al2O3 multilayer |
| ISO Material Group (P) | P2.1.Z.AN, ≤175 HB |
| ISO Material Group (K) | K2.2.C.UT, ≤245 HB |
| Depth of Cut (ap) | 0.3 mm (0.1–1.7 mm) / 0.012 in |
| Feed Rate (fn) | 0.09 mm/r (0.05–0.16) / 0.004 in/r |
| Cutting Speed – Steel (vc) | 390 m/min / 1300 sfm |
| Cutting Speed – Cast Iron (vc) | 295 m/min / 970 sfm |
| Toolholder System | CoroTurn 111 (SWLPR/SWLPL style) |
| Quantity per Box | 9 |
| Country of Origin | Sweden |
| Material ID | 6612599 |
| Condition | New |
