Sargent 8205 LNB 26D Office Function Mortise Lever Lockset
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

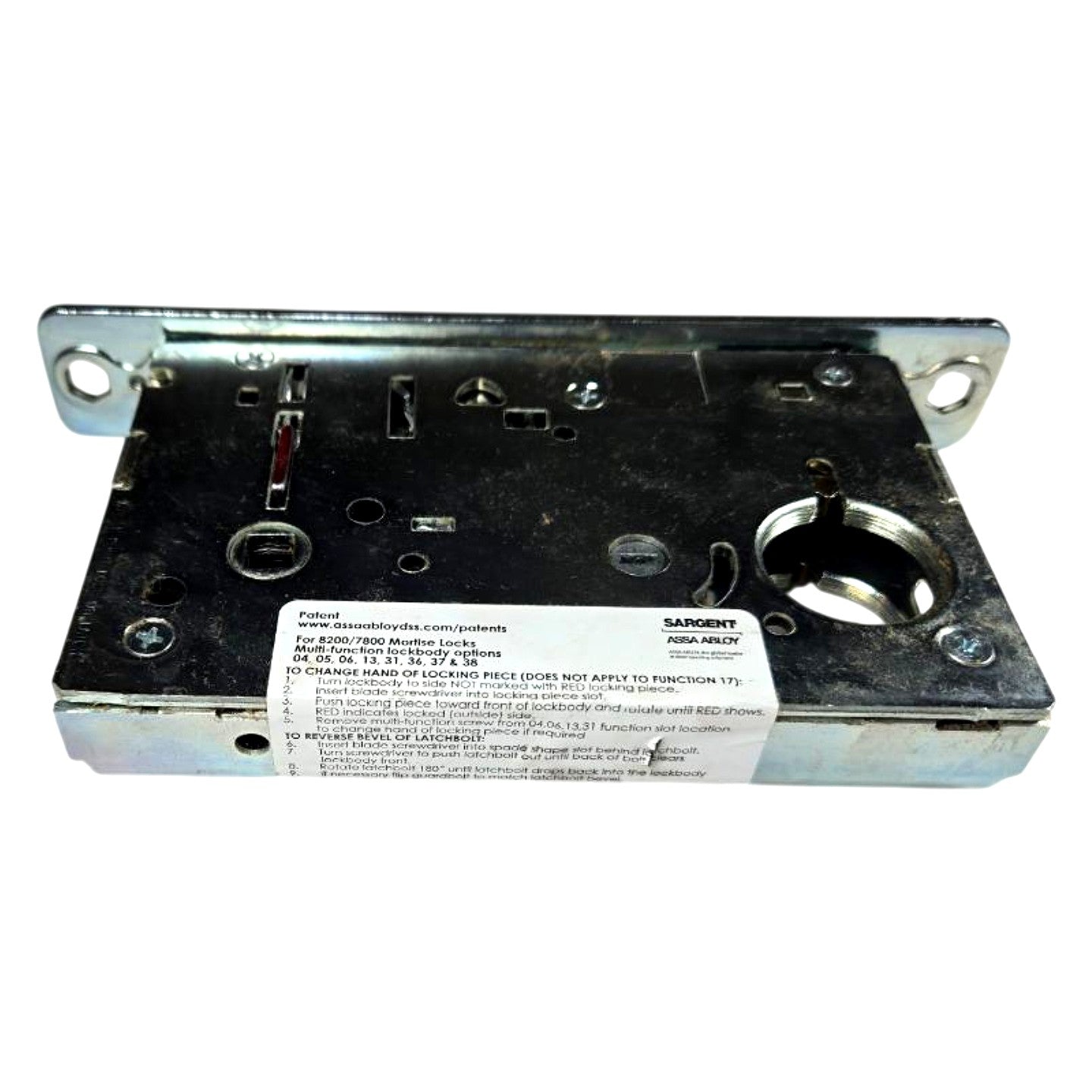

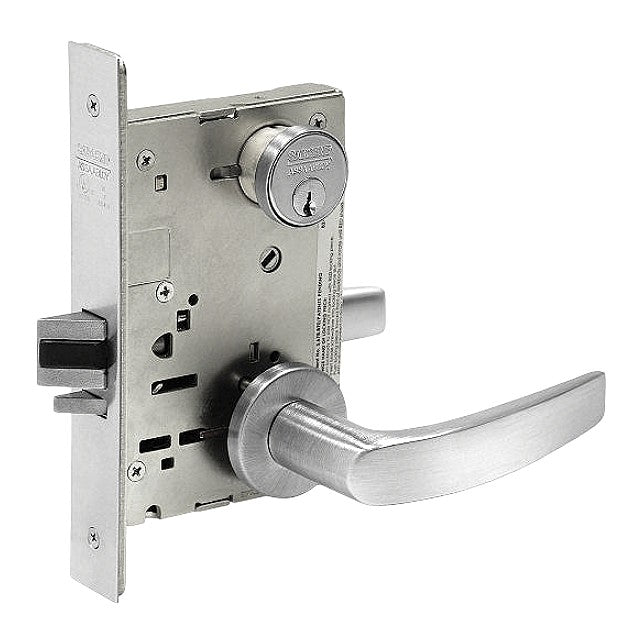

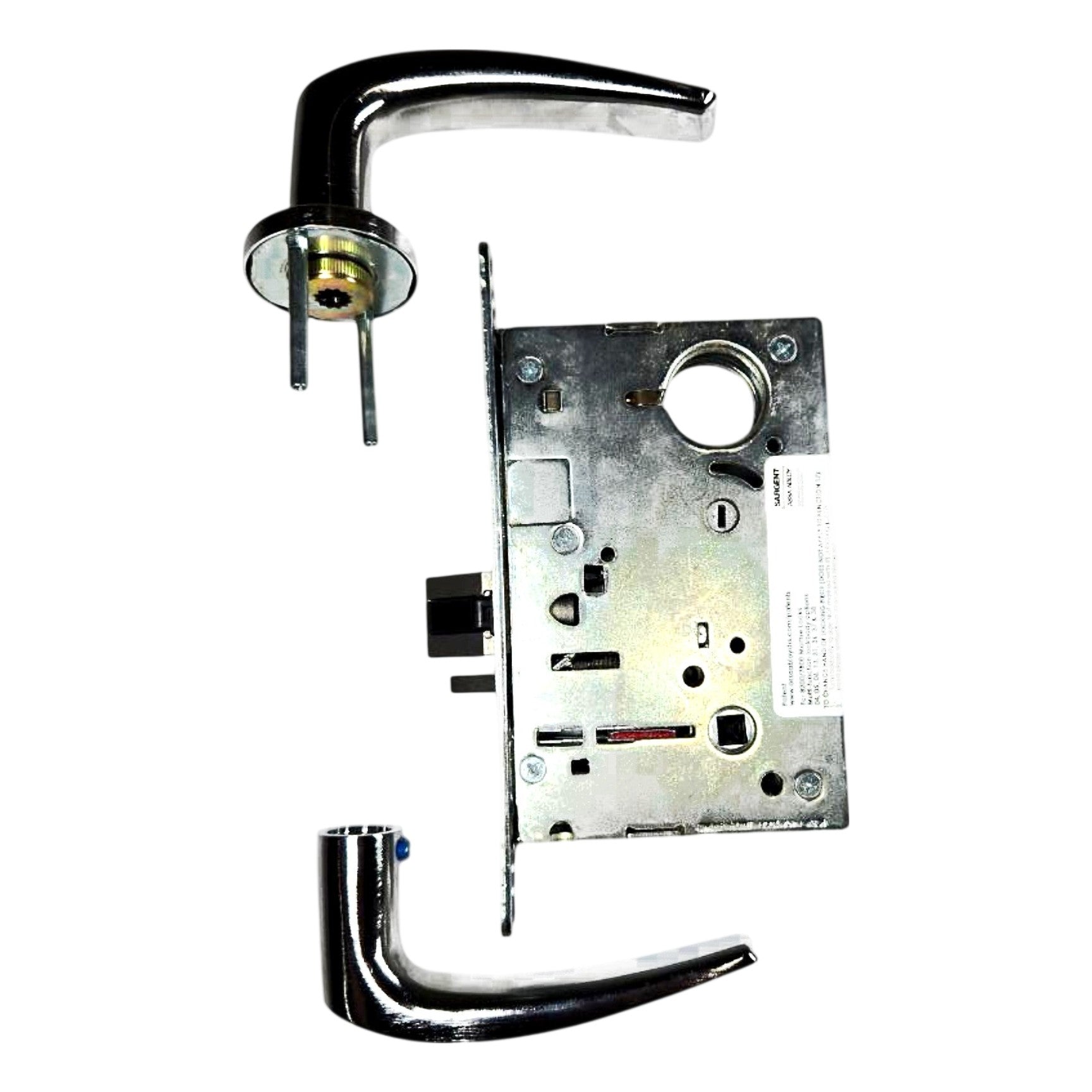

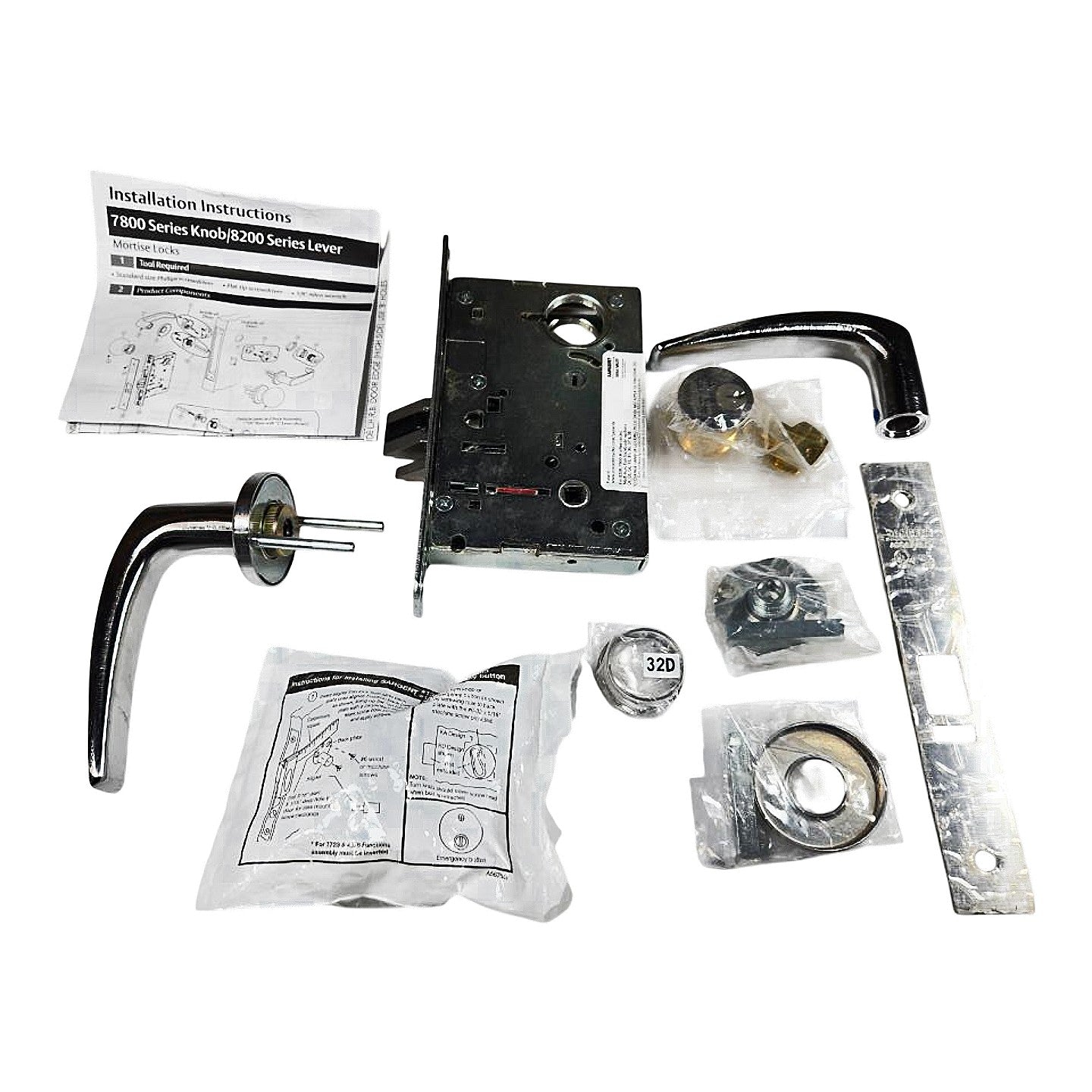

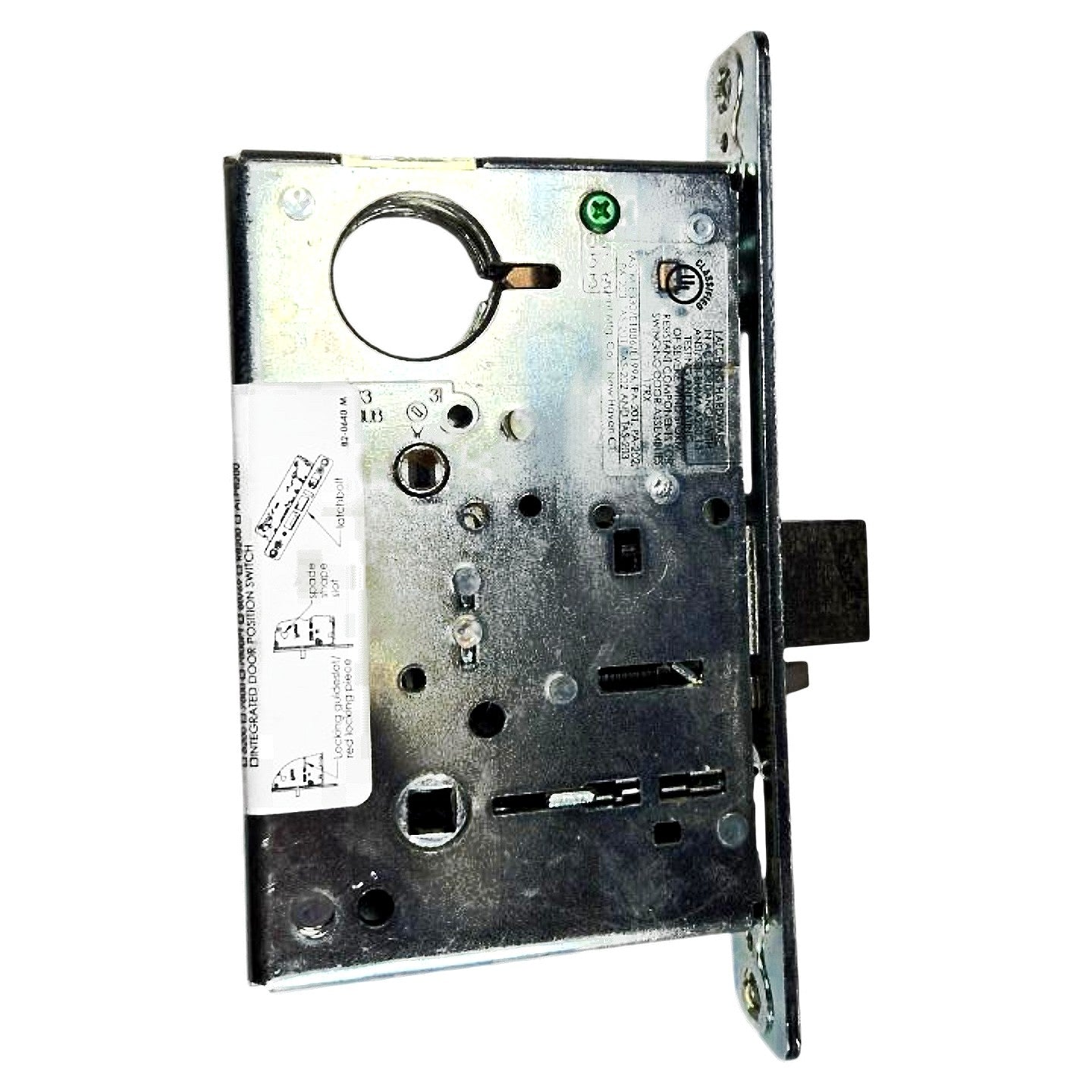

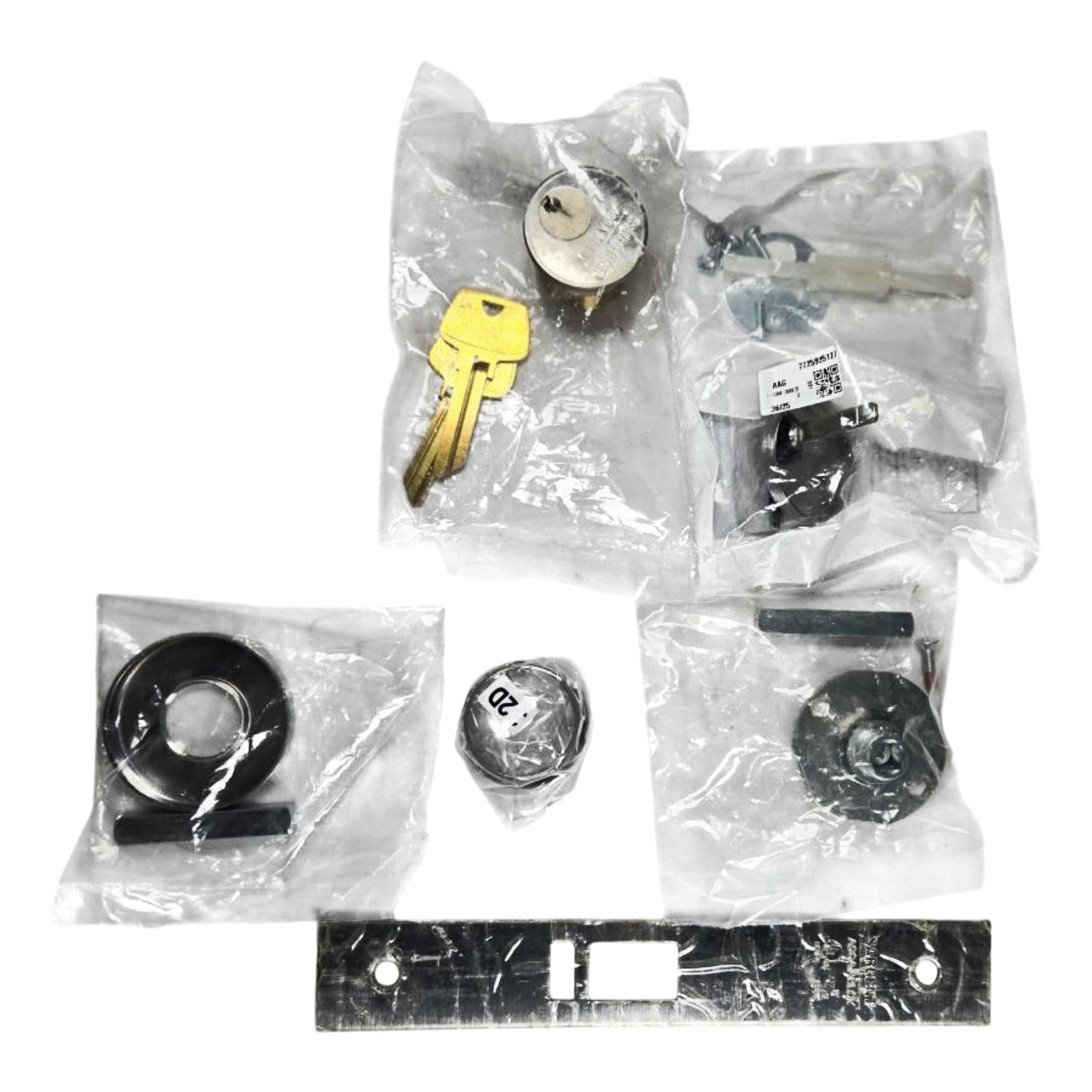

The Sargent 8205 LNB 26D is a new, commercial-grade mortise lockset from the 8200 Series (ASSA ABLOY), featuring Function 05 (office: key locks/unlocks outside lever, inside lever always free), fitted with the LNB (New Britain) lever trim in Finish 26D (satin chrome over steel). The lockset body is ANSI/BHMA Grade 1 certified, UL listed, designed to accept a full mortise cylinder, and incorporates Sargent's reversible multi-function lockbody compatible with 8200/7800 Series trim — field-reversible for handing without tools and accommodating both standard and reverse bevel latchbolts. The kit includes the mortise lockbody, interior and exterior LNB lever trim assemblies, full-size mortise cylinder with keys, strike plate, and all required mounting hardware per the 8200 Series installation instructions visible in the photos. The 26D satin chrome finish meets BHMA A156.18 and is suited for commercial office, institutional, and light industrial door applications on 1-3/4 in doors; the ADA-compliant lever design meets ICC/ANSI A117.1 accessibility requirements.
Product Specifications
| Brand | Sargent (ASSA ABLOY) |
| Model / MPN | 8205 LNB 26D |
| Series | 8200 Series Mortise Lock |
| Lock Function | 05 – Office (key locks/unlocks outside lever) |
| Lever Style | LNB (New Britain) |
| Finish | 26D – Satin Chrome over Steel |
| Lock Type | Mortise |
| Grade | ANSI/BHMA Grade 1 |
| ADA Compliant | Yes – ICC/ANSI A117.1 |
| Handing | Field-reversible (handed trim) |
| Door Thickness | 1-3/4 in (standard prep) |
| Backset | 2-3/4 in standard (adjustable to 2-3/8 in) |
| Cylinder Type | Full-size mortise cylinder included w/ keys |
| Latchbolt | 1/2 in throw, reversible bevel |
| Deadbolt | 1 in throw (included in lockbody) |
| Strike | ANSI standard strike plate included |
| UL Listed | Yes |
| Certification | BHMA A156.13 Series 1000 |
| Condition | New |
