Schneider ABL8RPS24050 24VDC 5A 120W DIN Rail Power Supply
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

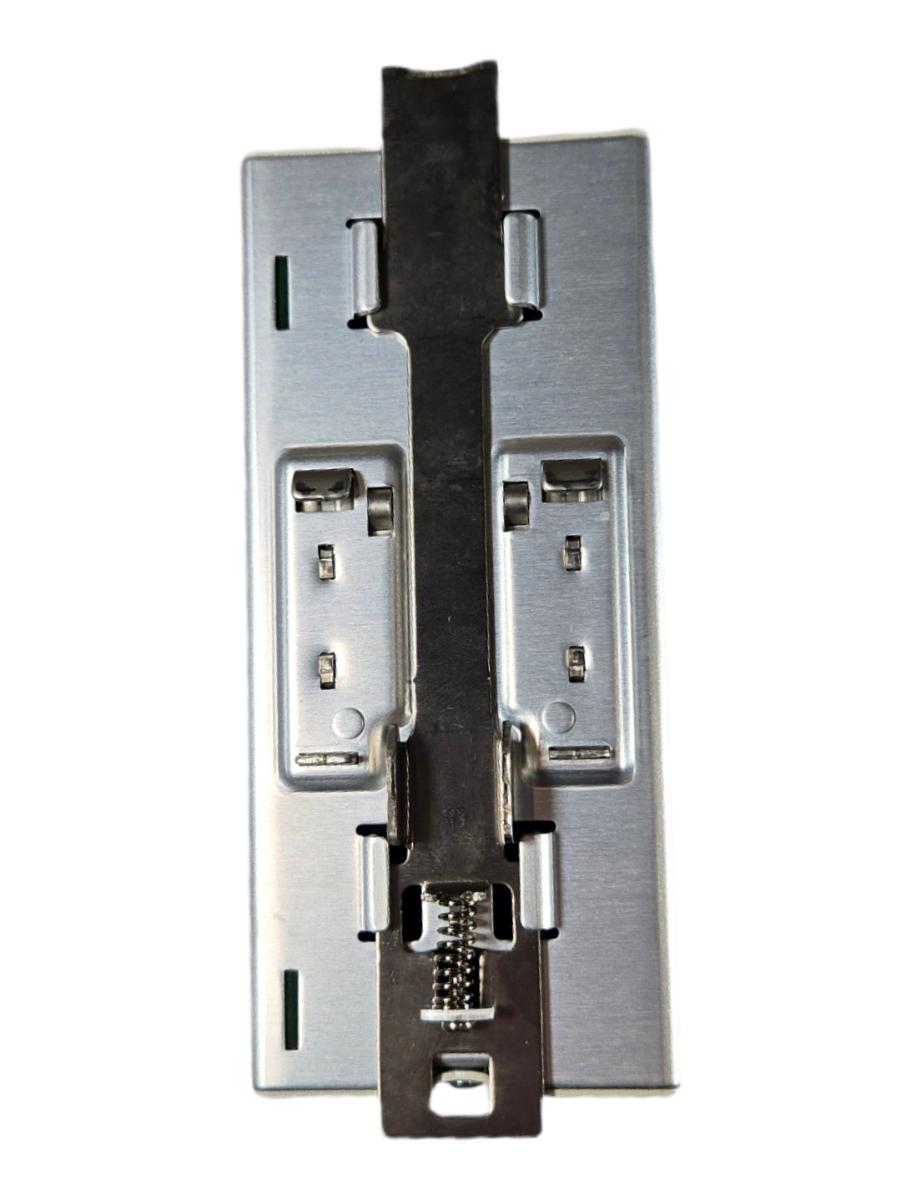

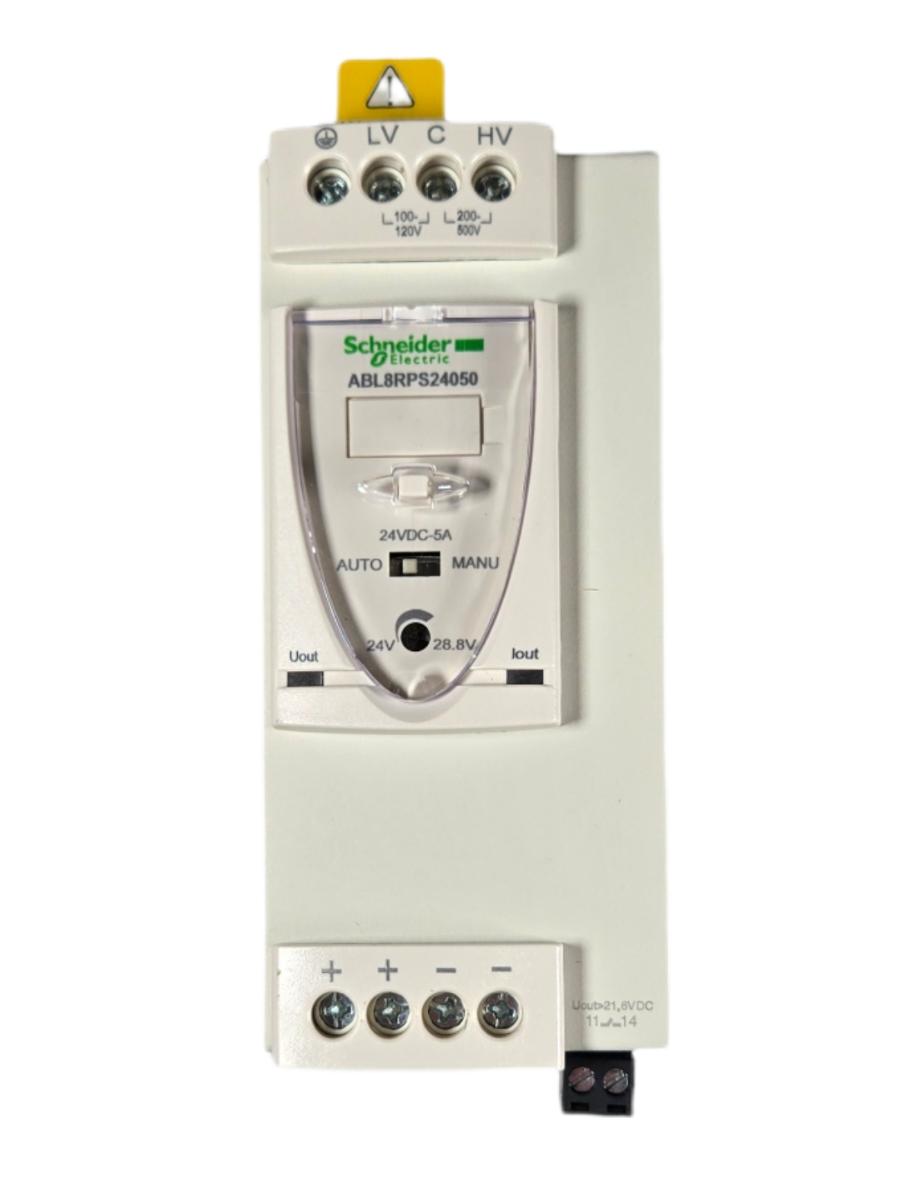

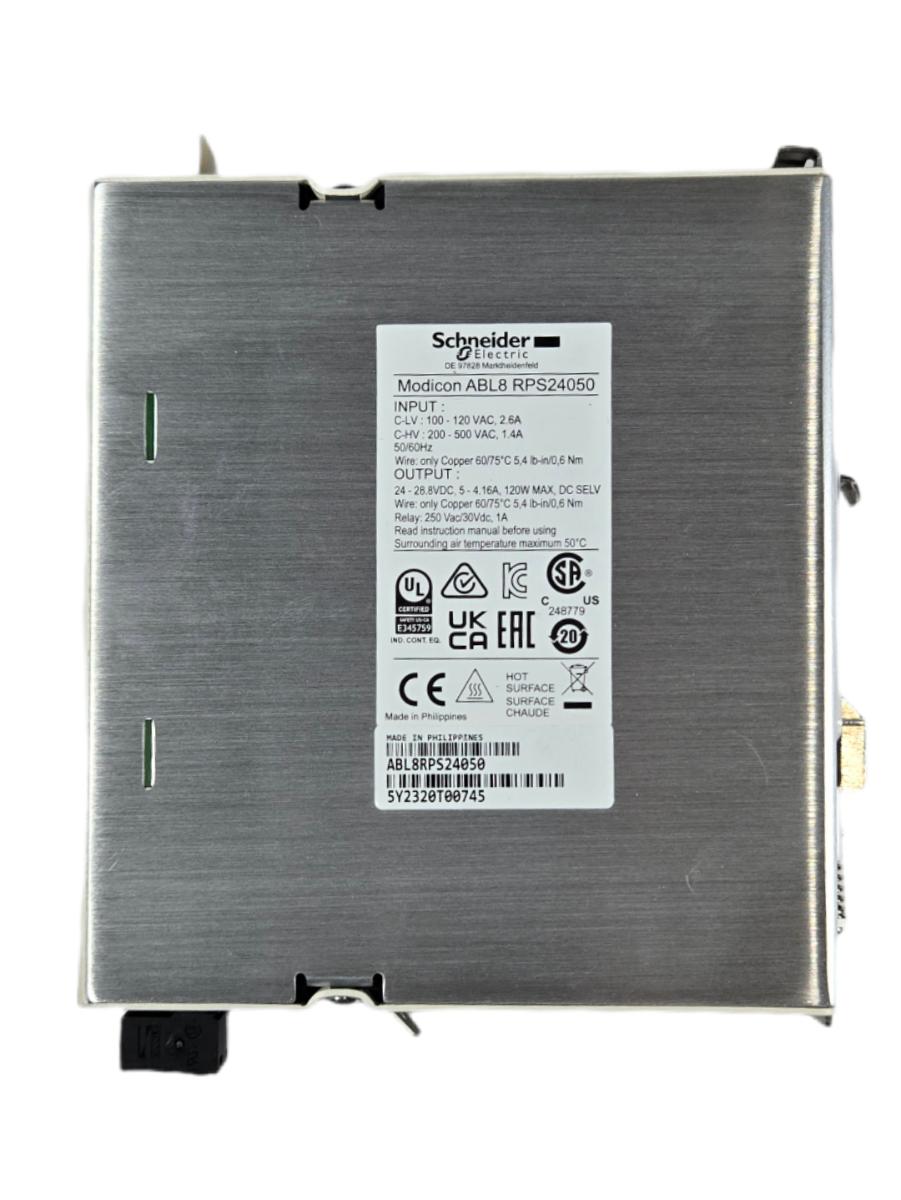

The Schneider Electric Modicon ABL8RPS24050 is a new, single-phase universal DIN rail-mounted switched-mode power supply rated at 120W with a 24–28.8 VDC adjustable output at 5A continuous (4.16A derated to 120W max). Input accepts a wide universal voltage range: 100–120 VAC at 2.6A (LV tap) or 200–500 VAC at 1.4A (HV tap), 50/60 Hz, with the input tap selected via a three-terminal LV/C/HV screw block on top of the unit. The unit features AUTO/MANU output voltage selection (24V or 28.8V boost mode), dual Uout and Iout LED status indicators, an integrated dry-contact diagnostic relay output rated 250 VAC/30 VDC at 1A (terminals 11–14, normally open), and a screwless spring-clamp 35mm DIN rail mounting mechanism. Output terminals provide dual +/+ and −/− connections accepting copper wire rated to 75°C; maximum ambient operating temperature is 50°C. Certified UL (E345759), CSA (248779), CE, EAC, KC, and UKCA; DC SELV output classification. Compatible with Schneider LAD90 DIN rail accessories and designed for use in industrial control panels powering PLCs, sensors, and automation loads.
Product Specifications
| Manufacturer Part Number | ABL8RPS24050 |
| Brand | Schneider Electric (Modicon) |
| Product Line | ABL8 Phaseo Universal |
| Power Supply Type | Switched-Mode (SMPS), AC to DC |
| Mounting Style | 35mm DIN Rail |
| Input Voltage Range (LV) | 100–120 VAC |
| Input Current (LV) | 2.6A |
| Input Voltage Range (HV) | 200–500 VAC |
| Input Current (HV) | 1.4A |
| Input Frequency | 50/60 Hz |
| Input Phases | Single Phase |
| Output Voltage | 24–28.8 VDC adjustable |
| Output Current (Rated) | 5A |
| Output Current (Derated to 120W) | 4.16A |
| Output Power (Max) | 120W |
| Output Safety Classification | DC SELV |
| Output Voltage Modes | AUTO (24V) / MANU (28.8V) |
| Diagnostic Relay Output Rating | 250 VAC / 30 VDC, 1A |
| Diagnostic Relay Contact Type | Dry contact, Normally Open (terminals 11–14) |
| Maximum Ambient Temperature | 50°C |
| Wire Type Requirement | Copper only, 60/75°C rated |
| Output Terminal Torque | 5.4 lb·in (0.6 Nm) |
| Minimum Output Voltage (at full load) | 21.6 VDC |
| Condition | New |
| Country of Manufacture | Philippines |
| UL File Number | E345759 |
| CSA File Number | 248779 |
| Certifications | UL, CSA, CE, EAC, KC, UKCA |
