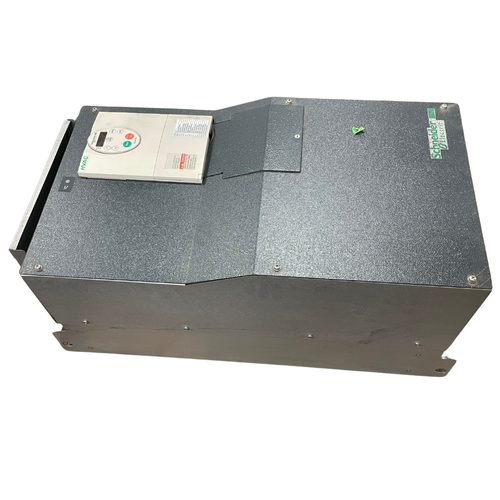

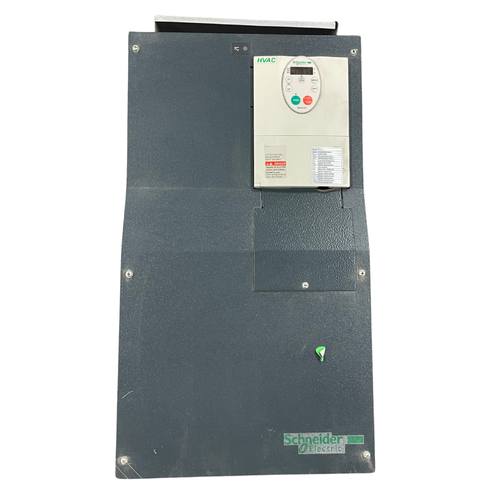

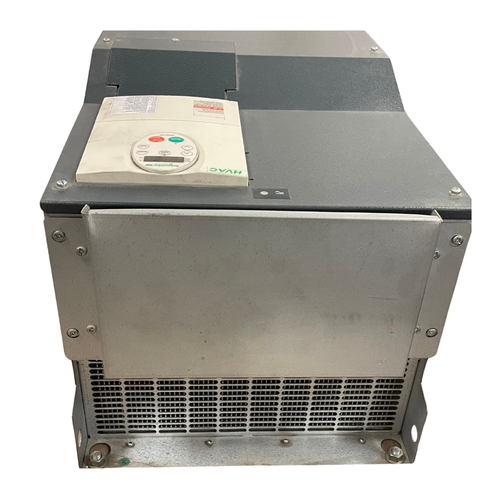

Schneider ATV212HD55N4 400-480V 75HP 3PH 116A LED Variable Frequency Drive -
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
| Brand | Schneider |
| MPN | ATV212HD55N4 |
| Rated Load | 75 HP |
| Input Voltage | 380-480V |
| Number Of Phases | 3-Phase |
| Enclosure | Open |
| Bypass | No Bypass |
| Model | Variable Frequency Drive |
| Unit Quantity | 1 |
| Unit Type | Unit |
| Width | 12.6 in |
| Depth | 11.42 in |
| Height | 24.8 in |
| Max. HP | 75 hp |
| Output Voltage | 323 to 528V AC |
| Input Phase AC | Three |
| Max. Output Amps | 116 A |
| Output Phase AC | Three |
| With Bypass / No Bypass | No Bypass |
| With Line Contactor / No Line Contactor | No Line Contactor |
| Adjustable Acceleration Time | 0.01 to 3,200 sec |
| Starting Torque | 120% |
| Input Frequency | 50/60 Hz |
| Adjustable Deceleration Time | 0.01 to 3,200 sec |
| For Use With | 3-Phase Inverter Duty Motor |
| Dynamic Braking | No |
| Output Frequency Range | 0.5 to 200 Hz |
| Displays | LED |
| Keypad, Logic Input | Keypad, Logic Input |
| Digital Readout | Hertz, Motor Current, KW, Motor Voltage, Bus Energized |
| Start/Stop Control | Programmable |
| Standards | UL, NOM 117, C-Tick, CSA |
| Key Pad Lockout | Yes |
| Torque @ 1 Hz | 110% |
| Control Method | Keypad or Logic Input |
| Style | Heat Sink |
| Number of Outputs | (1) Analog; (2) Discrete |
| Number of Inputs | 2 |
| Accepts Input Control Signal | Yes |
| Enclosure Rating | NEMA 1 |
| Color | Black/Blue/Gray |
| Torque Application | Constant Torque, Variable Torque |
| Output Type | Analog, Discrete |
Schneider ATV212HD55N4 400-480V 75HP 3PH 116A LED Variable Frequency Drive
