Schneider ATV320U40N4C 4kW 5HP 380-500V 3Ph IP20 Variable Frequency Drive

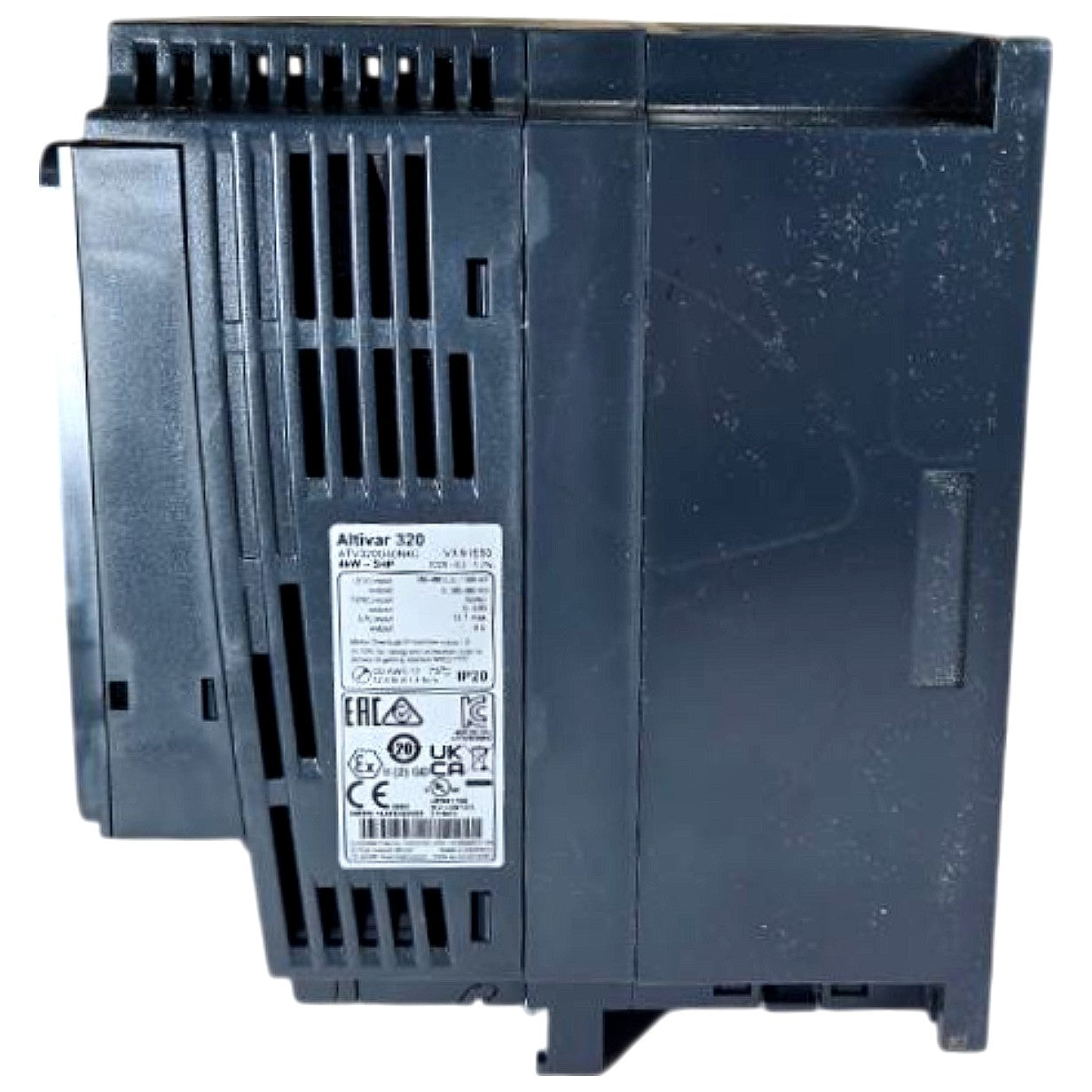

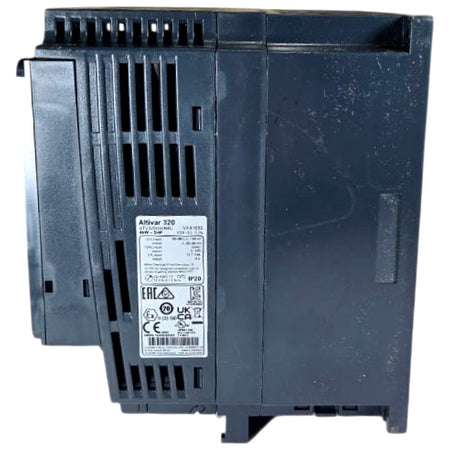

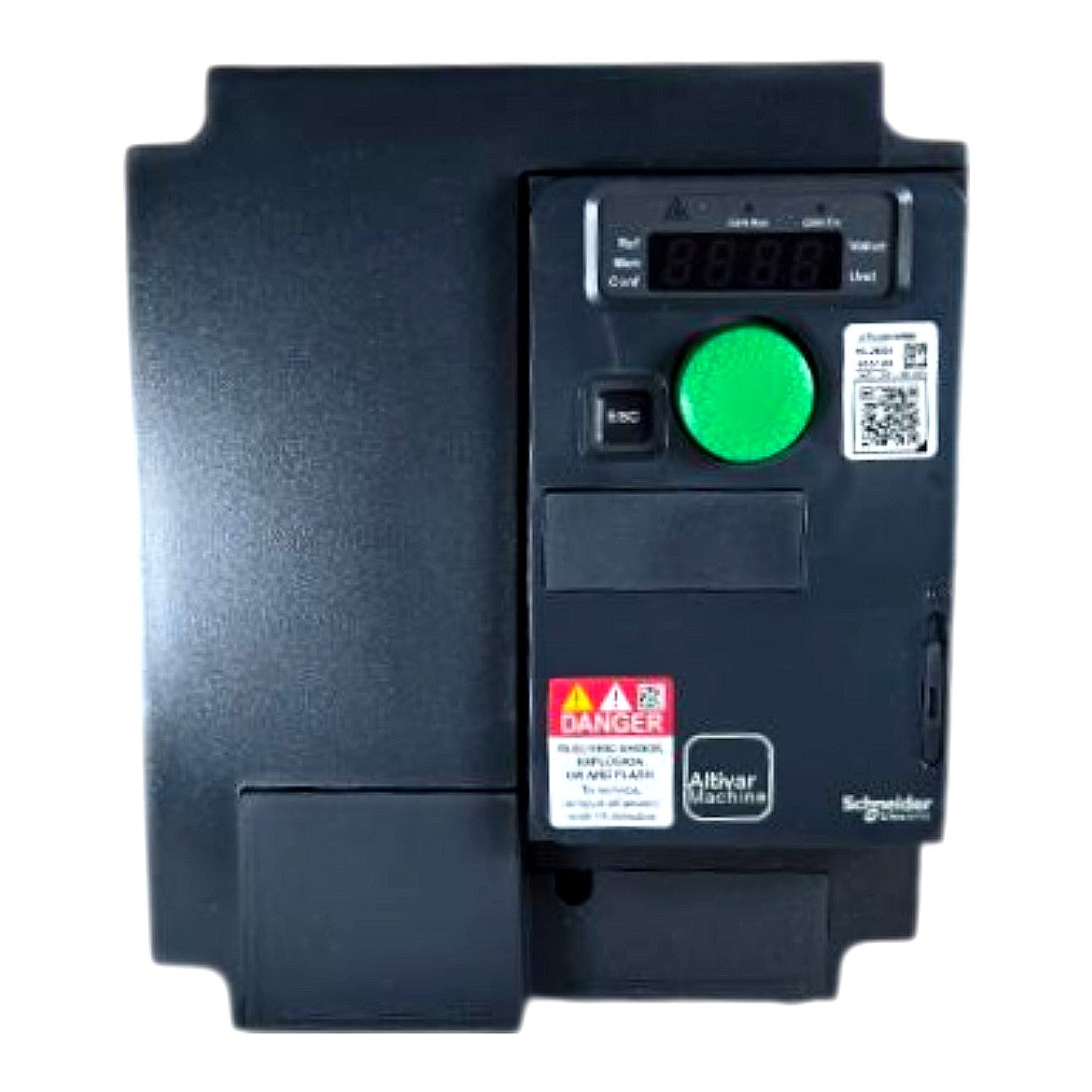

The Schneider Electric Altivar Machine ATV320U40N4C is a new, compact variable frequency drive (VFD) from the ATV320 series, rated at 4 kW (5 HP) for three-phase 380–500 V AC input and three-phase output, designed for machine-builder applications including conveyors, packaging equipment, hoists, and general-purpose motor control. The part number decodes as follows: ATV320 = Altivar Machine 320 series; U40 = 4.0 kW (U-series compact book format); N4 = three-phase 380–500 V network input; C = with embedded EMC filter. The drive features an integrated Class C2 EMC filter (suffix "C"), IP20 enclosure rating, a 4-digit LED display with integrated keypad, one RJ45 Modbus/CANopen port, and supports Voltage/Frequency (V/F), Sensorless Flux Vector (SVC), and closed-loop control modes with a switching frequency up to 16 kHz. Rated output current is 9.5 A continuous, with a 150% overload capability for 60 seconds, and the unit carries UL, CE, EAC, and UKCA certifications as confirmed on the nameplate label visible in the photos.

Product Specifications
