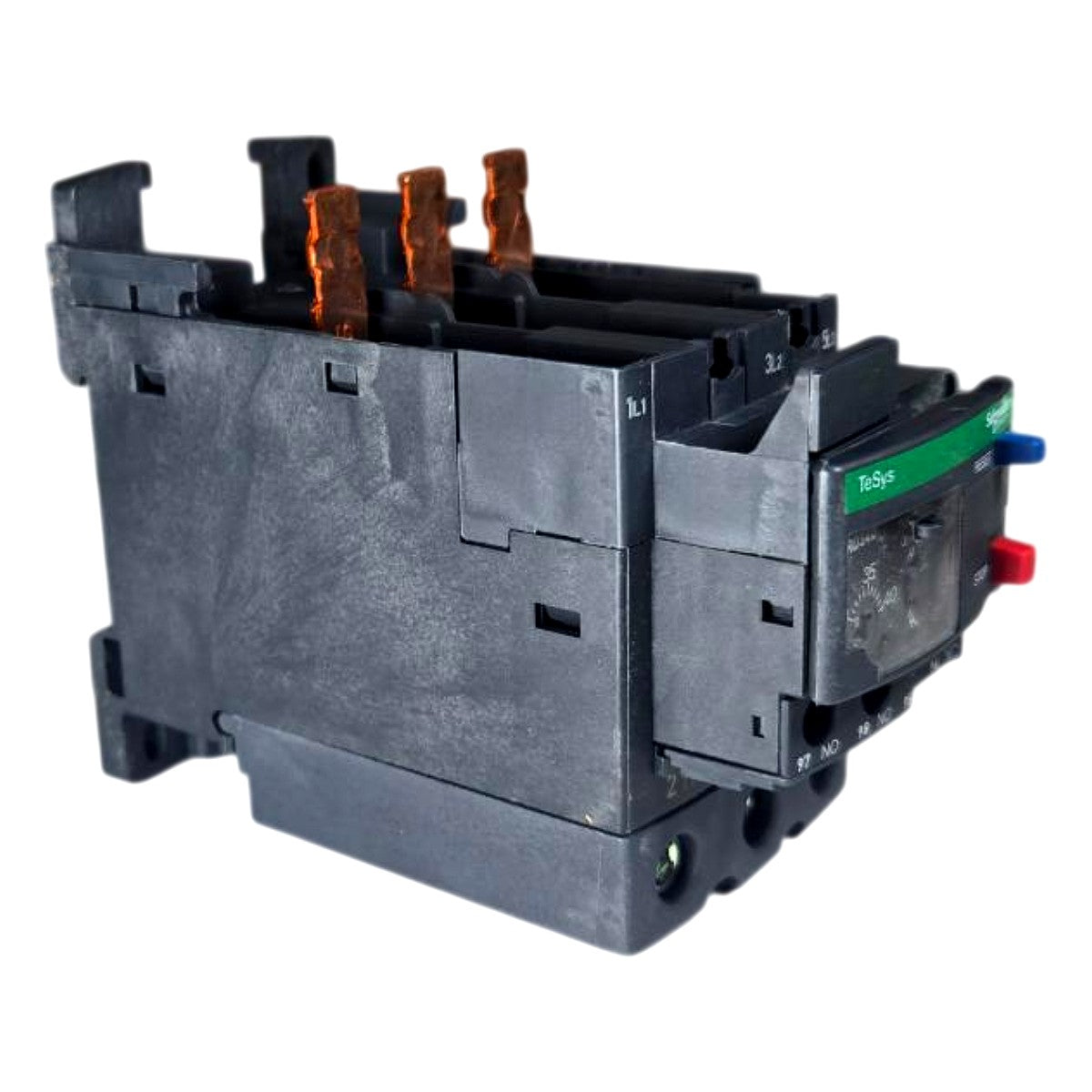

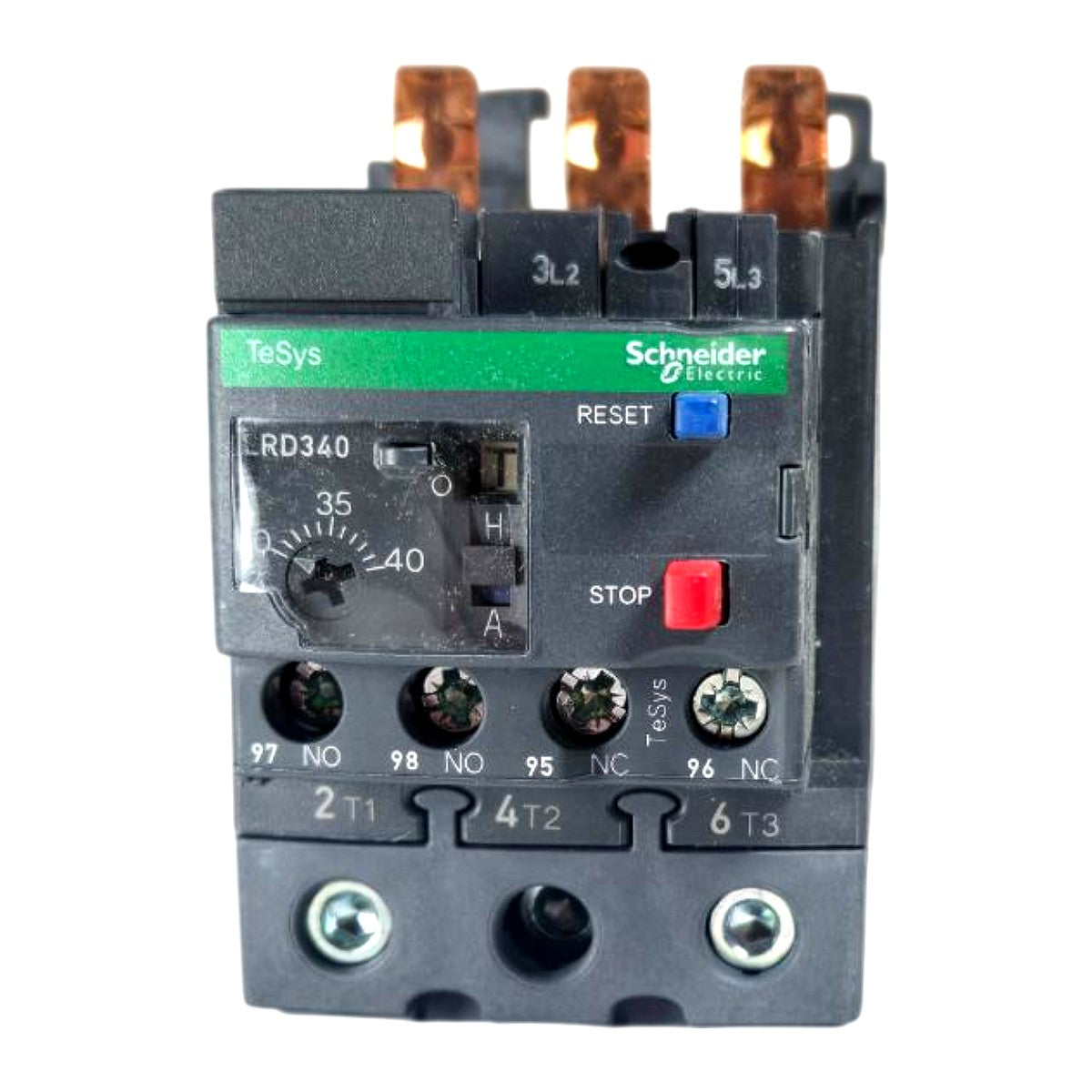

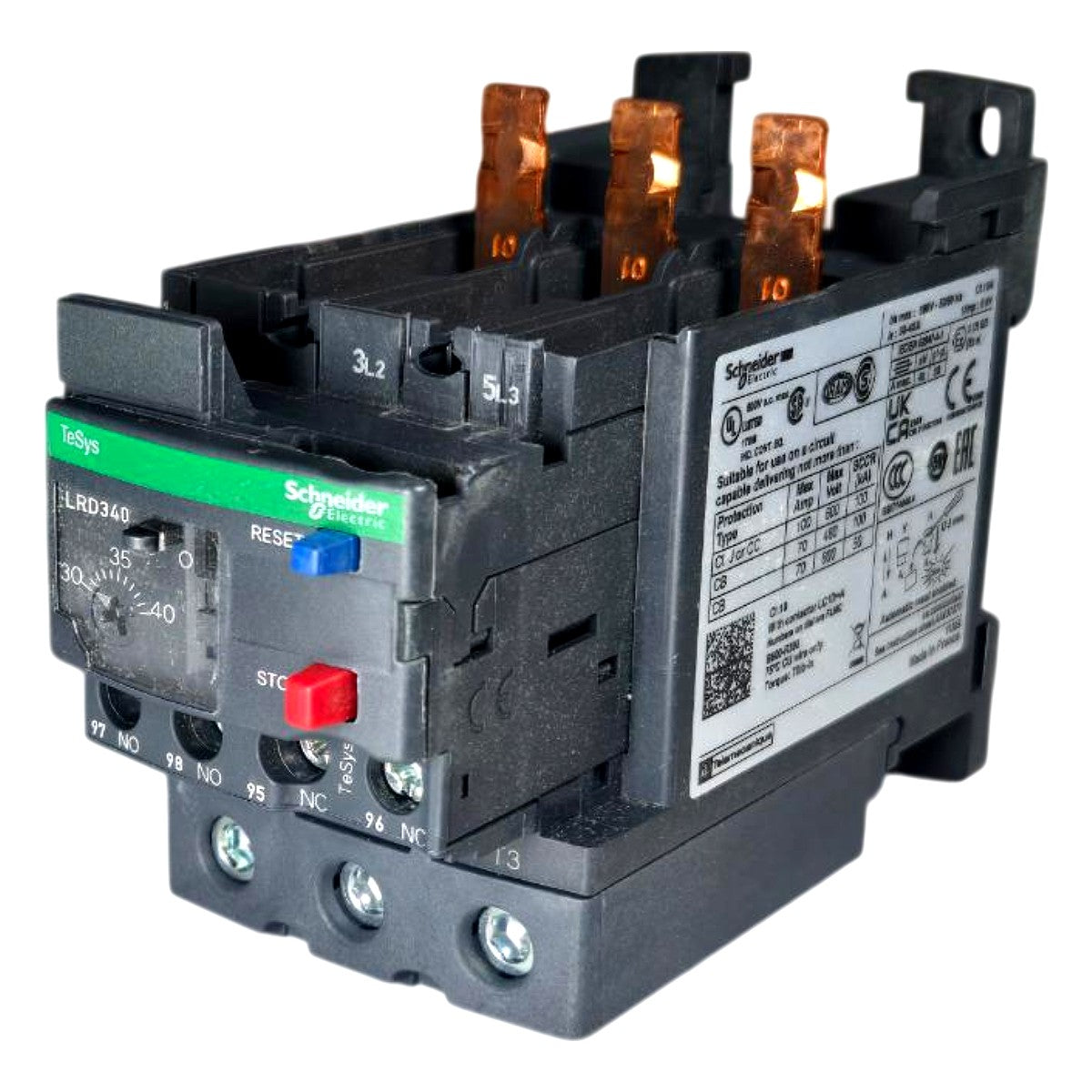

The Schneider Electric TeSys LRD340 is a new 3-pole bimetallic thermal overload relay from the TeSys Protect series, featuring EverLink screw-clamp terminals rated for 75°C copper conductors with a torque spec of 70 lb-in. The current setting range is 30–40 A (adjustable via front-panel dial, scale marked in FLMC units), with a maximum operating voltage of 690 V AC at 50/60 Hz and an impulse withstand voltage (Uimp) of 6 kV. The relay is Class 10A (Cl.10A) per IEC/EN 60947-4-1, providing overload and phase-loss protection; it includes one NO (97-98) and one NC (95-96) auxiliary contact, a blue manual RESET button, and a red STOP button, with automatic reset capability enabled. Compatible for direct plug-in mounting with Schneider LC1D contactor series (LC1D••A frame, e.g., LC1D40A), and carries UL Listing (File 170M, 600 V AC max), CSA, CE, UKCA, EAC, CCC, and IRAM approvals; SCCR is 100 kA at 600 V with Class J or CC fuse protection. Manufactured in France under the Telemecanique / Schneider Electric brand.
Product Specifications
| Brand | Schneider Electric (Telemecanique) |
| MPN | LRD340 |
| Series | TeSys Protect |
| Product Type | Thermal Overload Relay |
| Condition | New |
| Current Setting Range | 30–40 A |
| Overload Class | Class 10A (Cl.10A) per IEC/EN 60947-4-1 |
| Max Operating Voltage (Ue) | 690 V AC, 50/60 Hz |
| Impulse Withstand Voltage (Uimp) | 6 kV |
| Number of Poles | 3 |
| Auxiliary Contacts | 1 NO (97-98), 1 NC (95-96) |
| Reset Type | Manual (blue button) & Auto reset enabled |
| Stop Function | Red STOP button (manual trip) |
| Terminal Type | EverLink screw-clamp |
| Wire Rating | 75°C CU wire only |
| Terminal Torque | 70 lb-in |
| Compatible Contactor | LC1D••A frame (e.g., LC1D40A) |

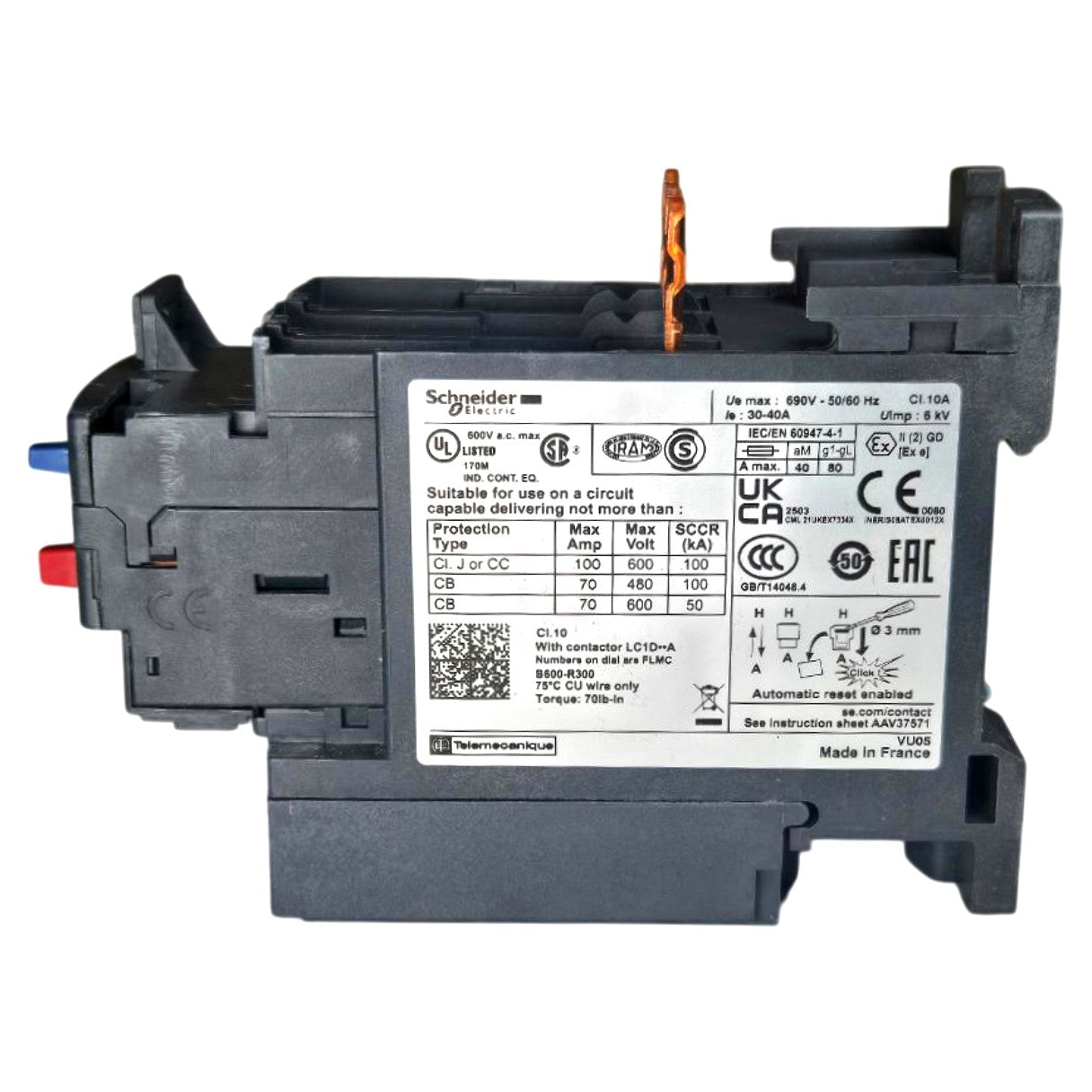

| SCCR – Class J or CC Fuse | 100 kA @ 600 V |
| SCCR – CB | 100 kA @ 480 V; 50 kA @ 600 V |
| UL Listing | File 170M, 600 V AC max, Industrial Control Eq. |
| Standards | IEC/EN 60947-4-1, UL, CSA, CE, UKCA, EAC, CCC |
| Country of Origin | France |
| Grainger / Distributor Part # | 6KYC6 |
