Schneider Electric VLS3P125R2 3-Pole 125A 600VAC Load Break Switch

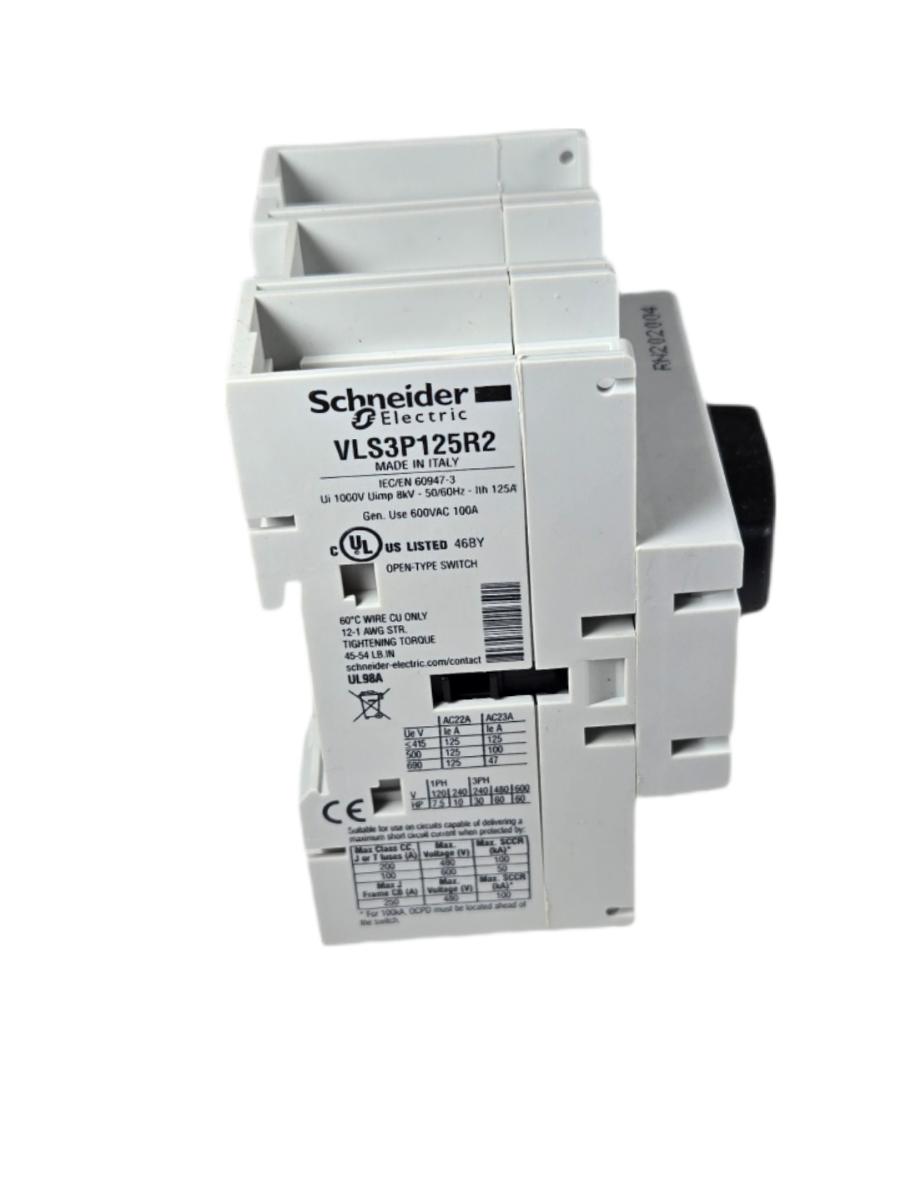

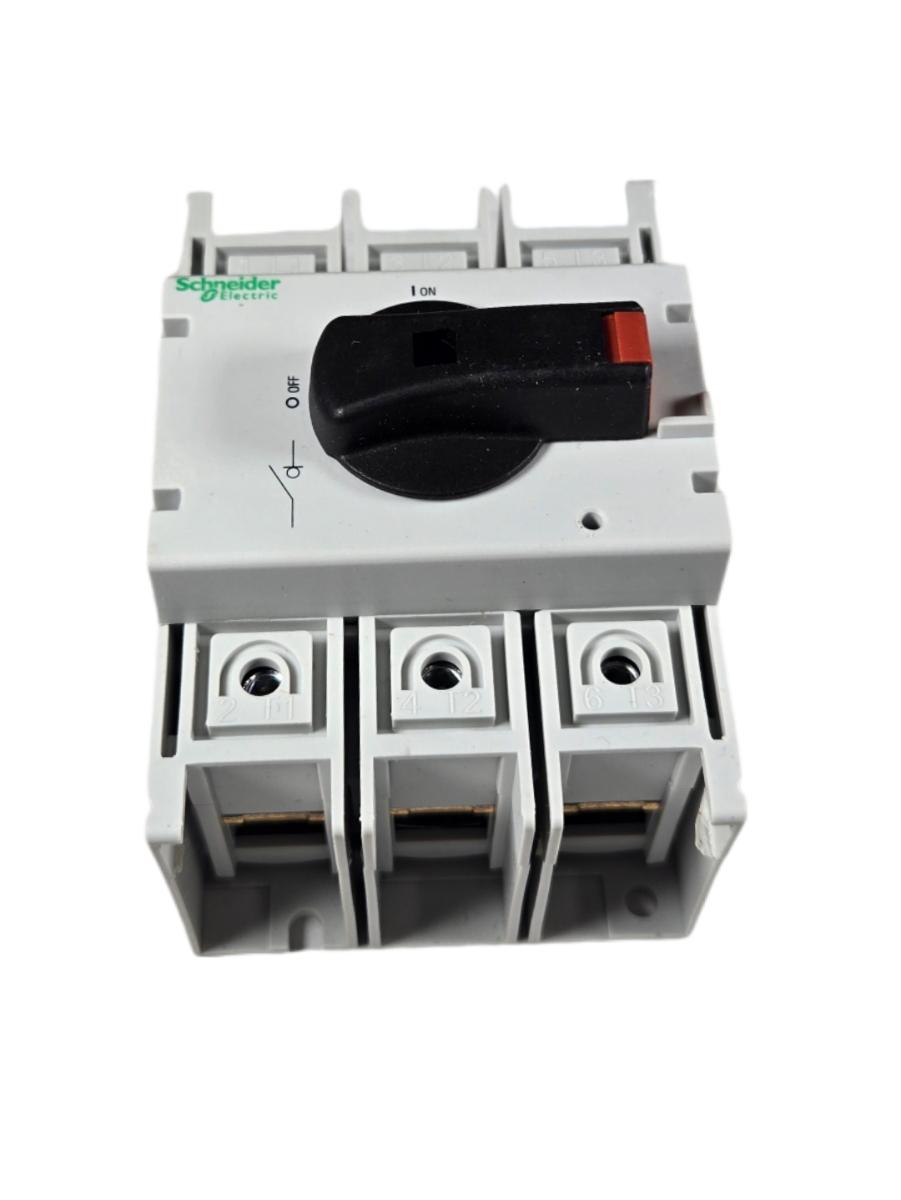

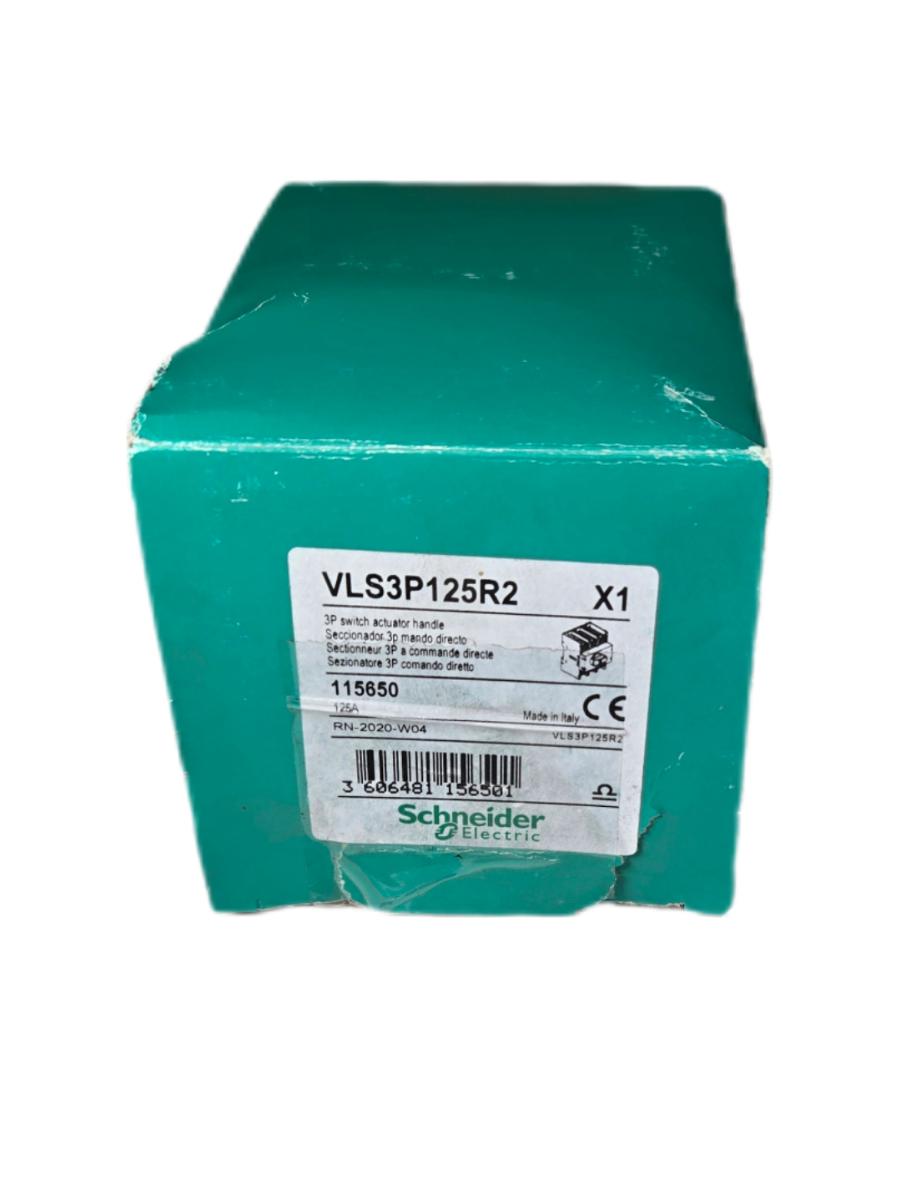

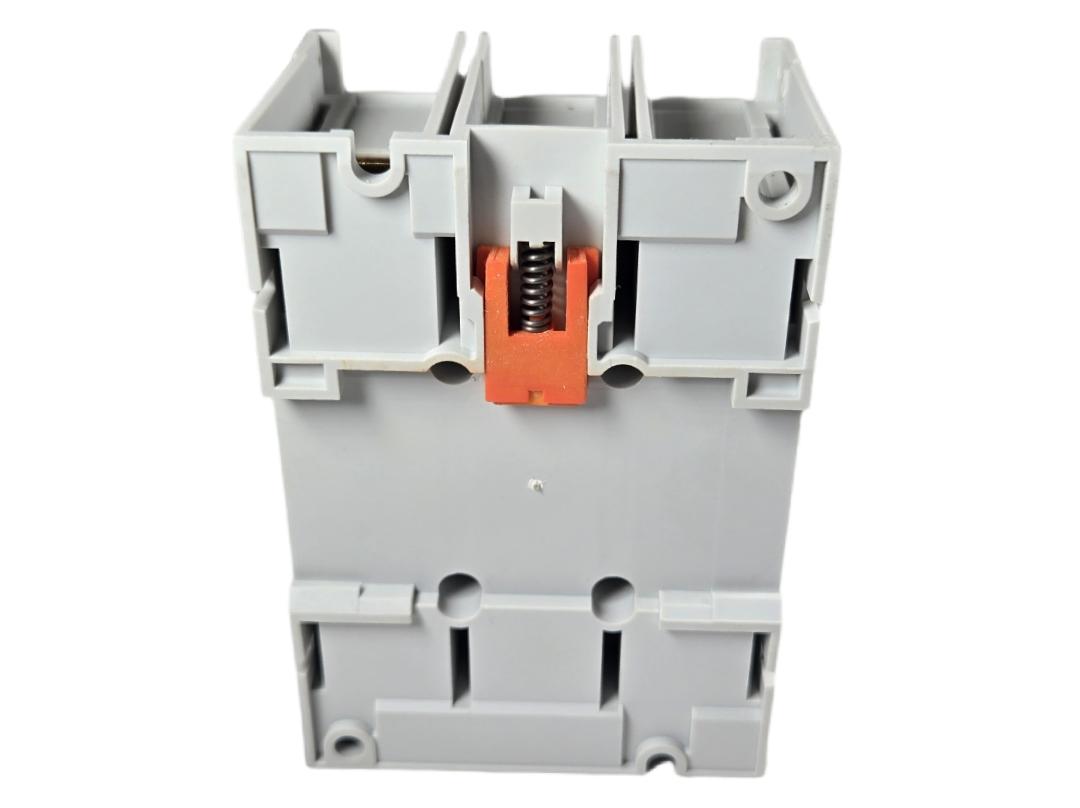

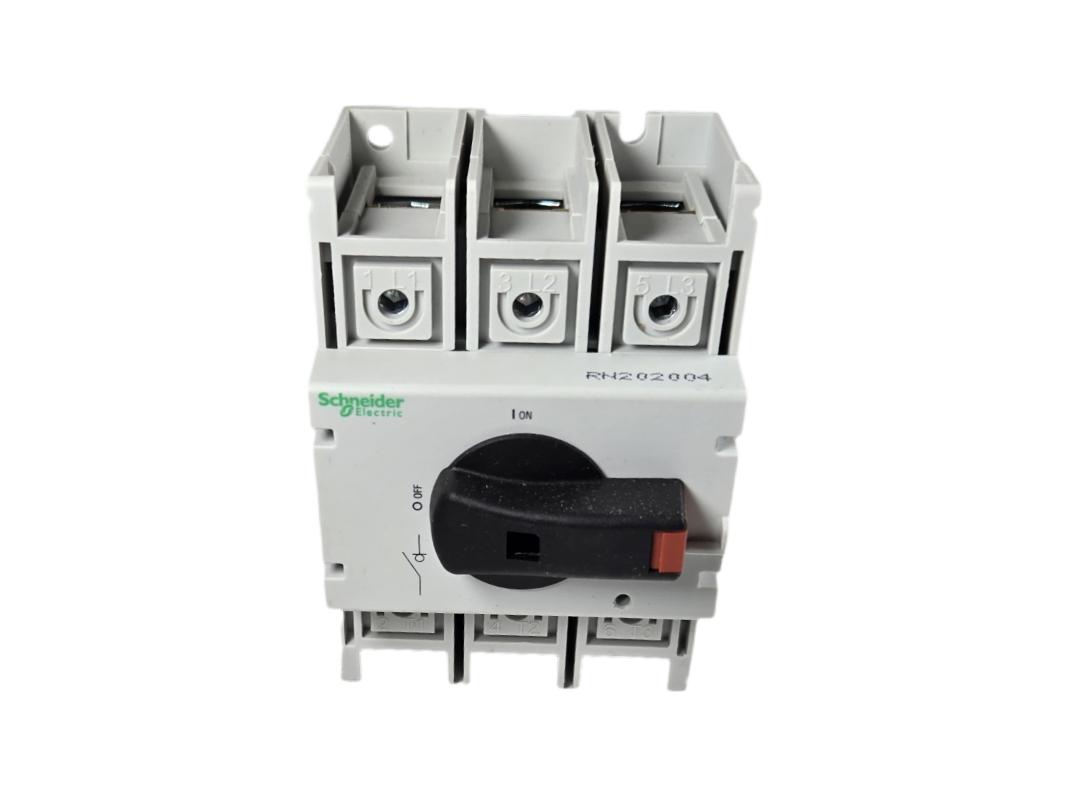

The Schneider Electric VLS3P125R2 is a new, 3-pole direct-actuator load break switch (isolator) from the Vario product line, manufactured in Italy and carrying catalog number 115650. It is rated for a conventional thermal current (Ith) of 125A with a general-use rating of 100A at 600VAC under UL98A as an open-type switch, and carries UL Listing 46BY as well as IEC/EN 60947-3 certification with an insulation voltage (Ui) of 1000V and an impulse withstand voltage (Uimp) of 8kV at 50/60Hz. The switch accommodates 12–1 AWG stranded copper conductors only (60°C rated wire), with a terminal tightening torque of 45–54 lb·in, and the three input terminals are numbered 1L1, 3L2, 5L3 (top) and output terminals 2T1, 4T2, 6T3 (bottom). It mounts via integrated DIN rail clips and panel-mount flanges, features a rotary black direct-actuator handle with padlockable red release button for lockout/tagout compliance, and is suitable for motor isolation and general load isolation on circuits protected by Class CC, J, or T fuses per the SCCR ratings table on the label.

Product Specifications
