Schunk KM-WBL 80 0132601 Soft Top Jaws 3-Jaw Lathe Chuck Set
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

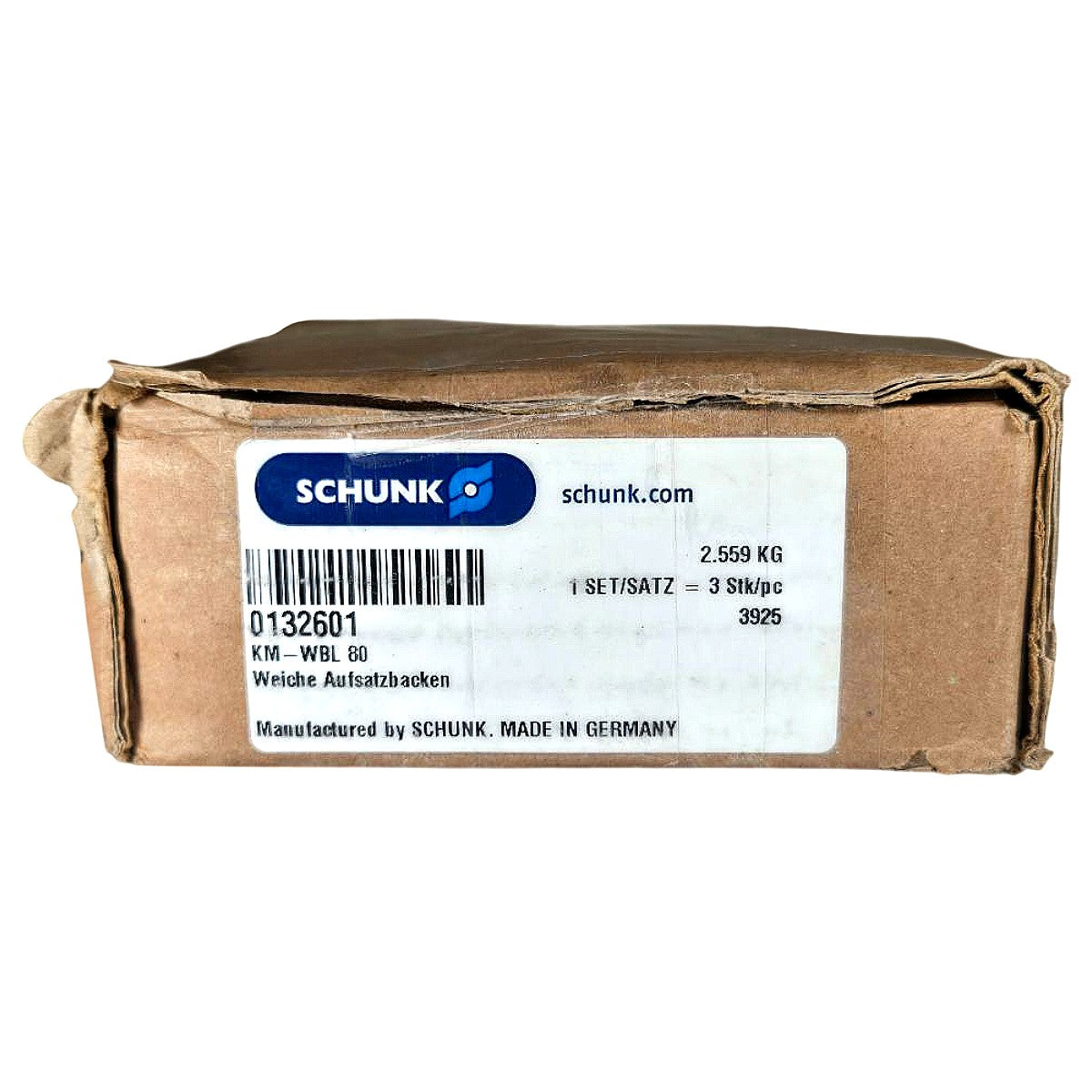

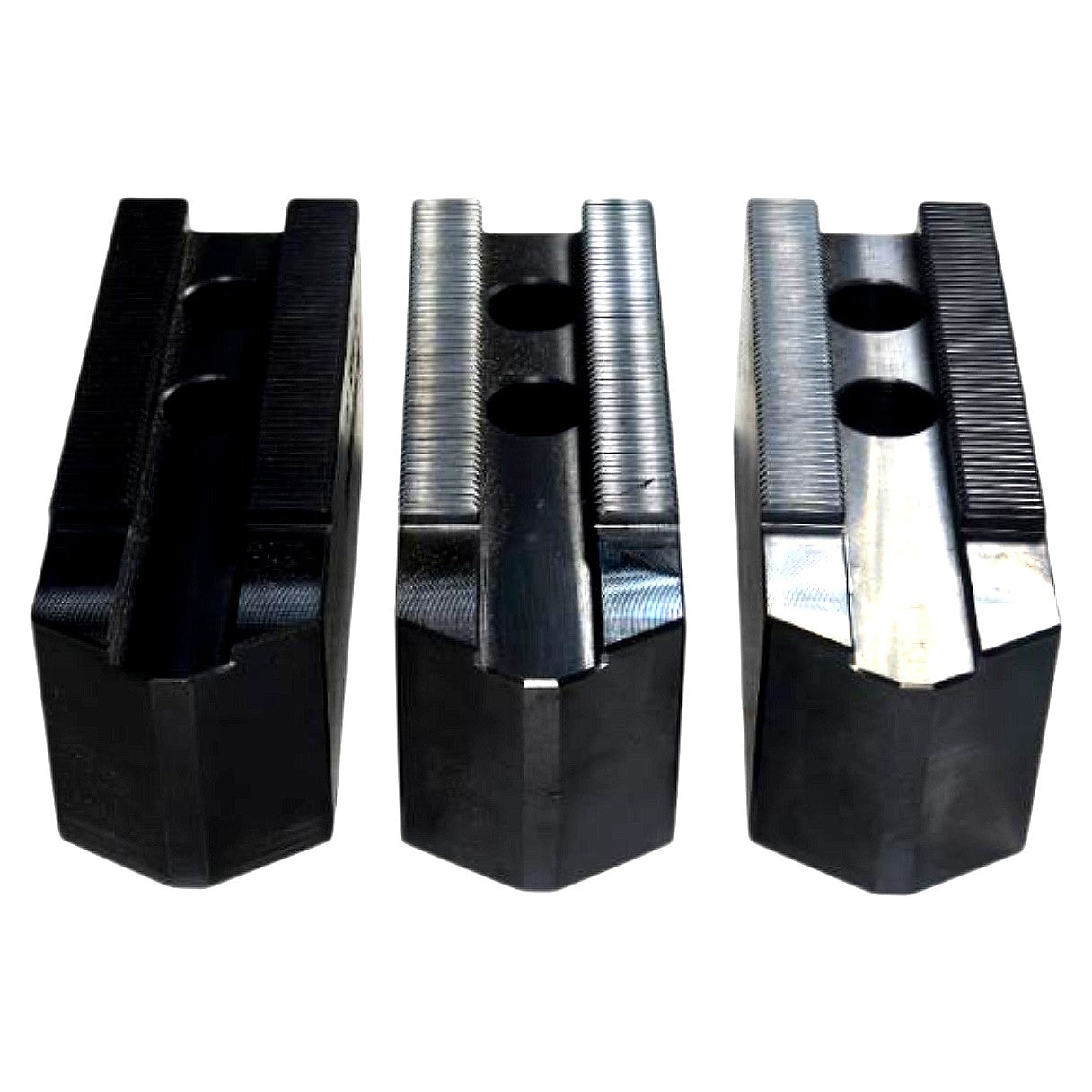

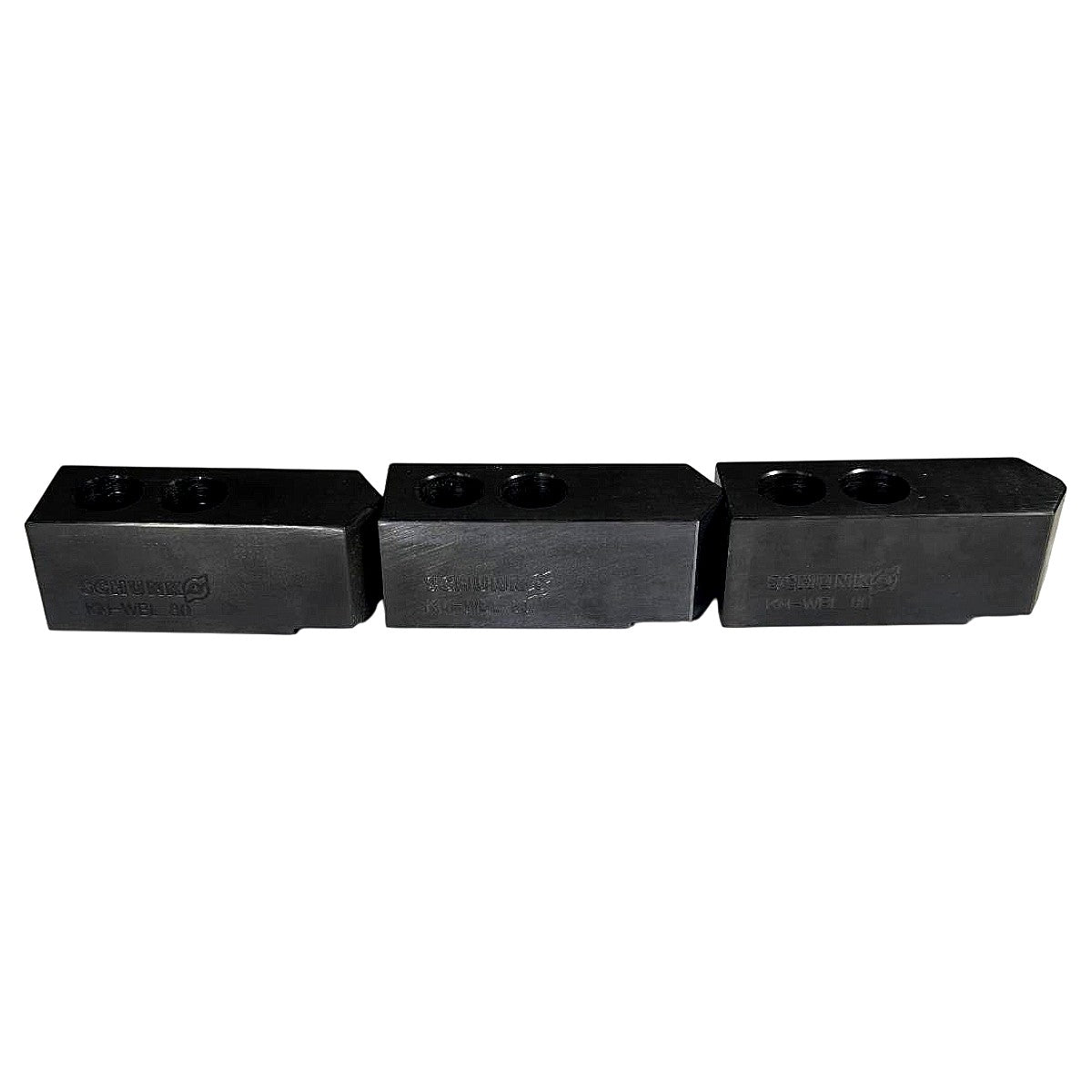

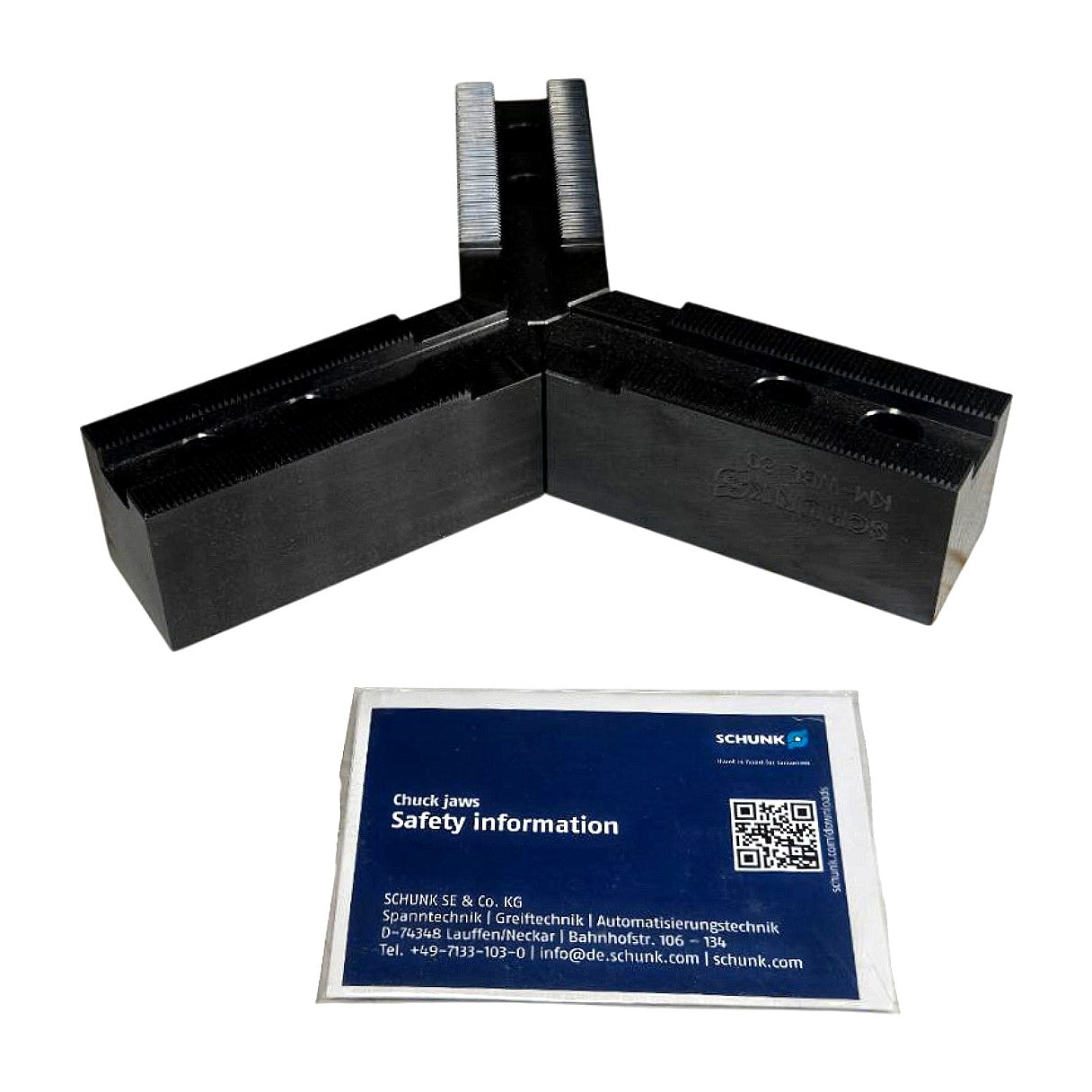

Schunk part number 0132601, designated KM-WBL 80, is a set of three new soft top jaws (Weiche Aufsatzbacken) designed for use with Schunk KM series 3-jaw lathe chucks sized for 80 mm chuck bodies. Manufactured in Germany from machinable low-carbon steel with a black oxide surface treatment, these top jaws mount via serrated master jaw interfaces (1.5 mm × 60° serration pitch visible in photos) and are bored/turned by the end user to match the exact workpiece diameter, enabling precise, repeatable, low-runout clamping without damaging finished surfaces. The set weighs 2.559 kg per the factory label, confirming the three-piece count (1 SET/SATZ = 3 Stk/pc). Typical applications include precision turning of soft or finished workpieces on CNC and manual lathes fitted with compatible Schunk KM 80 scroll chucks or power chucks.
Product Specifications
| Brand | Schunk |
| Part Number (MPN) | 0132601 |
| Model Designation | KM-WBL 80 |
| German Description | Weiche Aufsatzbacken (Soft Top Jaws) |
| Compatible Chuck Size | 80 mm |
| Chuck Series Compatibility | Schunk KM series 3-jaw chuck |
| Pieces per Set | 3 pcs (1 SET/SATZ = 3 Stk/pc) |
| Jaw Type | Soft top jaw (machinable) |
| Material | Low-carbon machinable steel |
| Surface Treatment | Black oxide |
| Serration Type | 1.5 mm × 60° serration pitch |
| Set Weight (net) | 2.559 kg (5.64 lbs) |
| Country of Origin | Germany |
| Condition | New |
