SCT ACD5151E Diamond 80° 0.156 IC 0.015R AlTiN+ Carbide Milling Insert (4 pcs)
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

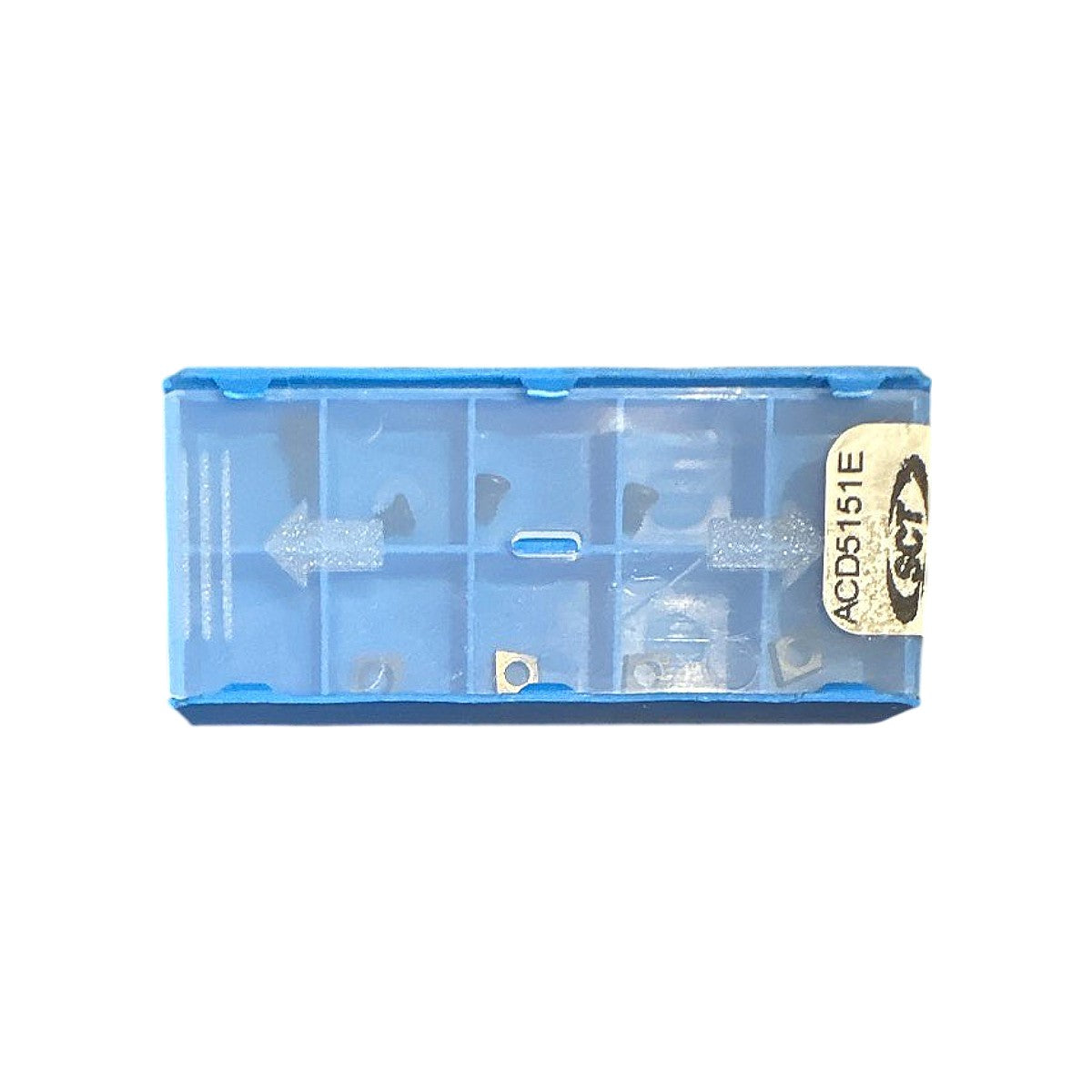

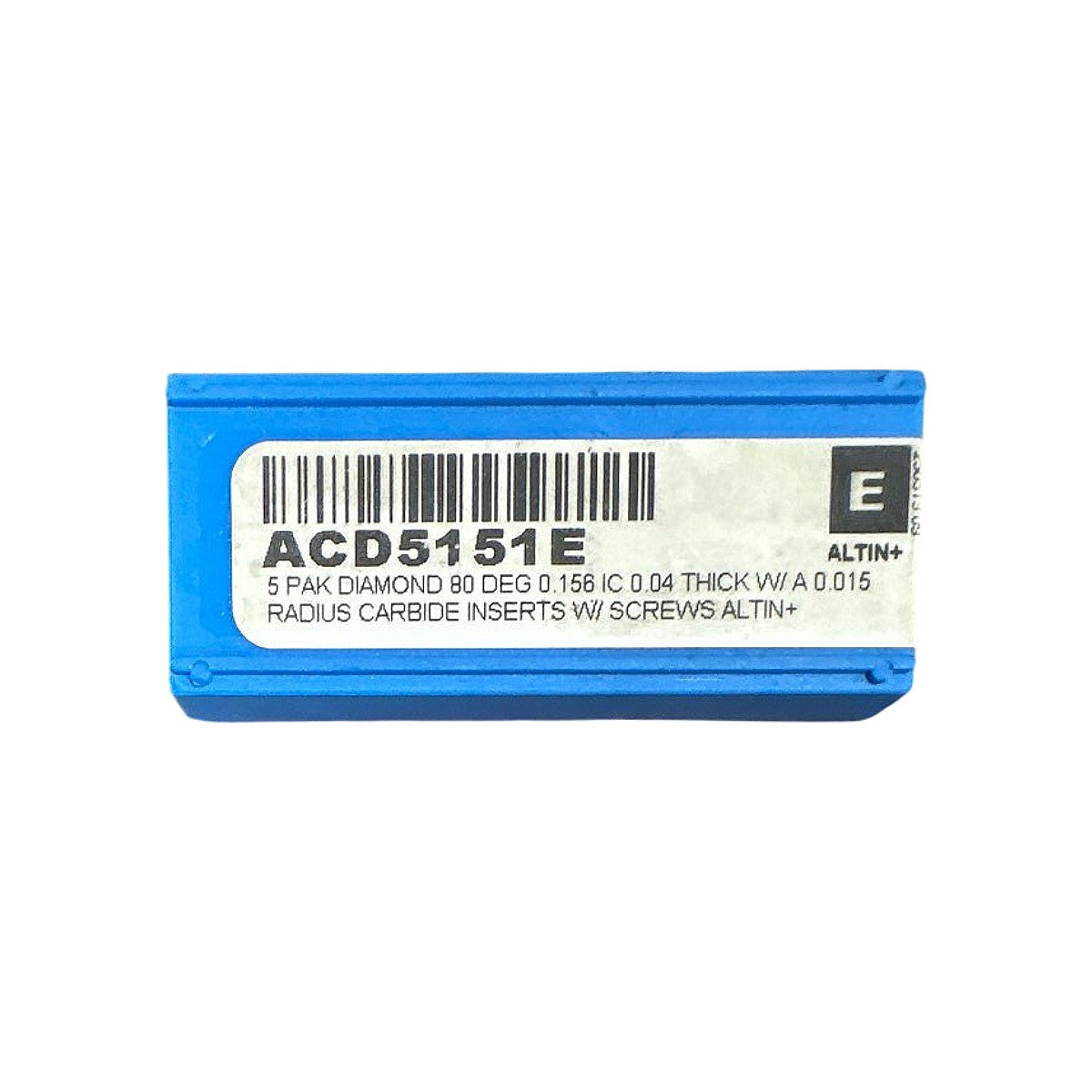

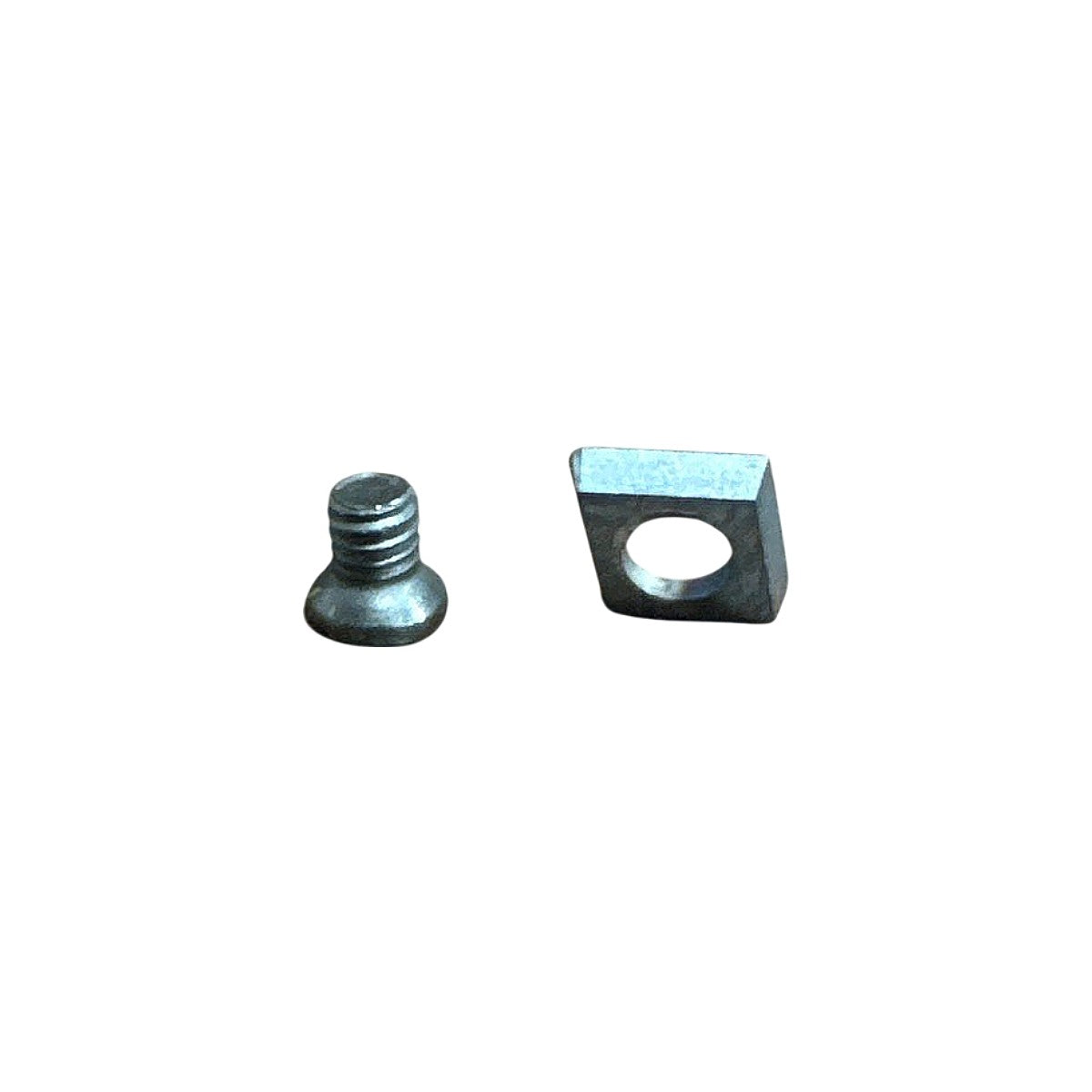

SCT ACD5151E is a 5-pack of new diamond-shaped (80° included angle) carbide milling inserts with an AlTiN+ (aluminum titanium nitride plus) PVD coating, designed for high-speed milling and copy milling applications in steel, stainless steel, and hardened materials. Each insert features a 0.156 in inscribed circle (IC), 0.04 in thickness, and a 0.015 in nose radius, with a clamp-style top-clamp retention system — the package includes the matching clamping screws and square clamp pads visible in the photos. The AlTiN+ coating provides excellent oxidation resistance and hot hardness retention, extending tool life in dry or semi-dry cutting conditions at elevated temperatures. These inserts are suited for copy milling, profiling, and face milling operations in toolholders accepting this insert geometry and IC size. All 4 inserts are unused and supplied in the original SCT plastic clamshell tray with clamping hardware.
Product Specifications
| Brand | SCT |
| MPN | ACD5151E |
| Insert Shape | Diamond, 80° included angle |
| Inscribed Circle (IC) | 0.156 in |
| Insert Thickness | 0.04 in |
| Nose Radius | 0.015 in |
| Coating | AlTiN+ (Aluminum Titanium Nitride Plus) |
| Coating Method | PVD |
| Insert Material | Carbide |
| Quantity per Pack | 4 |
| Retention Style | Top clamp w/ screw and square clamp pad |
| Includes | 5 inserts, clamping screws, square clamp pads |
| Condition | New |
