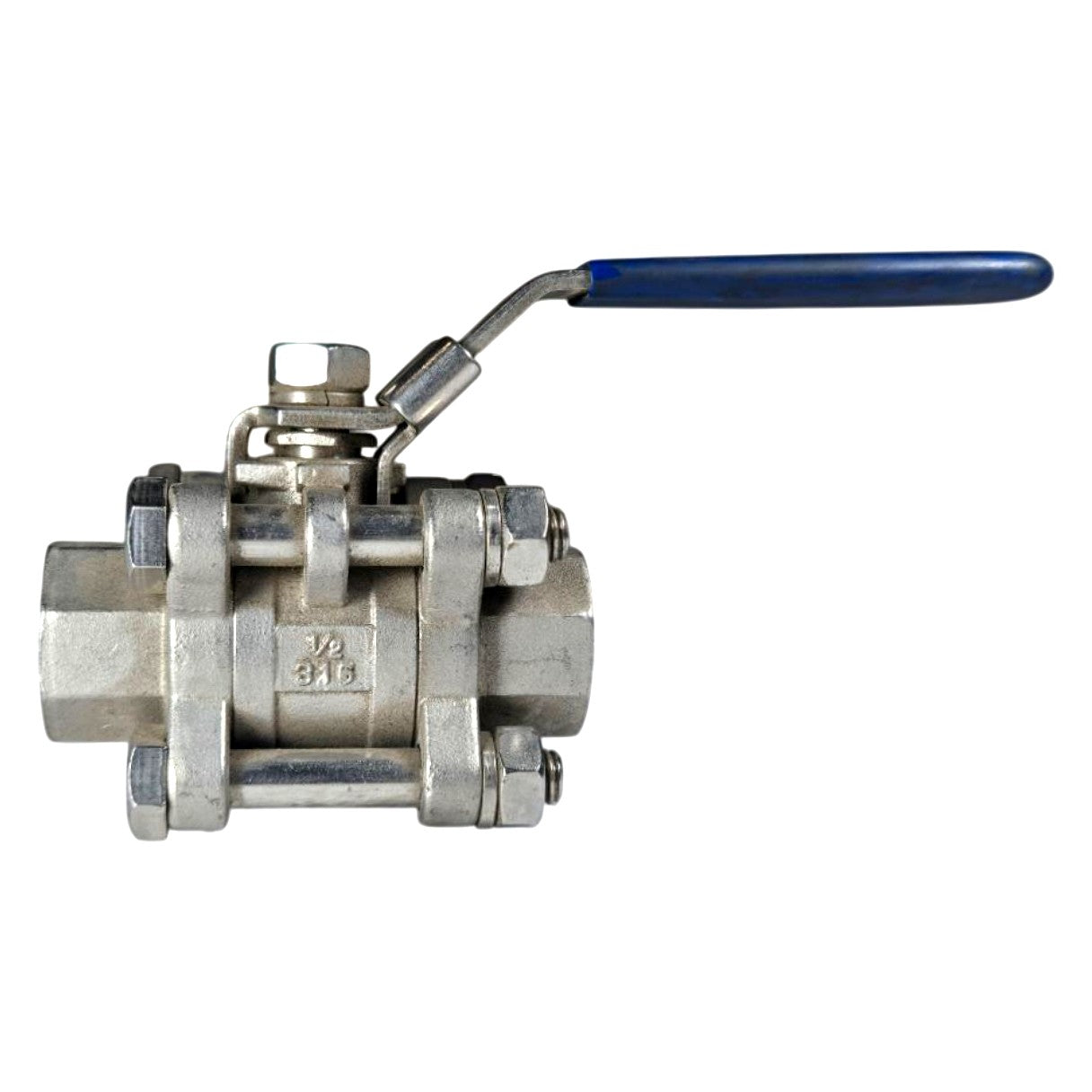

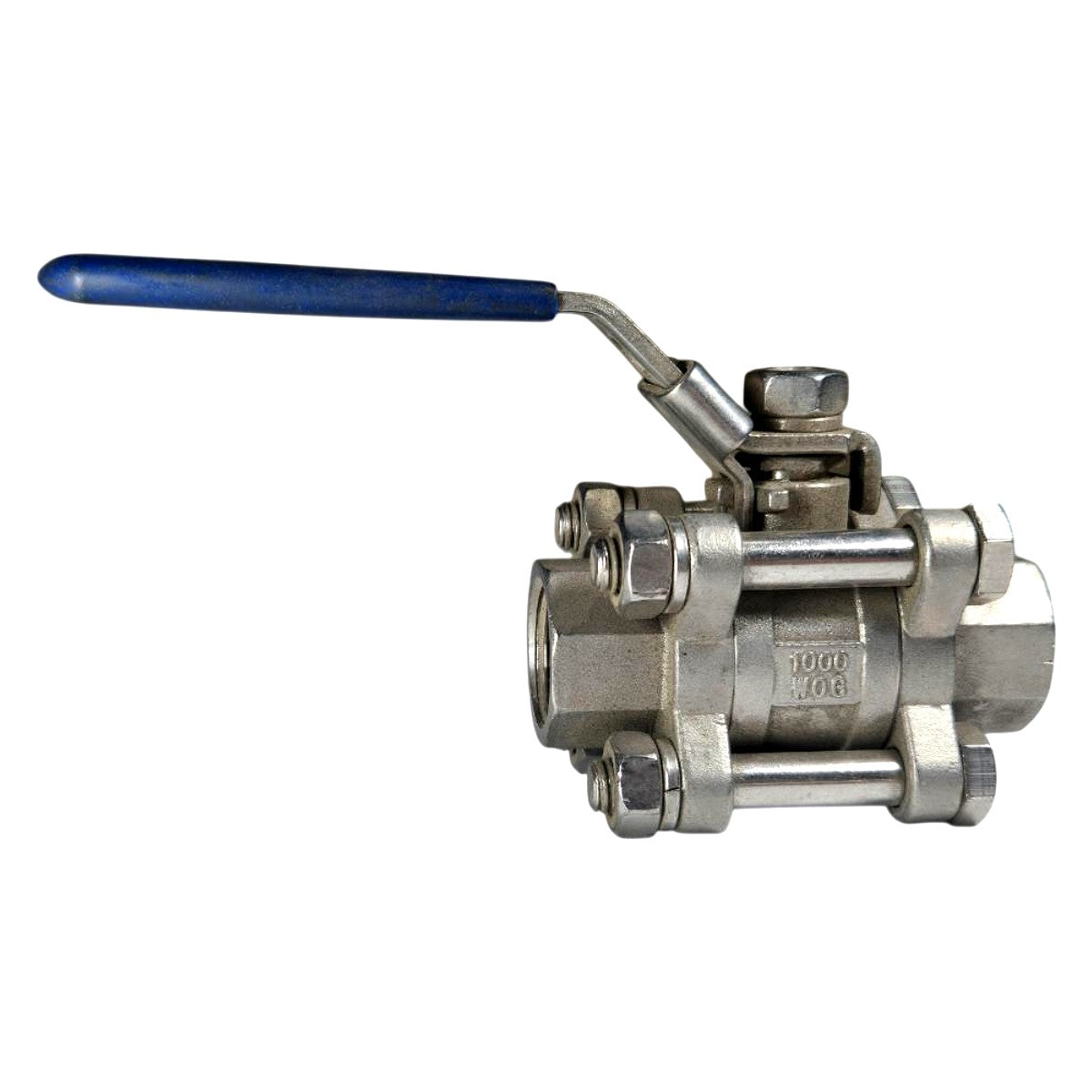

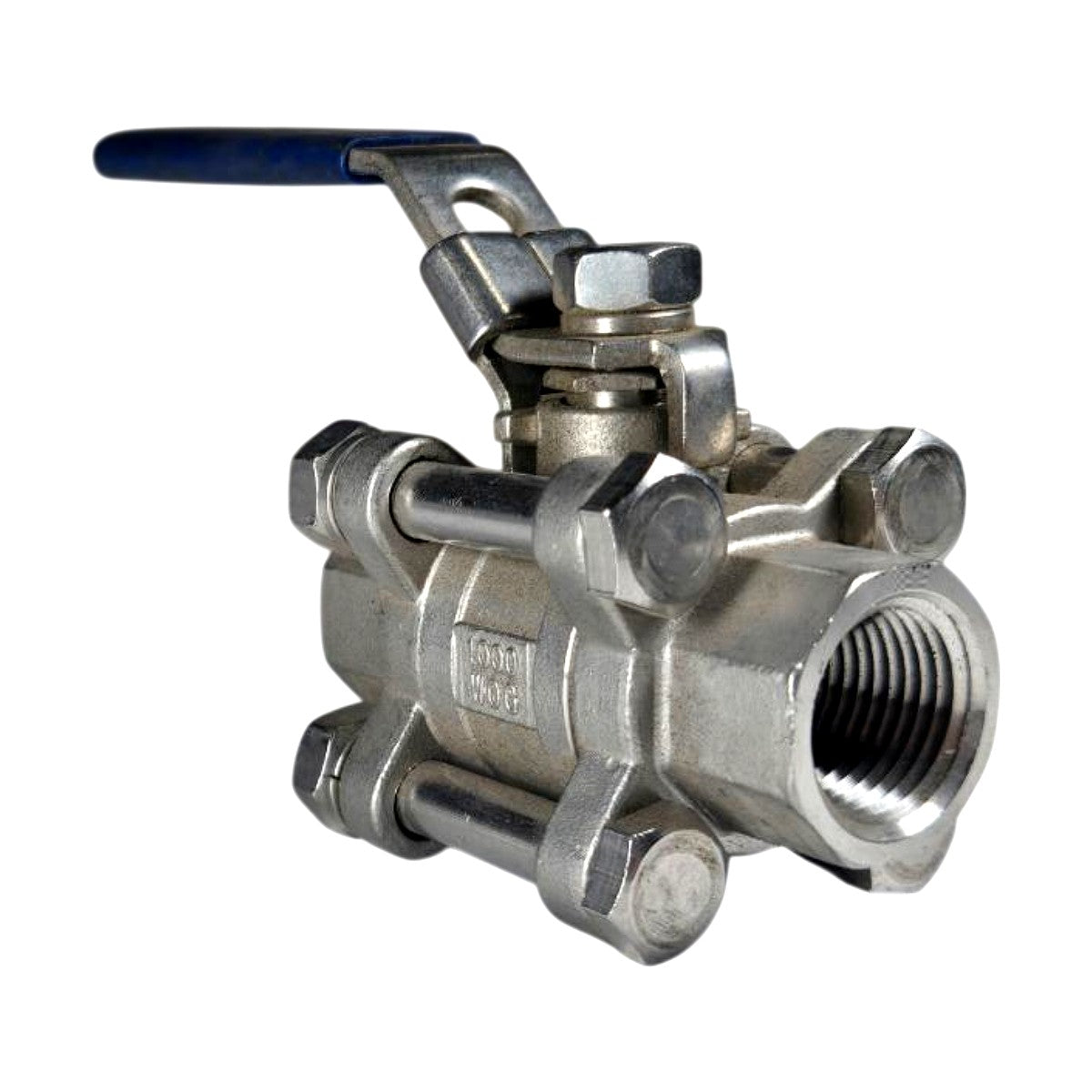

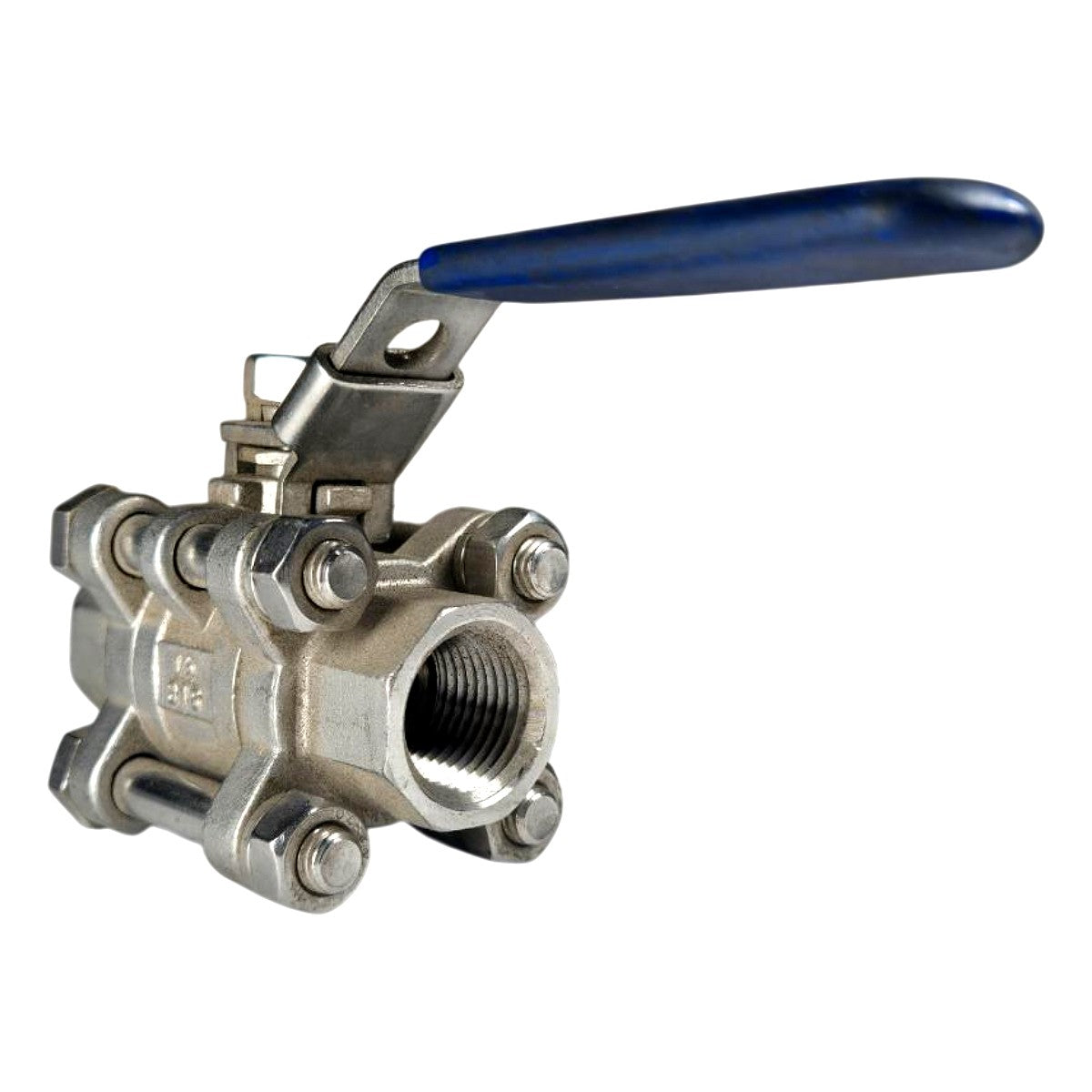

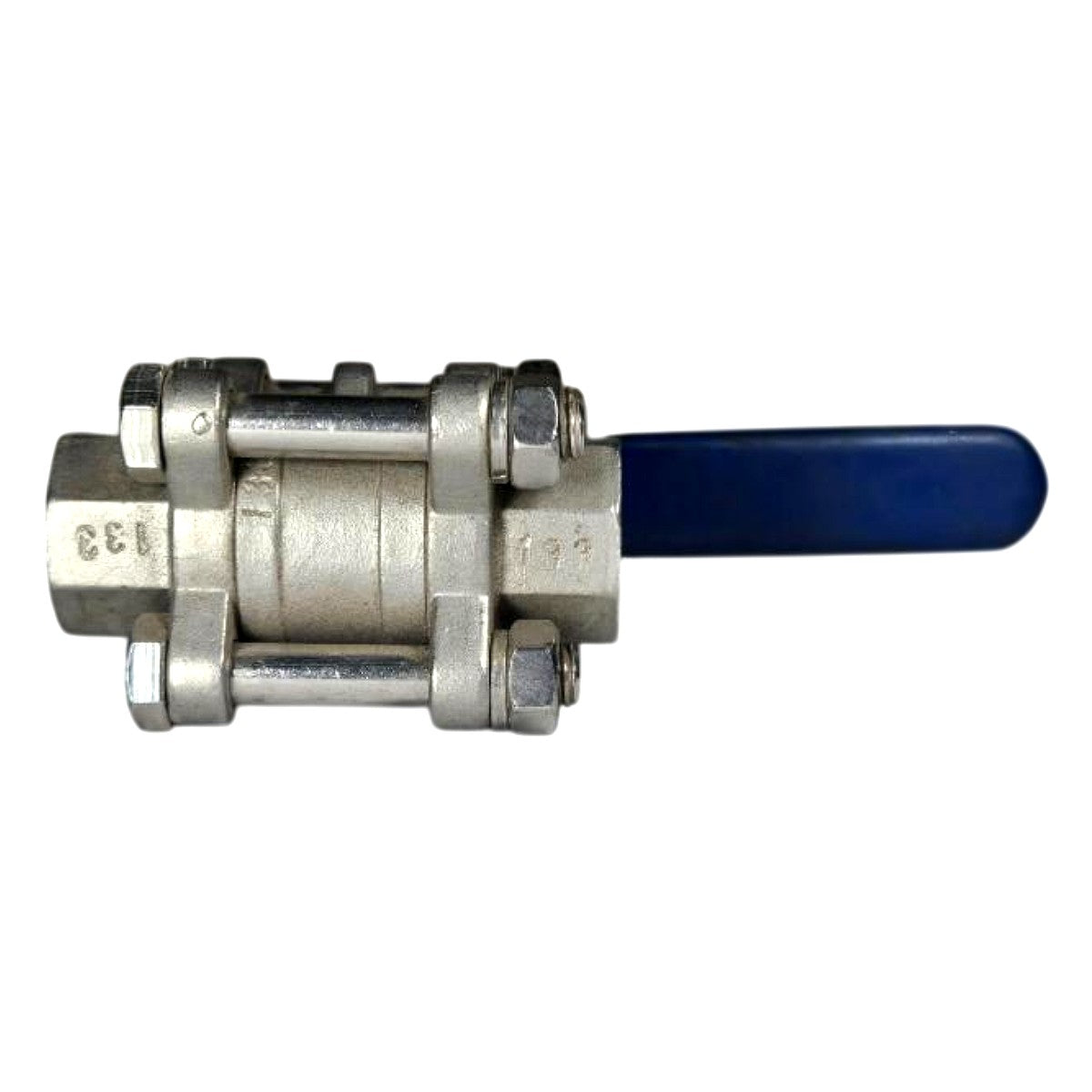

Seal Fast SSFV050 1/2 in 316 SS 3-Piece Full Bore 1000 WOG Ball Valve
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

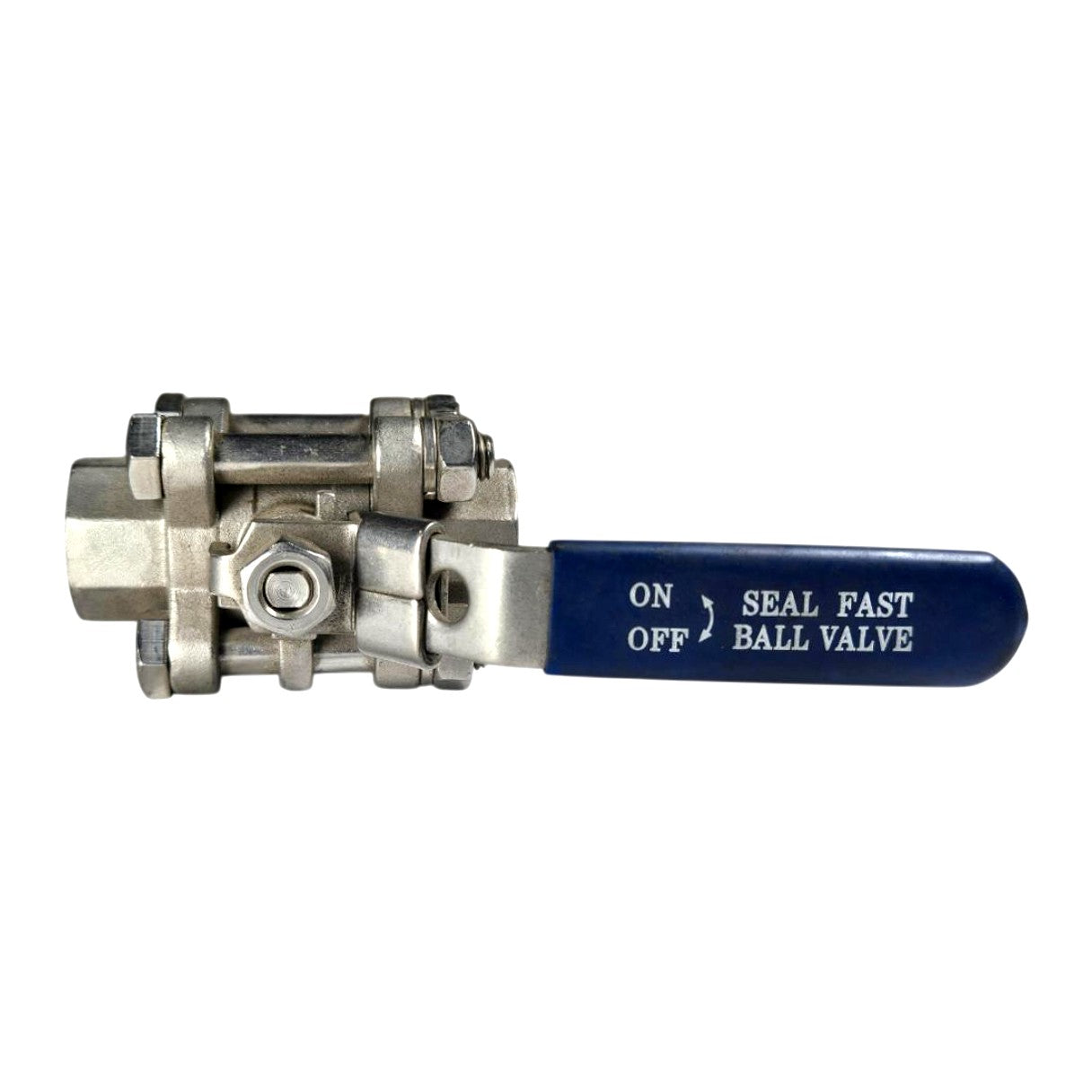

The Seal Fast SSFV050 is a new 1/2 in. three-piece, full-bore ball valve constructed entirely of 316 stainless steel, rated at 1000 psi Cold Working Pressure (CWP) / 1000 WOG (Water, Oil, Gas) non-shock. The three-piece body design allows in-line maintenance and seat/seal replacement without removing the valve from the pipeline, a critical advantage in process piping and industrial fluid systems. Seats and seals are PTFE (polytetrafluoroethylene), providing broad chemical resistance suitable for water, oils, gases, mild acids, and many solvents; the stem packing is also PTFE. The 316 SS alloy (vs. 304) offers superior chloride and corrosion resistance, making this valve appropriate for marine, chemical processing, food & beverage, and offshore environments. A blue vinyl-grip locking lever handle with integral lockout tab is included, allowing the valve to be padlocked in the open or closed position for safety compliance; the handle is marked "ON/OFF — SEAL FAST BALL VALVE." Female NPT end connections are provided on both ports.
Product Specifications
| Brand | Seal Fast |
| Part Number | SSFV050 |
| Pipe Size | 1/2 in |
| Body Material | 316 Stainless Steel |
| Ball Material | 316 Stainless Steel |
| Stem Material | 316 Stainless Steel |
| Seat Material | PTFE |
| Seal Material | PTFE |
| Body Style | 3-Piece |
| Bore Type | Full Bore |
| Max Pressure (Non-Shock) | 1000 psi CWP / 1000 WOG |
| End Connection | Female NPT (FNPT) both ends |
| Handle Type | Locking lever handle w/ lockout tab |
| Handle Material | Stainless steel w/ blue vinyl grip |
| Operation | Manual, 1/4-turn |
| Condition | New |
