Sealfast 3/4 in SAE 100R1AT 1250 PSI 40 ft Hydraulic Hose
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

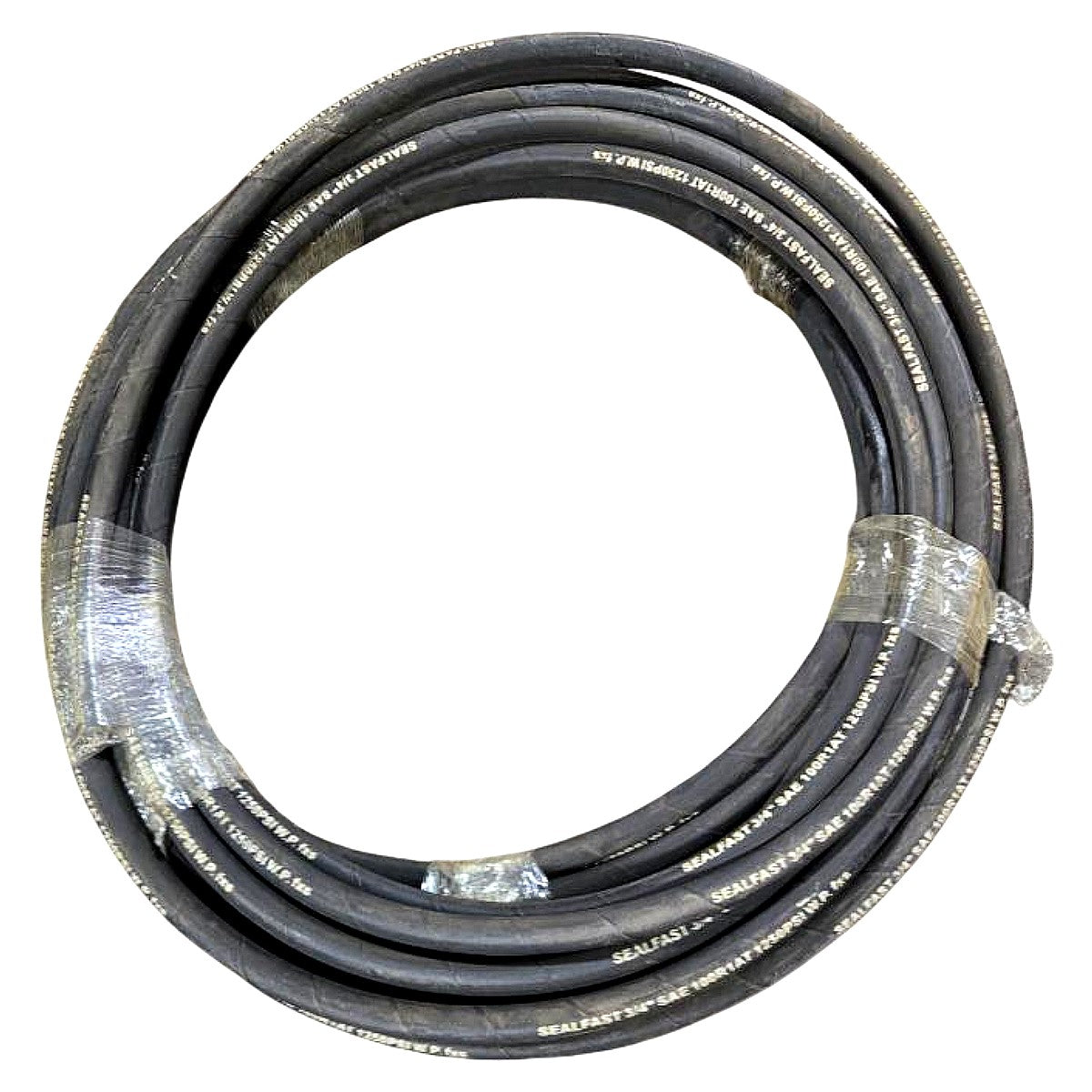

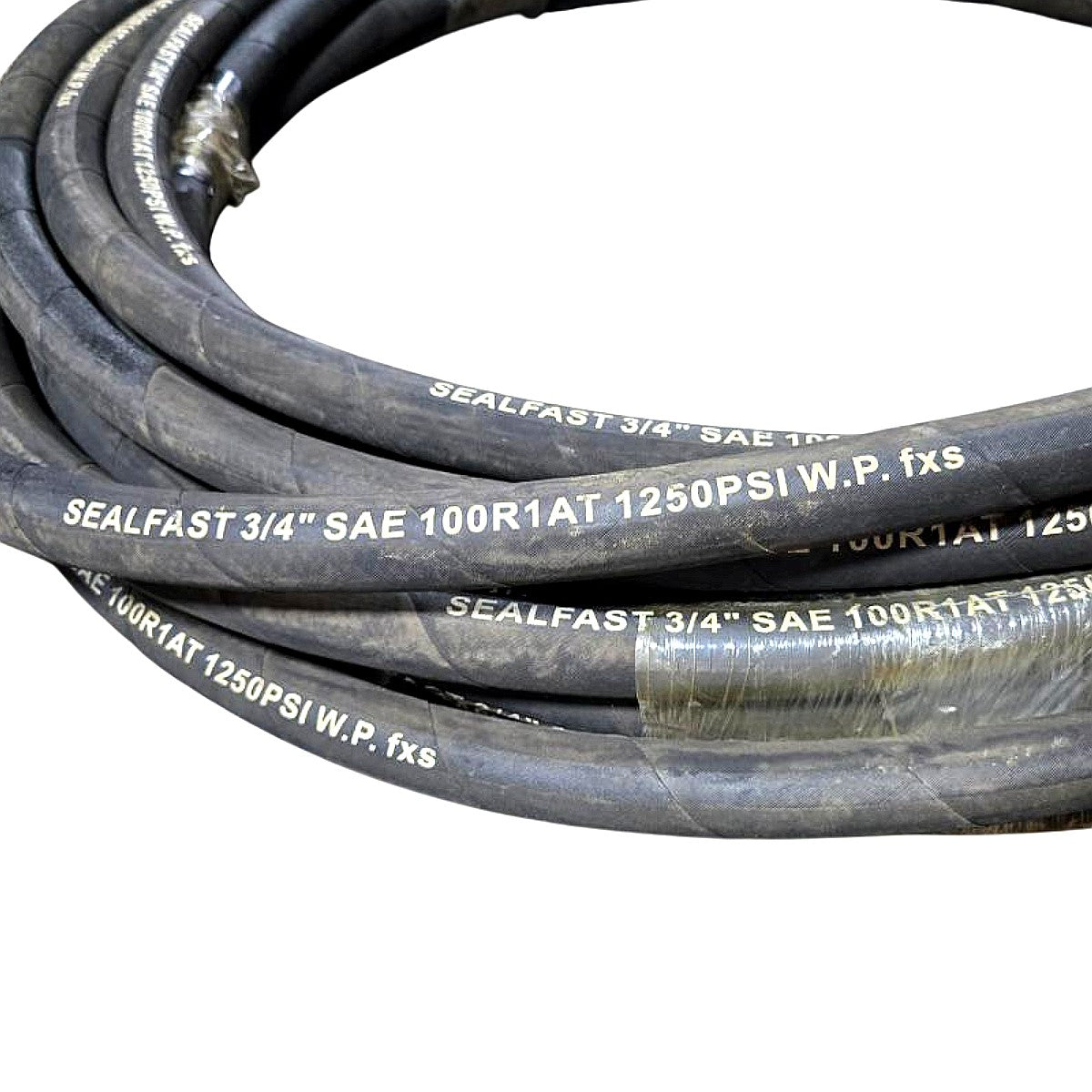

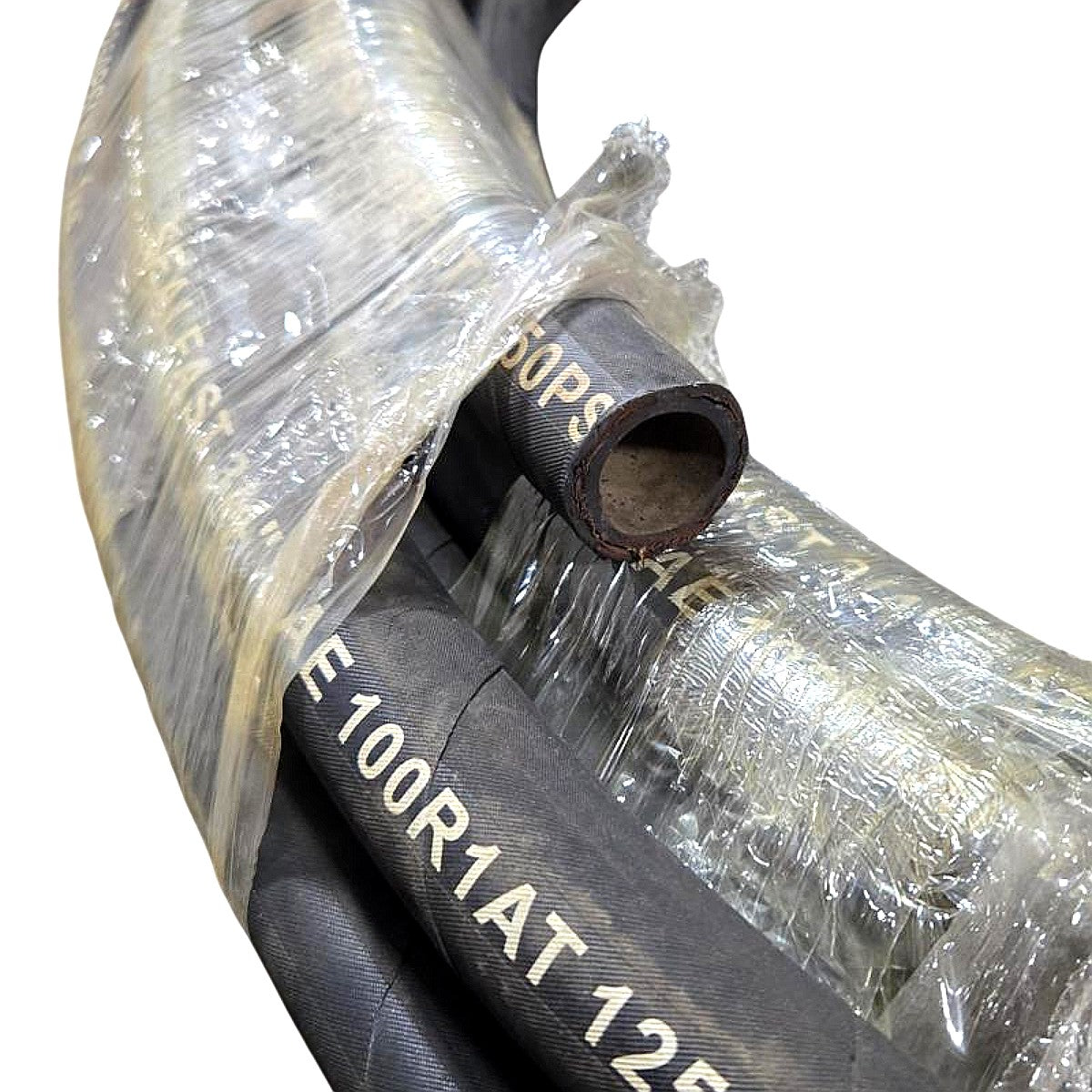

This is a new 40-foot coil of Sealfast SAE 100R1AT hydraulic hose with a 3/4-inch inside diameter and a 1,250 PSI working pressure, as printed directly on the hose cover. SAE 100R1AT (equivalent to EN 853 1ST) is a single-wire-braid reinforced rubber hydraulic hose designed for medium-pressure petroleum-based and water-glycol hydraulic fluid service; the "AT" designation specifies a thin, flexible outer cover with a wrapped textile braid over the wire reinforcement. The "fxs" suffix indicates a fiber-cross-spiral inner liner construction for improved flexibility and kink resistance versus standard R1AT, making this hose well-suited for mobile hydraulic equipment, agricultural machinery, and construction equipment where repeated flexing occurs. The hose is supplied as a raw cut length without end fittings, ready for field assembly with standard JIC, BSPP, or NPT crimp or reusable fittings sized for 3/4-inch 100R1 hose.
Product Specifications
| Brand | Sealfast |
| SAE Standard | SAE 100R1AT |
| Inside Diameter (ID) | 3/4 in (0.75 in) |
| Working Pressure | 1250 PSI |
| Length | 40 ft |
| Reinforcement | Single wire braid |
| Cover Type | AT (abrasion-resistant wrapped textile) |
| Inner Liner | Fiber cross-spiral (fxs) synthetic rubber |
| Equivalent Standard | EN 853 1ST |
| End Connections | None (raw hose, no fittings) |
| Condition | New |
| Hose Color | Black |
| Fluid Compatibility | Petroleum-based hydraulic fluids, water-glycol |
