Seco 10139333 T34B-PH01B03-5X0.8-65R M5x0.8 6HX Spiral Point Tap
Regular price
$19.95
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

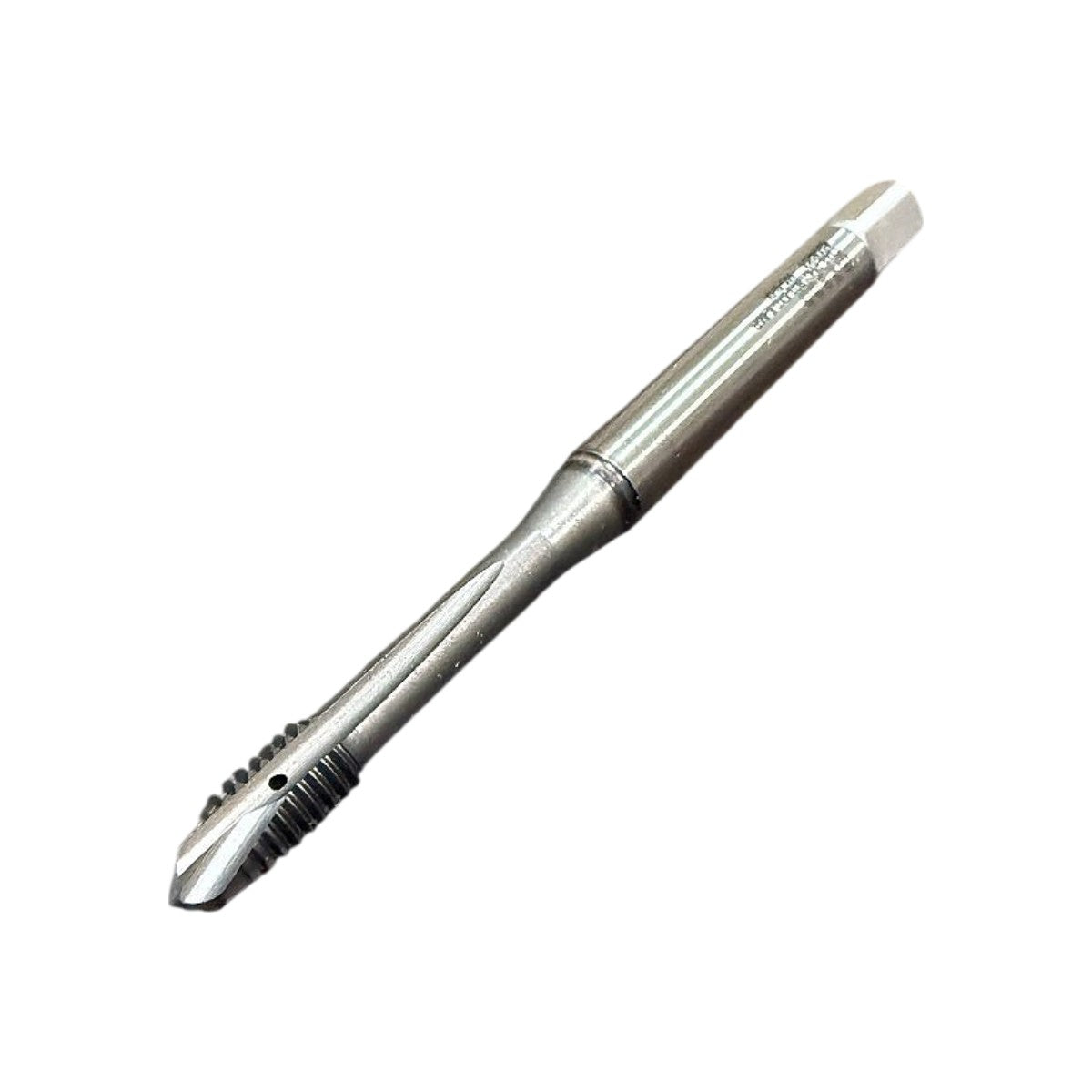

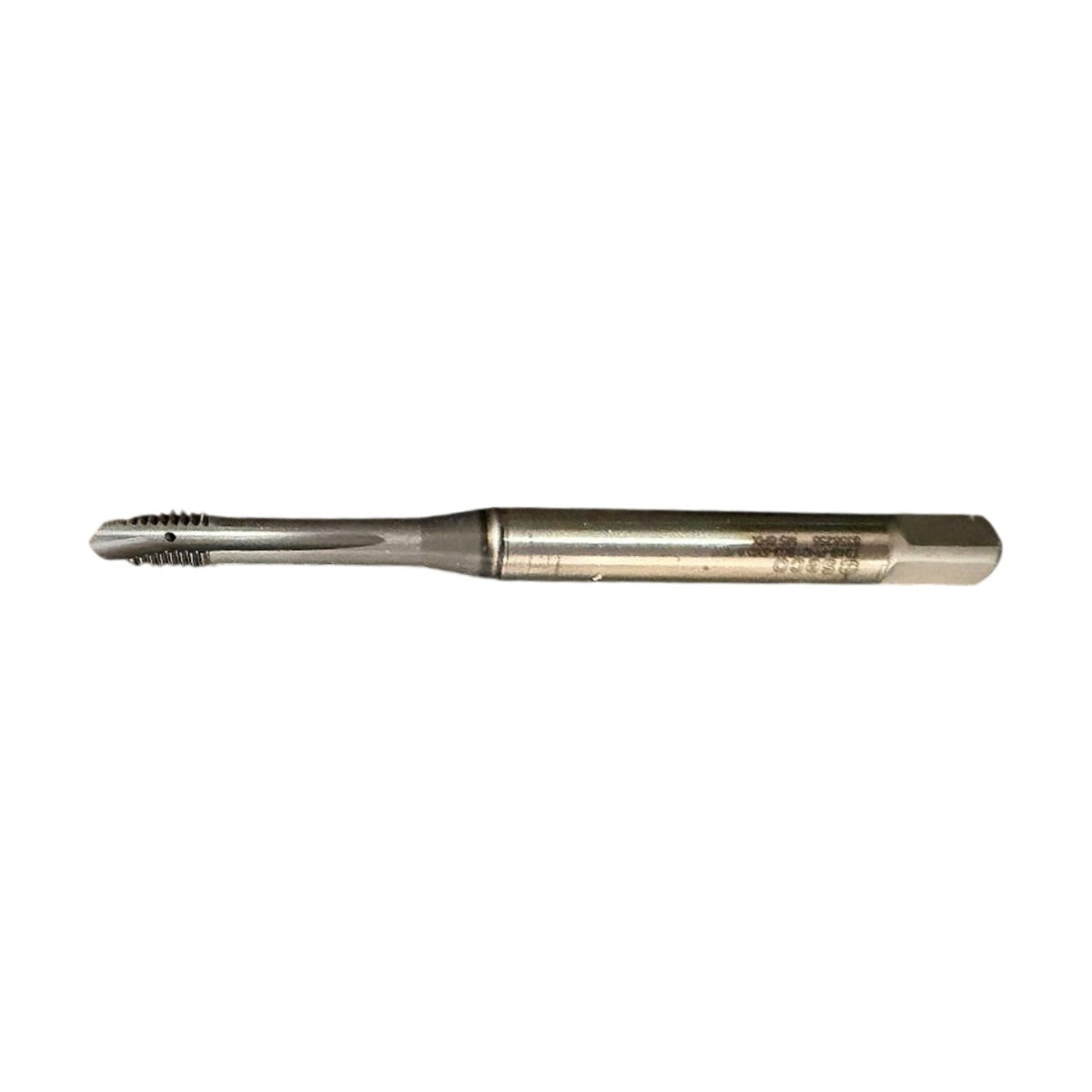

This new Seco T34B-PH01B03-5X0.8-65R (item 10139333) is an M5x0.8 metric coarse spiral point (gun) machine tap with a 6HX thread tolerance class and a right-hand cutting direction. The spiral point flute pushes chips ahead of the tap, making it suited to through-hole tapping, and the tool is marked as made in Poland. The overall length is 65 mm, as indicated by the "65" in the part number, and the tap has a ground shank with a squared drive end. The tool shows a dark surface treatment on the threaded section, and a coolant hole is visible near the flute at the cutting end.
Product Specifications
| Brand | Seco |
| MPN | T34B-PH01B03-5X0.8-65R |
| Item Number | 10139333 |
| Alternate Part Number | 6358255 619 |
| Thread Size | M5x0.8 |
| Thread Pitch | 0.8 mm |
| Thread Standard | Metric Coarse |
| Thread Tolerance Class | 6HX |
| Thread Direction | Right Hand |
| Tap Style | Spiral Point (Gun) |
| Overall Length | 65 mm |
| Operation | Tapping |
| Hole Type | Through Hole |
| Shank Type | Squared Drive End |
| Internal Coolant | Yes |
| Country of Origin | Poland |
