Seco DNMG150612-MR3 CP500 Carbide Turning Insert (10pc)

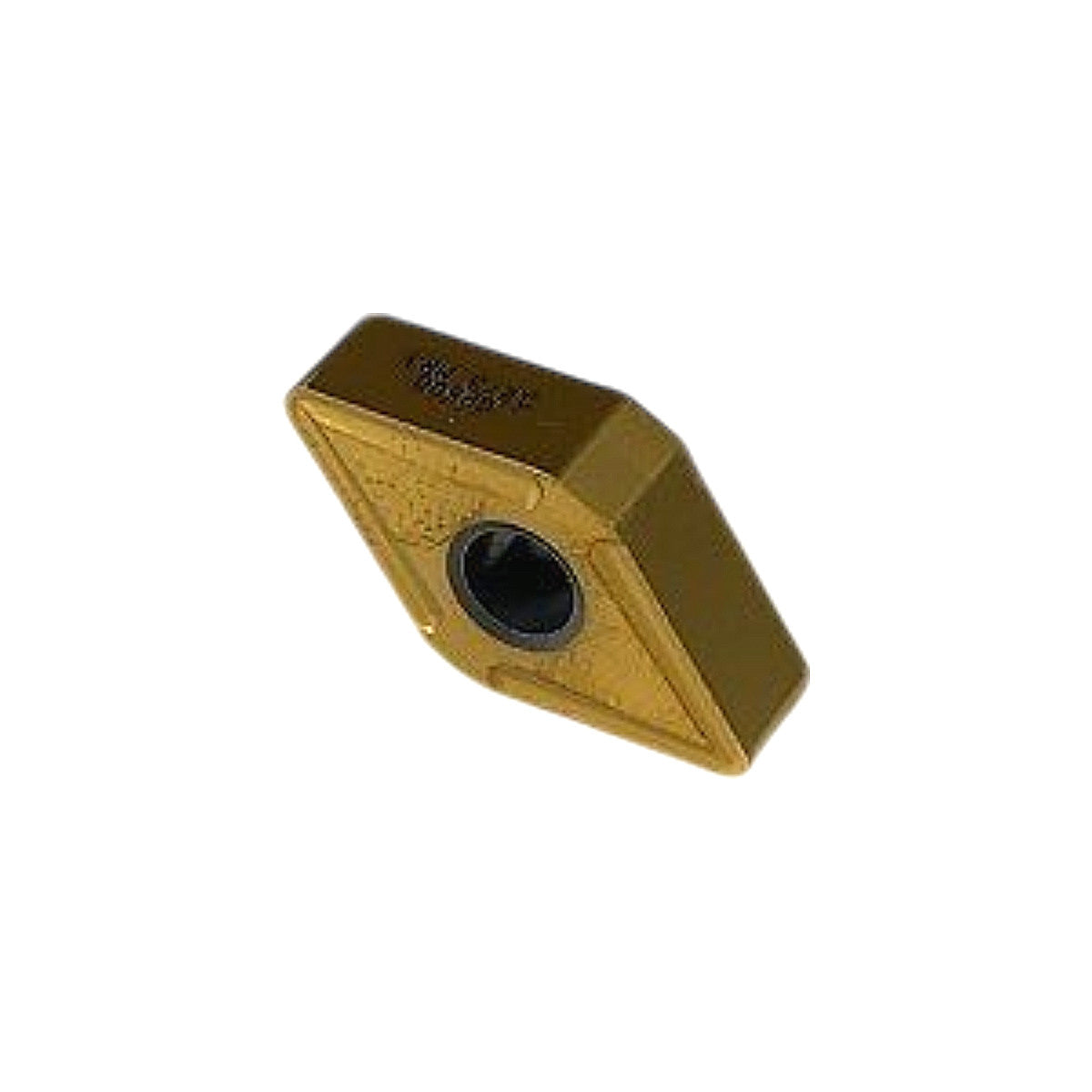

This is a factory-new, sealed box of 10 Seco DNMG150612-MR3 carbide turning inserts in grade CP500, EDP 98002, made in Sweden. Decoded per ISO 1832: D = 55° diamond shape, N = 0° clearance (negative rake), M = ±0.08 mm / ±0.05 mm tolerance class, G = with hole and two-sided chipbreaker land, 15 = 15.875 mm inscribed circle (5/8 in), 06 = 6.35 mm thickness (1/4 in), 12 = 1.2 mm nose radius, MR3 = Seco's medium-roughing chipbreaker geometry optimized for steel roughing and interrupted cuts. CP500 is a CVD-coated cemented carbide grade with a TiCN/Al₂O₃ multilayer coating, targeting ISO P and M material groups — confirmed by the P/M dot indicators visible on the packaging label. The package label specifies cutting data: ap = 2.5 mm (0.1 in), f = 0.38 mm/rev (0.015 in/rev), vc = 140 m/min (460 sf/min) for P4 steel, and ap = 2.5 mm, f = 0.36 mm/rev, vc = 130 m/min (425 sf/min) for M2 stainless — making this insert suitable for medium-to-rough turning of carbon steels, alloy steels, and austenitic stainless steels. Compatible with DNMG-style negative toolholders using 55° diamond pockets (e.g., PDJNR/L, MDJNR/L series).
