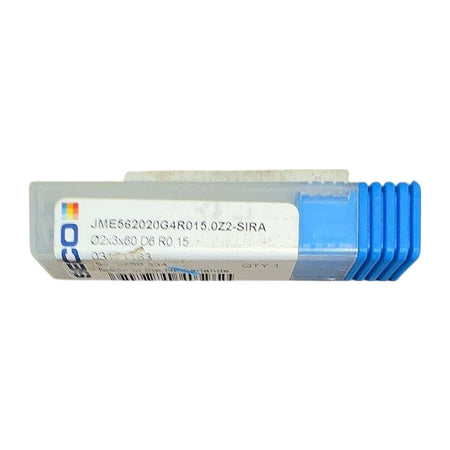

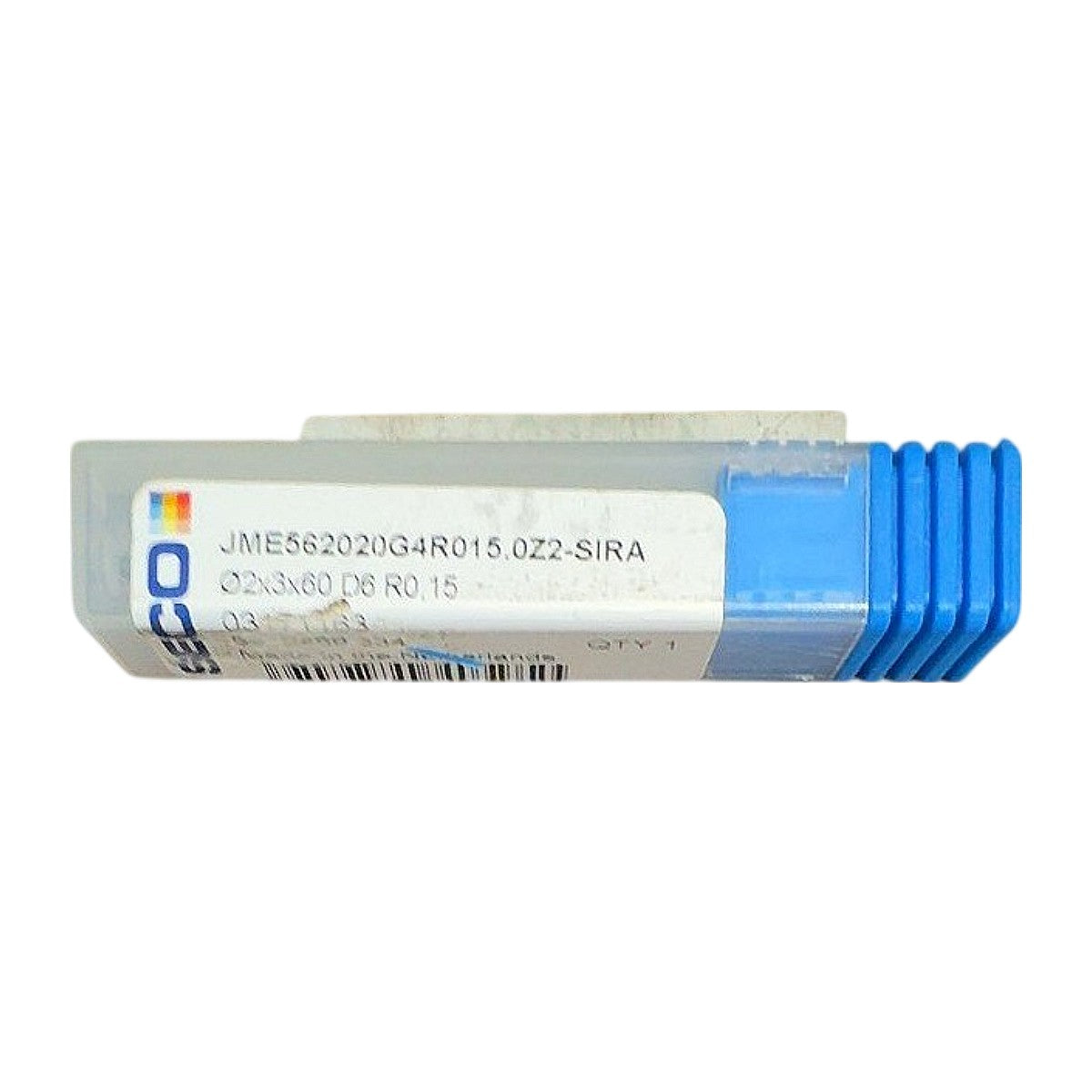

Seco JME562020G4R015.0Z2-SIRA 2mm 2-Flute Carbide End Mill

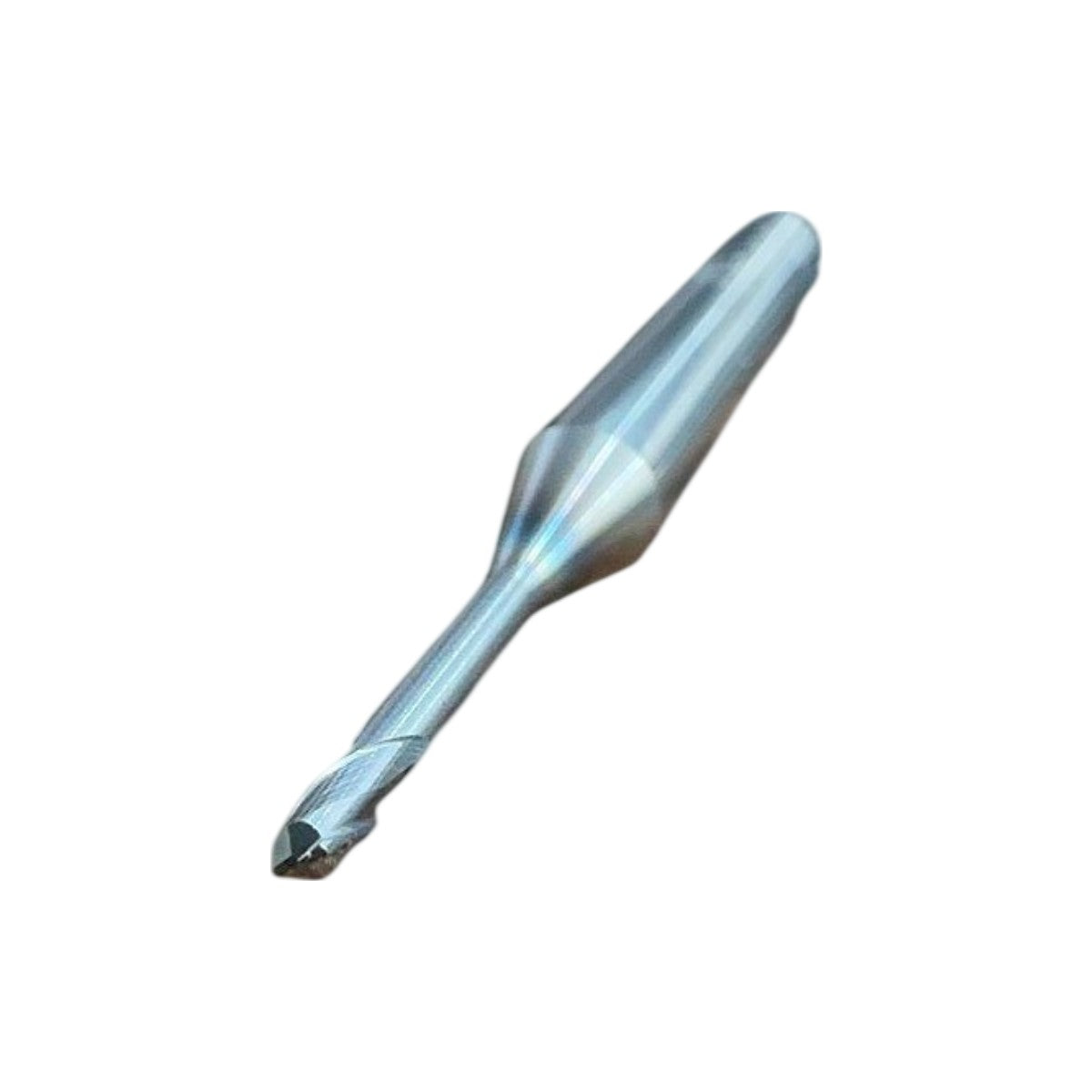

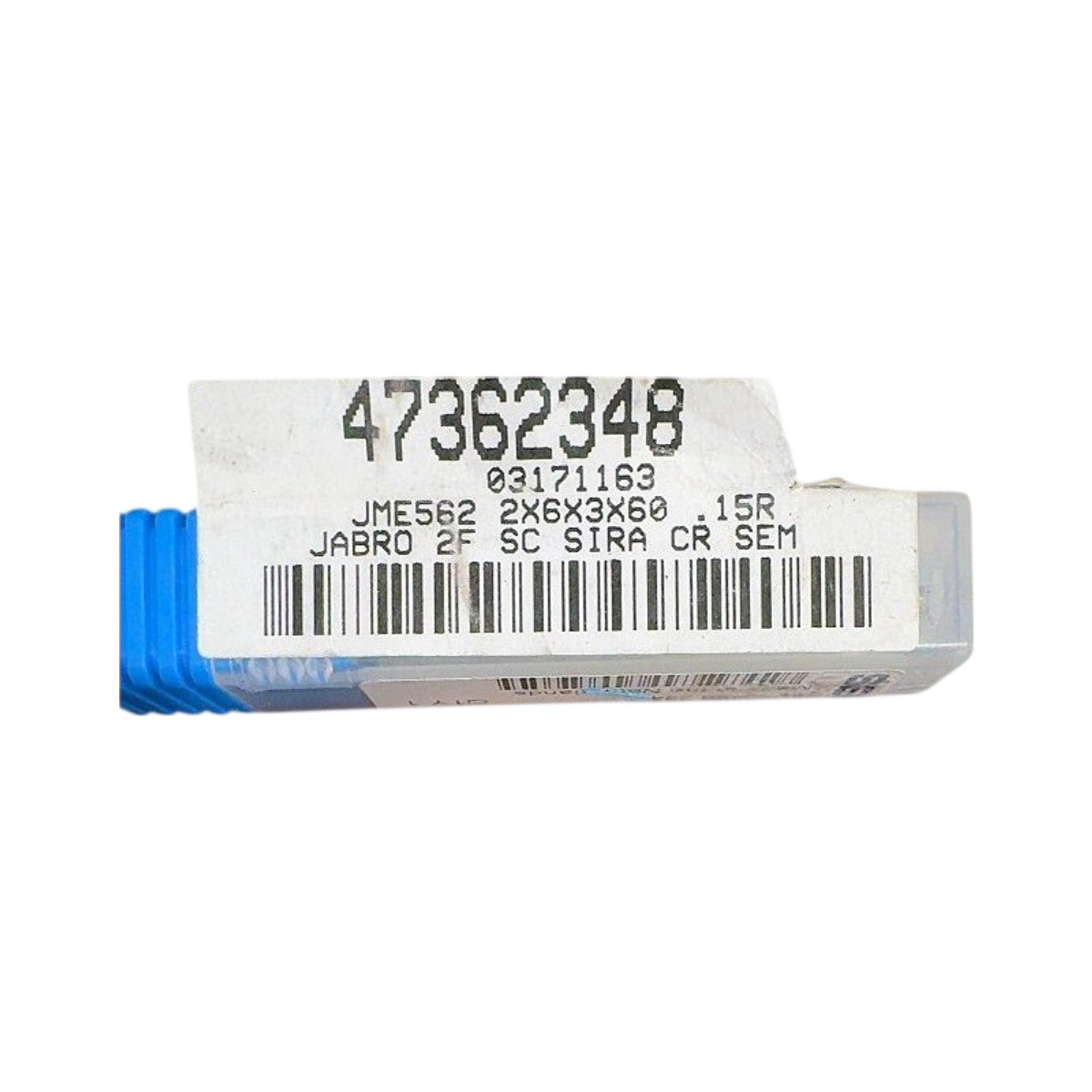

This is a new Seco Tools Jabro-Solid2 JME562 series solid carbide end mill, MPN JME562020G4R015.0Z2-SIRA (Seco internal order # 03171163, catalog # 47362348), a 2-flute miniature square-end mill with a 0.15 mm corner radius, manufactured in the Netherlands. The tool geometry is Ø2 mm cutting diameter × 3 mm cutting length (flute length) × 60 mm overall length with a 6 mm cylindrical shank — a long-reach, necked-down configuration that provides deep-reach capability while the reduced-neck profile minimizes interference in confined workspaces. The SIRA designation denotes Seco's SiO₂ (silicon-based) SIRON-A PVD coating, a nanocomposite AlTiN-based coating optimized for dry and semi-dry machining of hardened steels, stainless steels, and titanium alloys at elevated speeds. With 2 flutes (Z2) and a right-hand helix cut, this end mill is suited for slot milling, profiling, and finishing operations in difficult-to-machine materials on CNC machining centers using ER-series or precision collet chucks accepting 6 mm shank diameter.

Product Specifications
