Seco R335.18-04.00-0.75F-3N 4in Dia 3-Insert Square Shoulder Milling Cutter
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

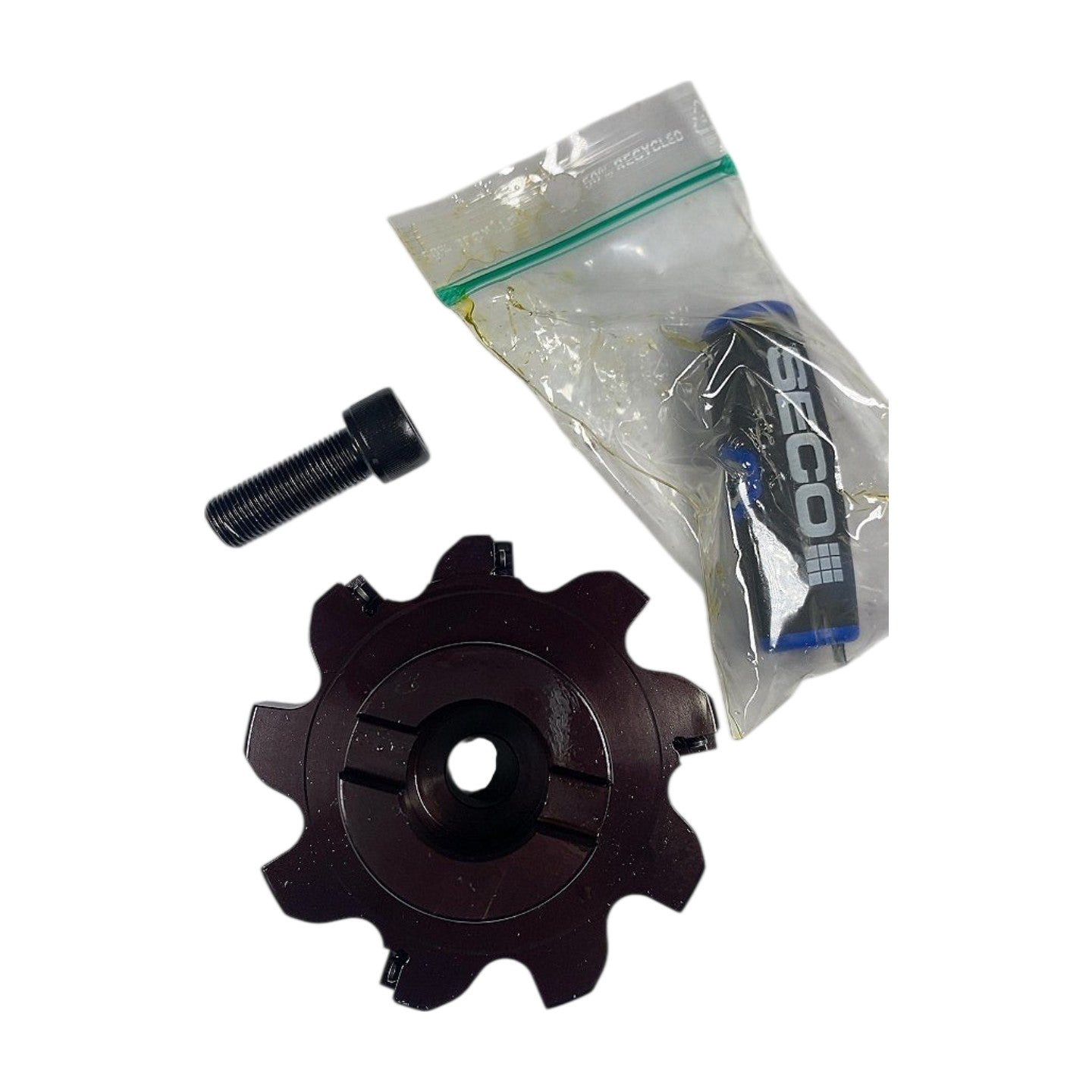

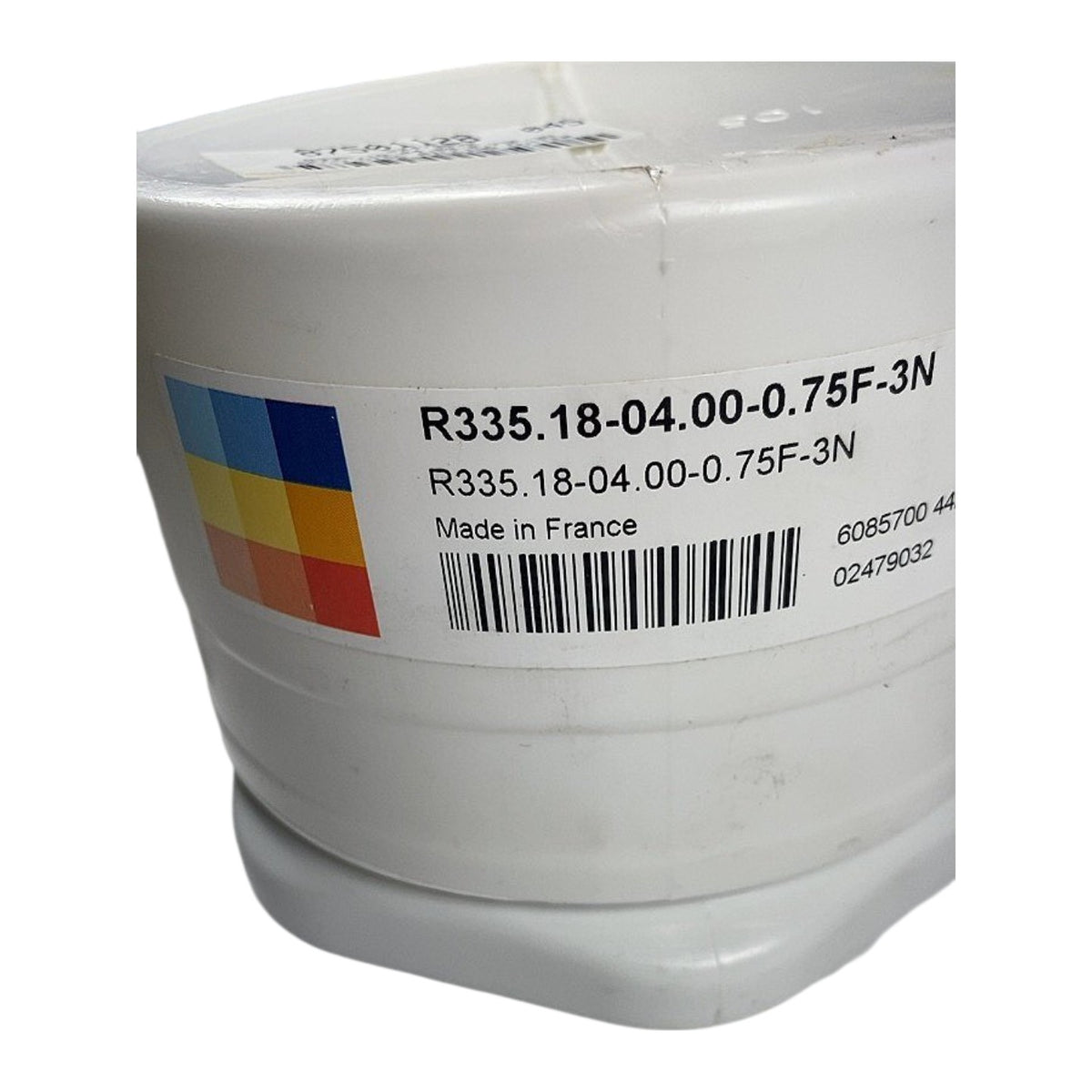

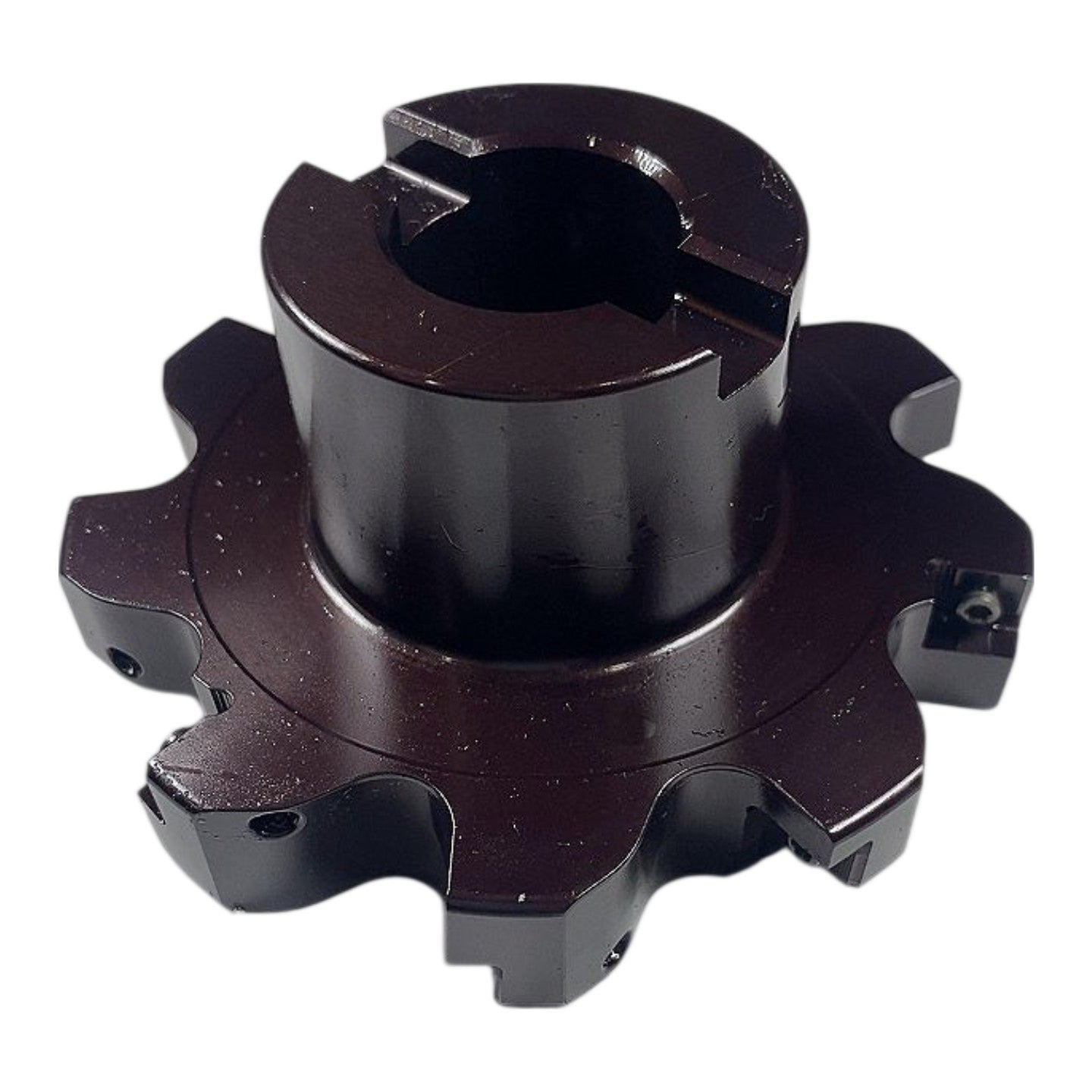

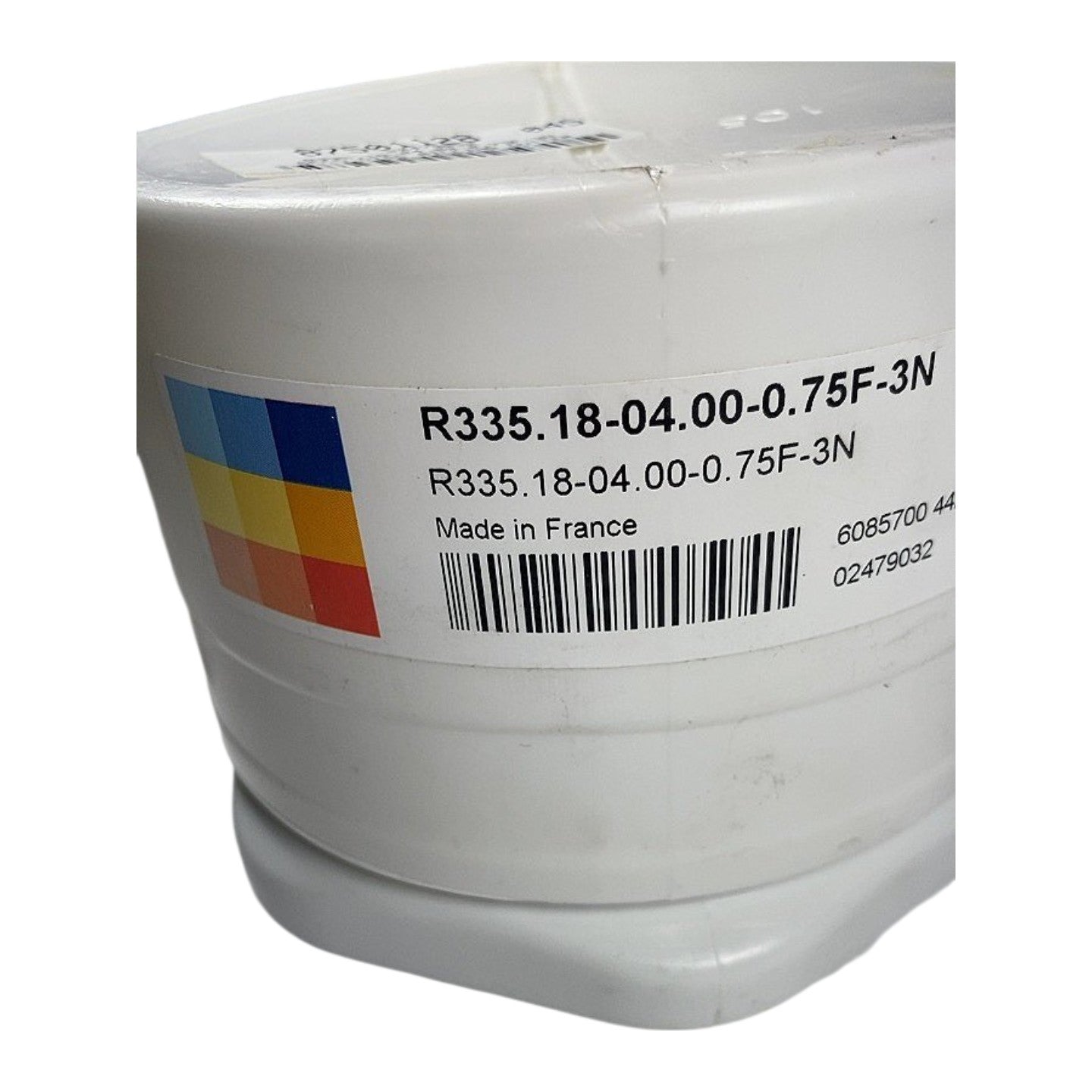

This is a new Seco Tools R335.18-04.00-0.75F-3N indexable square shoulder milling cutter, manufactured in France, designed for the R335 series which uses double-sided XOMX 18 square inserts with 4 cutting edges per insert. The body is 4.00 in (101.6 mm) in diameter with a 0.75 in arbor bore (F-type, inch bore) and accommodates 3 insert pockets, providing 90° square shoulder milling capability for steel, stainless steel, cast iron, and non-ferrous materials. The cutter ships complete with the clamping screw and a Seco torx key as visible in the packaging photos. The R335 platform is a high-productivity square shoulder concept suited for face milling, slotting, and ramping operations on machining centers with compatible R8, CAT, BT, or HSK arbors sized for the 0.75 in bore.
Product Specifications
| Brand | Seco Tools |
| Part Number (MPN) | R335.18-04.00-0.75F-3N |
| Series | R335 |
| Cutter Diameter | 4.00 in (101.6 mm) |
| Arbor Bore Diameter | 0.75 in |
| Bore Type | F = inch bore |
| Number of Insert Pockets | 3 |
| Insert Compatibility | XOMX 18 double-sided square inserts |
| Insert IC Size | 18 mm |
| Milling Style | Square shoulder, 90° |
| Country of Origin | France |
| Condition | New |
| Includes | Cutter body, clamping screw, Seco torx key |
