Seco RDKT10T3M0T-8-M07 F40M Round Carbide Milling Insert (10pc)
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

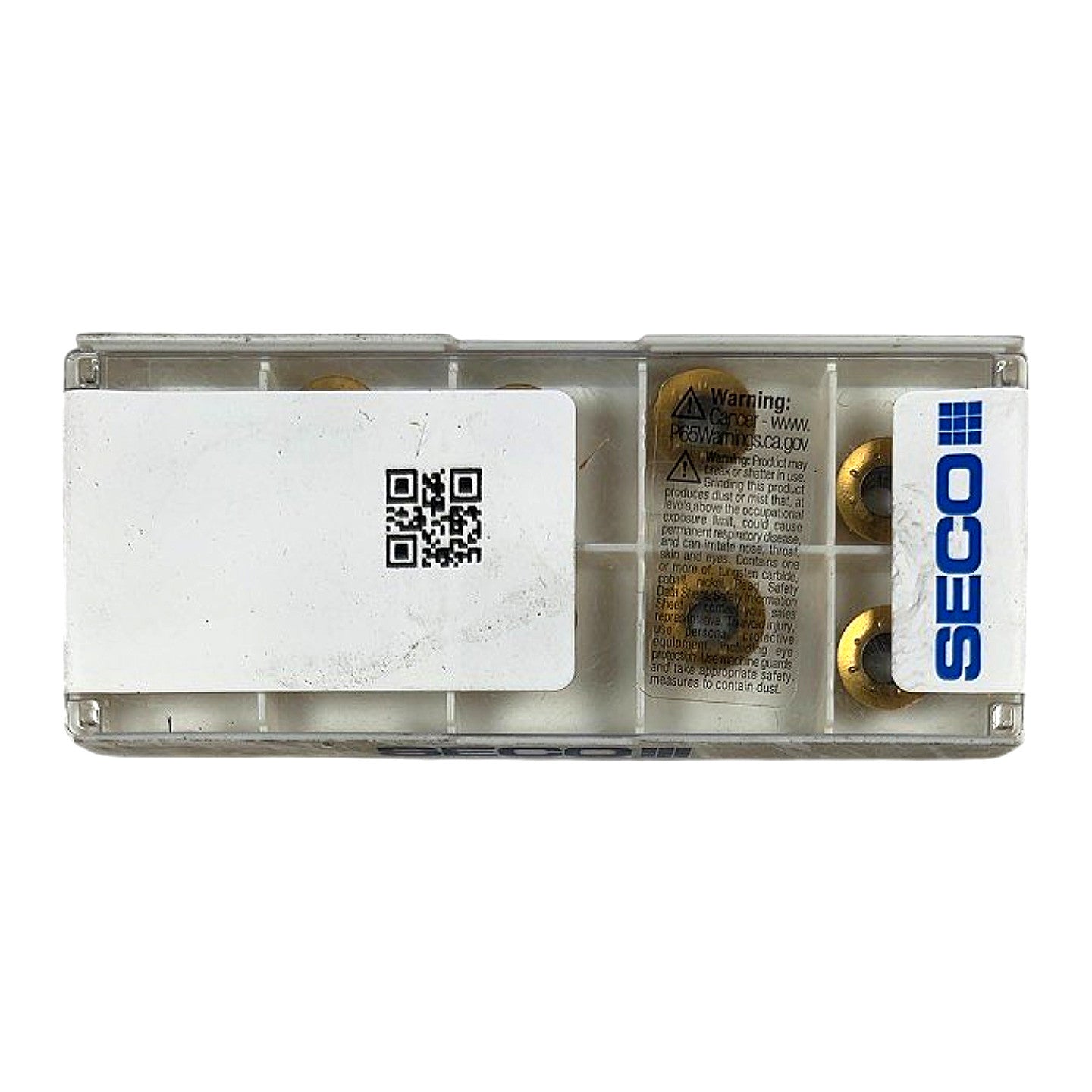

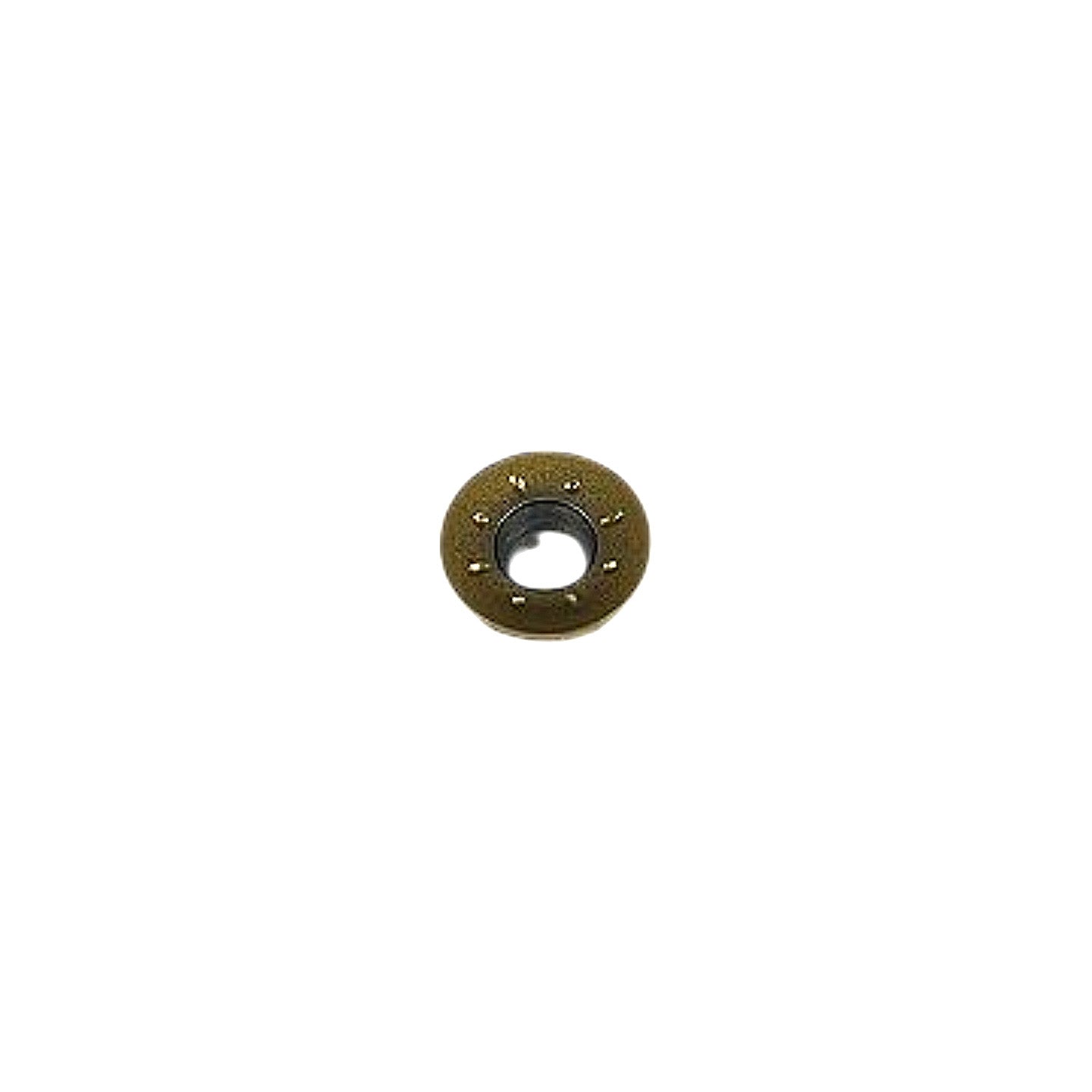

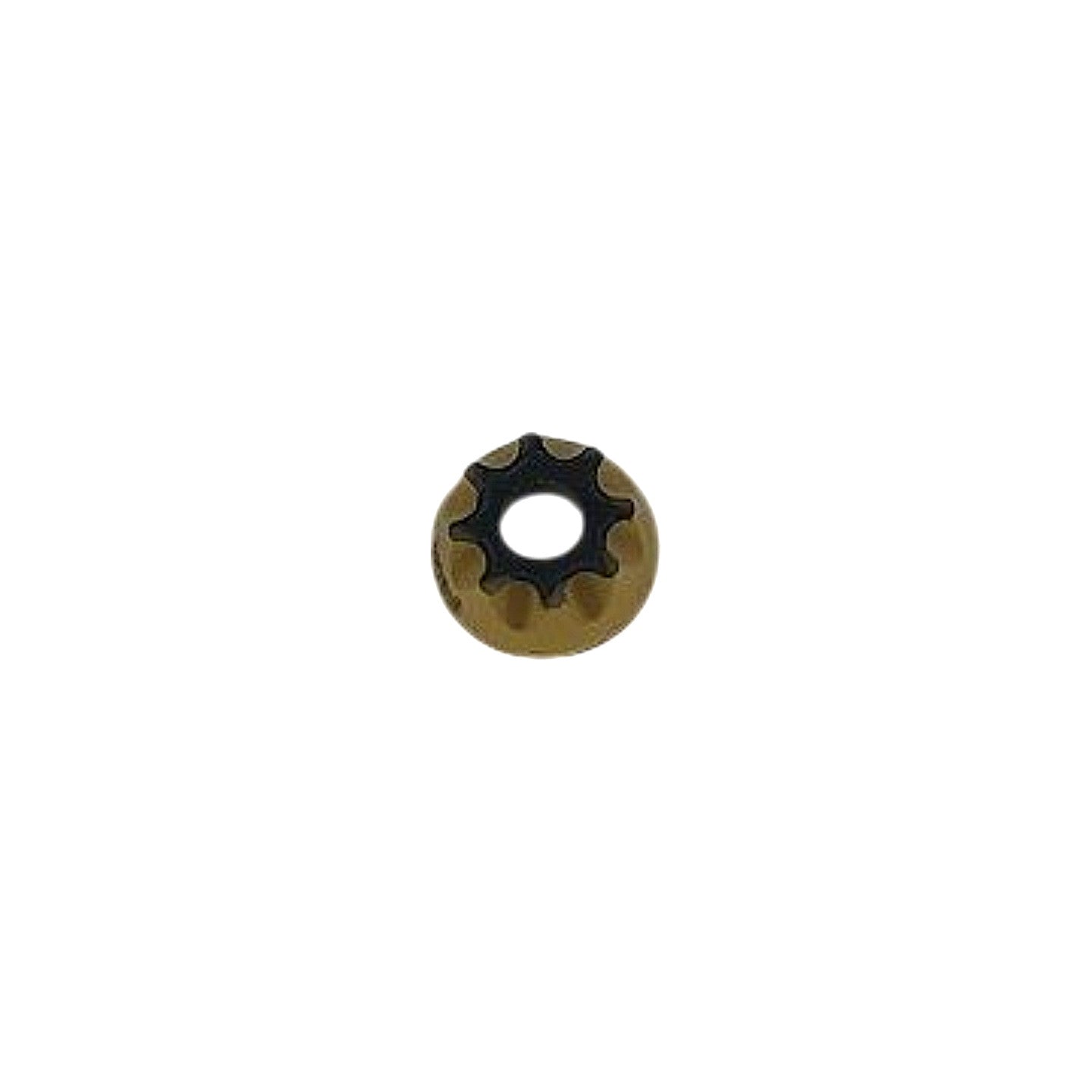

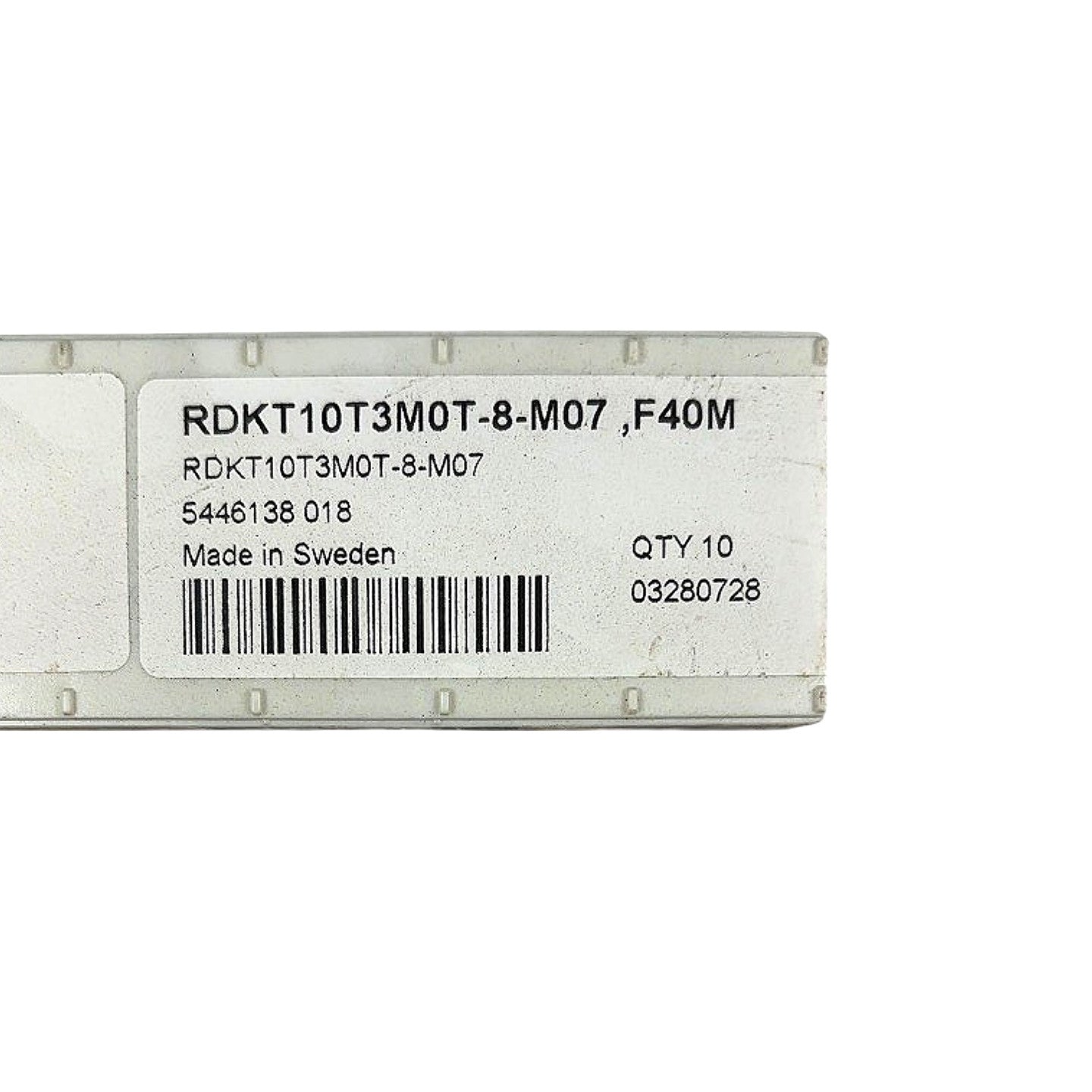

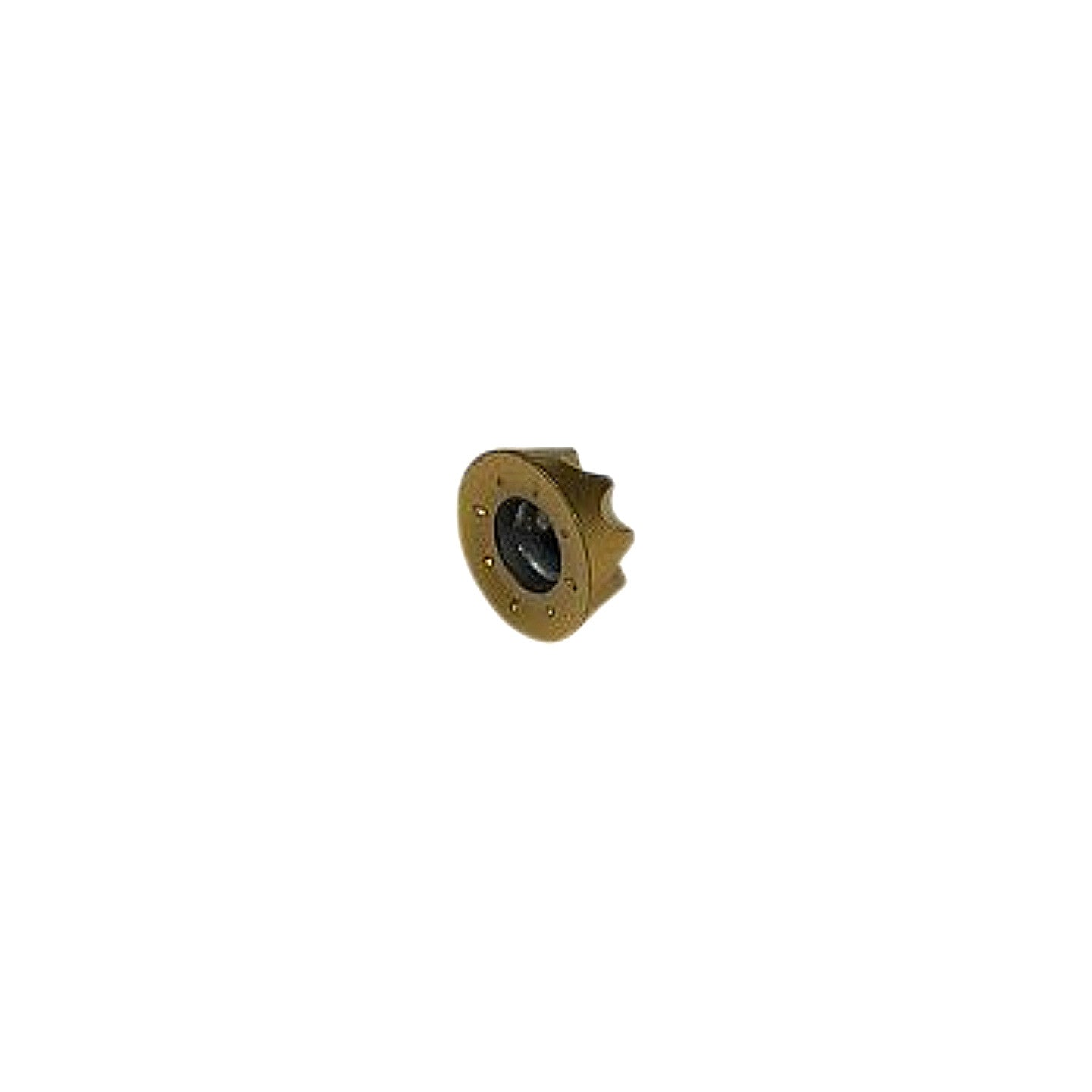

The Seco RDKT10T3M0T-8-M07 is a round (circular) double-sided positive carbide milling insert in grade F40M, a PVD TiAlN-coated cemented carbide grade optimized for milling of steel, stainless steel, and heat-resistant superalloys (ISO application range P, M, S). Decoded from the ISO designation: R = round shape, D = 15° clearance angle, K = tolerance class, T = with hole and chipbreaker, 10 = 10 mm inscribed circle diameter, T3 = 3.18 mm thickness, M0T = double-sided positive geometry with molded chipbreaker, -8 = 8 cutting edges, M07 = Seco proprietary geometry identifier. The F40M grade features a tough carbide substrate with a gold-colored PVD TiAlN coating visible in the photos, delivering excellent wear resistance and toughness for interrupted cuts and unstable conditions. These inserts are compatible with Seco R220.53 and R220.54 series face milling and high-feed cutter bodies designed for RDKT10T3 seating pockets. Each factory-sealed box contains 10 new inserts, Made in Sweden (lot 03280728, Seco item code 5446138 018).
Product Specifications
| Brand | Seco |
| MPN | RDKT10T3M0T-8-M07 |
| Grade | F40M |
| Insert Shape | Round (R) |
| Inscribed Circle (IC) | 10 mm |
| Thickness | 3.18 mm (T3) |
| Clearance Angle | 15° (D) |
| Cutting Edges | 8 (double-sided) |
| Coating | PVD TiAlN |
| ISO Application Range | P, M, S |
| Chipbreaker | M07 molded positive geometry |
| Tolerance Class | K |
| Country of Origin | Sweden |
| Quantity | 10 per box |
| Seco Item Code | 5446138 018 |
| Condition | New |
