Seco RM-000.79-03325791 0.79in Dia Indexable Plunge Mill Arbor

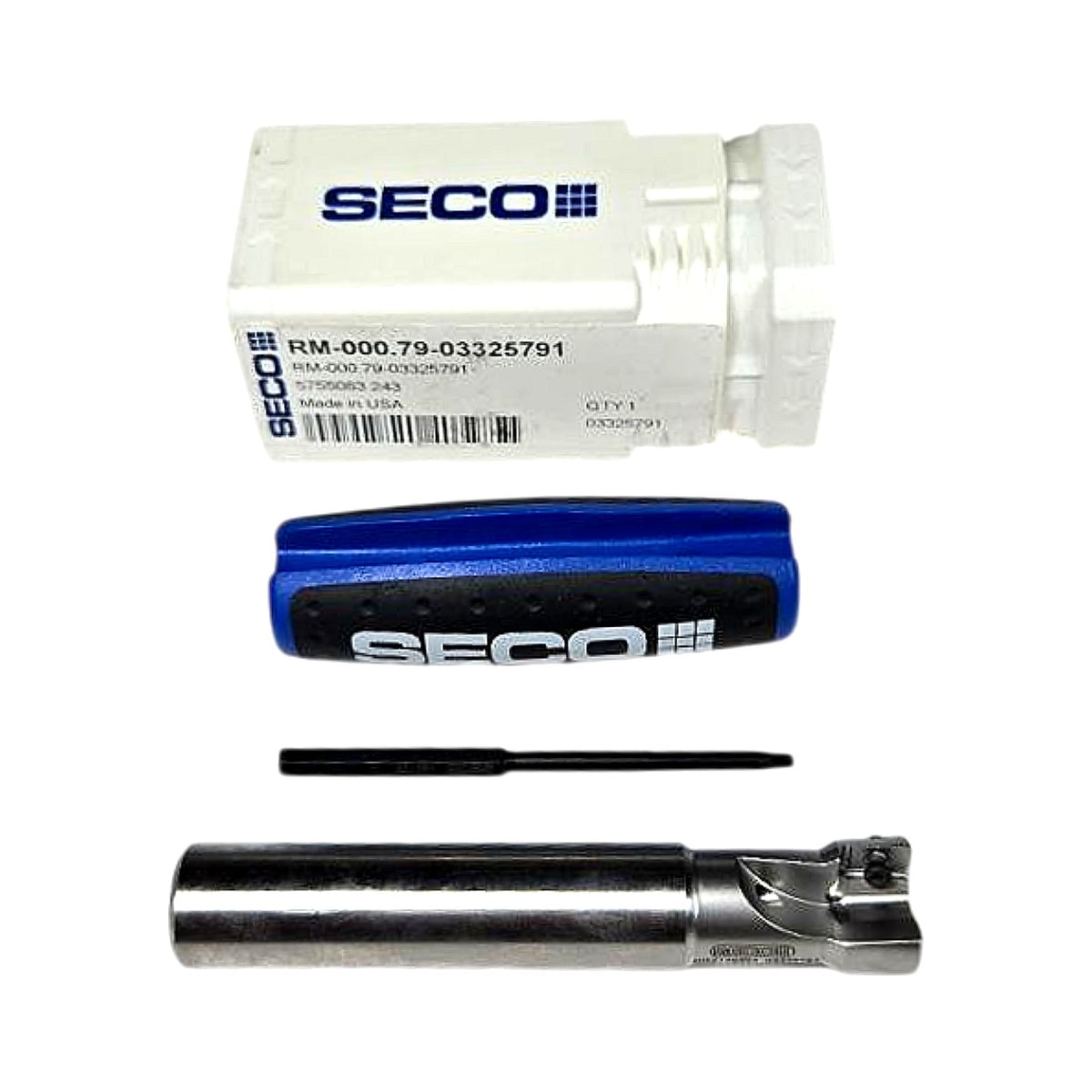

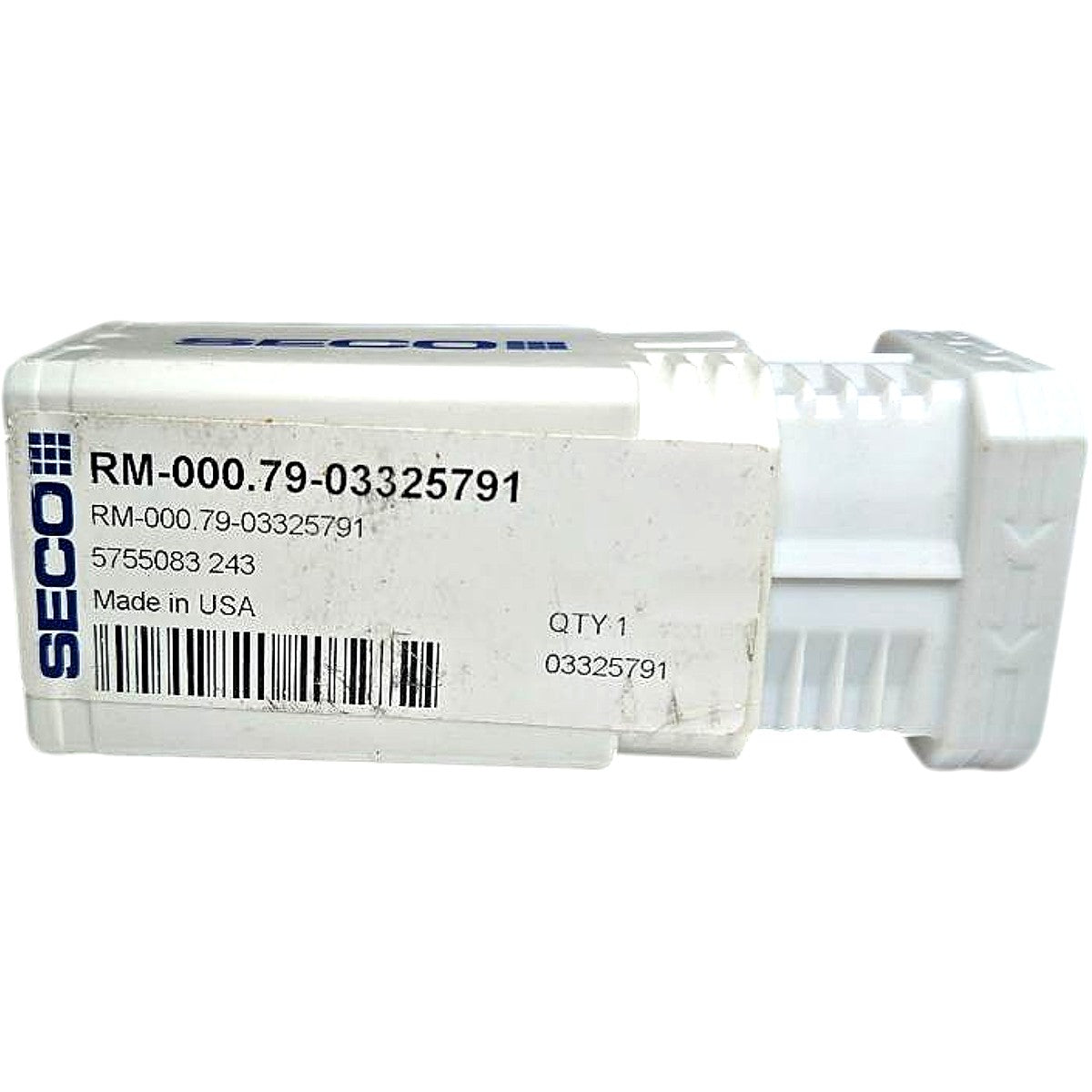

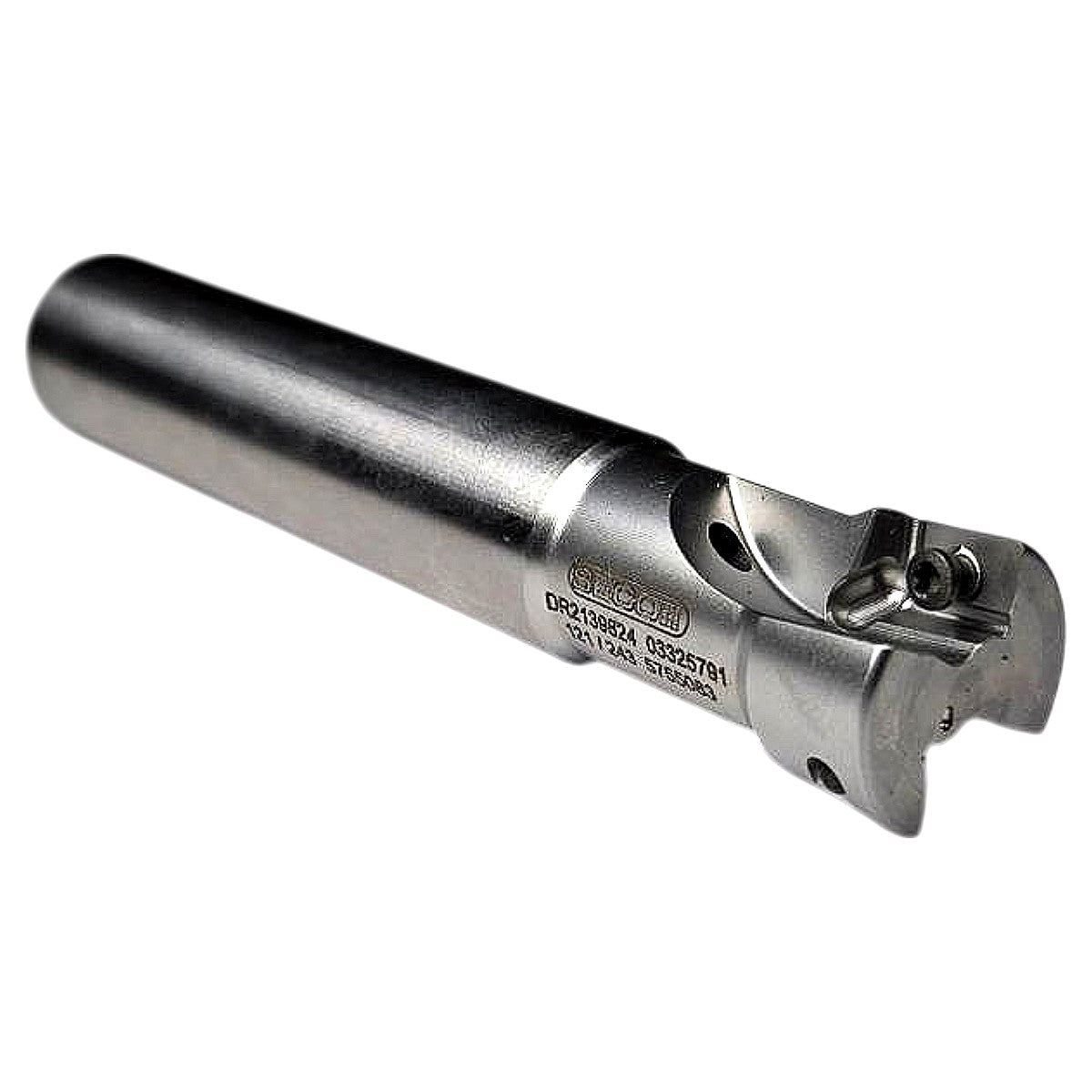

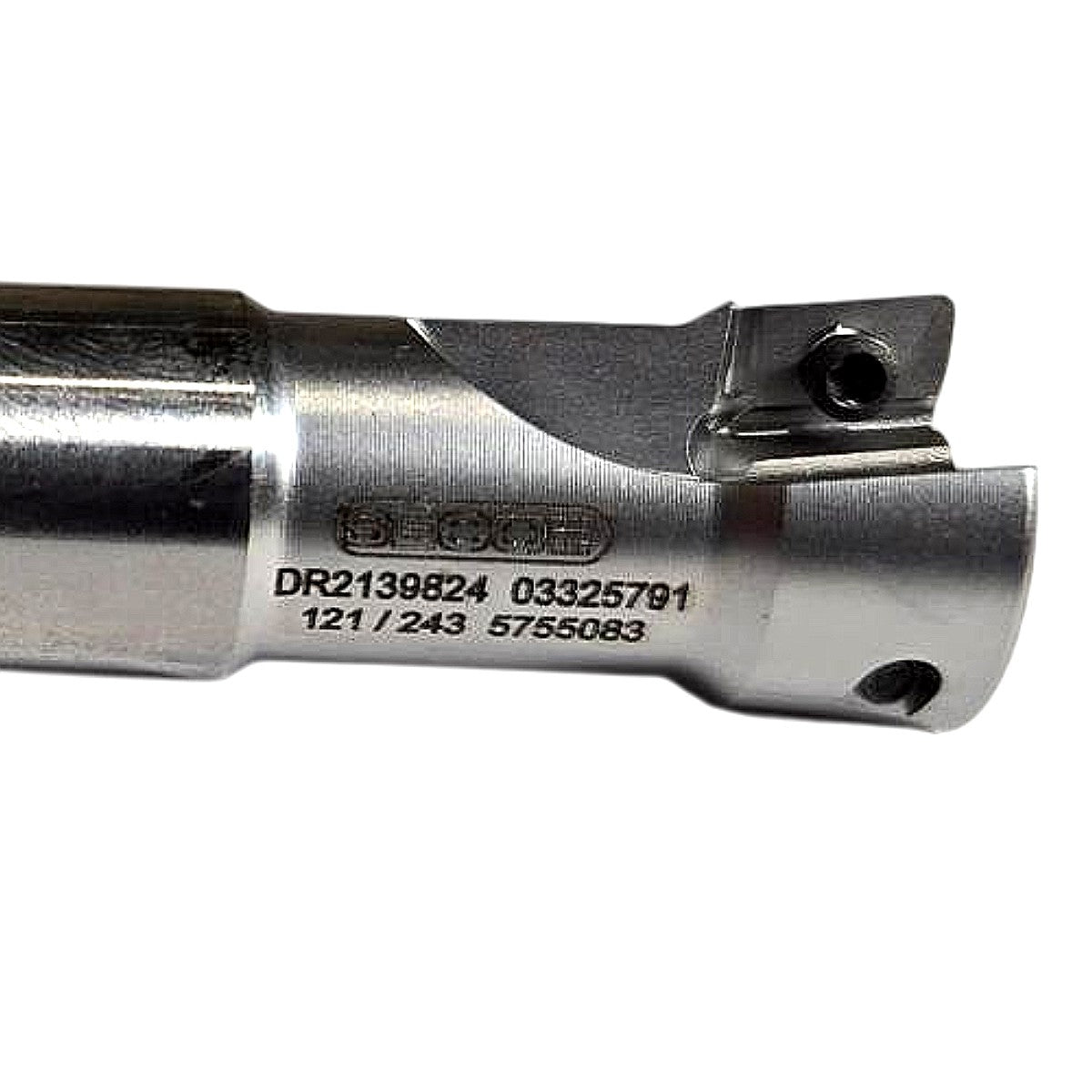

The Seco RM-000.79-03325791 (order code 03325791, catalog ref 5755083) is a new, Made in USA indexable plunge milling cutter with a 0.79 in (approximately 20 mm) cutting diameter, designed for the Seco Precimaster or equivalent tangential/plunge-style indexable insert system. The body carries two tangentially clamped indexable carbide inserts secured by torx-head clamp screws (wrench included), enabling aggressive axial plunge cuts, ramping, and helical interpolation in steel, stainless, cast iron, and aluminum. The shank designation encodes a straight cylindrical shank sized at approximately 0.79 in diameter, compatible with standard ER or hydraulic chucks at the corresponding bore; internal coolant ports visible in the photos allow through-coolant delivery directly to the cutting zone for extended insert life and chip evacuation. Supplied new in original Seco packaging with the clamping torx wrench; insert grade and insert style must be selected separately per Seco's compatibility chart for this body (refer to Seco insert selection for RM-series 0.79 in bodies).

Product Specifications
