Seco RPKW1605M0T-6-MD20 MP2501 Round Carbide Milling Insert 10pc
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

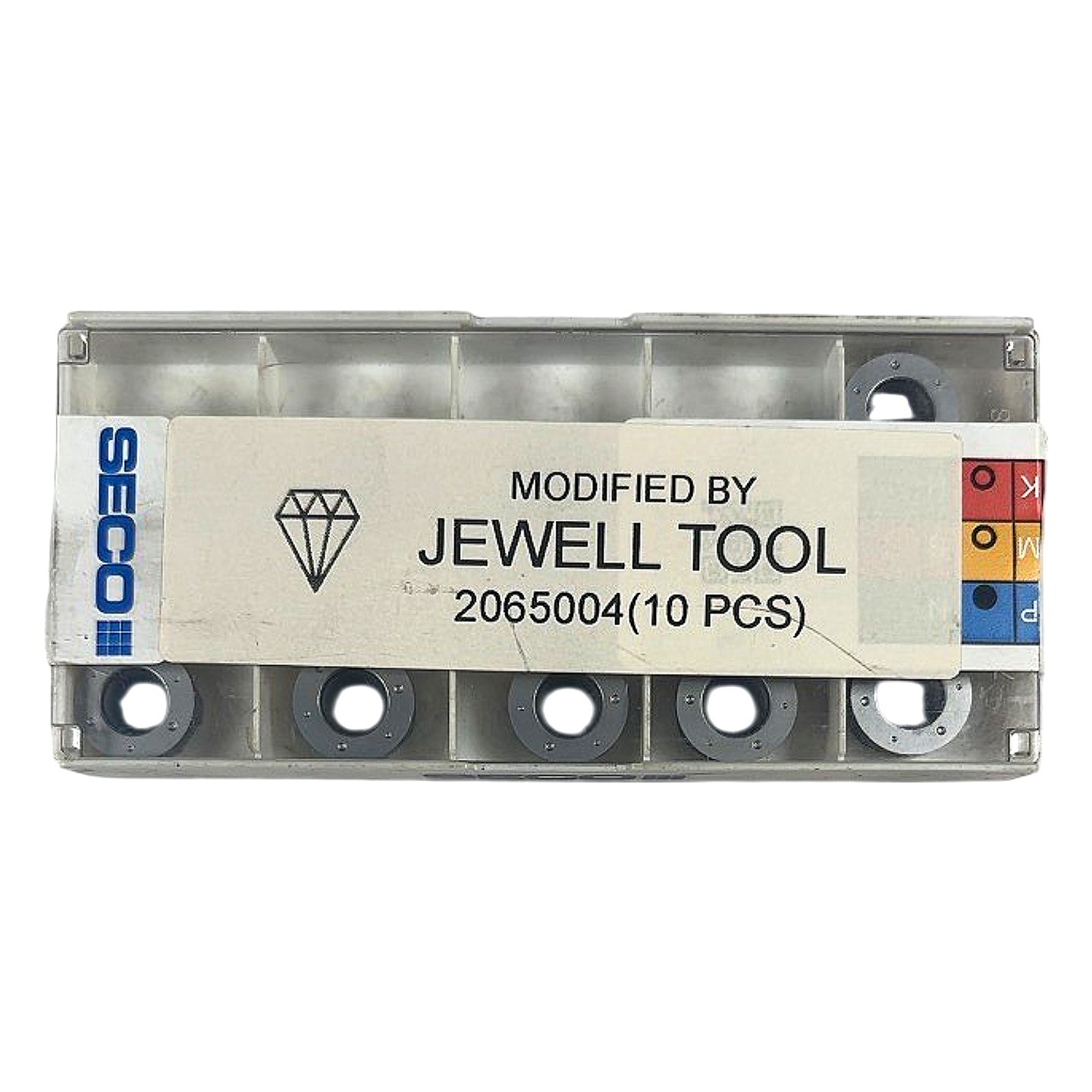

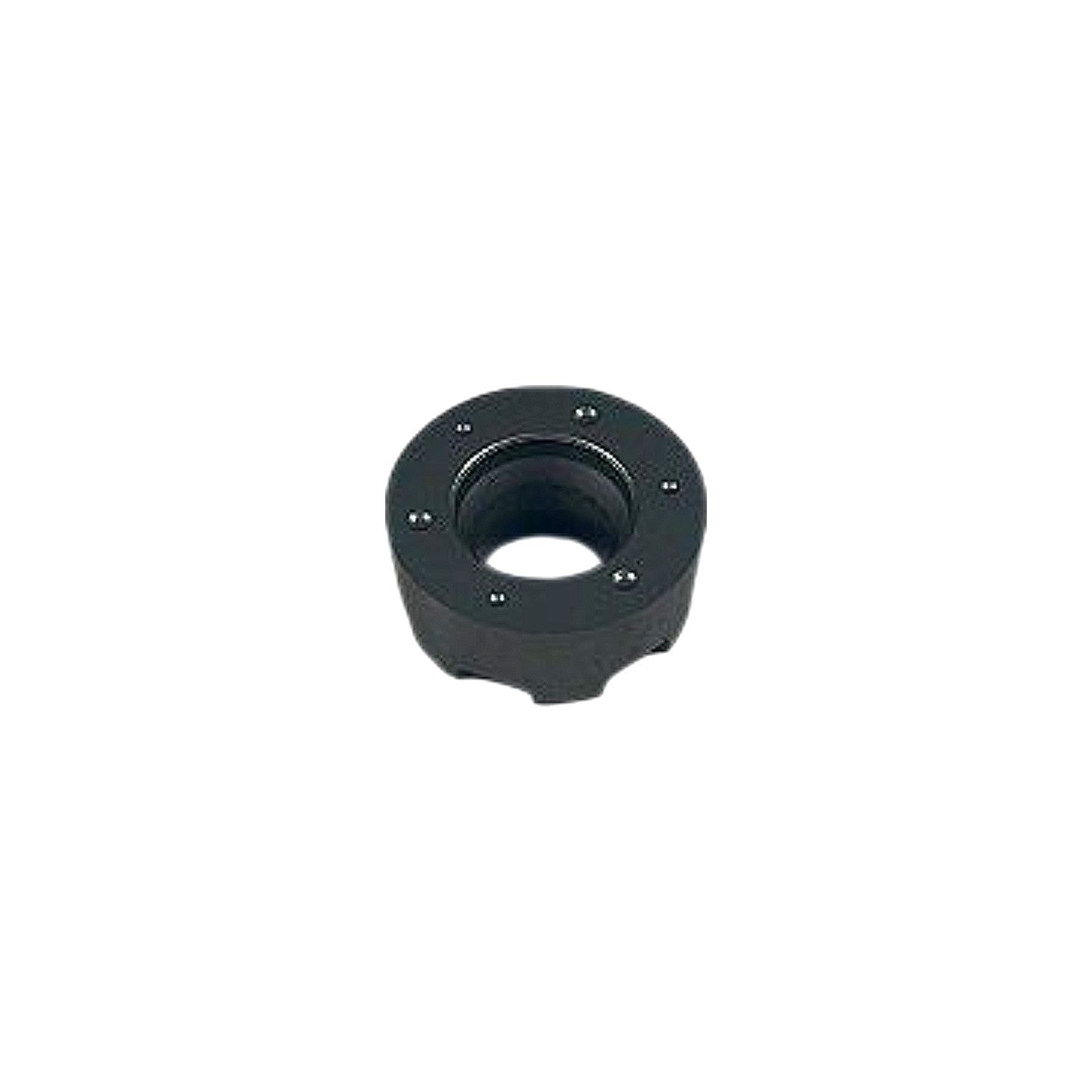

This is a factory-new pack of 10 Seco RPKW1605M0T-6-MD20 round (R-style) carbide milling inserts in grade MP2501, modified by Jewell Tool (Seco part 2065004), made in Sweden. Decoding the ISO designation: R = round shape, P = 11° clearance angle, K = tolerance class, W = with hole and chip grooves on both faces, 16 = 16 mm inscribed circle diameter, 05 = 5.56 mm thickness, M0T = M-style medium chipbreaker with 0° wiper edge and top geometry, 6 = 6.0 mm corner radius (full round), MD20 = Seco-proprietary geometry modifier for the MD20 chipbreaker form. Grade MP2501 is a PVD-coated cemented carbide targeting ISO P (steel) applications, with the PVD TiAlN-based coating delivering improved edge strength and wear resistance at moderate-to-high cutting speeds. These inserts are designed for use in Seco R220.53 and compatible round-insert face and shoulder milling cutters, suited for roughing and semi-finishing of steel, stainless steel, and cast iron. The "Modified by Jewell Tool" overprint indicates a secondary edge preparation or geometry modification applied post-manufacture by Jewell Tool to the Seco base insert.
Product Specifications
| Brand | Seco |
| MPN | RPKW1605M0T-6-MD20 |
| Grade | MP2501 |
| Modifier / Repackager | Jewell Tool (P/N 2065004) |
| Quantity | 10 pcs |
| Insert Shape | Round (R) |
| Inscribed Circle (IC) | 16 mm |
| Thickness | 5.56 mm |
| Clearance Angle | 11° (P) |
| Tolerance Class | K |
| Chipbreaker | MD20 |
| Coating | PVD (TiAlN-based) |
| ISO Material Group | P (steel), M (stainless), K (cast iron) |
| Country of Origin | Sweden |
| Condition | New |
