Seco SCLCL-12-3 6200560 Left Hand 3/4in Shank Turning Toolholder
Regular price
$131.63
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

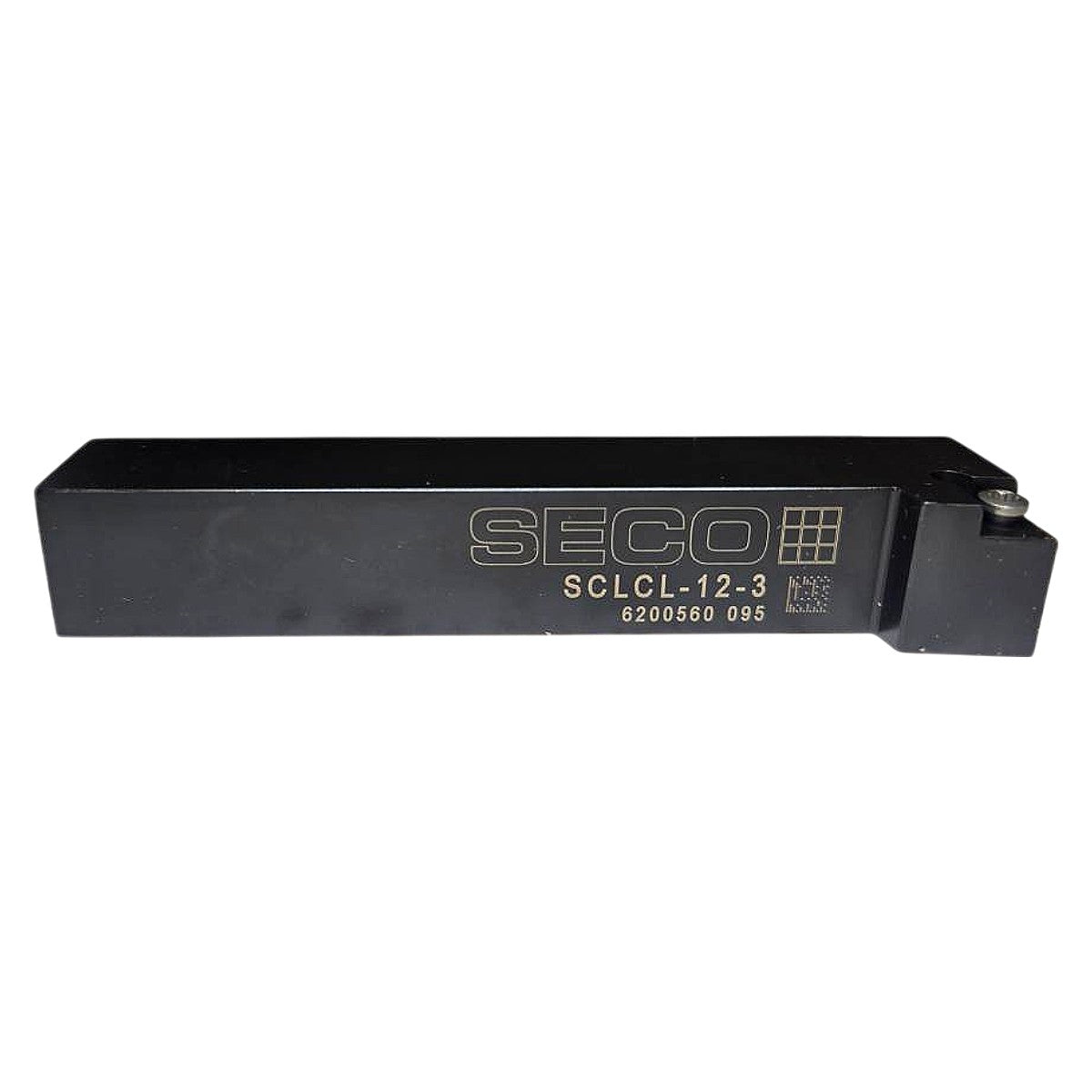

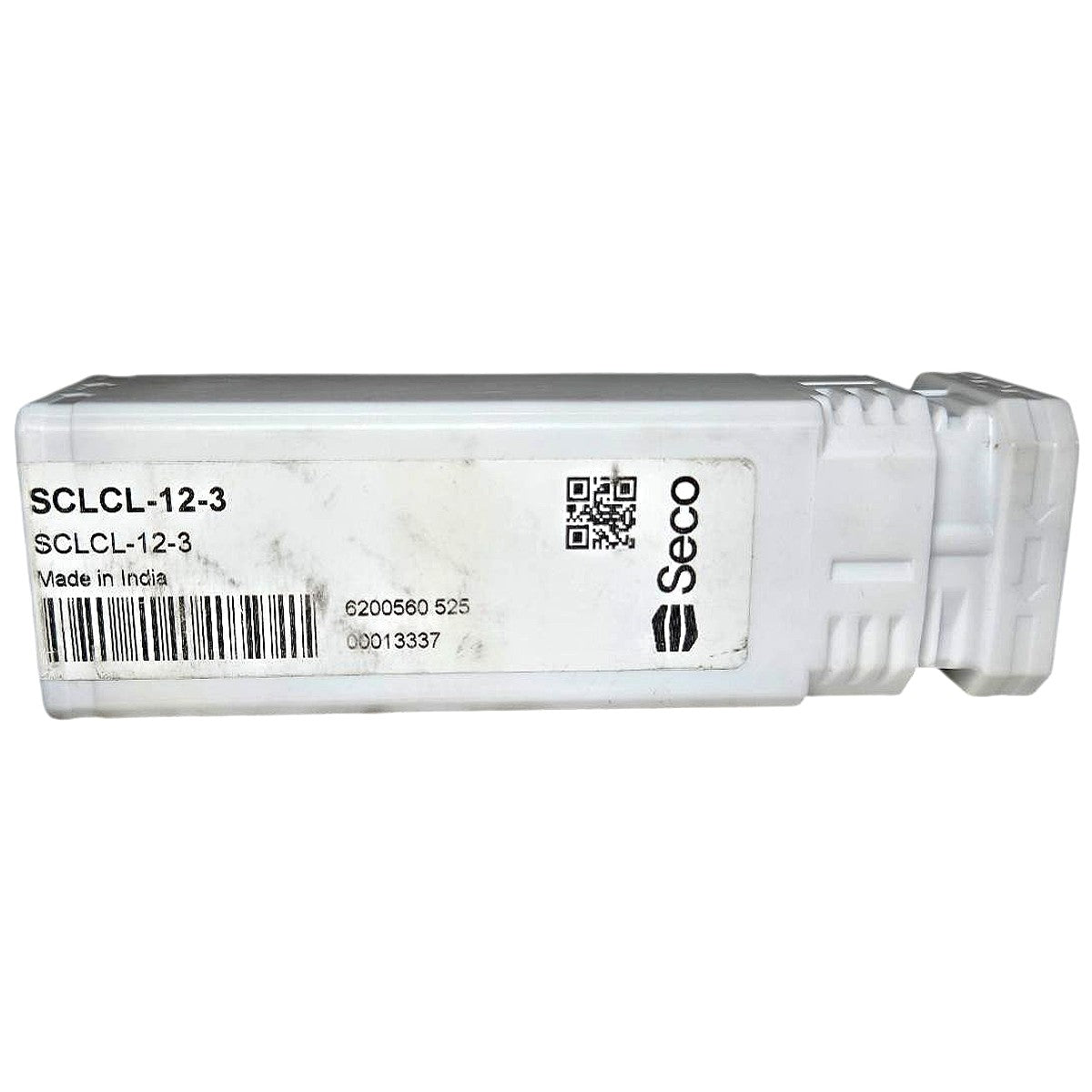

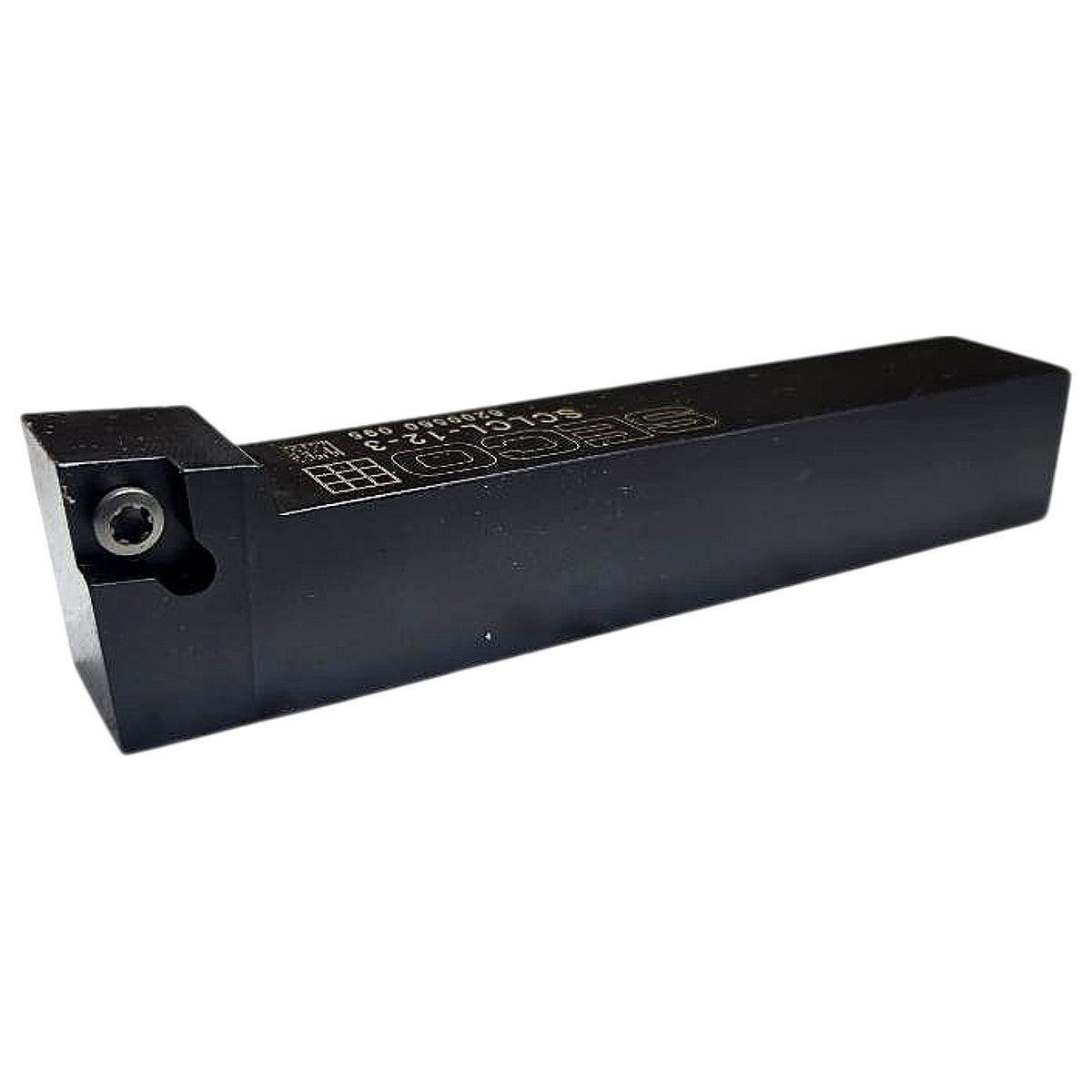

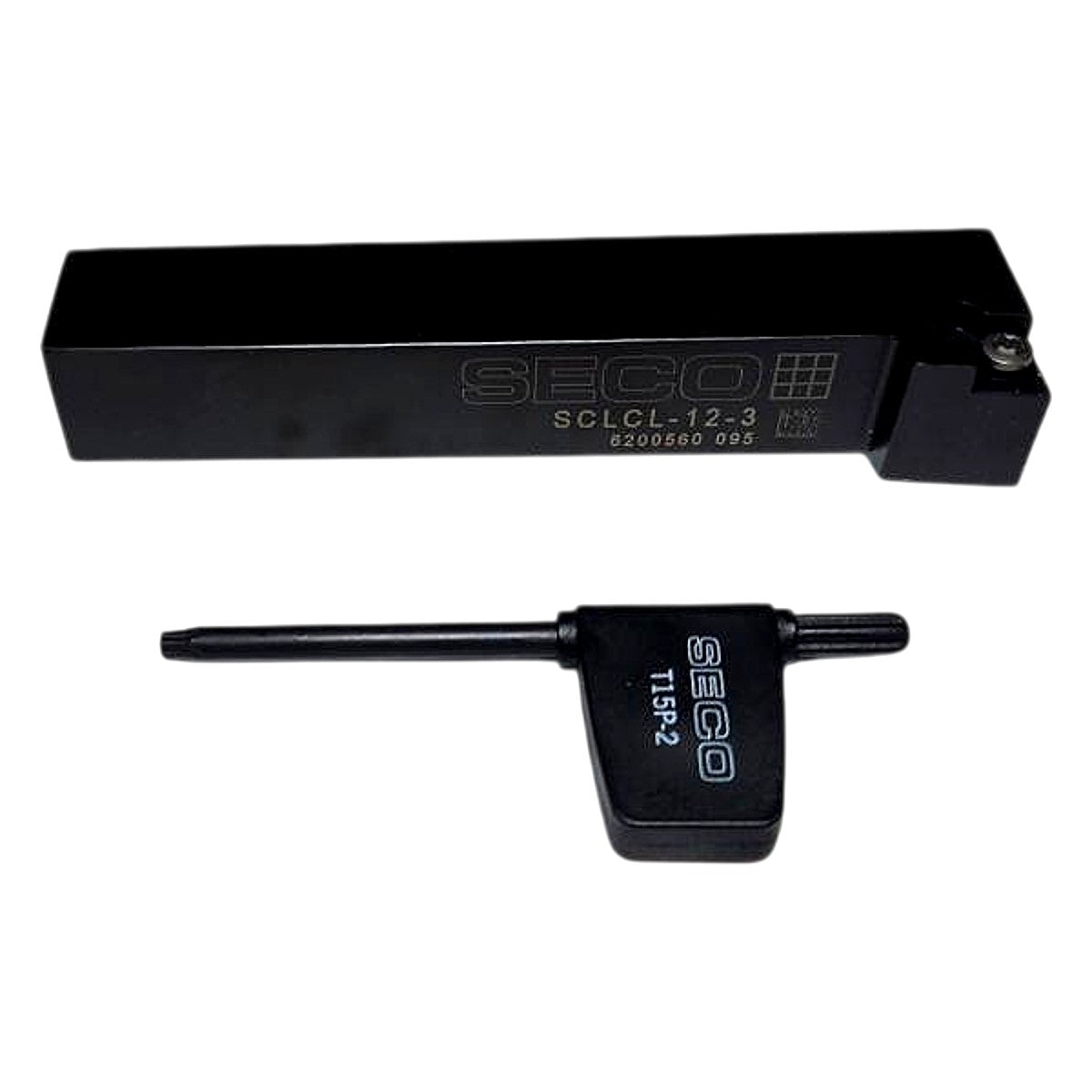

This new Seco SCLCL-12-3 (EDP 6200560) is a left-hand external turning toolholder with a screw-on-top clamping system, made in India. The designation decodes as S (screw clamp), C (80 degree diamond insert shape), L (95 degree lead angle style), C (7 degree normal insert clearance), L (left hand), 12 (3/4 in square shank) and 3 (3/8 in inscribed circle insert). It takes C-shape 80 degree diamond inserts in the 3/8 in IC size, such as CCMT 32.5x types, and is used for external turning and facing on lathes. The holder has a black finish and comes with a Seco T15P-2 Torx flag key, as shown in the photos; the insert is not included.
Product Specifications
| Brand | Seco |
| Manufacturer Part Number | SCLCL-12-3 |
| EDP Number | 6200560 |
| Hand of Cut | Left Hand |
| Clamping Style | Screw Clamp |
| Insert Shape | C (80 deg Diamond) |
| Lead Angle | 95 deg |
| Insert Clearance Angle | 7 deg (Code C) |
| Shank Size | 3/4 in Square (Code 12) |
| Shank Type | Square |
| Insert Inscribed Circle | 3/8 in (Code 3) |
| Operation | External Turning, Facing |
| Holder Material | Steel |
| Color | Black |
| Country of Origin | India |
| Included Items | Seco T15P-2 Torx Flag Key |
| Insert Included | No |
| Unit System | Imperial (Inch) |
