Seco SNHQ120708TR4-M07 MP2501 Square Carbide Milling Insert (10pc)
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

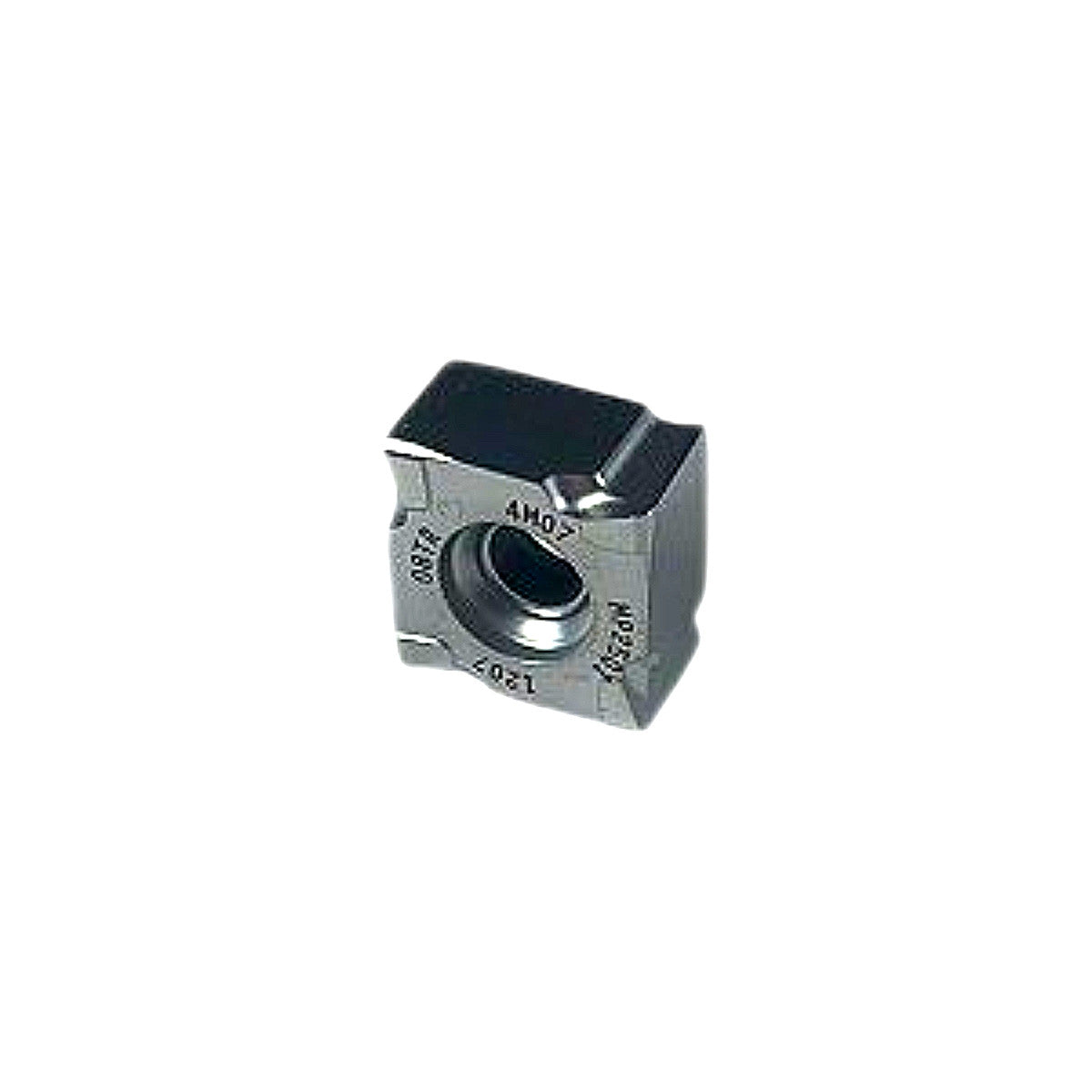

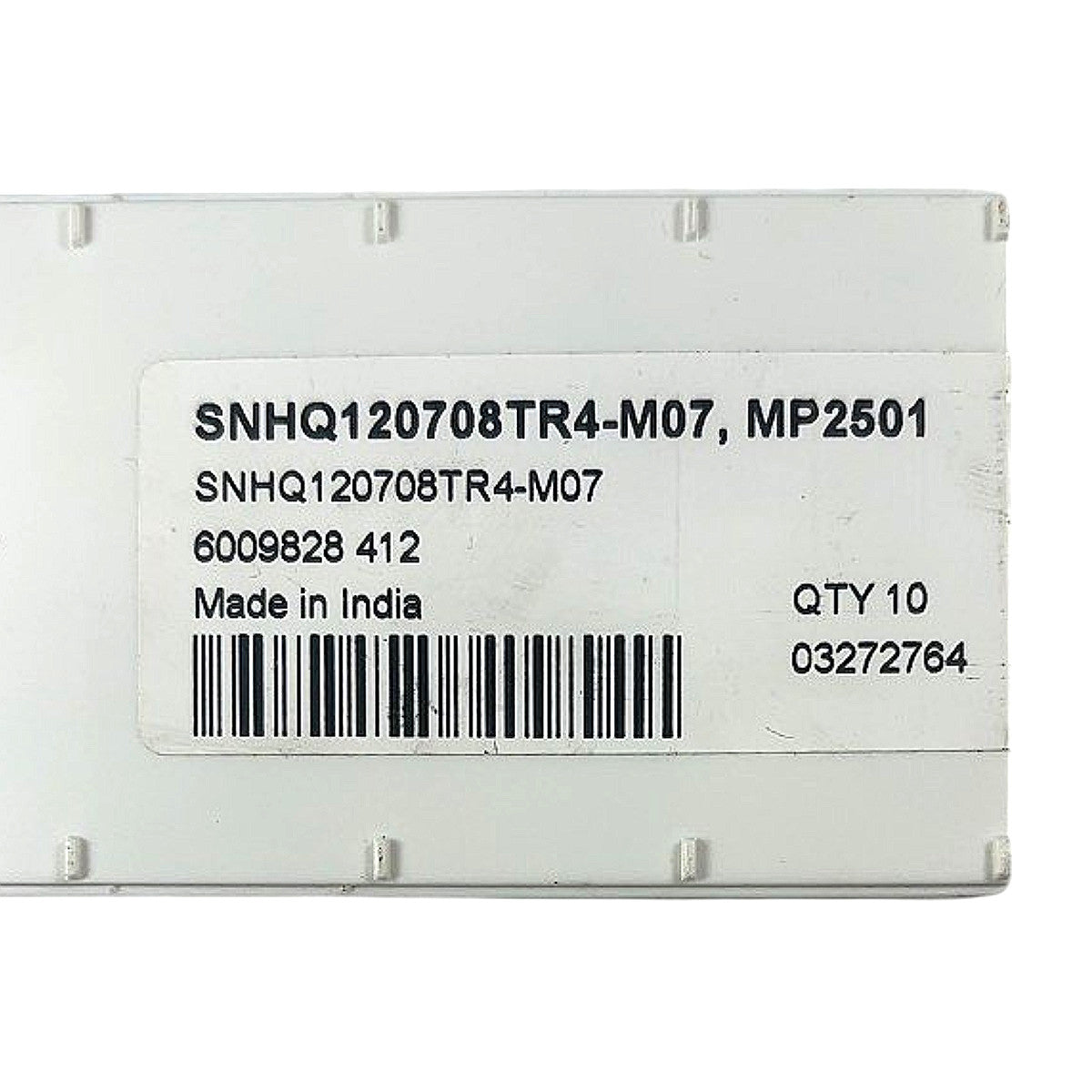

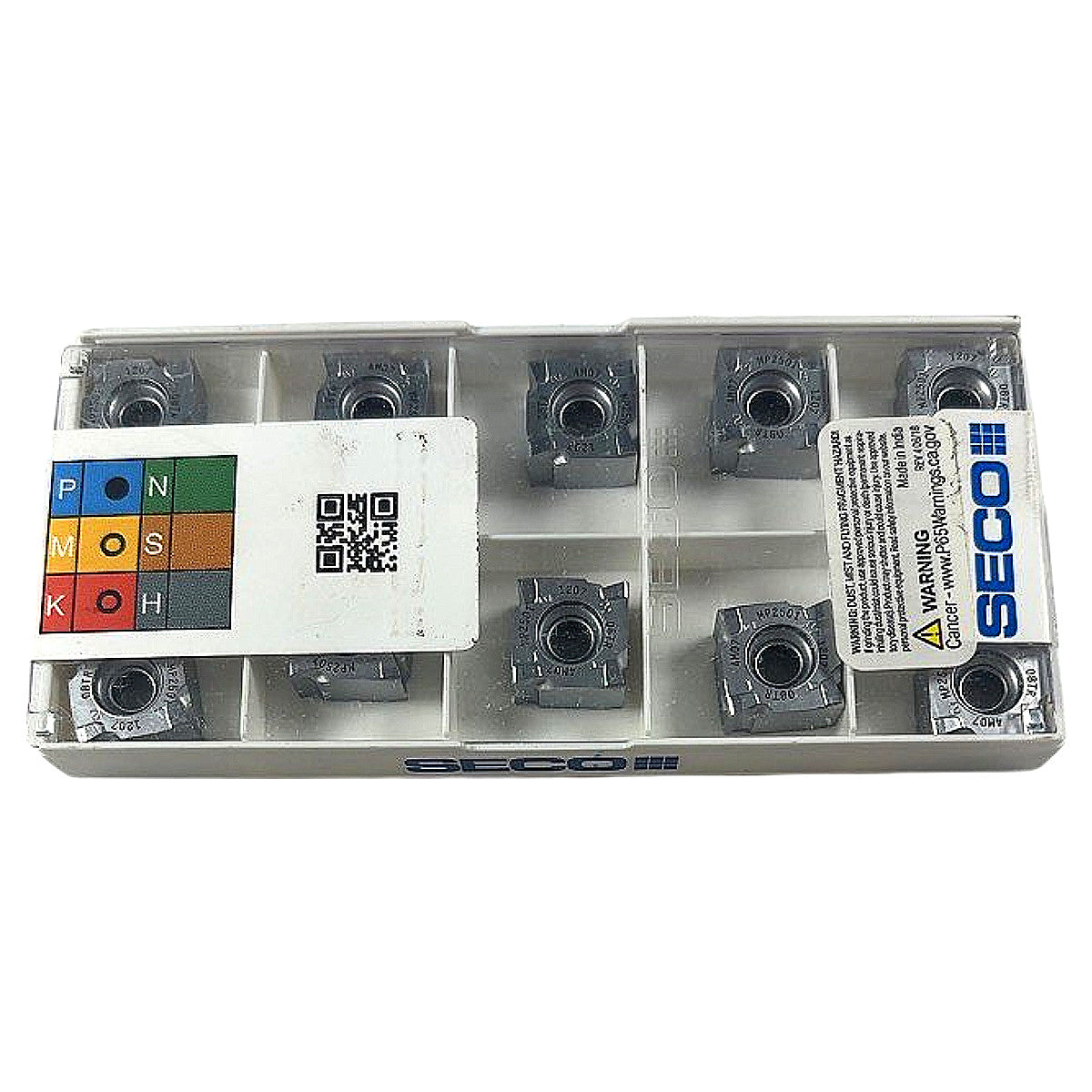

The Seco SNHQ120708TR4-M07 in grade MP2501 is a square (S), 0° normal clearance (N), high positive (H), screw-clamped (Q) carbide milling insert with a 12 mm inscribed circle, 07 mm thickness, 0.8 mm nose radius, and a TR4-M07 chipbreaker geometry engineered for medium milling applications. The MP2501 substrate is a PVD-coated cemented carbide grade optimized for general-purpose milling of steel (P), stainless steel (M), cast iron (K), and non-ferrous (N) materials, as confirmed by the P/M/K/N material application dots visible on the packaging label. The TR4-M07 chipbreaker features a 4-cutting-edge positive rake face design that reduces cutting forces and improves chip control in medium to heavy milling passes on compatible Seco square-insert milling bodies. This factory-sealed box of 10 new inserts (Seco lot 03272764, made in India, catalog ref. 6009828 412) shows no signs of use or damage.
Product Specifications
| Brand | Seco |
| MPN | SNHQ120708TR4-M07 |
| Grade | MP2501 |
| Insert Shape | Square (S) |
| Clearance Angle | 0° Normal (N) |
| Tolerance Class | H (High Positive) |
| Mounting Method | Screw Clamp (Q) |
| Inscribed Circle (IC) | 12 mm |
| Insert Thickness | 07 mm |
| Nose Radius | 0.8 mm |
| Chipbreaker | TR4-M07 |
| Cutting Edges | 4 |
| Coating | PVD |
| Substrate | Cemented Carbide |
| Application Materials | Steel (P), Stainless (M), Cast Iron (K), Non-Ferrous (N) |
| Operation | Medium Milling |
| Country of Origin | India |
| Quantity | 10 per box |
| Condition | New |
