Seco SNMX1407ZNTR-M16 MK2050 PVD Carbide Milling Insert (10 pcs)
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

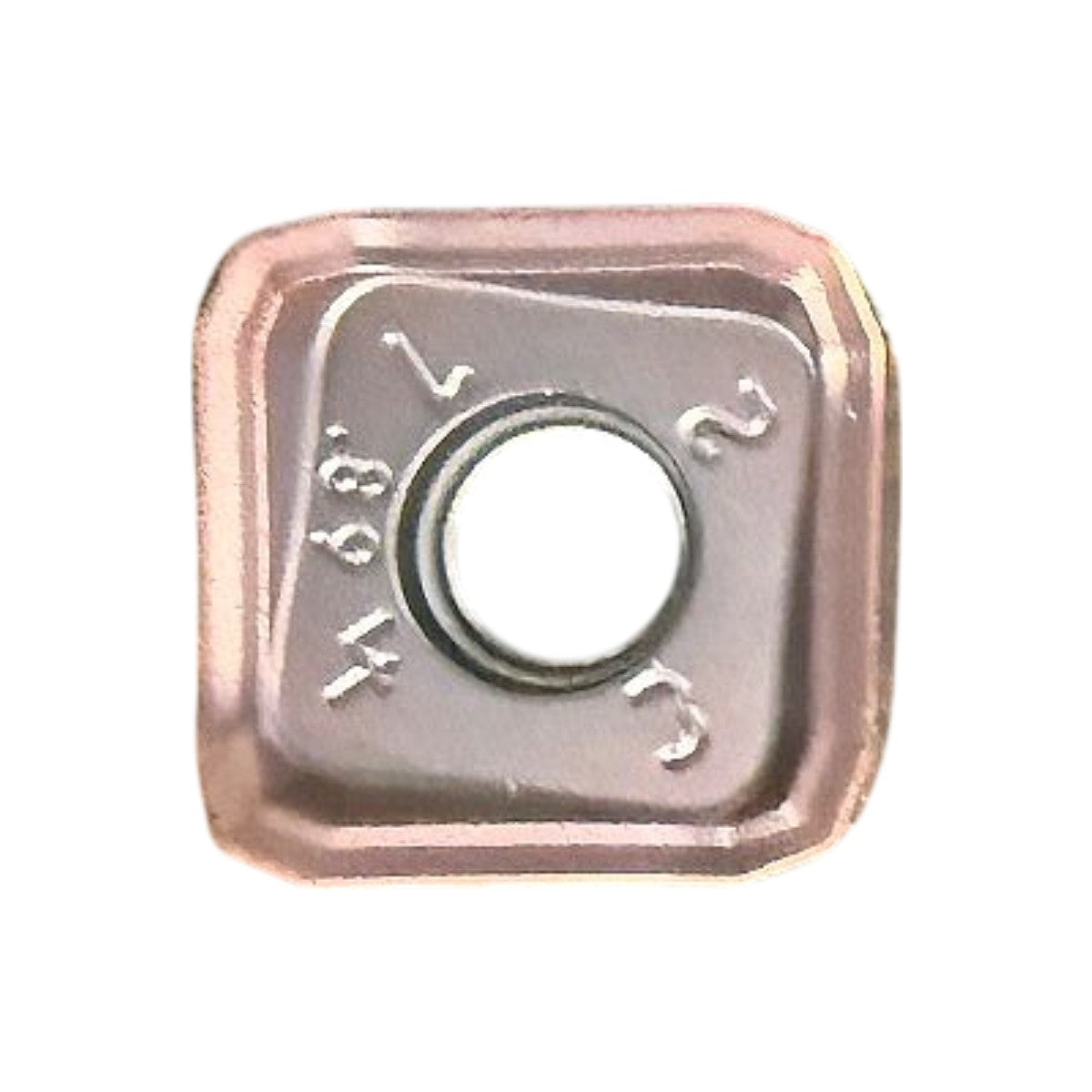

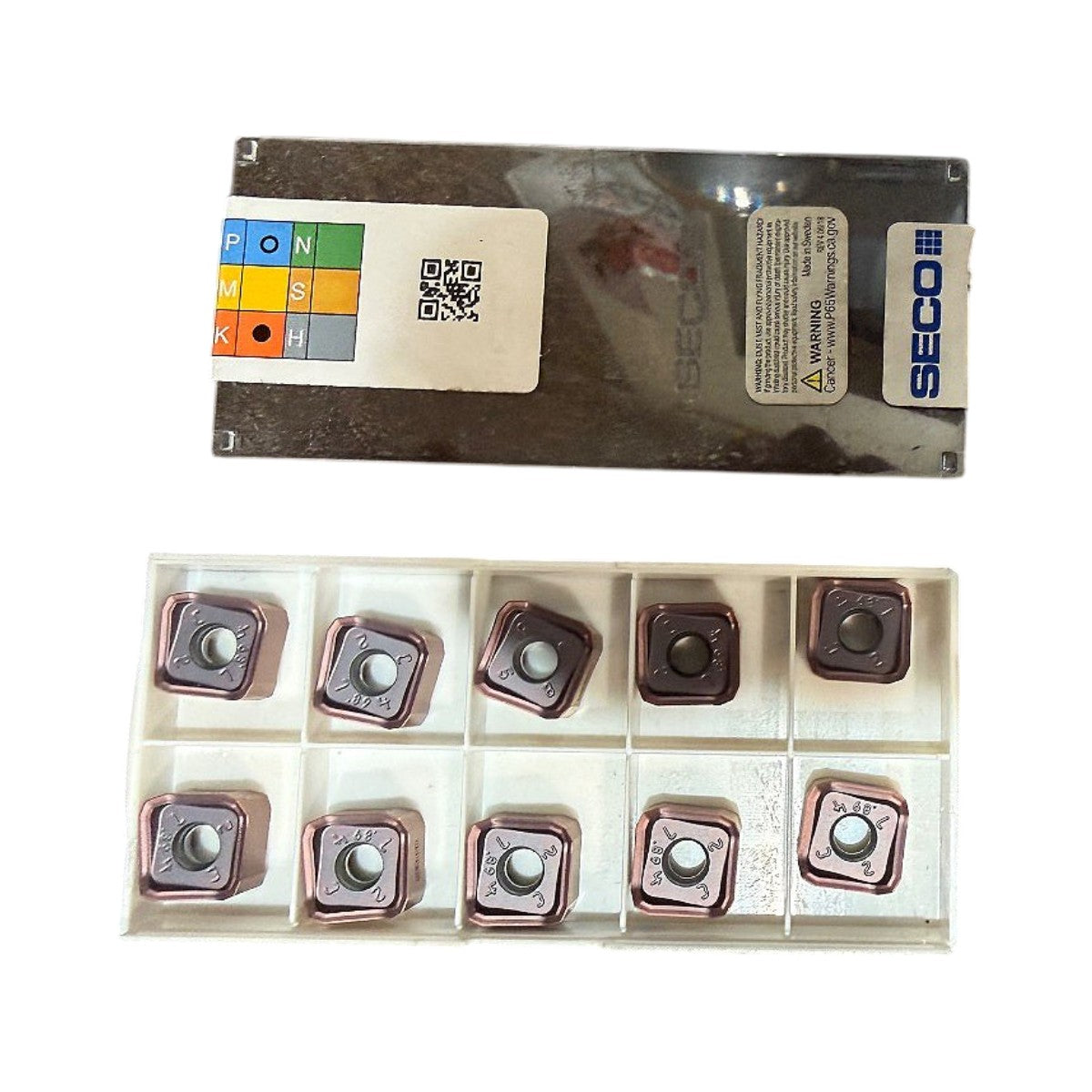

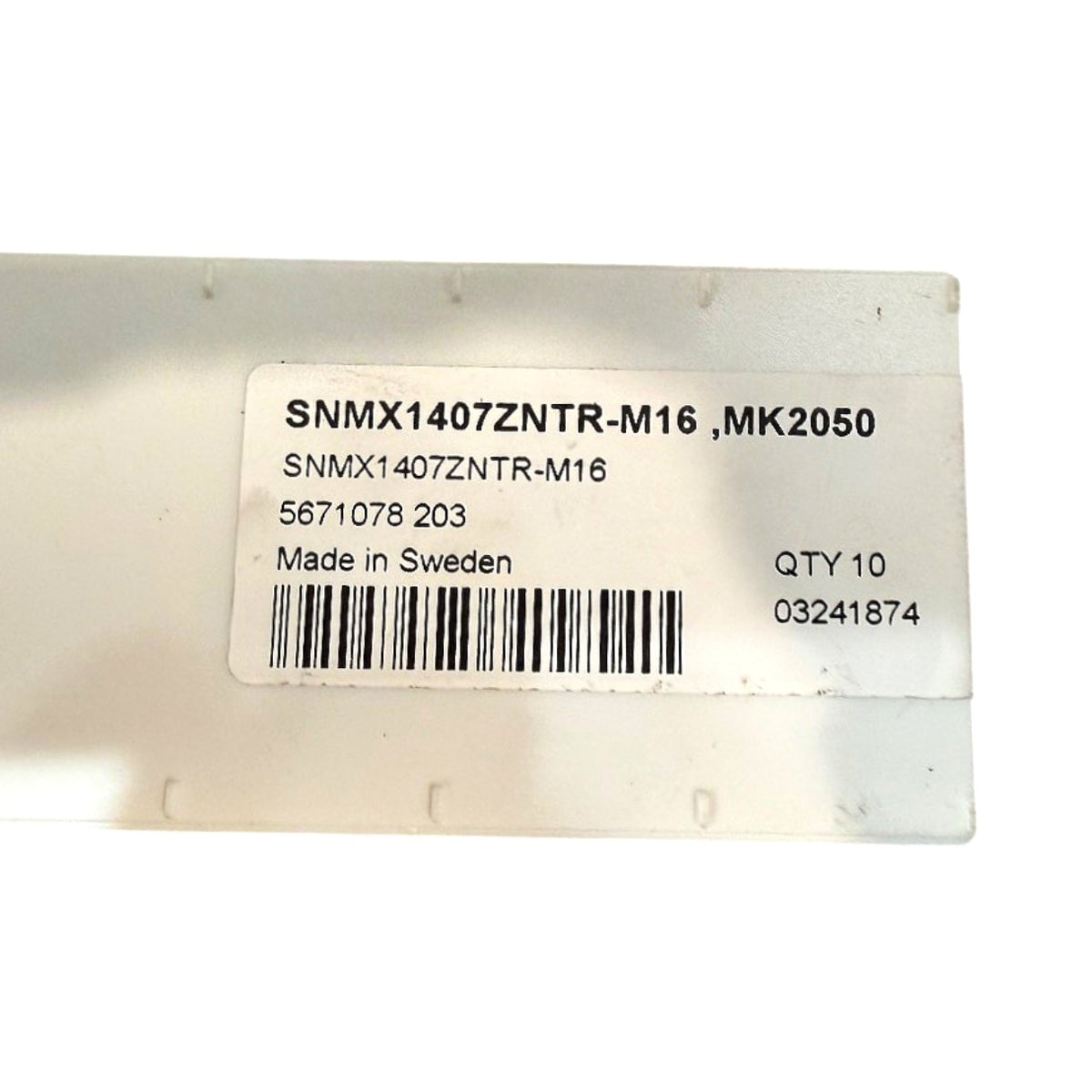

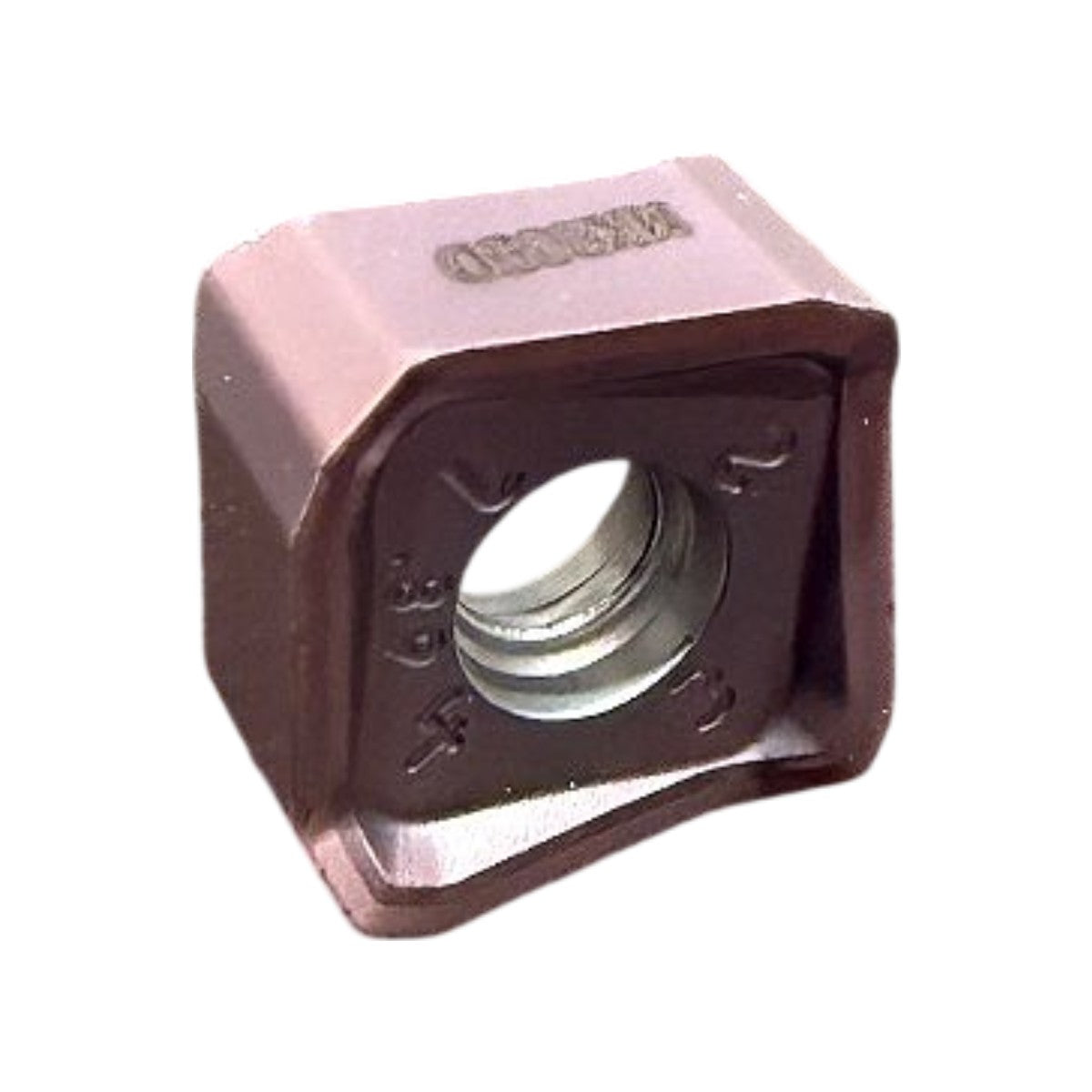

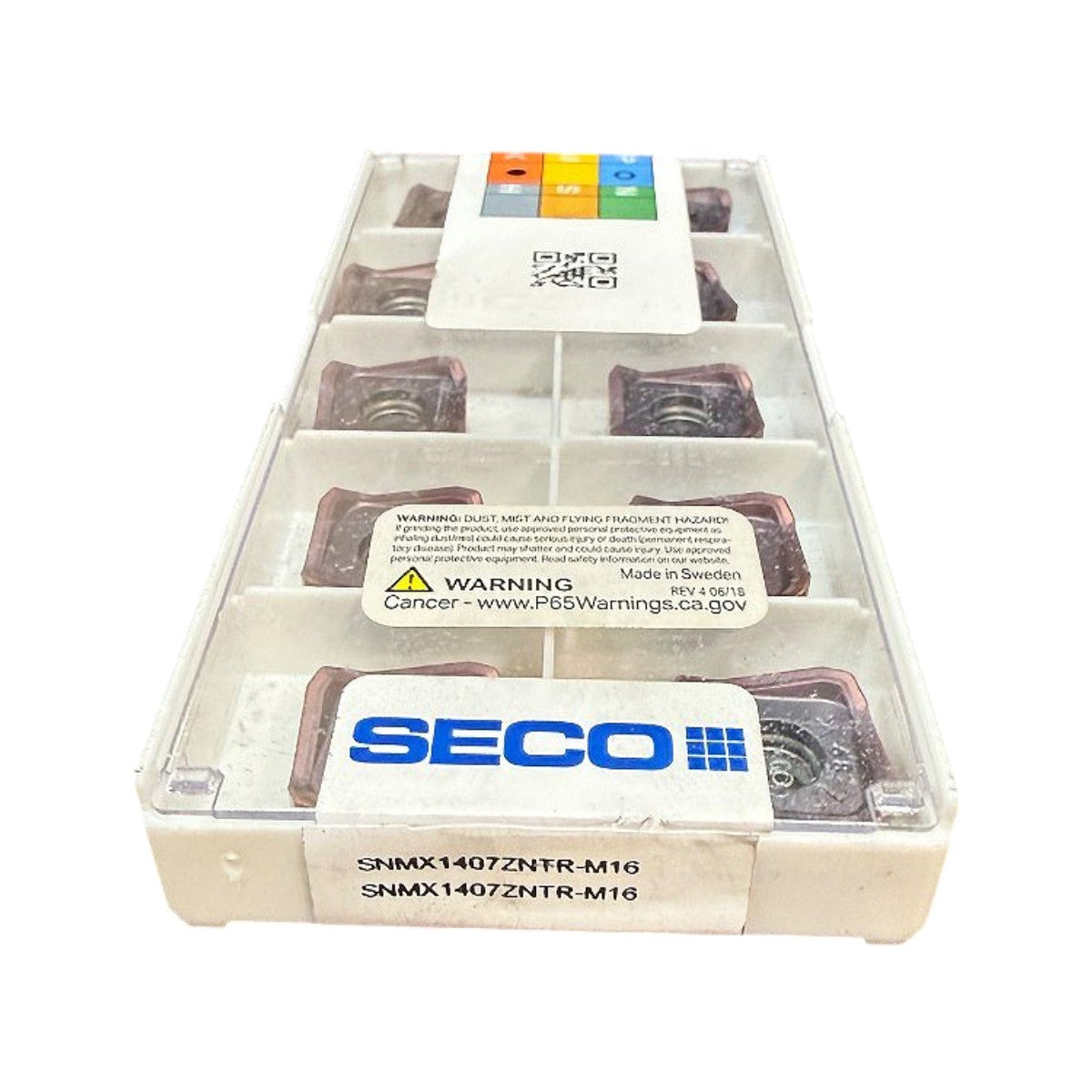

This is a new box of 10 Seco SNMX1407ZNTR-M16 indexable carbide milling inserts, EDP 03241874, in grade MK2050, made in Sweden. The designation decodes as a square (S) 90-degree insert with 0-degree clearance (N), M tolerance class (M), a center hole with special design (X), and a 14 mm cutting edge length (14). Thickness code 07 follows, and the M16 chipbreaker is a Seco geometry for medium milling. The box ISO application chart marks ISO K (cast iron) as the primary application and ISO P (steel) as secondary, and the inserts are for milling operations. The insert has a central screw hole for clamping in compatible Seco milling cutter bodies.
Product Specifications
| Brand | Seco |
| MPN | SNMX1407ZNTR-M16 |
| Grade | MK2050 |
| EDP Number | 03241874 |
| Alternate Item Number | 5671078 203 |
| Chipbreaker | M16 |
| Insert Shape | Square (S) |
| Clearance Angle | 0 deg (N) |
| Tolerance Class | M |
| Hole/Design Type | Center hole, special design (X) |
| Cutting Edge Length | 14 mm |
| Thickness Code | 07 |
| Insert Material | Carbide |
| Coating | PVD Coated |
| Operation | Milling |
| ISO Application | K (primary), P (secondary) |
| Quantity per Pack | 10 |
| Country of Origin | Sweden |
| Mounting Style | Screw clamp, center hole |
