Seco T32-SN01C03-2.6X0.45-63R M2.6x0.45 6H TiN Spiral Point Tap
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

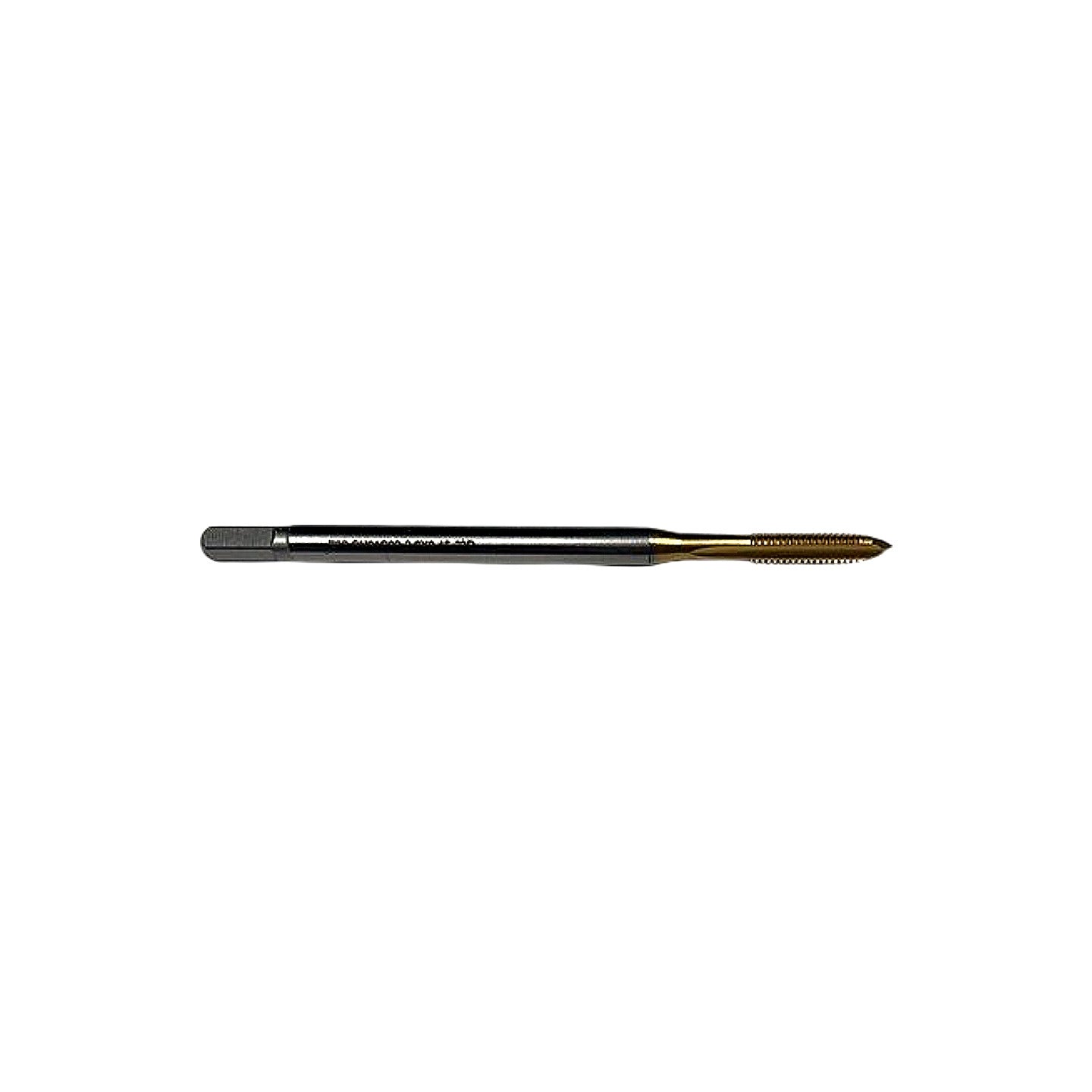

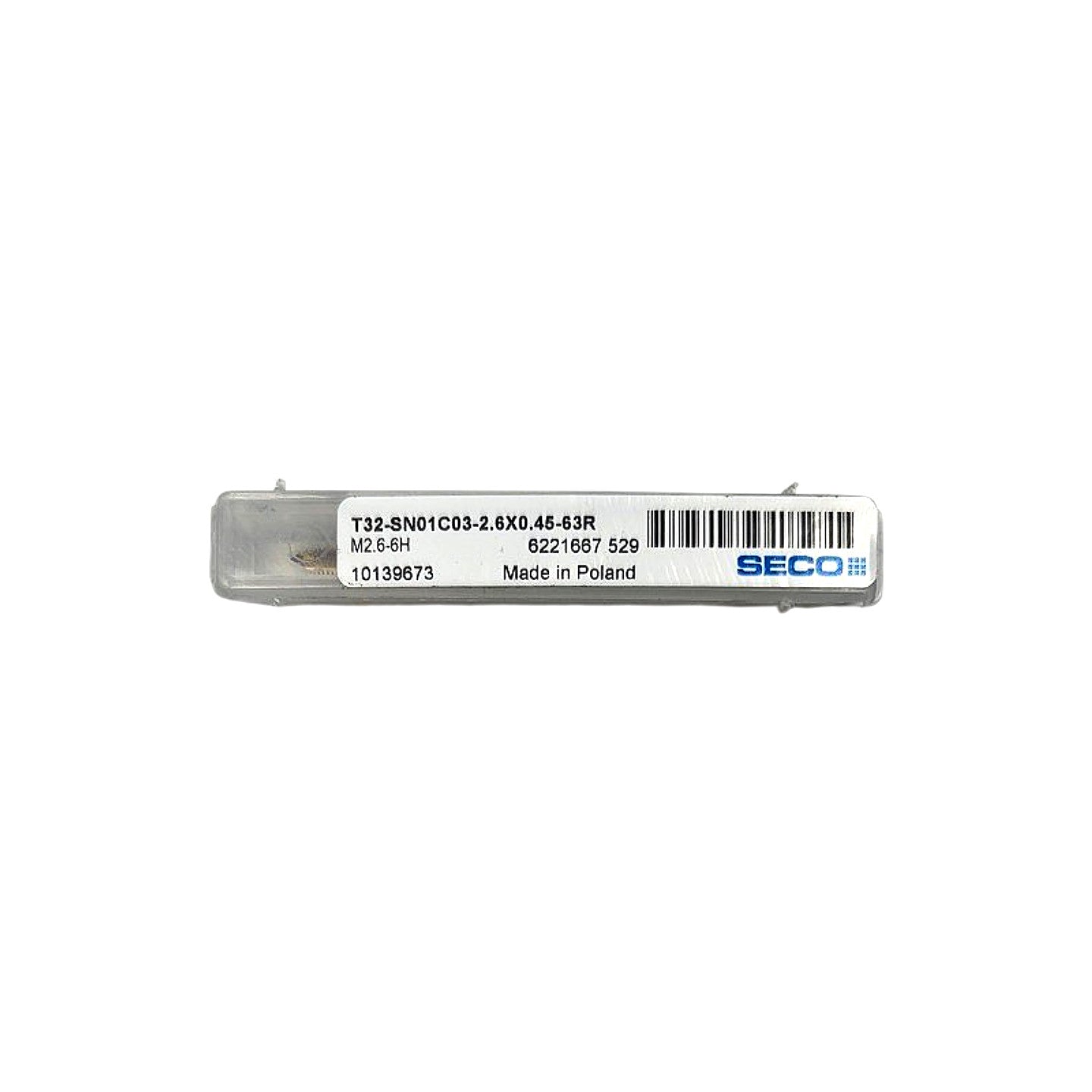

This is a new Seco Tools T32-SN01C03-2.6X0.45-63R spiral point (gun) tap manufactured in Poland, designed to cut M2.6x0.45 metric threads to a 6H tolerance class. The tap features a TiN (Titanium Nitride) coating — visible as the gold finish on the threaded section — which increases surface hardness and reduces friction for improved tool life in through-hole tapping applications. The T32 series designation indicates a spiral point style optimized for through-hole tapping, pushing chips ahead of the cutting action rather than extracting them, making it well-suited for CNC machining centers and automated tapping heads. The 63R element encodes the overall length at 63 mm with a right-hand cut, and the SN01C03 shank designation indicates a cylindrical shank with square drive end compatible with standard tap holders for this size range. Seco part number 10139673 and barcode 6221667 529 are confirmed from the label.
Product Specifications
| Brand | Seco Tools |
| MPN | T32-SN01C03-2.6X0.45-63R |
| Seco Item # | 10139673 |
| Thread Size | M2.6 |
| Thread Pitch | 0.45 mm |
| Thread Standard | Metric (ISO) |
| Thread Tolerance Class | 6H |
| Tap Type | Spiral Point (Gun Tap) |
| Cut Direction | Right-Hand |
| Overall Length | 63 mm |
| Coating | TiN (Titanium Nitride) |
| Shank Type | Cylindrical w/ square drive |
| Application | Through-hole tapping |
| Country of Origin | Poland |
| Condition | New |
