Seco TNMG160408-M5 TP2500 Duratomic Coated Carbide Turning Insert
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

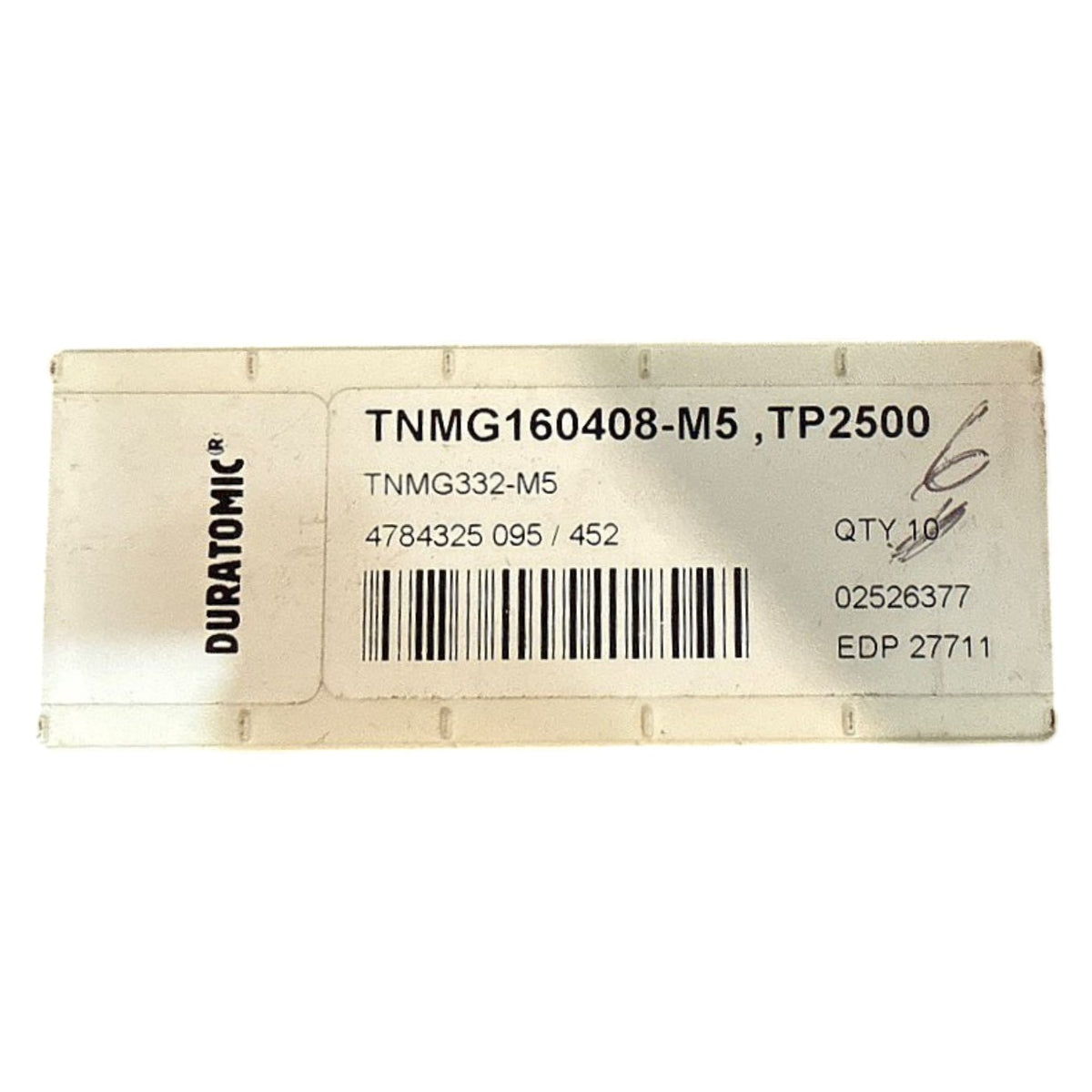

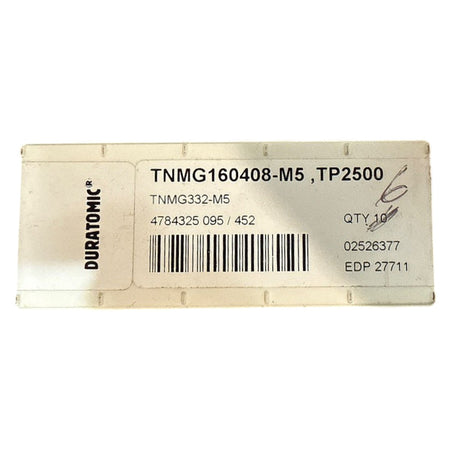

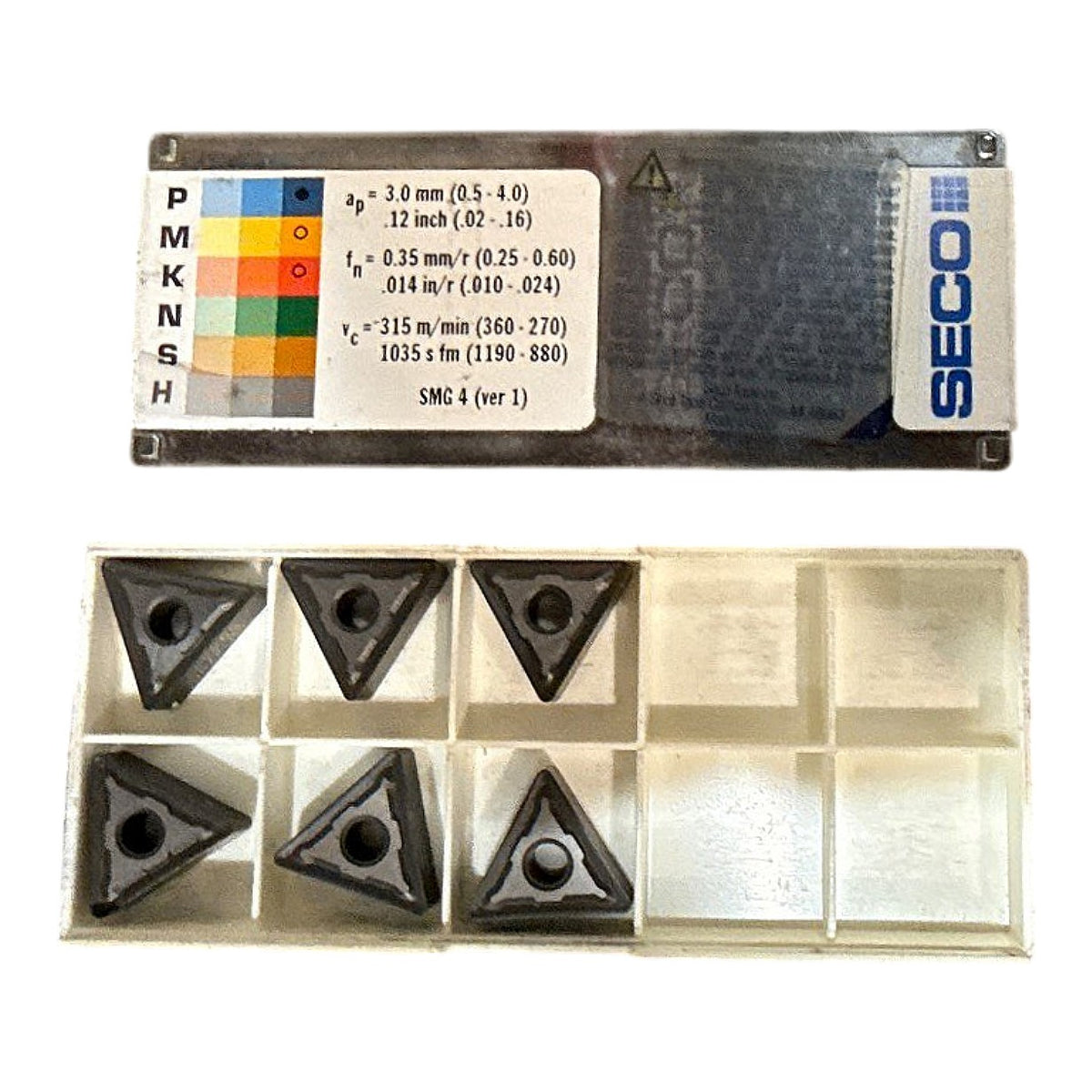

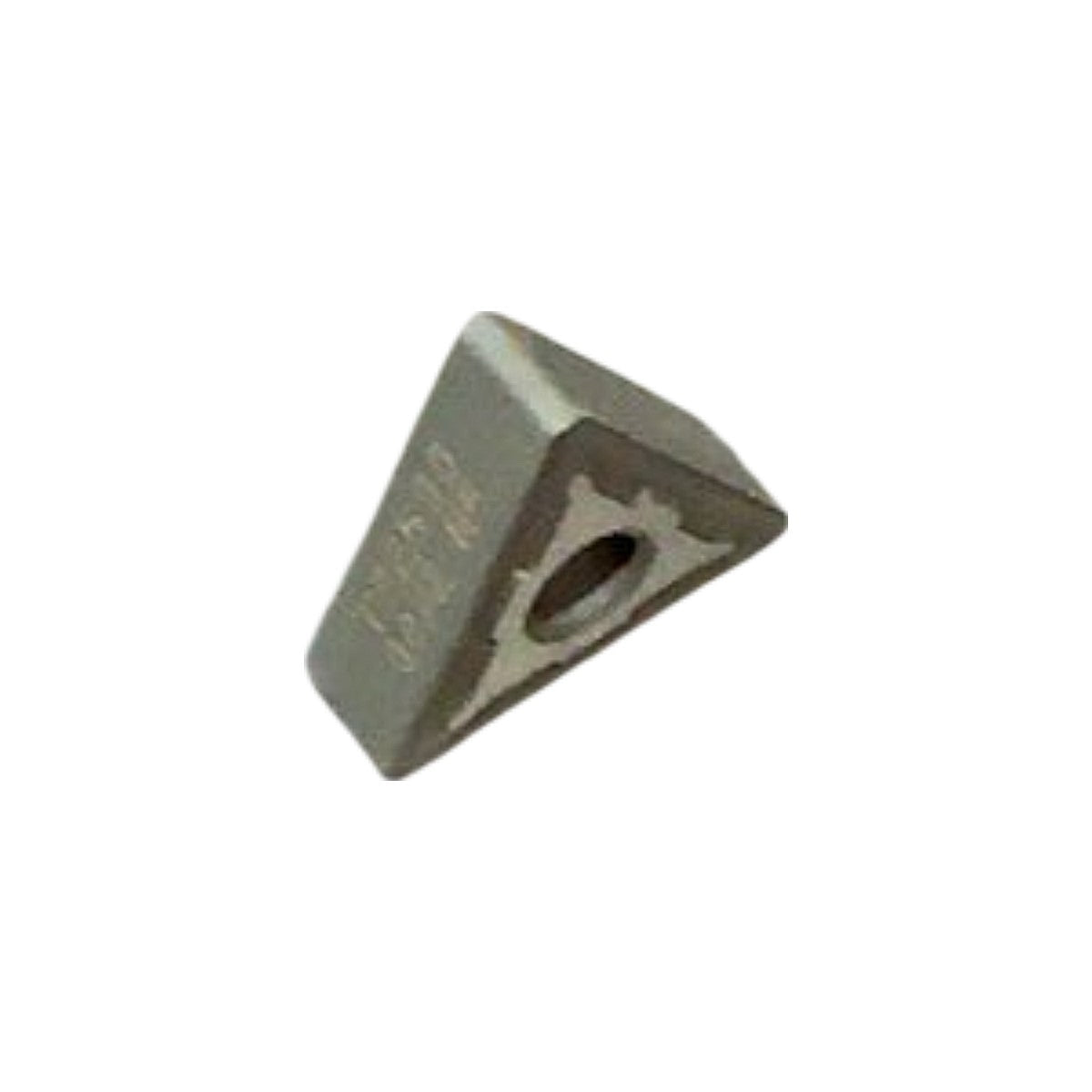

This Seco TNMG160408-M5 (ANSI TNMG332-M5, EDP 27711) is a negative-rake triangular carbide turning insert in grade TP2500 with Seco's Duratomic coating. The ISO code decodes to a 60° triangle (T) with 0° clearance (N), M tolerance, a cylindrical center hole with chipbreaker (G), a 16.5 mm cutting edge length, 4.76 mm thickness and a 0.8 mm nose radius. The M5 chipbreaker is intended for medium turning; the box label lists primary application in ISO P steel, secondary in ISO M and K, with a recommended depth of cut of 3.0 mm (0.5-4.0 mm), a feed of 0.35 mm/rev (0.25-0.60) and a cutting speed of 315 m/min (360-270). The insert has 6 usable cutting edges per insert on its two sides and fits holders for TNMG-style negative-rake triangular inserts. This lot is new and includes 6 inserts in the original Seco Duratomic box, which is labeled for 10 but hand-marked 6.
Product Specifications
| Brand | Seco |
| MPN | TNMG160408-M5 |
| Grade | TP2500 |
| EDP Number | 27711 |
| ANSI Designation | TNMG332-M5 |
| Coating | Duratomic |
| Material | Carbide |
| Insert Shape | Triangle (T) |
| Clearance Angle | 0° (N) |
| Tolerance Class | M |
| Insert Type | G - Cylindrical Hole w/ Chipbreaker |
| Cutting Edge Length | 16 mm |
| Thickness | 4.76 mm (3/16 in) |
| Nose Radius | 0.8 mm (1/32 in) |
| Inscribed Circle | 3/8 in (9.525 mm) |
| Chipbreaker | M5 |
| Operation | Turning |
| Workpiece Material | ISO P (primary), ISO M, ISO K |
| Cutting Speed (vc) | 315 m/min (1035 sfm), range 360-270 m/min |
| Feed (fn) | 0.35 mm/rev (0.014 in/rev), range 0.25-0.60 mm |
| Depth of Cut (ap) | 3.0 mm (0.12 in), range 0.5-4.0 mm |
| Cutting Edges | 6 |
| Quantity | 6 |
