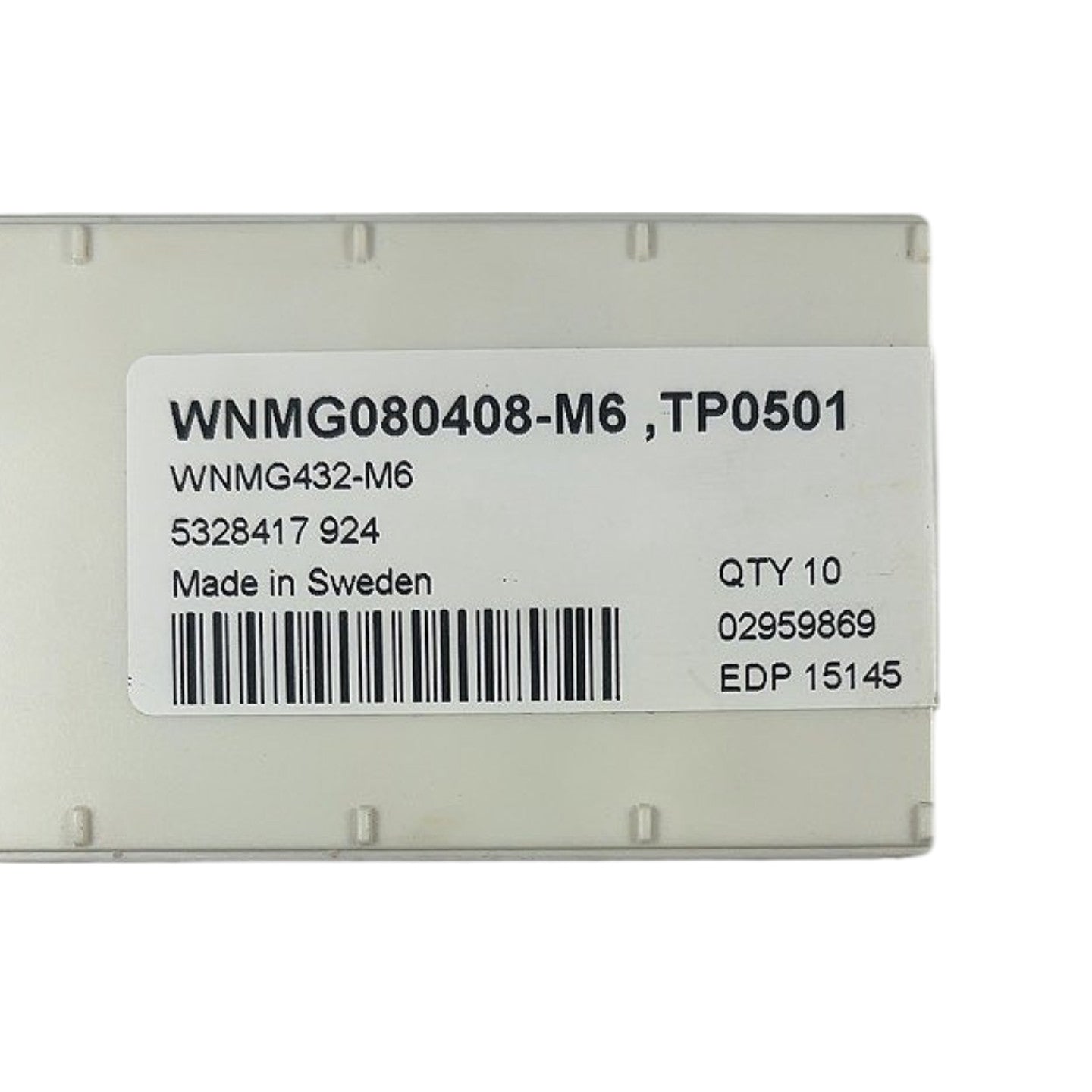

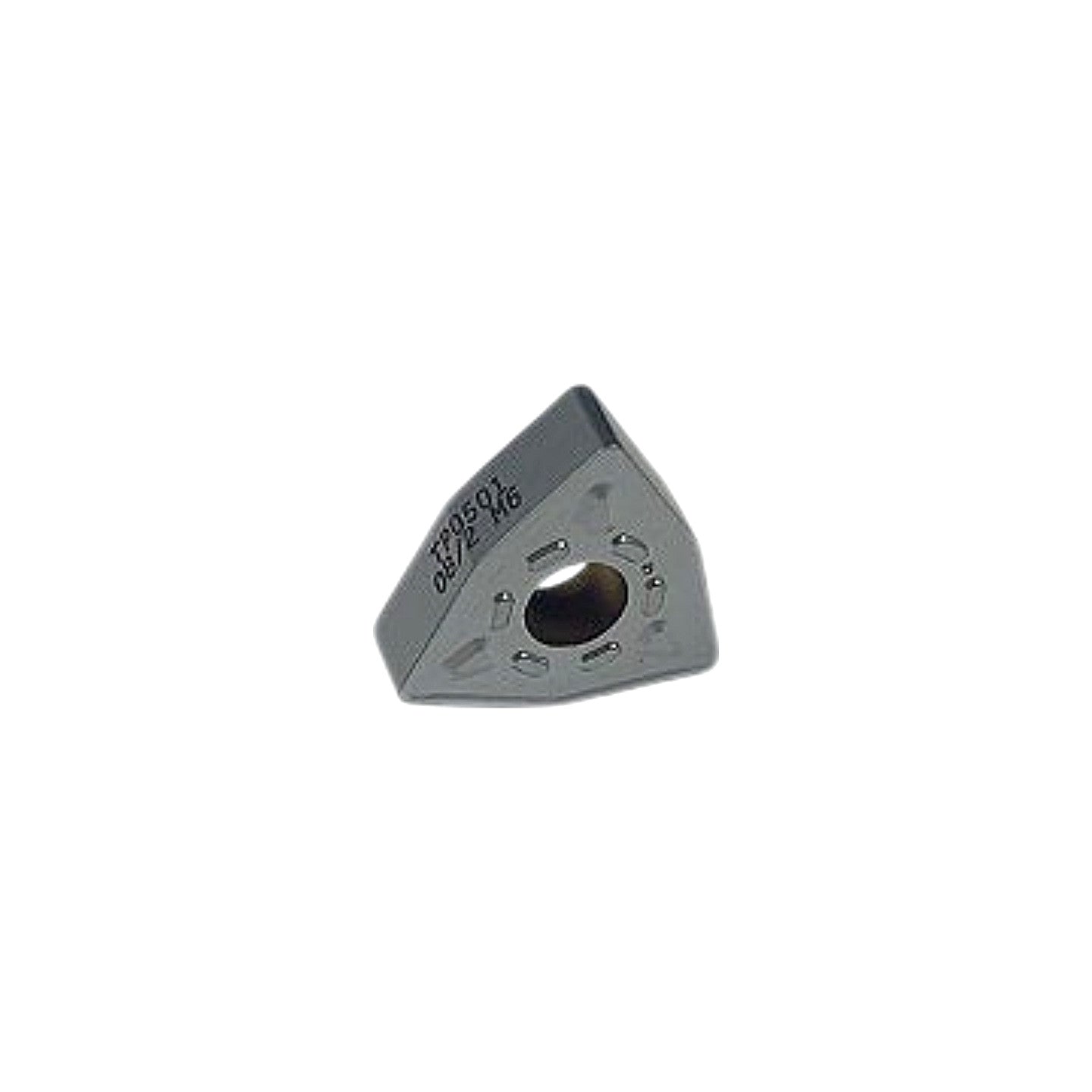

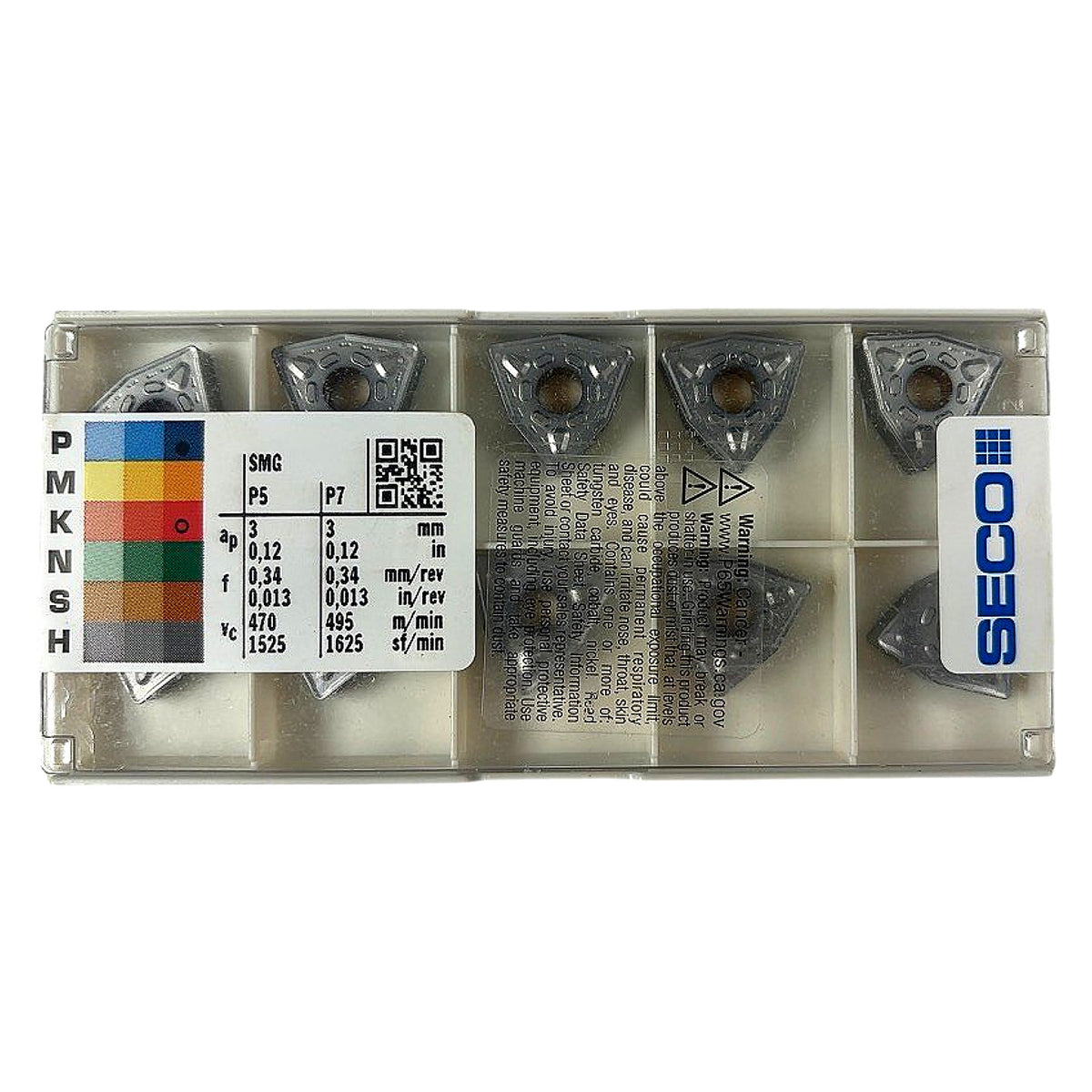

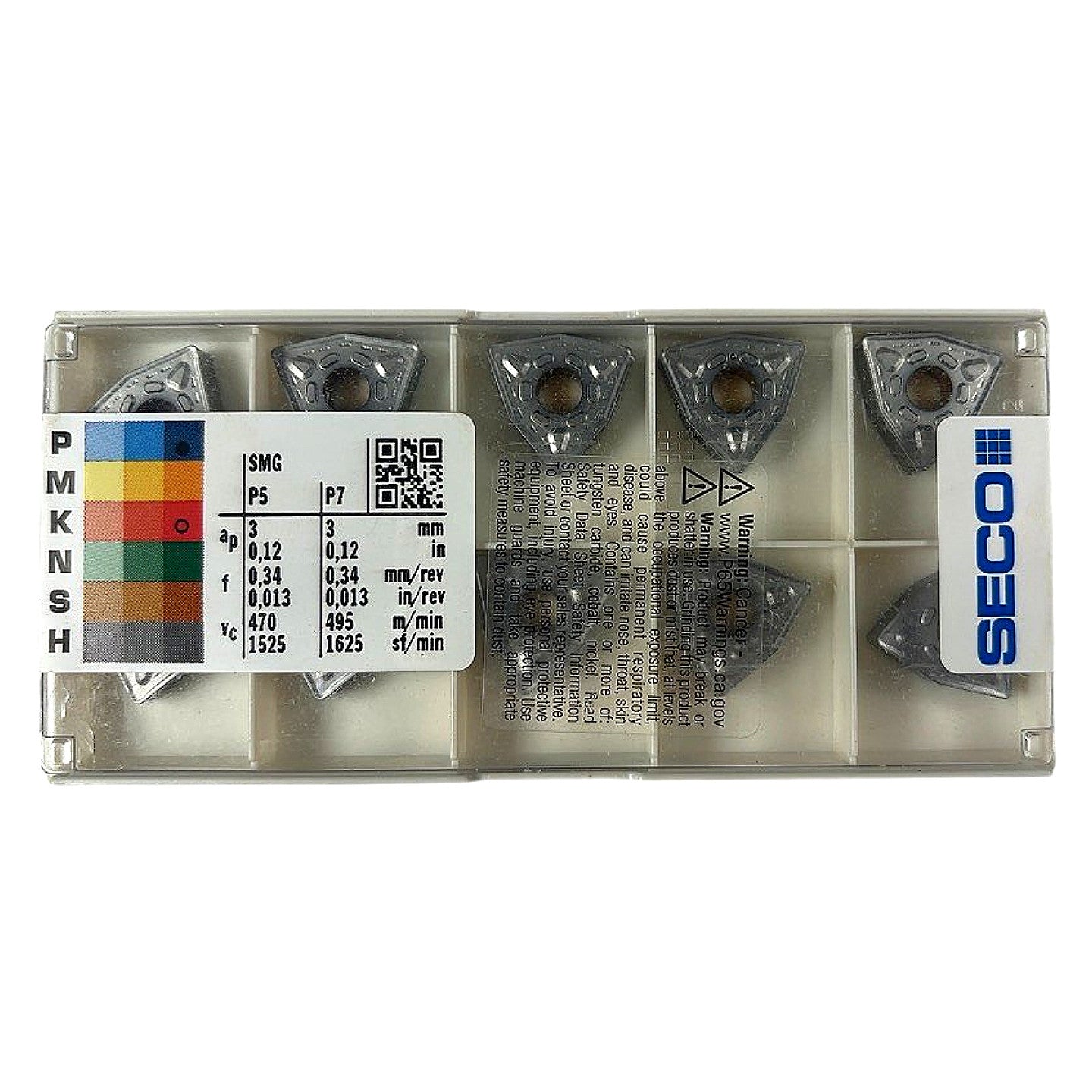

The Seco WNMG080408-M6 TP0501 is a new, factory-sealed 80° trigon (W-shape) negative-rake carbide turning insert in grade TP0501, a CVD-coated (TiCN/Al2O3) cermet-based grade engineered for finishing to medium turning of steel (ISO P5–P7). Decoding the ISO designation: W = 80° trigon shape, N = 0° clearance (negative), M = ±0.08 mm / ±0.05 mm tolerance class, G = with hole + chip-breaker groove; 08 = 8 mm inscribed circle, 04 = 4.76 mm thickness, 08 = 0.8 mm nose radius; M6 = Seco's medium-duty M6 chipbreaker geometry optimized for steel finishing and light interrupted cuts. Grade TP0501 is a CVD-coated carbide grade targeting ISO P materials (carbon and alloy steels), with recommended cutting speeds of 470–495 m/min, feed rate 0.34 mm/rev, and depth of cut up to 3 mm as shown on the package label. This insert is compatible with MWLNR/L, DWLNR/L, and similar W-style negative toolholders requiring WNMG 432 inserts, and is made in Sweden. Quantity is 10 inserts per pack, EDP 15145.
Product Specifications
| Brand | Seco |
| ISO Designation (Metric) | WNMG080408-M6 |
| ISO Designation (Inch) | WNMG432-M6 |
| Grade | TP0501 |
| Insert Shape | W — 80° Trigon |
| Clearance Angle | N — 0° (Negative Rake) |
| Tolerance Class | M (±0.08 mm IC, ±0.05 mm thickness) |
| Chipbreaker / Type | G — with hole & chipbreaker; M6 geometry |
| Inscribed Circle (IC) | 8 mm (0.3125 in) |
| Thickness | 4.76 mm (0.1875 in) |
| Nose Radius | 0.8 mm (1/32 in) |
| Coating | CVD (TiCN/Al2O3) |
| ISO Material Application | P (Steel) — P5, P7 |
| Max Depth of Cut (ap) | 3 mm (0.12 in) |
| Feed Rate (f) | 0.34 mm/rev (0.013 in/rev) |
| Cutting Speed (vc) P5 | 470 m/min (1525 sf/min) |
| Cutting Speed (vc) P7 | 495 m/min (1625 sf/min) |
| Country of Origin | Sweden |
| Quantity per Pack | 10 |
| EDP Number | 15145 |
| Condition | New |
