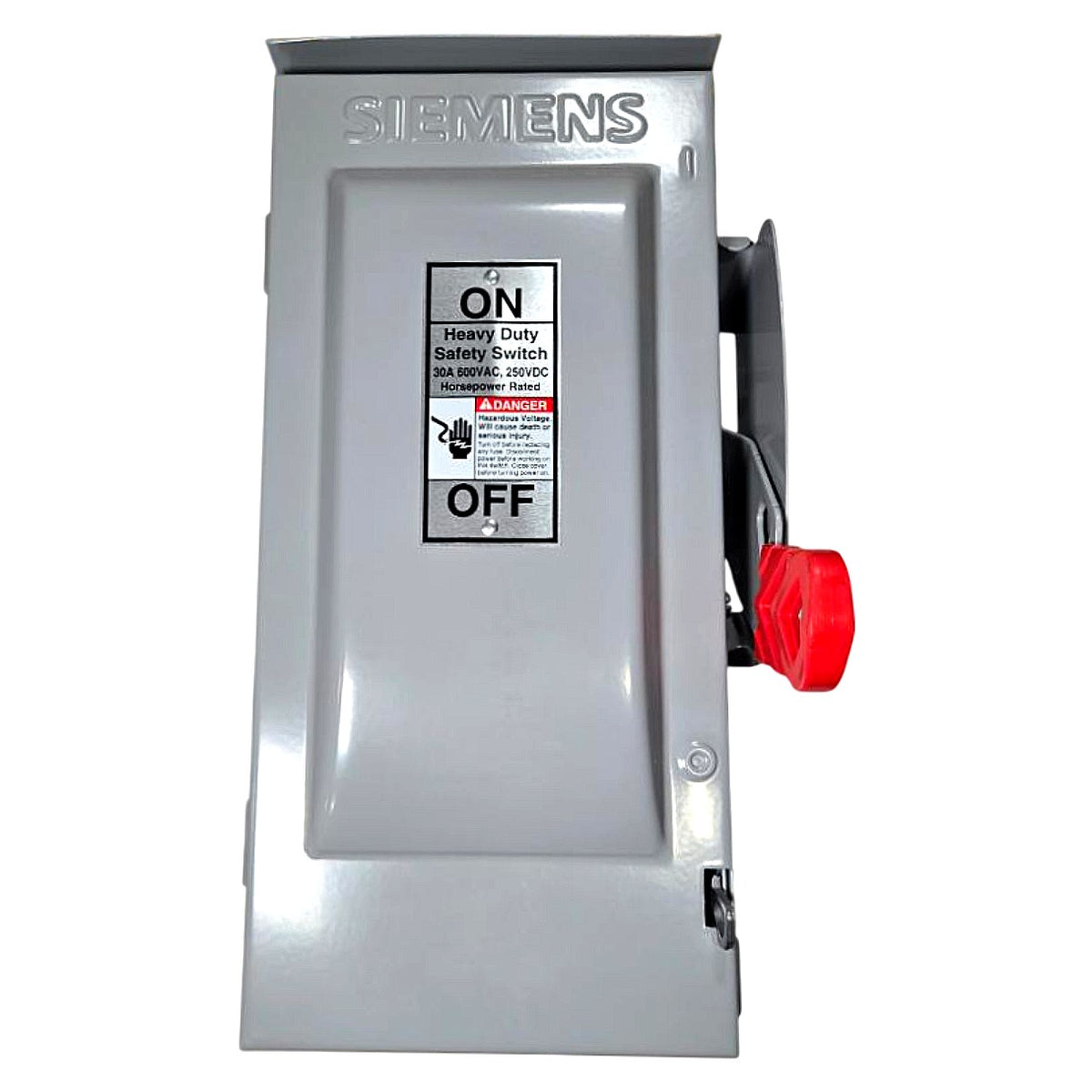

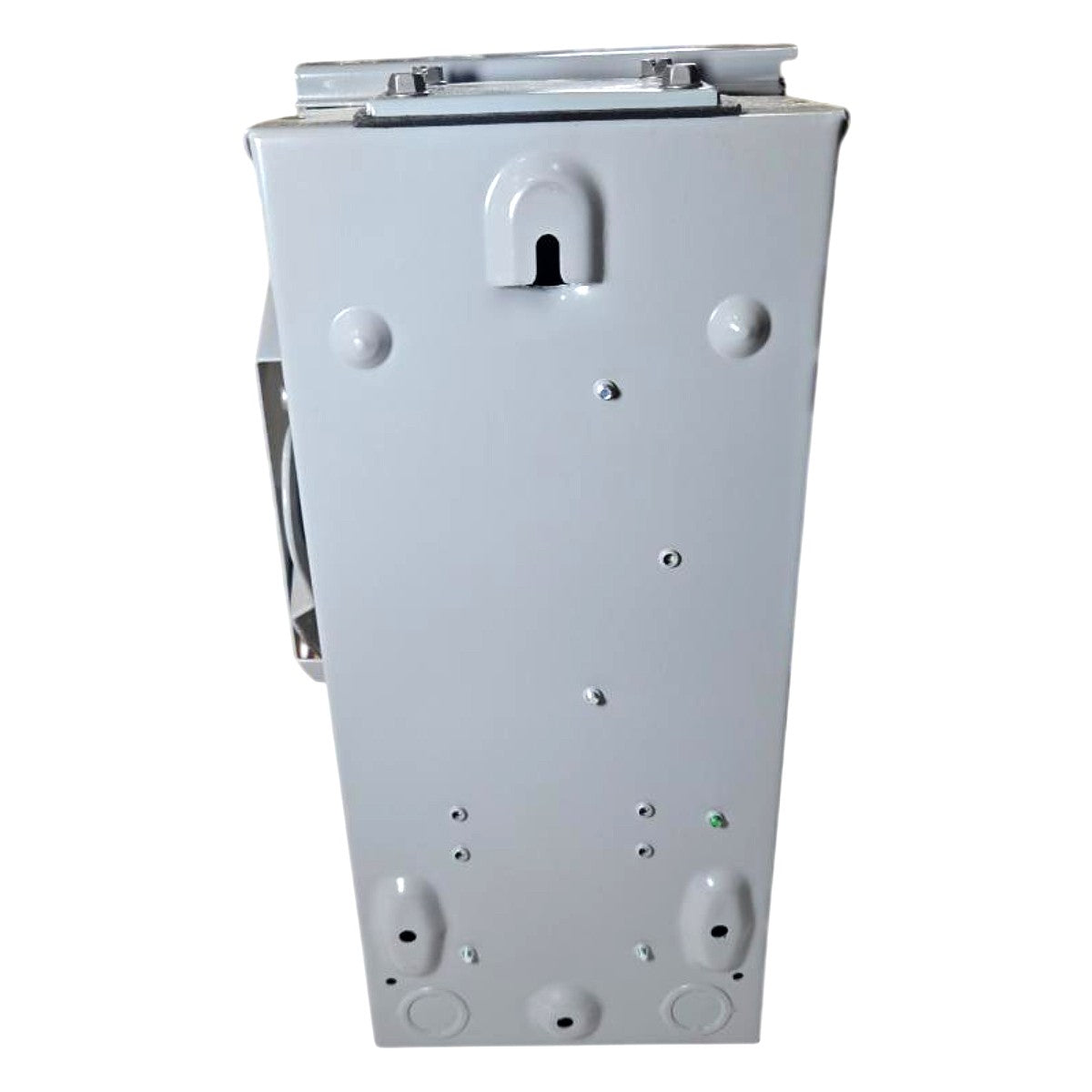

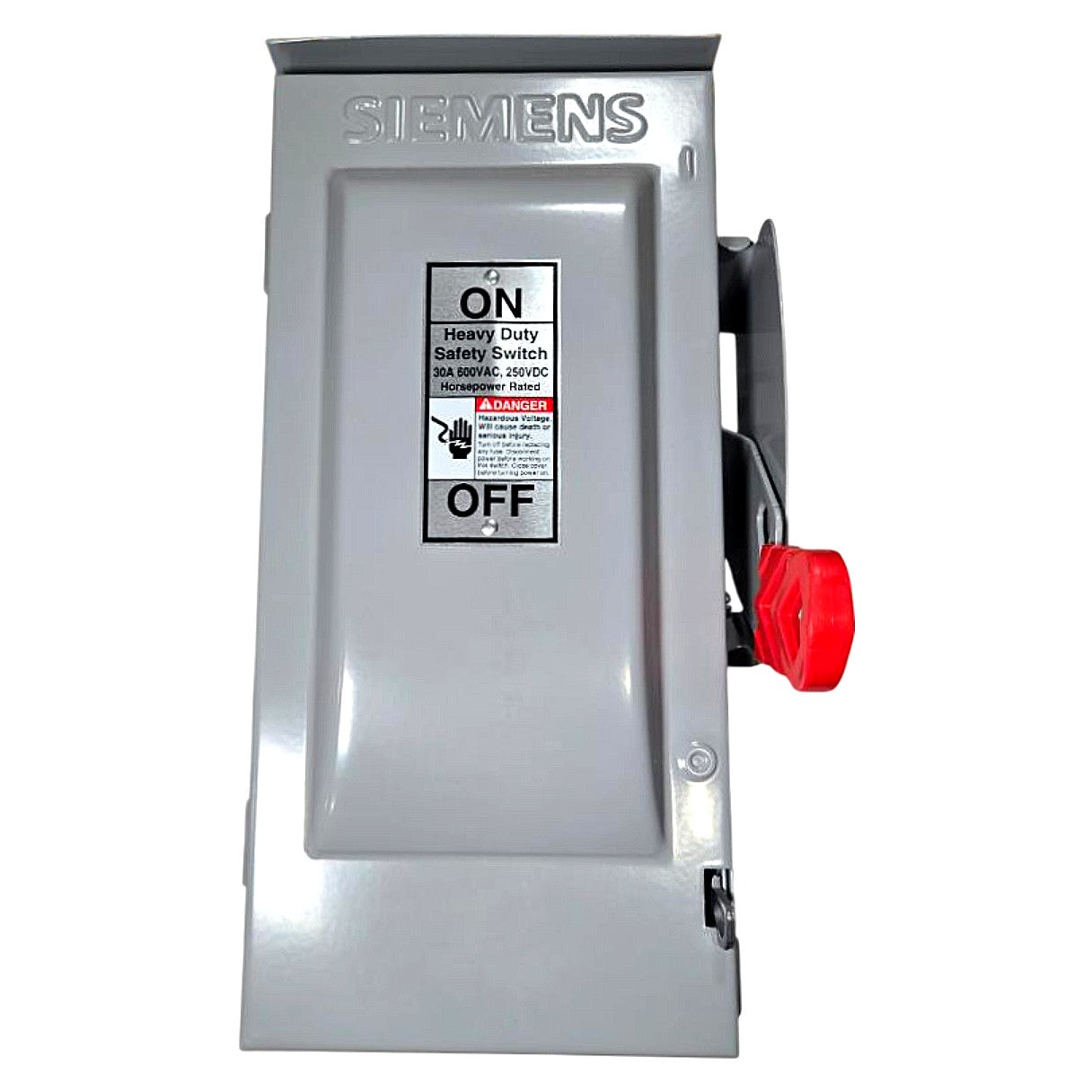

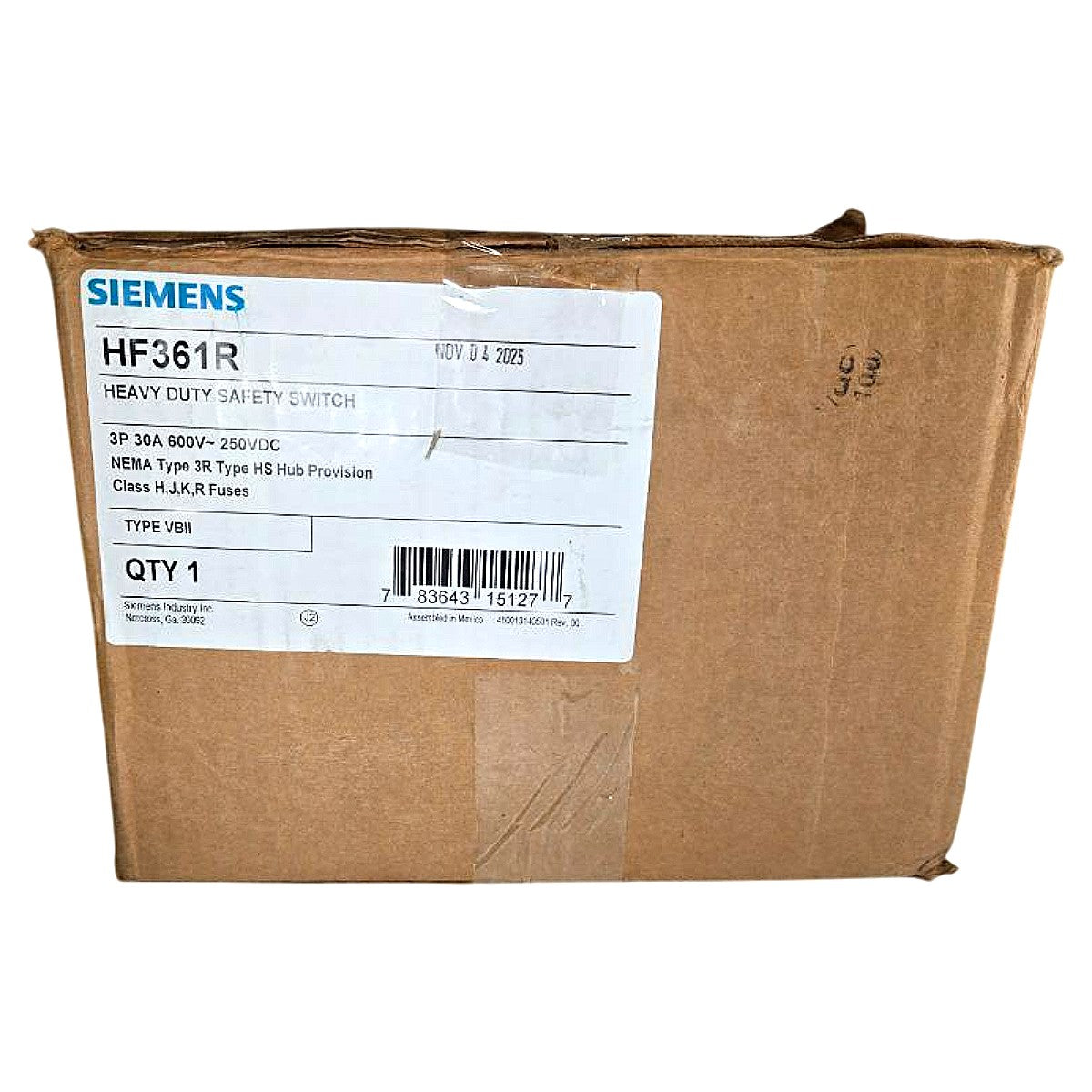

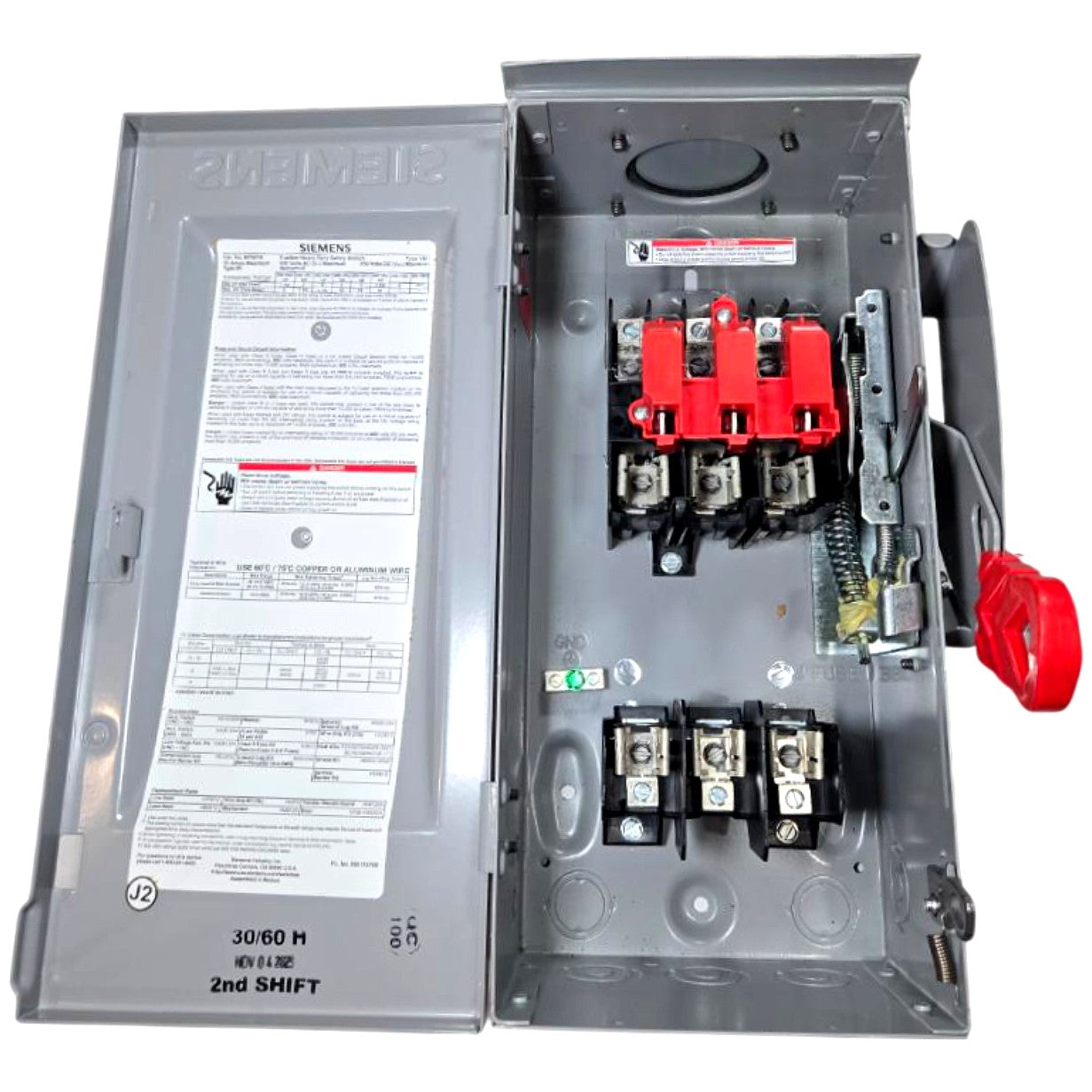

The Siemens HF361R is a new, fusible heavy-duty safety switch rated 30A, 600VAC / 250VDC, 3-pole, in a NEMA Type 3R rainproof steel enclosure — confirmed directly from the box label and front nameplate. Decoded from the MPN: "HF" = Heavy-duty Fusible, "3" = 3-pole, "6" = 600V class, "1" = 30A frame, "R" = NEMA 3R outdoor/rainproof enclosure; the switch accepts Class H, J, K, and R fuses as stated on the box label, and features a Type HS hub provision for conduit entry. The unit is horsepower-rated for motor disconnect applications, accepts 60°C/75°C copper or aluminum conductors per the interior label, and is UL Listed; the lockable red handle provides door-defeat interlock capability, and multiple KO provisions on all sides accommodate flexible conduit routing for industrial, commercial, and outdoor service-entrance applications.
Product Specifications
| MPN | HF361R |
| Brand | Siemens |
| Switch Type | Fusible Heavy Duty Safety Switch |
| Amperage Rating | 30A |
| AC Voltage Rating | 600VAC |
| DC Voltage Rating | 250VDC |
| Number of Poles | 3 |
| NEMA Enclosure Type | 3R (Rainproof, Outdoor) |
| Fuse Class Accepted | Class H, J, K, R |
| Conduit Hub Type | Type HS Hub Provision |
| Switch Series | Type VBII |
| Enclosure Material | Steel, gray paint finish |
| Wire Rating | 60°C/75°C copper or aluminum |
| HP Rated | Yes |
| Listing | UL Listed |
| Country of Assembly | Mexico |
| Condition | New |
