Siemens HNF363PV 100A 600VDC Non-Fusible PV Safety Switch
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

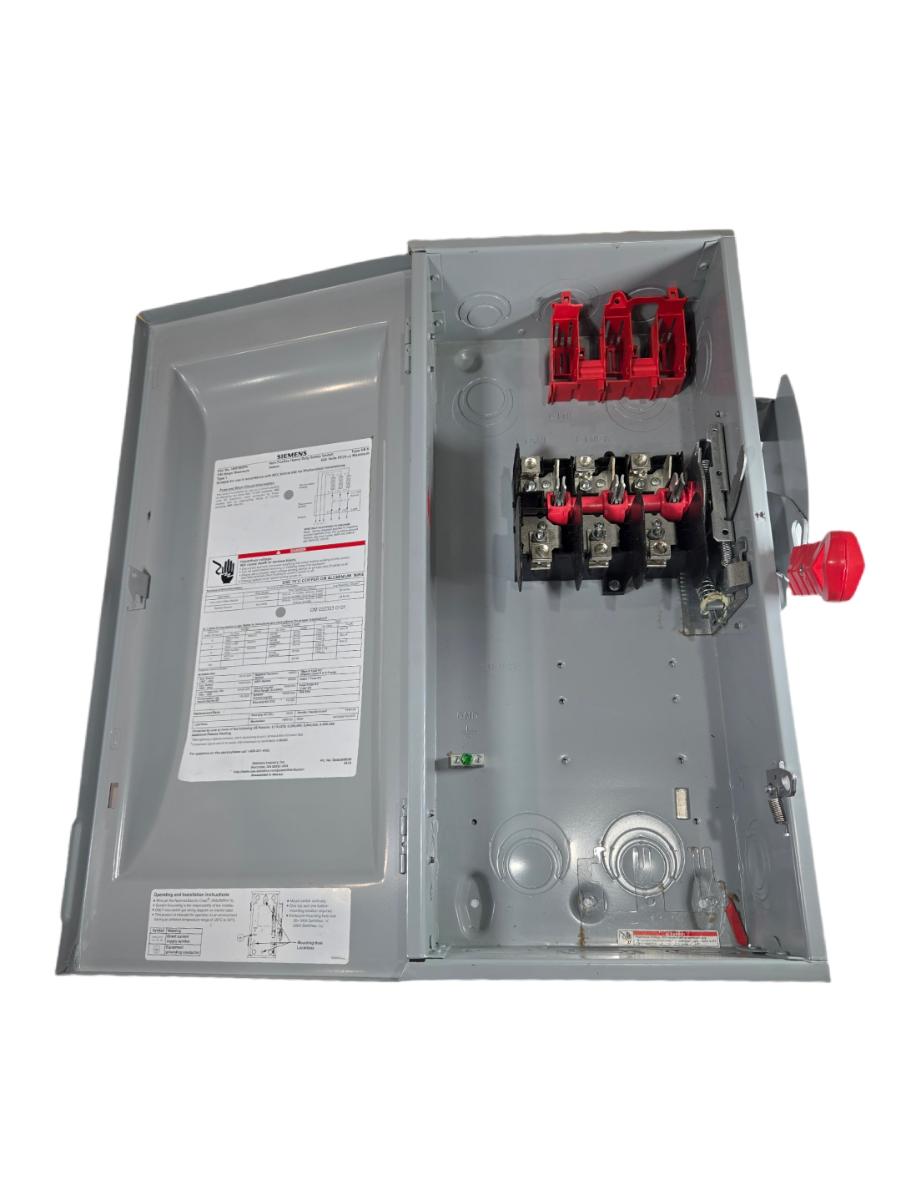

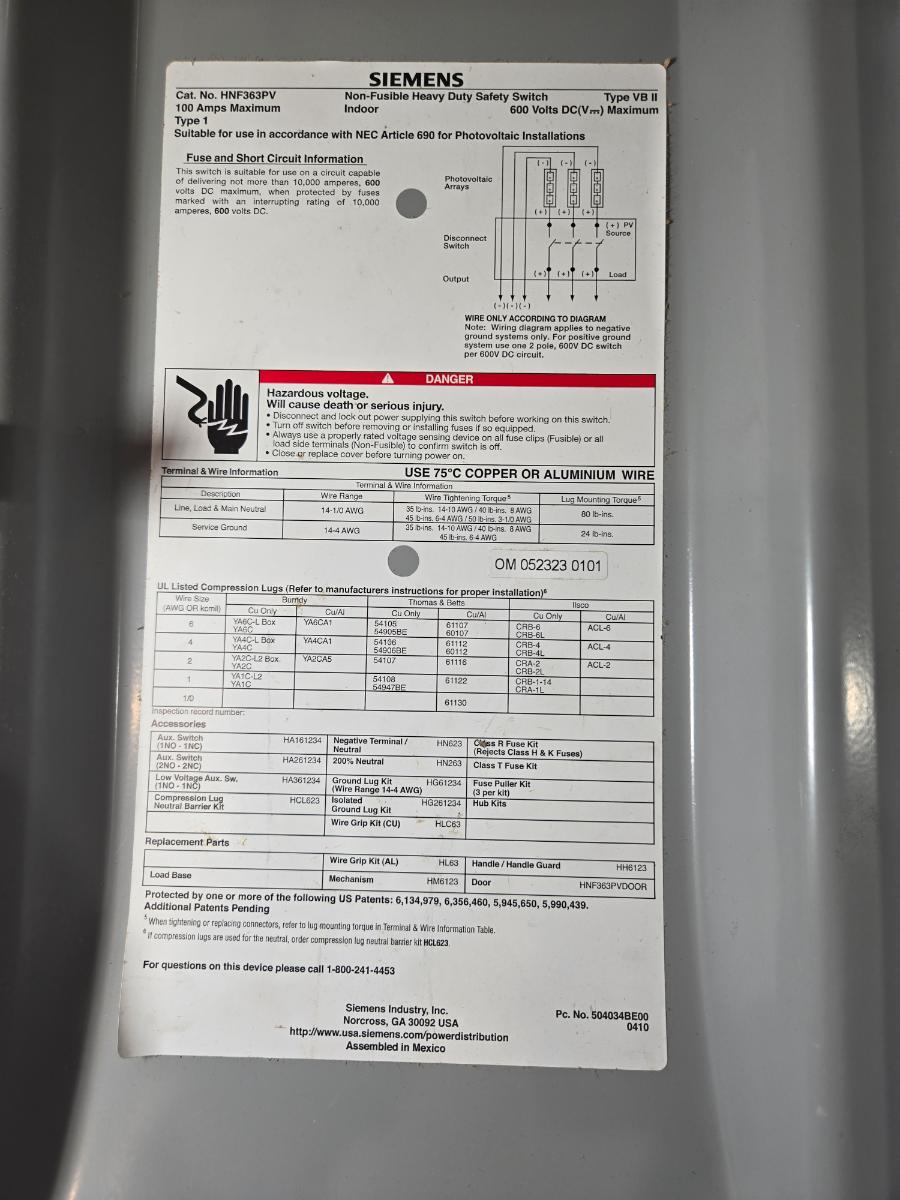

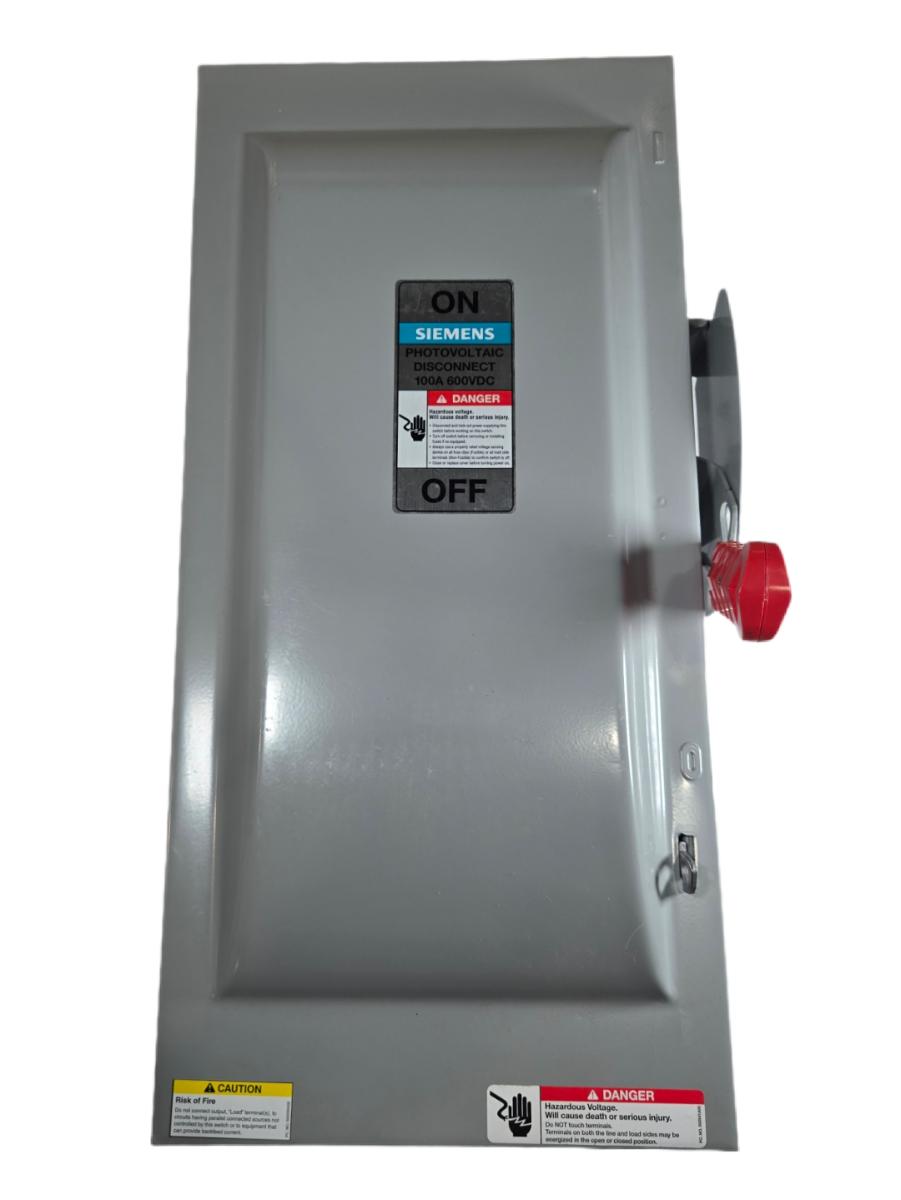

The Siemens HNF363PV is a new, non-fusible heavy duty safety switch specifically engineered for photovoltaic (solar) disconnect applications per NEC Article 690, rated 100 amperes maximum and 600 volts DC (Vrrm) maximum, Type VB II, Type 1 enclosure for indoor use. The switch is a 3-pole configuration housed in a NEMA Type 1 steel enclosure with a gray powder-coat finish, featuring a red lockable handle that accepts padlocks for LOCKOUT/TAGOUT (LOTO) compliance. Terminal and wire information confirms acceptance of 14–1/0 AWG copper or aluminum conductors (75°C rated) on line, load, and main neutral lugs, with lug mounting torque of 80 lb-in and wire tightening torque ranging from 35 lb-in (14–10 AWG) to 50 lb-in (3–1/0 AWG). The internal mechanism uses a 3-pole switching assembly with red fuse clip holders present for visual identification; because it is non-fusible, no fuses are installed or required. Compatible accessories include auxiliary switches (HA161234, HA261234), negative terminal/neutral kit (HN623), compression lug neutral barrier kit (HCL623), and replacement door HNF363PVDOOR, all confirmed from the interior nameplate label.
Product Specifications
| Manufacturer Part Number | HNF363PV |
| Brand | Siemens |
| Switch Type | Non-Fusible Heavy Duty Safety Switch |
| Application | Photovoltaic (Solar) Disconnect, NEC Article 690 |
| Current Rating | 100 A maximum |
| Voltage Rating (DC) | 600 V DC (Vrrm) maximum |
| Number of Poles | 3 |
| Fusing | Non-Fusible |
| Switch Series Type | Type VB II |
| Enclosure Type | NEMA Type 1 (Indoor) |
| Enclosure Material | Steel, gray finish |
| Wire Range (Line, Load & Main Neutral) | 14–1/0 AWG |
| Wire Range (Service Ground) | 14–4 AWG |
| Conductor Material | Copper or Aluminum, 75°C rated |
| Wire Tightening Torque (14–10 AWG) | 35 lb-in |
| Wire Tightening Torque (8 AWG) | 40 lb-in |
| Wire Tightening Torque (6–4 AWG) | 45 lb-in |
| Wire Tightening Torque (3–1/0 AWG) | 50 lb-in |
| Lug Mounting Torque (Line/Load/Neutral) | 80 lb-in |
| Wire Tightening Torque (Service Ground, 14–10 AWG) | 35 lb-in |
| Wire Tightening Torque (Service Ground, 8 AWG) | 40 lb-in |
| Wire Tightening Torque (Service Ground, 6–4 AWG) | 45 lb-in |
| Lug Mounting Torque (Service Ground) | 24 lb-in |
| Short Circuit Current Rating (with 600V DC fuses) | 10,000 A at 600 V DC |

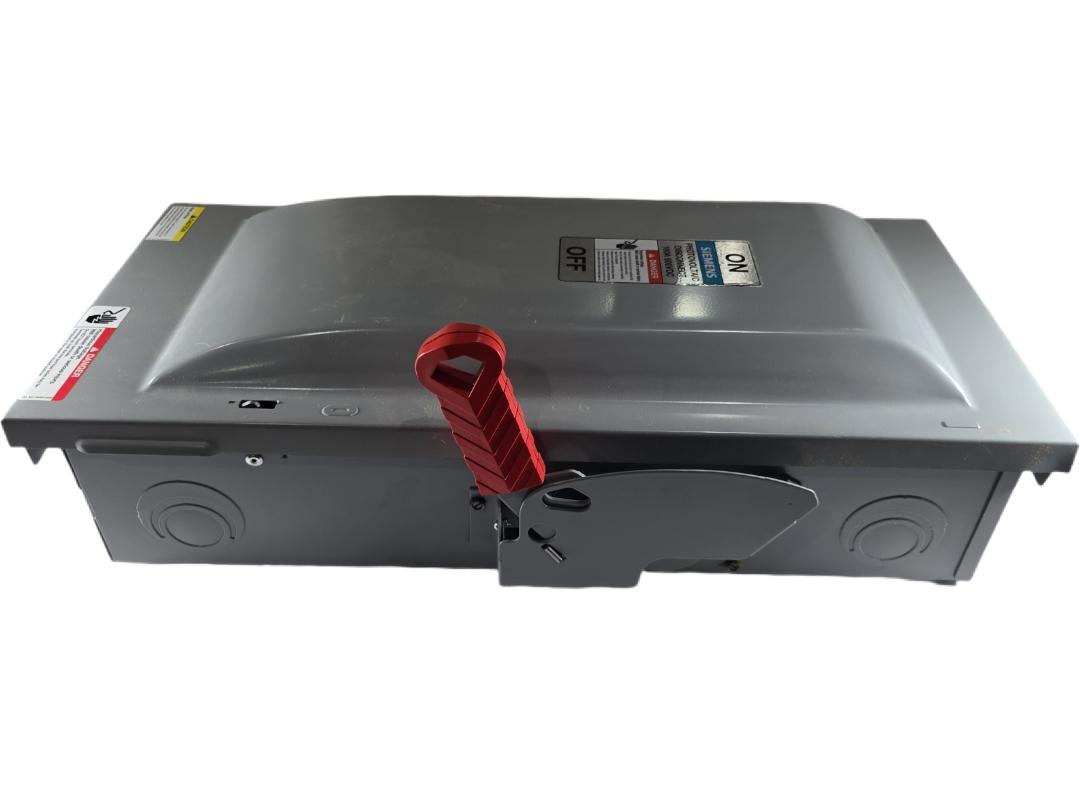

| Handle | Red, lockable (LOTO capable) |
| UL Listing | UL Listed |
| Country of Assembly | Mexico |
| Replacement Door | HNF363PVDOOR |
| Replacement Mechanism | HM6123 |
| Replacement Handle/Handle Guard | HH6123 |
| Manufacturer PC Number | 504034BE00 |
| Condition | New |
