SKILSAW SPT70V-11 16-5/16 in 15A Magnesium Worm Drive Circular Saw
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

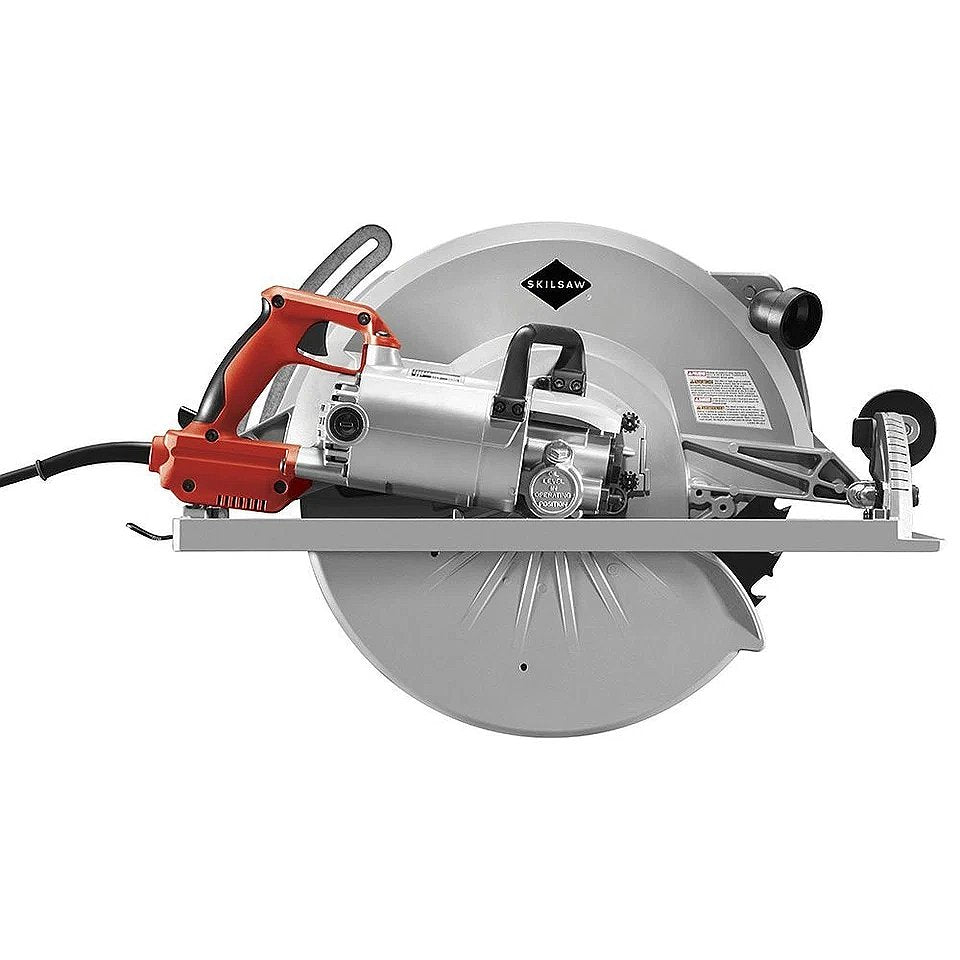

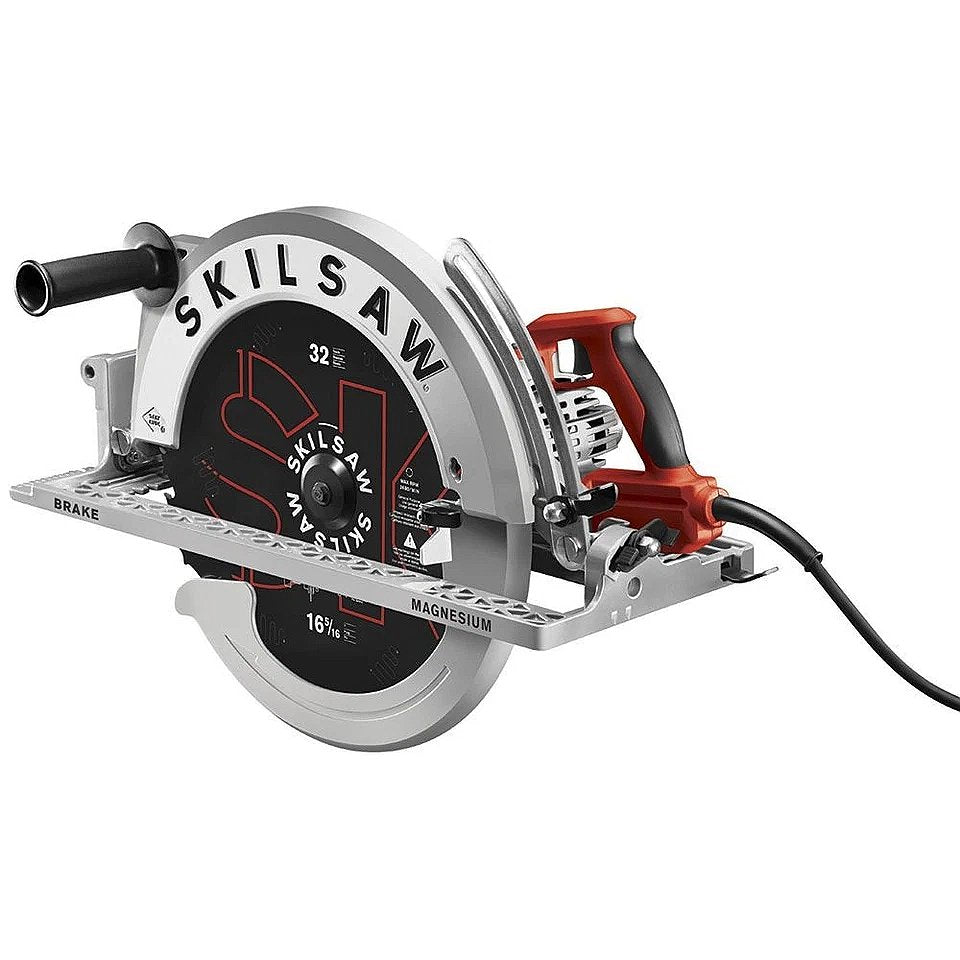

The SKILSAW SPT70V-11 is a new 16-5/16 in. (414 mm) Super Sawsquatch™ magnesium worm drive circular saw designed for cutting wood, delivering a maximum depth of cut of 6-1/4 in. (158 mm) at 90° and 4-7/16 in. at 45°. The worm drive gearbox orients the motor parallel to the blade, producing higher torque output compared to sidewinder designs; the 15A motor spins the blade at 8,800 RPM no-load, and an electric blade brake stops the blade rapidly after trigger release. The die-cast magnesium base plate and guards reduce overall tool weight while maintaining rigidity, and a built-in oiler lubricates the worm gear set for extended service life. The saw accepts 1 in. round arbor blades and ships with a 32-tooth Diablo blade; bevel capacity ranges 0°–45° with positive stops, and dual front/rear auxiliary handles provide control for ripping and cross-cutting dimensional lumber, timbers, and engineered wood products.
Product Specifications
| Brand | SKILSAW |
| Model / MPN | SPT70V-11 |
| UPC | 039725075109 |
| Blade Diameter | 16-5/16 in (414 mm) |
| Arbor Size | 1 in Round |
| Motor Amperage | 15A |
| Voltage | 120V AC |
| No-Load Speed (RPM) | 8,800 RPM |
| Max Depth of Cut @ 90° | 6-1/4 in (158 mm) |
| Max Depth of Cut @ 45° | 4-7/16 in |
| Bevel Capacity | 0° to 45° |
| Drive Type | Worm Drive |
| Blade Side | Left |
| Base Plate Material | Magnesium |
| Blade Brake | Electric |
| Included Blade | 32T Diablo blade |
| Application | Wood cutting |
| Condition | New |
| Weight (Tool Only) | 37.2 lbs (16.9 kg) |
