Sky Hook B-570-250 Economy Mobile Cart Base Hoist Base

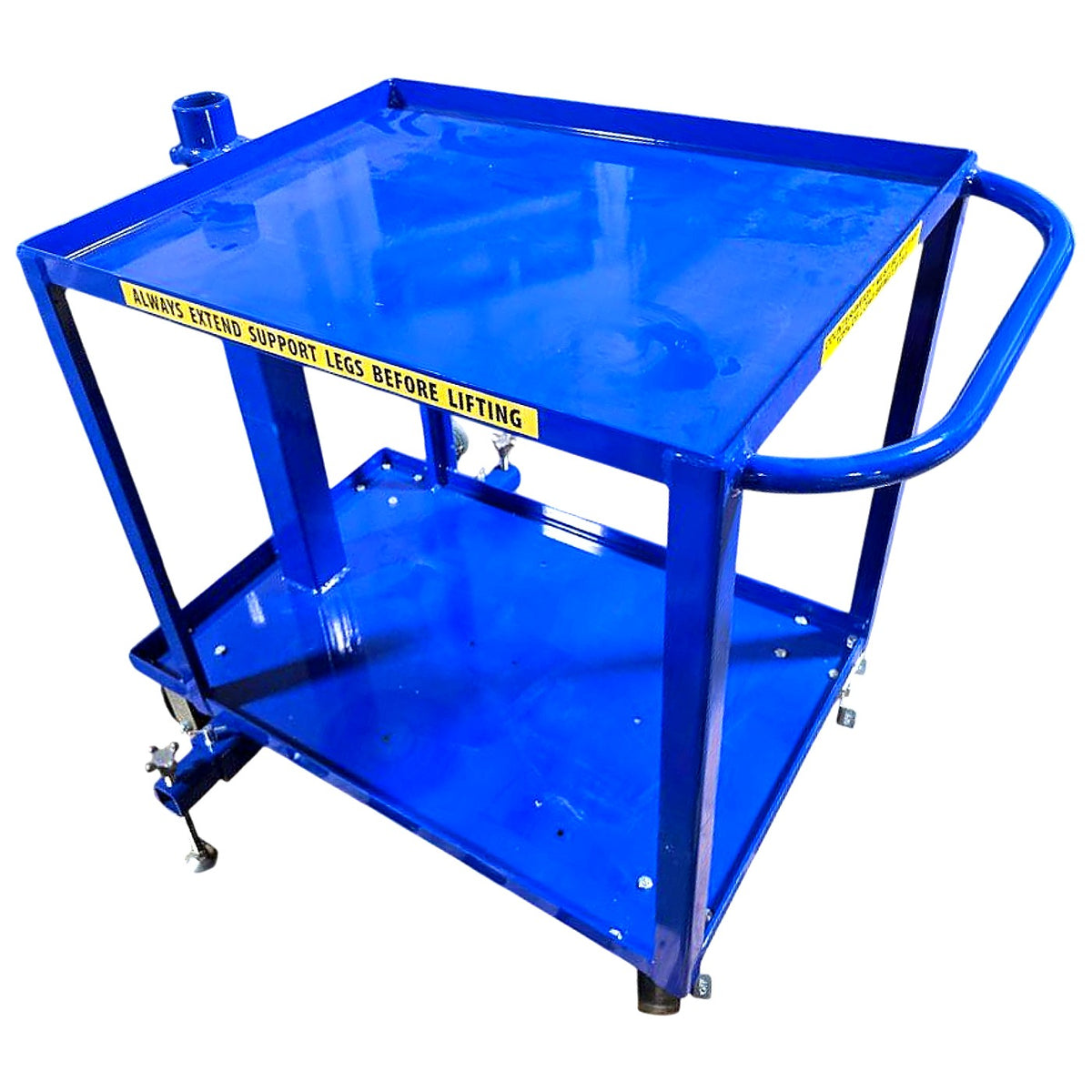

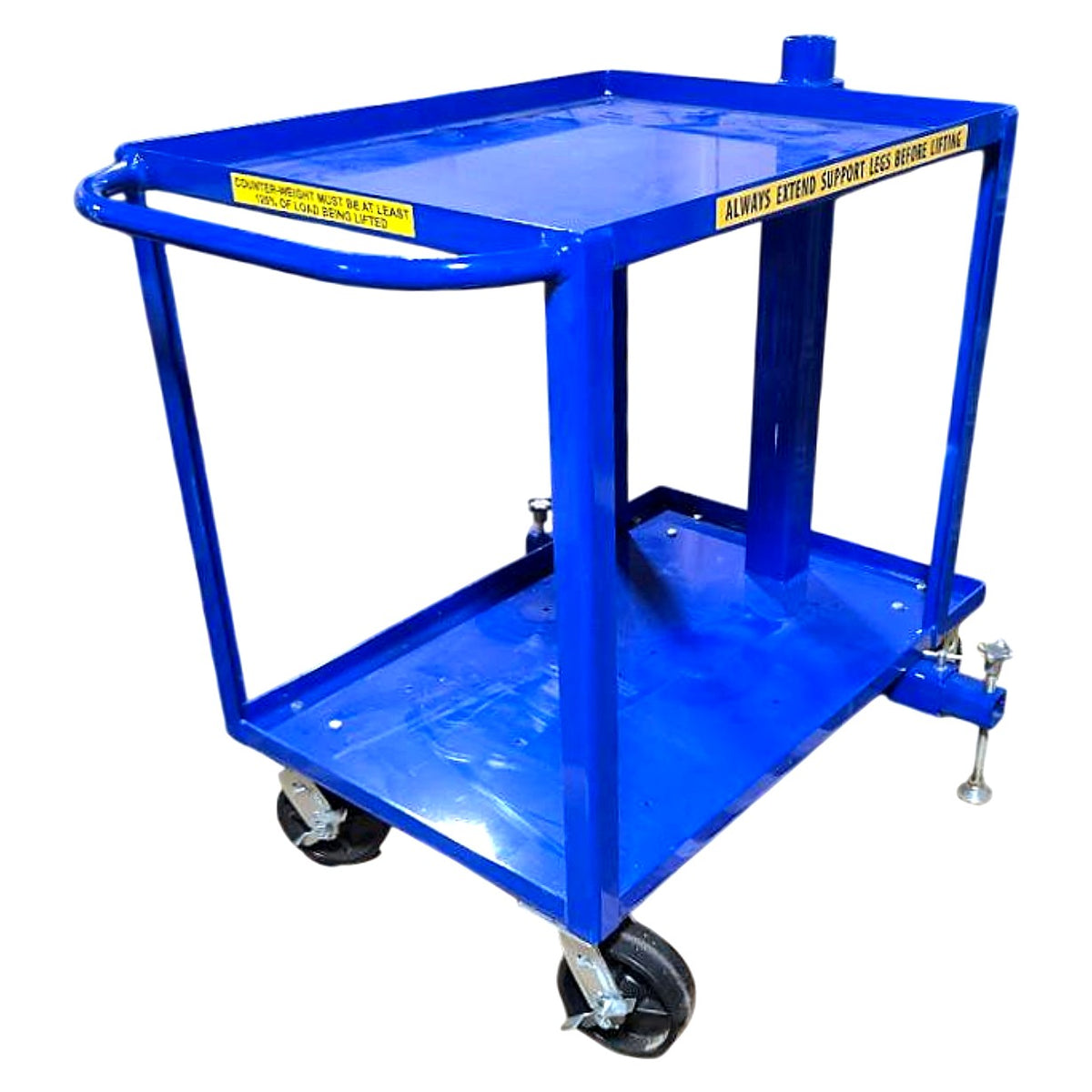

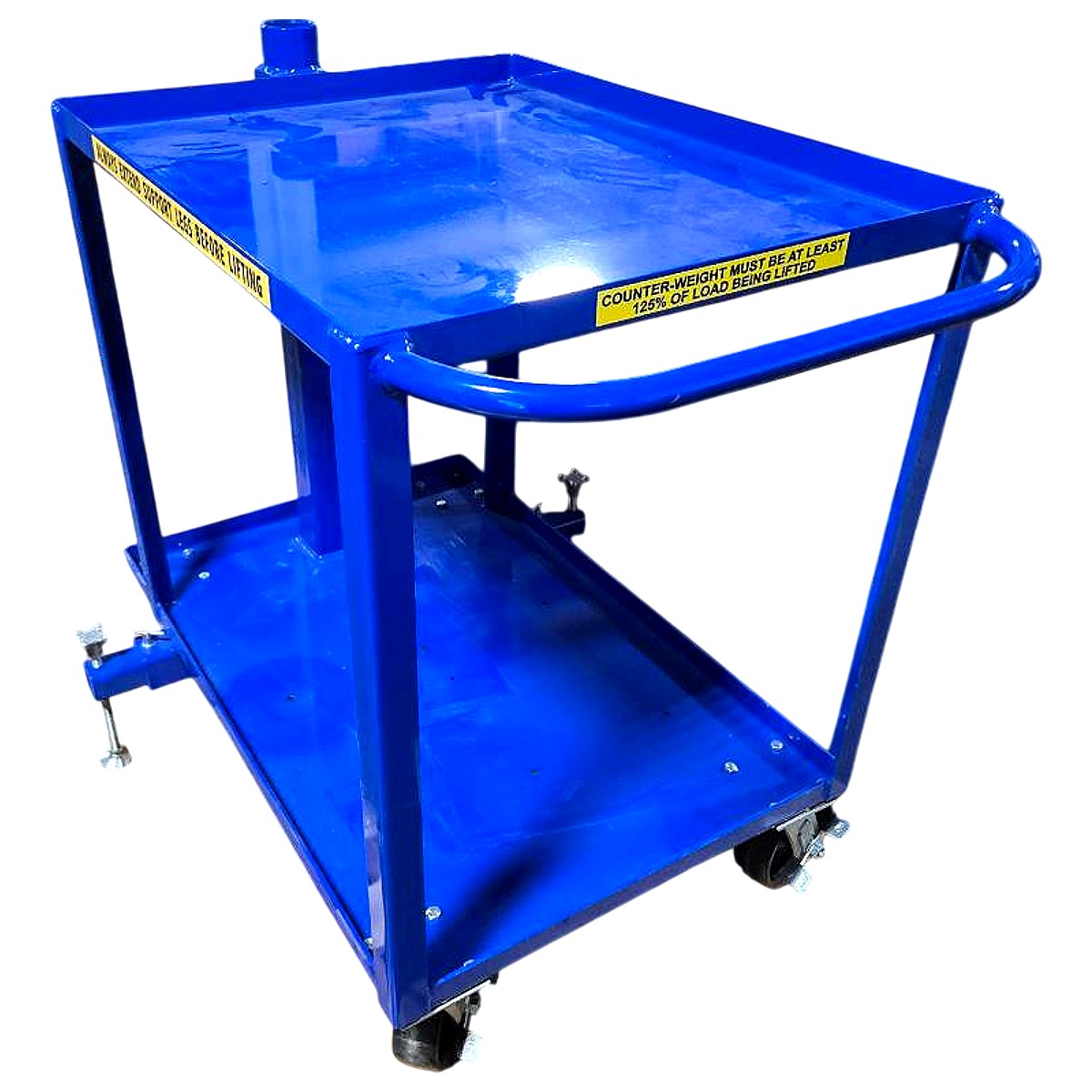

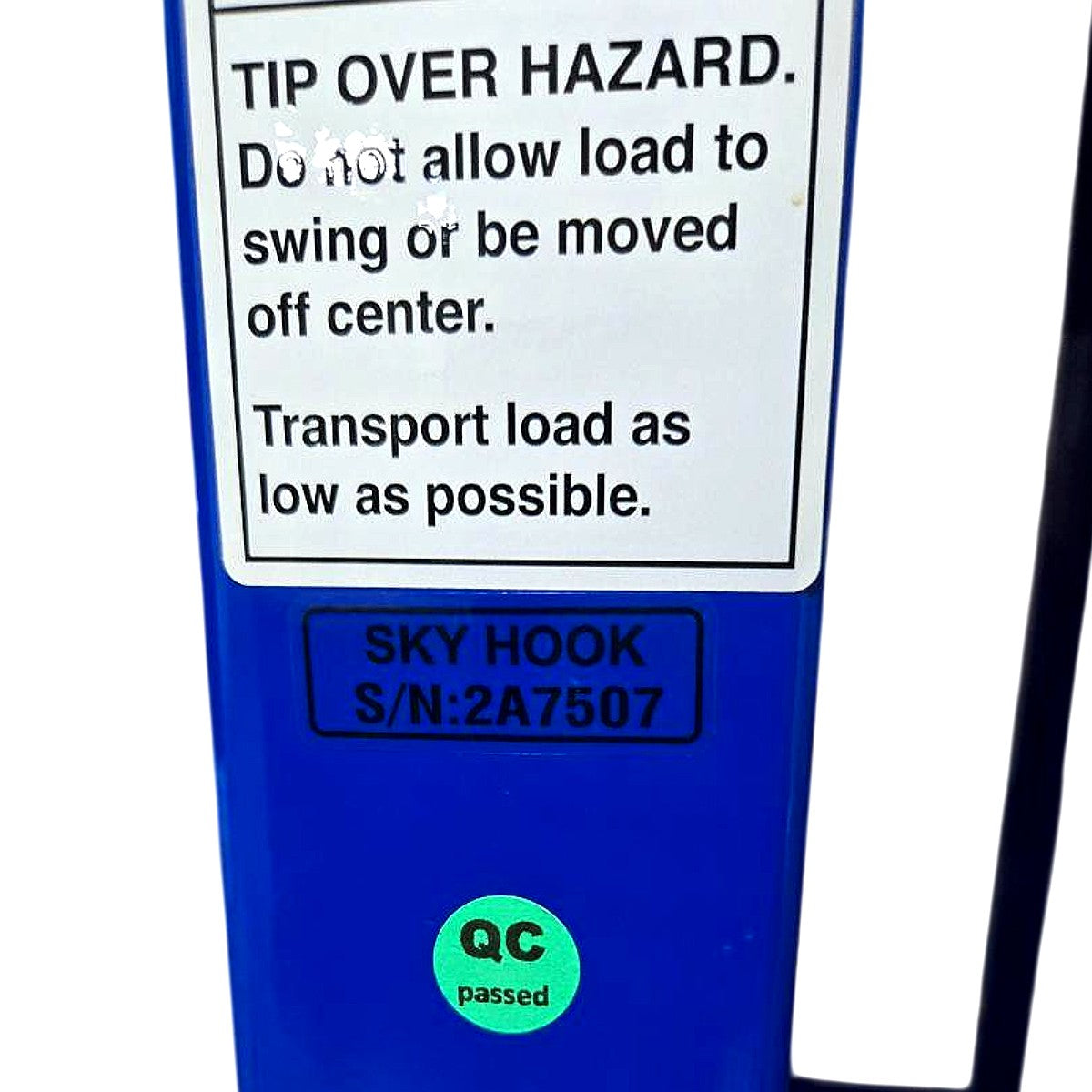

The Sky Hook B-570-250 is a new, heavy-duty steel mobile cart base designed to mate with Sky Hook's column-mount hoist systems, providing a portable, shop-floor lifting solution without the need for fixed overhead structure. The two-shelf welded steel frame is finished in blue powder coat and rides on four heavy-duty swivel casters with rubber treads; two adjustable outrigger stabilizer legs (visible in photos) must be extended before lifting operations per the safety label, which also requires counter-weight ballast of at least 125% of the load being lifted. The upright mast receiver tube (center-top) accepts the Sky Hook hoist column, converting the cart into a mobile jib-style lift cart capable of positioning loads precisely over machinery, fixtures, or workbenches. Safety labels on the unit warn against load swing or off-center loads and instruct that the load should be transported as low as possible to prevent tip-over; a QC-passed sticker and serial number 2A7507 are affixed to the column post. This base is compatible with Sky Hook Economy and Standard series hoists and is suited for engine shops, machine shops, assembly lines, and maintenance facilities requiring a non-permanent lifting solution.

Product Specifications
