Sloan EBV-500-A Single Flush 6VDC Side Mount Electronic Flush valve Operator

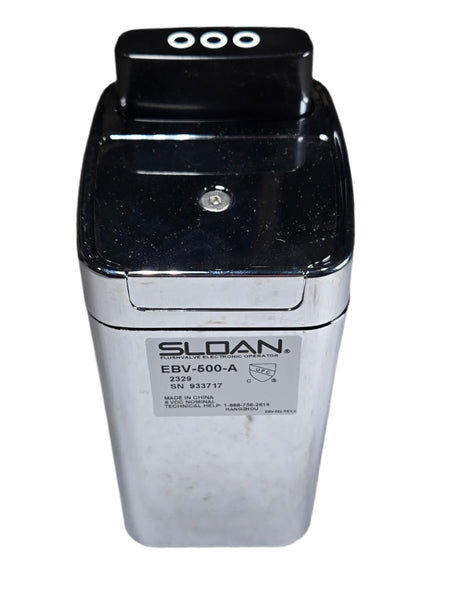

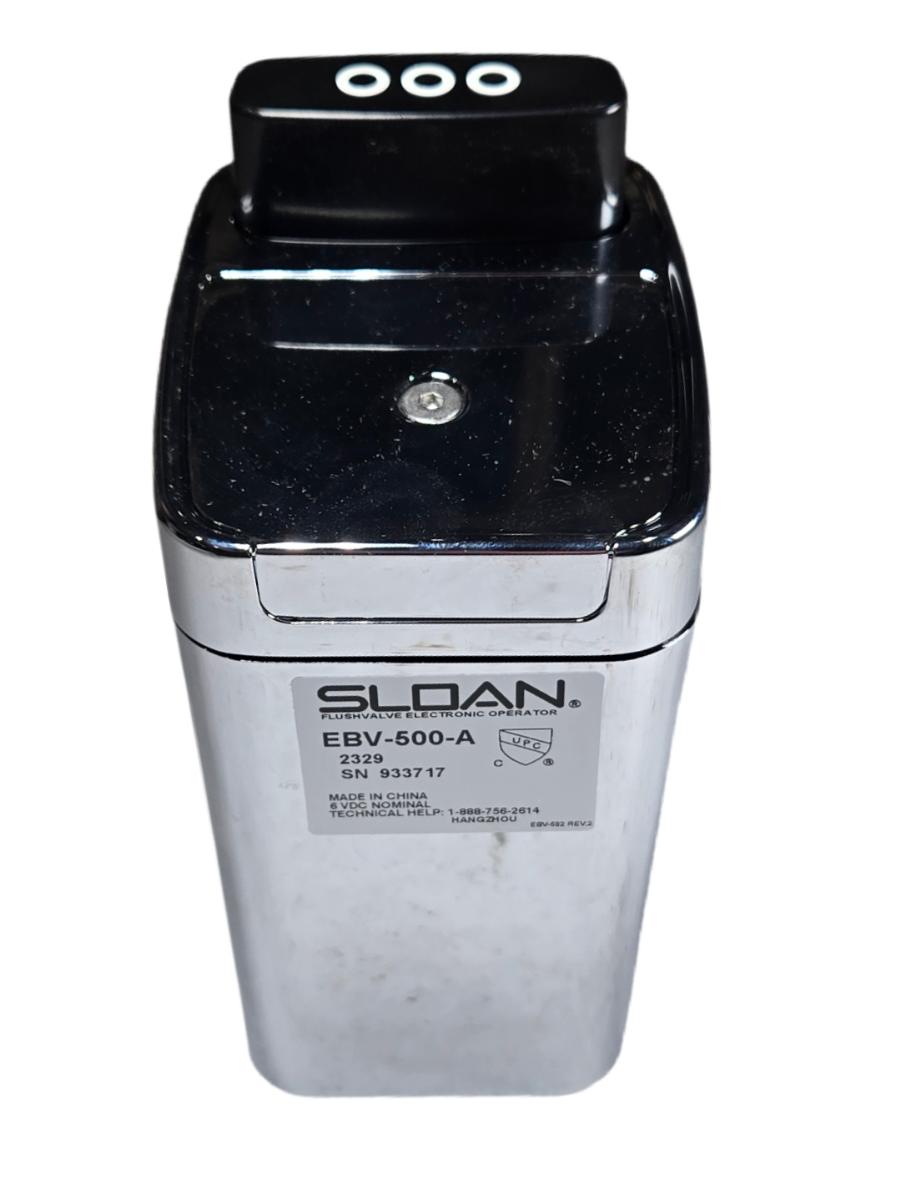

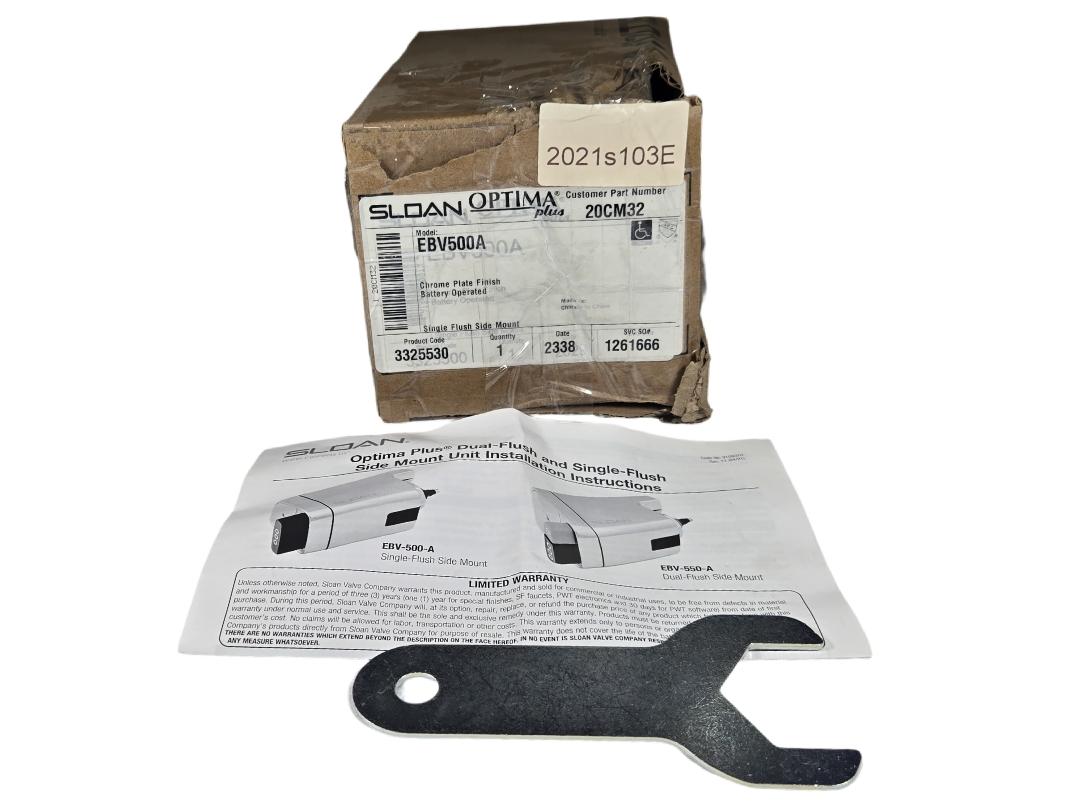

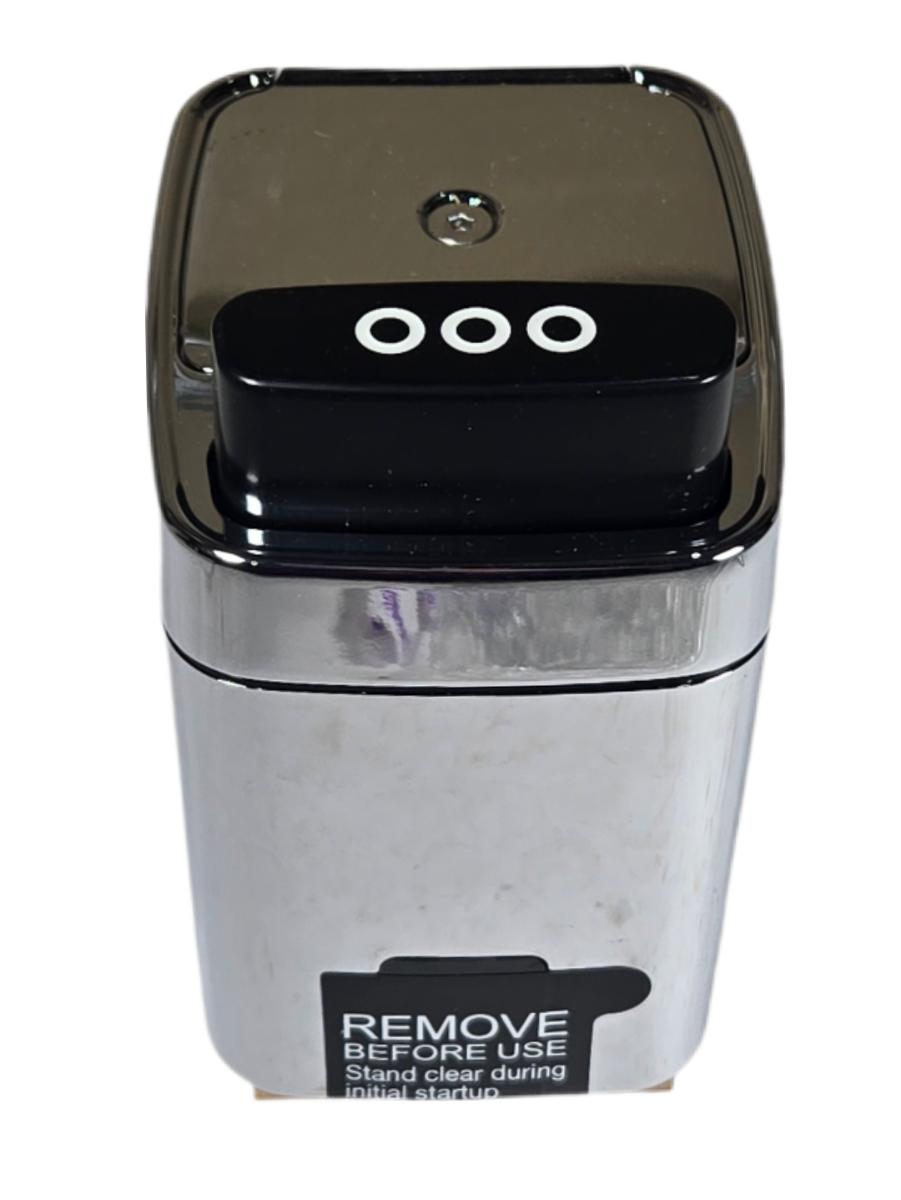

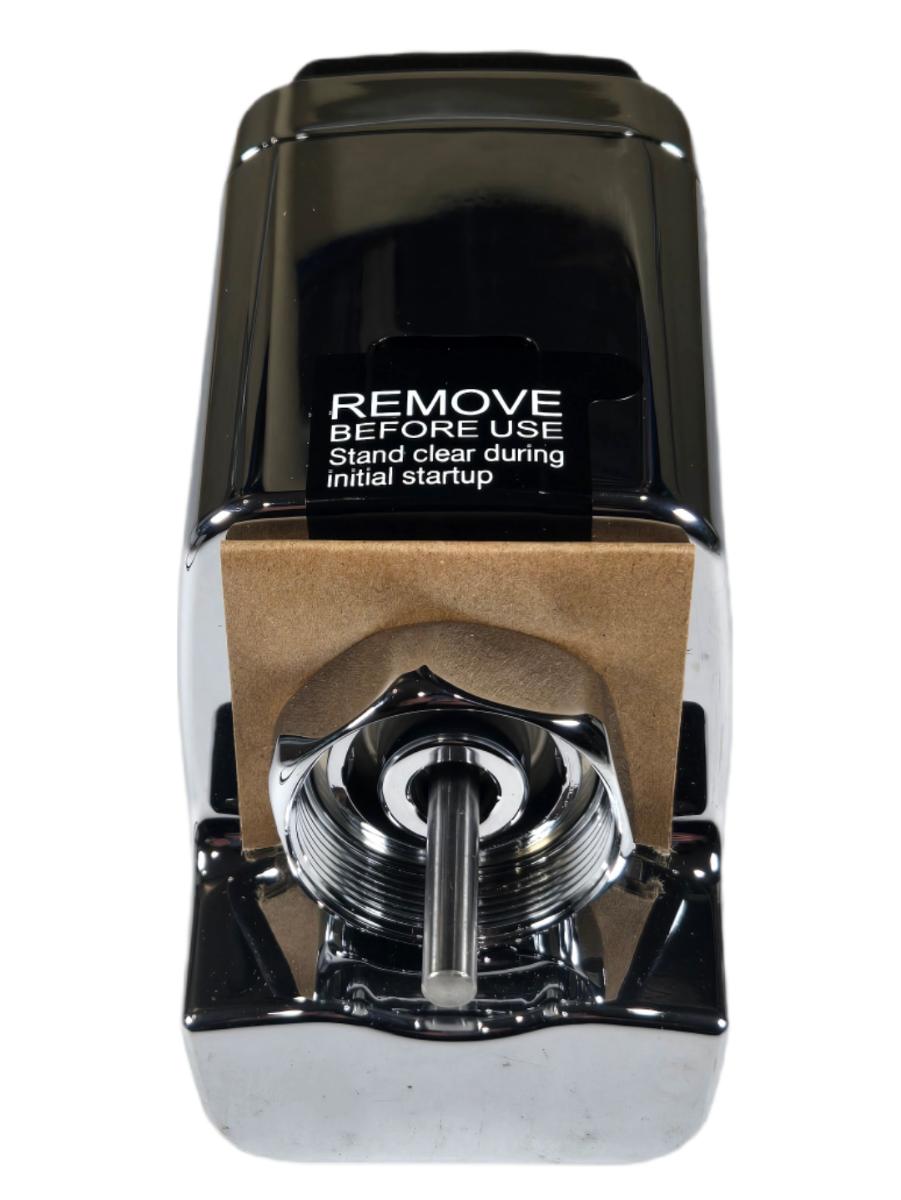

The Sloan EBV-500-A is a new, battery-operated electronic flushvalve operator from the Optima Plus series, designed as a single-flush side-mount unit for retrofitting or replacing standard Sloan Royal and Regal flushvalve bodies in commercial restroom applications. The unit operates at 6 VDC nominal and uses an infrared proximity sensor — indicated by the three sensor windows on the top cap — to trigger automatic, hands-free flushing without requiring AC hardwiring. The chrome-plate finish body houses a solenoid actuator that interfaces directly with the flushvalve via the threaded bottom connection and plunger rod visible in the photos, with a cardboard shipping spacer ('Remove Before Use') protecting the actuator pin during transit. Sloan product code 3325530, customer part number 20CM32, and service order 1261666 are confirmed from the box label; UPC certification is marked on the product label. Includes installation wrench and instruction sheet; compatible with Sloan single-flush flushvalve bodies per Optima Plus side-mount configuration.

Product Specifications
