Southwire 9900030601 RG6/Cat5e 18CCS 1000ft White Siamese Cable
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

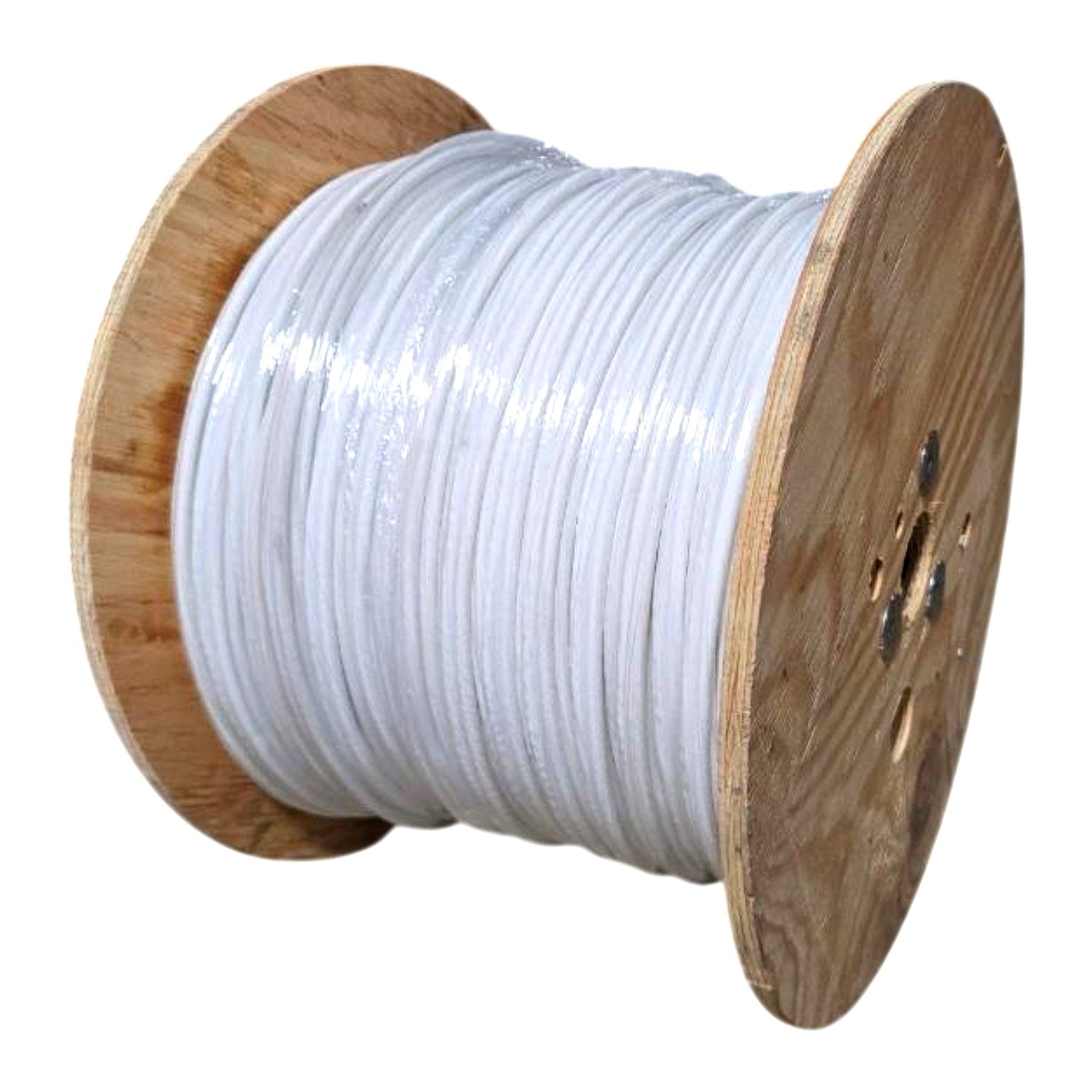

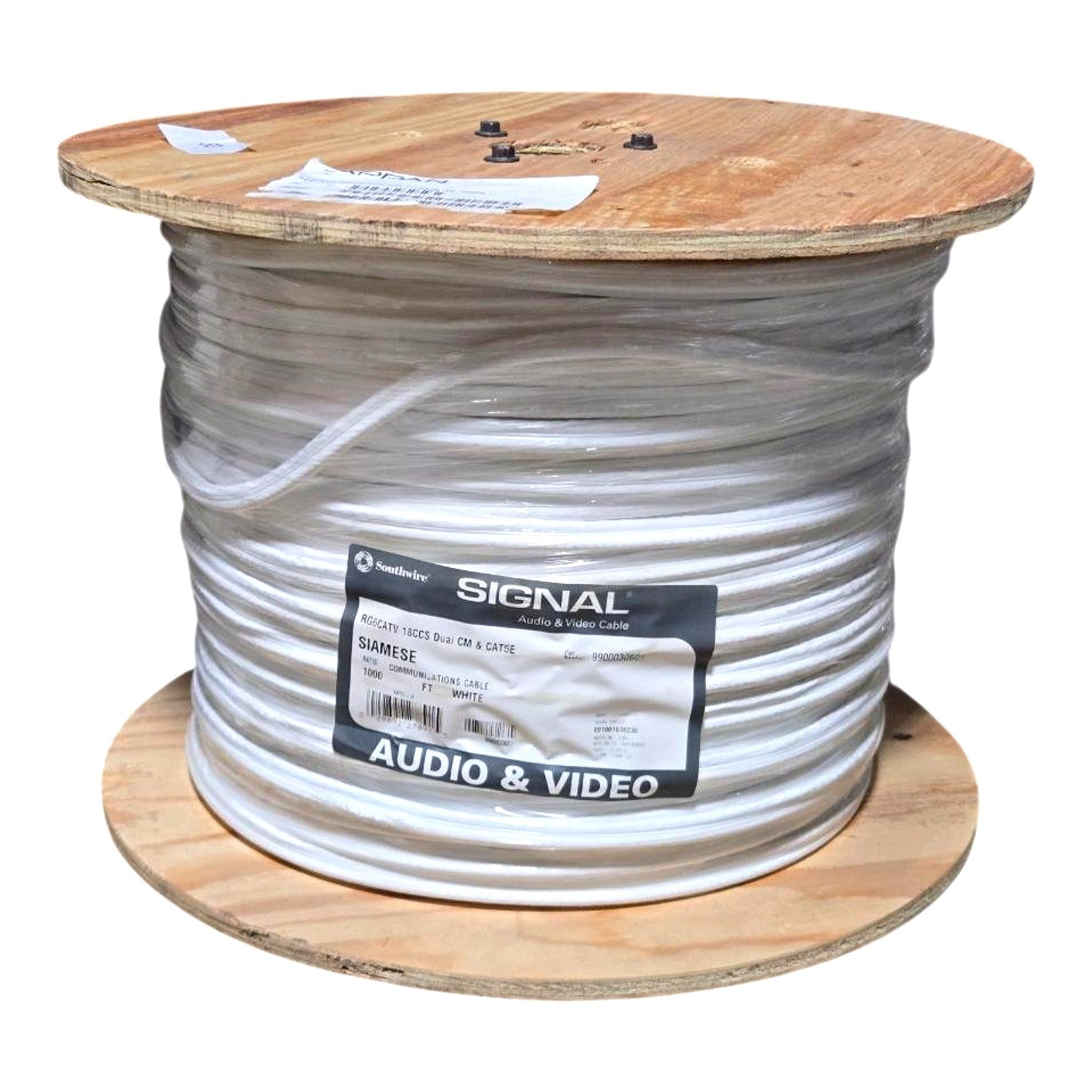

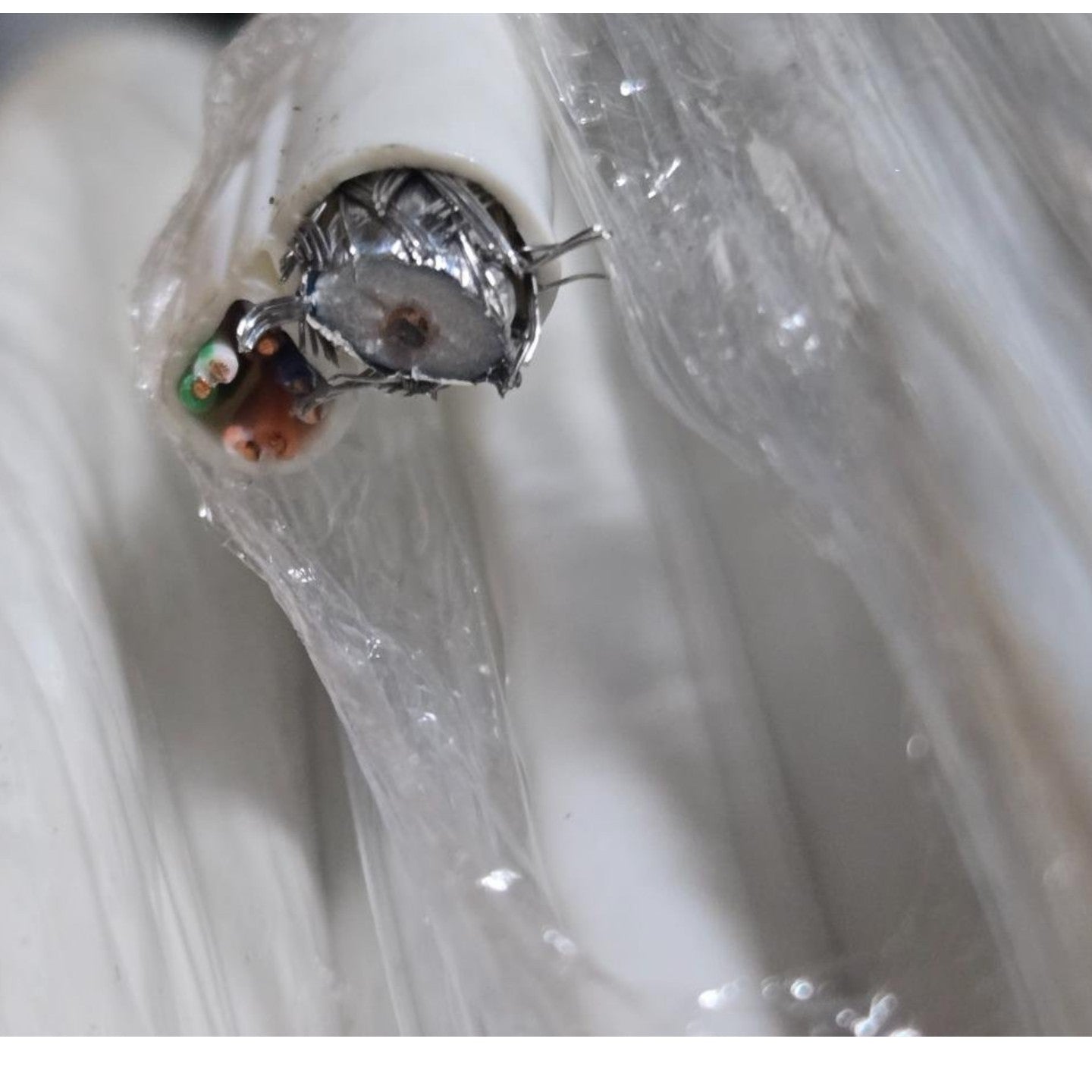

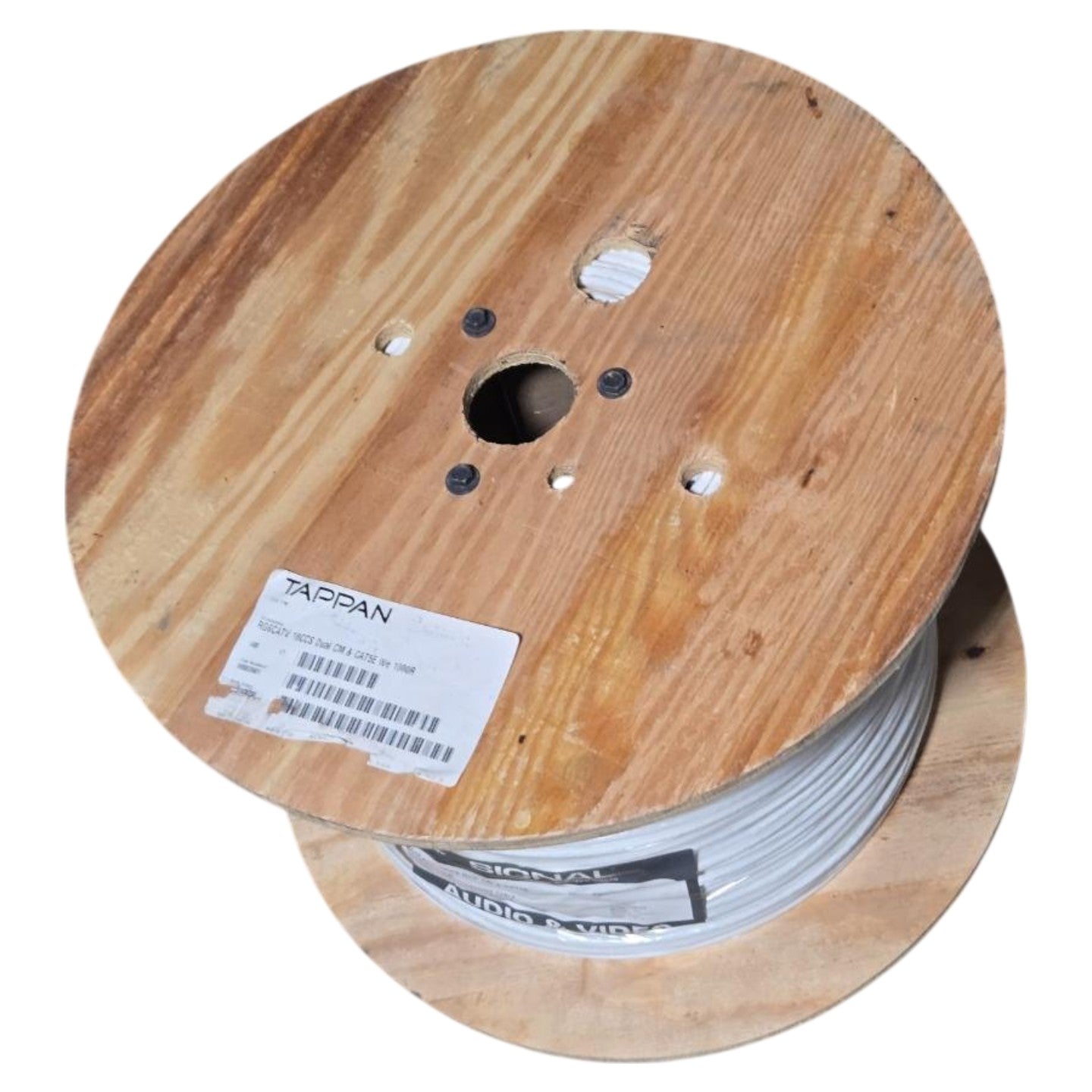

The Southwire Signal 9900030601 is a new, 1000-foot spool of white Siamese combination cable pairing RG6 coaxial and Cat5e data cable in a single unified jacket, rated CM (Communications) per NEC for in-wall residential and light commercial installations. The RG6 section features an 18 AWG CCS (Copper-Clad Steel) center conductor, aluminum foil shield, and aluminum braid shield, while the Cat5e section contains four twisted pairs of 24 AWG bare copper conductors for 100Base-T and Gigabit Ethernet capability. The Siamese construction allows a single cable run to simultaneously deliver CATV/satellite video signal and network or PoC (Power over Coax) data, making it the standard choice for IP-based CCTV security camera installations where coax carries video and Cat5e supplies power or network communication to the camera. The cable is ETL Verified to Cat5e performance specifications and is RoHS compliant per EU directive 2011/65/EU. Wound on a wooden reel for easy unspooling on the job site.
Product Specifications
| Brand | Southwire |
| Part Number (MPN) | 9900030601 |
| Series | Signal Audio & Video Cable |
| Cable Type | Siamese RG6 + Cat5e |
| Construction | Dual CM-rated siamese jacket |
| RG6 Center Conductor | 18 AWG CCS (Copper-Clad Steel) |
| Cat5e Conductor | 24 AWG Bare Copper |
| Number of Conductors (Total) | 5 (1 coax + 4 Cat5e pairs) |
| Shielding | Aluminum foil + aluminum braid (RG6) |
| Jacket Color | White |
| Jacket Rating | CM (Communications) |
| Overall OD | 0.575 in |
| Length | 1000 ft |
| Packaging | Wooden reel/spool |
| Cat5e Standard | ETL Verified Cat 5E |
| RoHS Compliance | RoHS 2011/65/EU |
| Condition | New |
