Sowa 119816 1-1/2-6 UNC GH4 HSSE-V3 Spiral Flute Tap
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

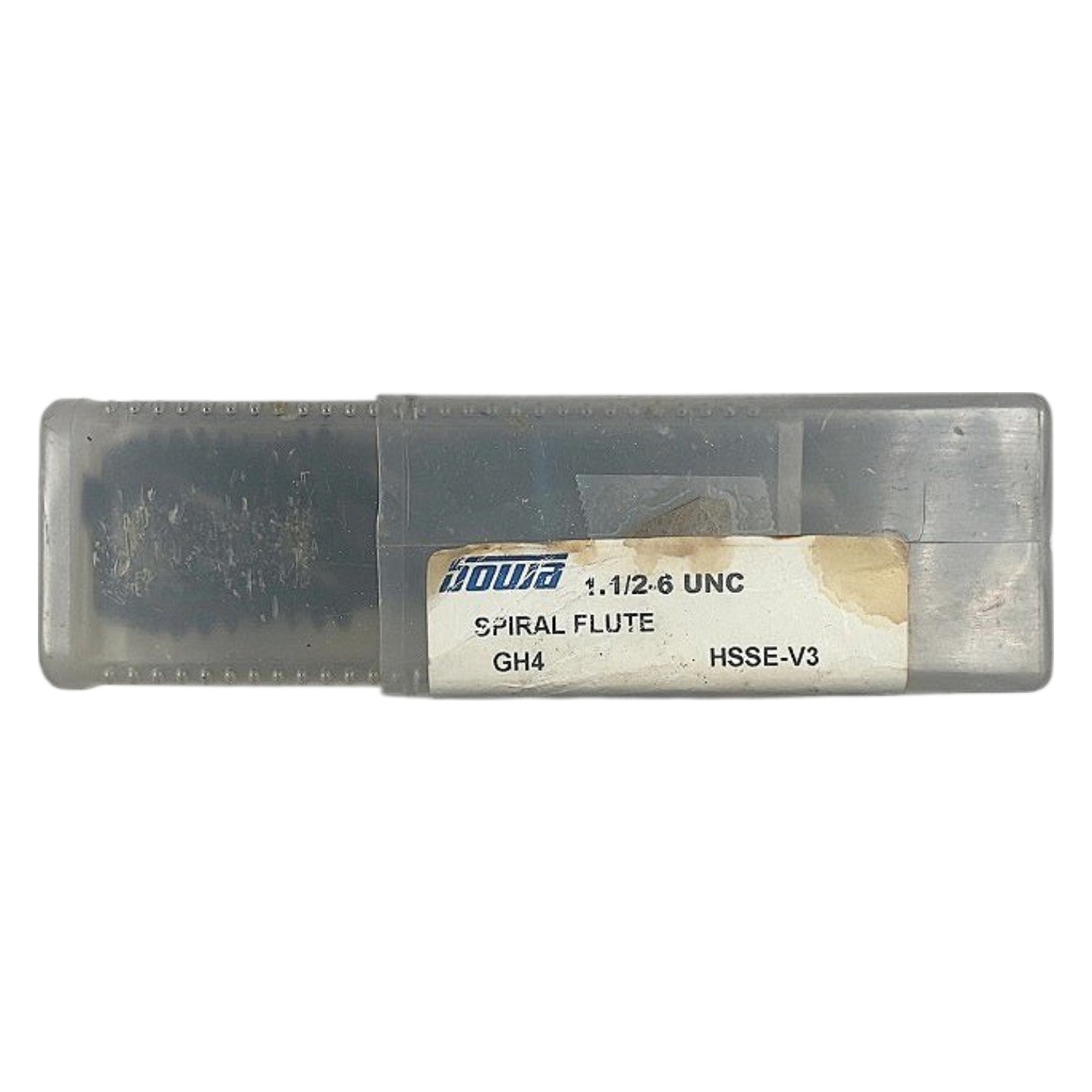

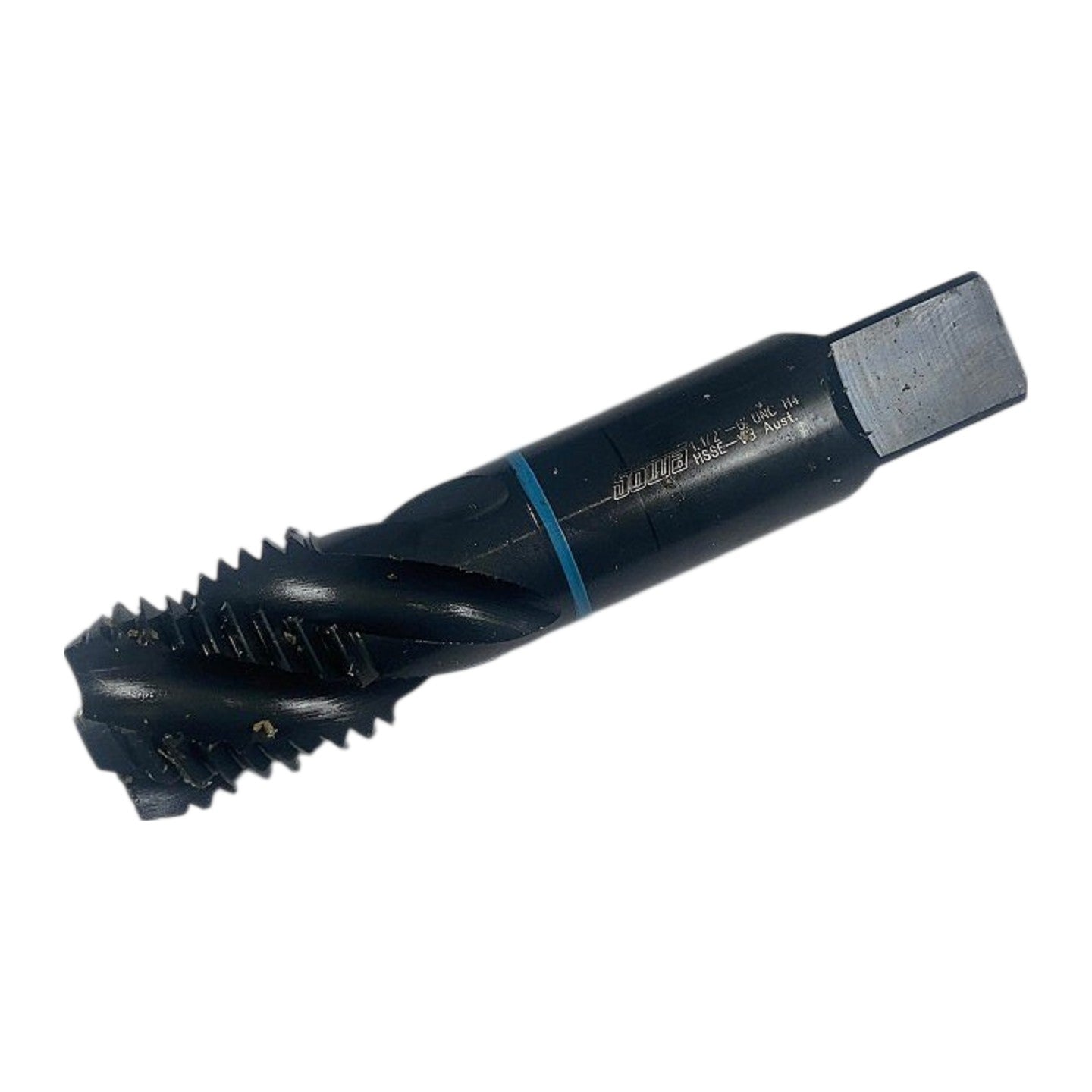

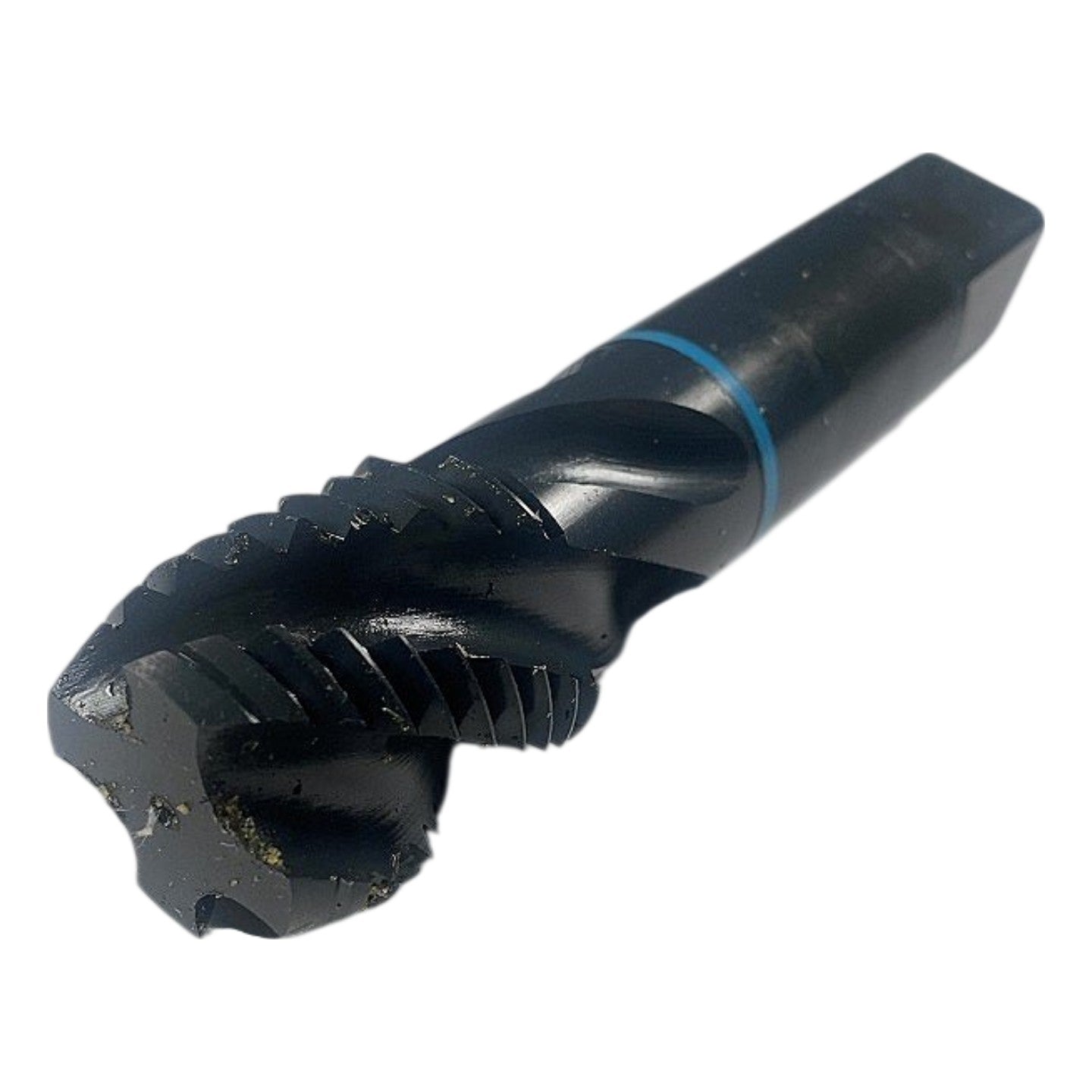

The Sowa Tool 119816 is a new 1-1/2-6 UNC spiral flute machine tap manufactured from HSSE-V3 (cobalt-vanadium high-speed steel, ~8% Co), providing superior heat resistance and wear life over standard HSS in steels, stainless steels, and tough alloys. The GH4 tolerance (H4 limit) designates a tightly controlled pitch diameter range of +0.0005 to +0.0020 in. above basic, producing 2B and 3B class-of-fit threads reliably in through-hole applications. The spiral flute geometry — confirmed on the label and clearly visible in the photos — evacuates chips upward out of the hole, making this tap especially suited for blind-hole tapping in ferrous and non-ferrous materials on CNC machining centers and rigid tapping machines. The black oxide surface treatment visible on the tool reduces friction and provides moderate corrosion resistance. The square-drive shank is compatible with standard 1-1/2 in. tap adapters and tension-compression holders.
Product Specifications
| Brand | Sowa Tool |
| Part Number / Catalog # | 119816 |
| Thread Size | 1-1/2 in |
| Threads per Inch (TPI) | 6 |
| Thread Standard | UNC (Unified National Coarse) |
| Tolerance / Pitch Dia. Limit | GH4 (H4 limit, +0.0005 to +0.0020 in. above basic) |
| Material / Grade | HSSE-V3 (Cobalt-Vanadium HSS, ~8% Co) |
| Flute Type | Spiral Flute |
| Surface Treatment | Black Oxide |
| Hole Type | Blind Hole (chip-up spiral flute) |
| Shank Type | Square Drive |
| Thread Class Produced | 2B, 3B |
| Color Ring ID | Blue (UNC designation ring) |
| Condition | New |
