SPI 10-720-1 0.500–0.800in Mechanical Inside Micrometer Set
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

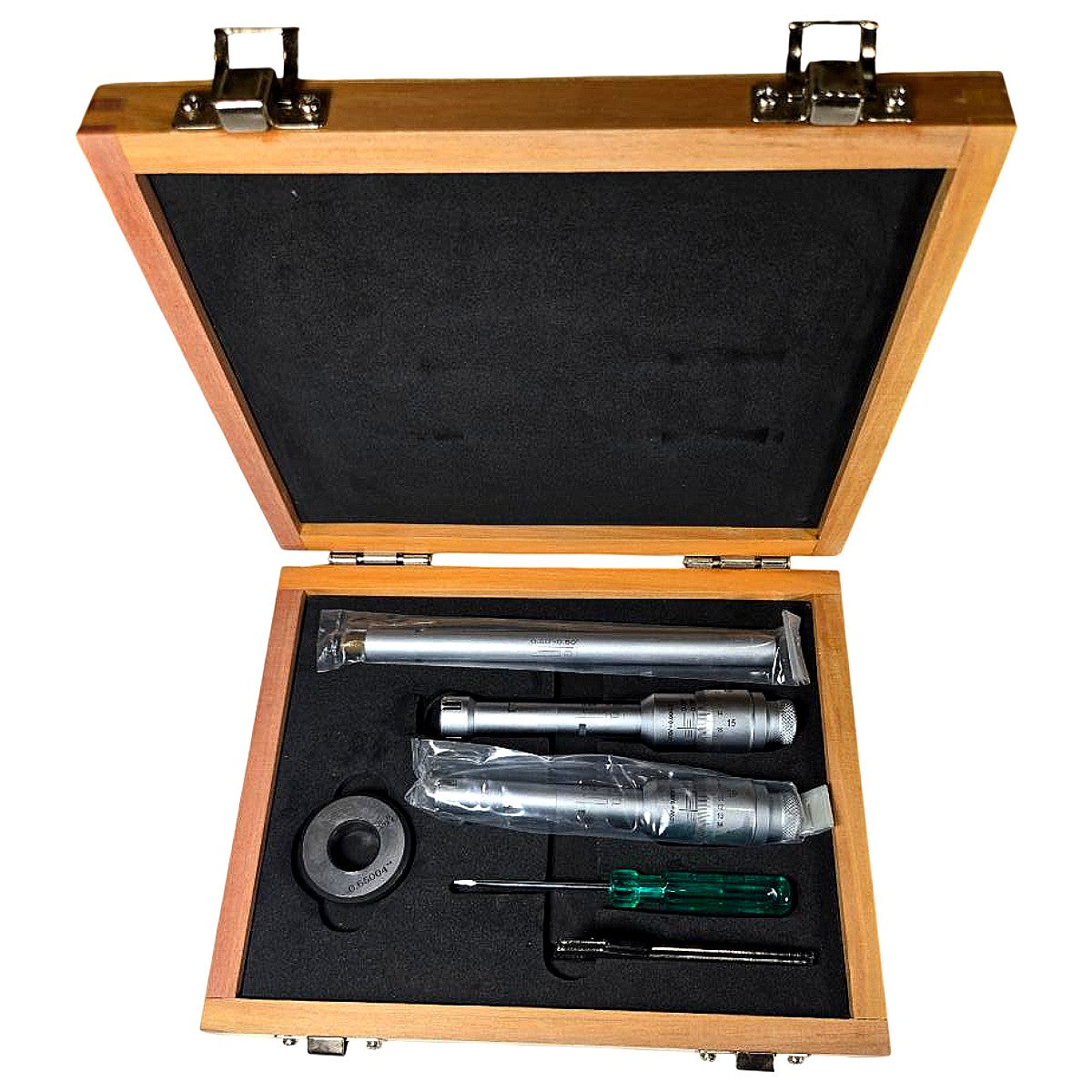

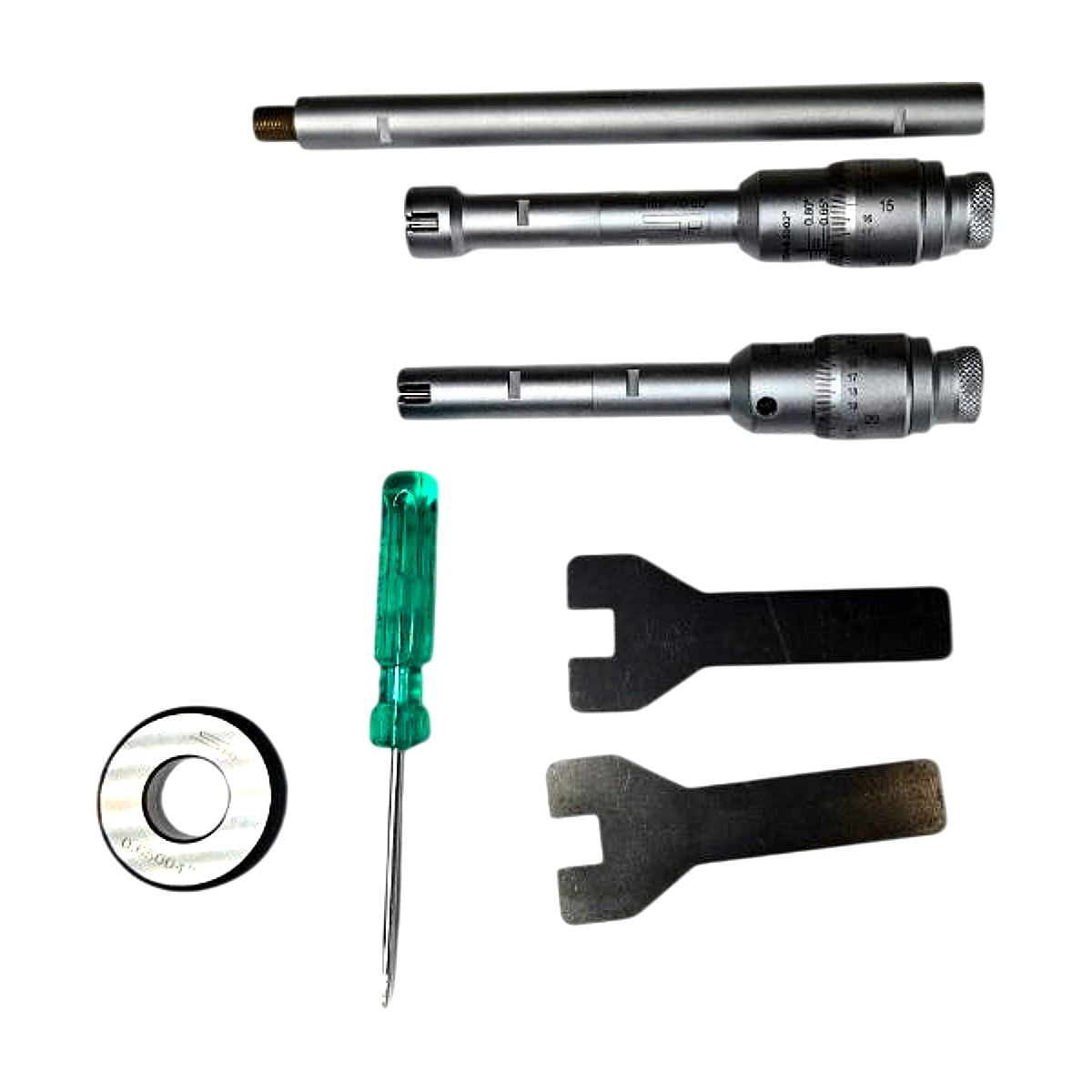

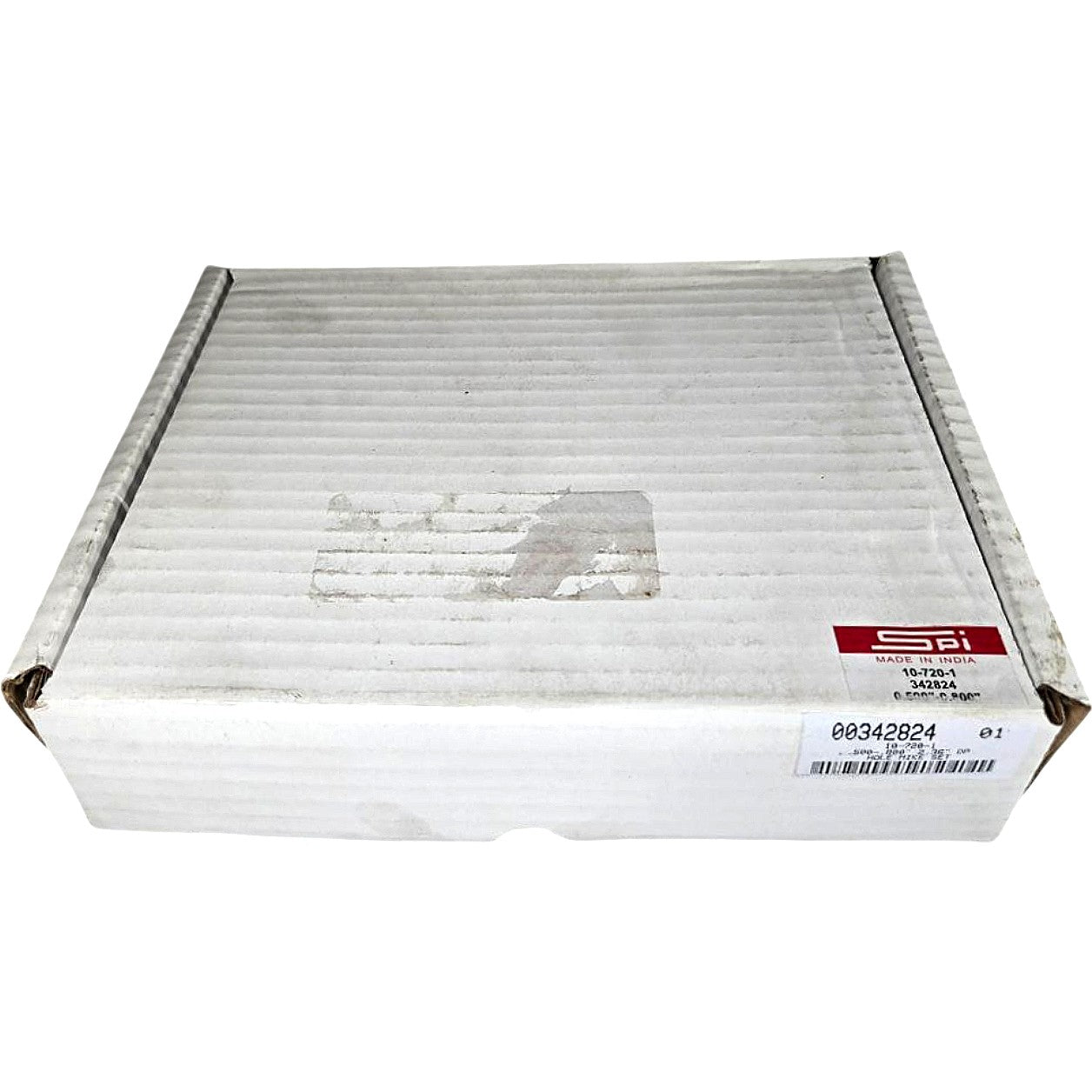

The SPI 10-720-1 is a new mechanical three-point inside micrometer set covering a measurement range of 0.500 to 0.800 inches, read directly from the box label and visible thimble graduations in the photos. The set includes two micrometer heads (covering separate sub-ranges within the 0.500–0.800 in span), one extension rod for increased reach, a calibration setting ring gauge (marked 0.56004" visible in photo), two spanner wrenches for head adjustment, a screwdriver, and a fitted hardwood storage case with foam cutouts. Three-point (trilock/Bowers-style) inside micrometers contact the bore at 120° intervals for self-centering and highly repeatable bore measurement without a reference surface, making this set well suited for precision bore gauging on engine cylinders, hydraulic bores, and machined housings. SPI (Swiss Precision Instruments) manufactures this set in India to published inch-system standards with a 0.0001 in graduation, ratchet-stop thimble for consistent measuring force, and a satin-chrome finish on all measuring heads.
Product Specifications
| Brand | SPI (Swiss Precision Instruments) |
| MPN | 10-720-1 |
| Measurement Range | 0.500–0.800 in |
| Graduation (Resolution) | 0.0001 in |
| Measuring System | 3-point (trilock), self-centering |
| Thimble Type | Ratchet stop |
| Unit of Measurement | Inch |
| Number of Micrometer Heads | 2 |
| Extension Rod | 1 included |
| Setting Ring Gauge | Included (0.56004 in) |
| Spanner Wrenches Included | 2 |

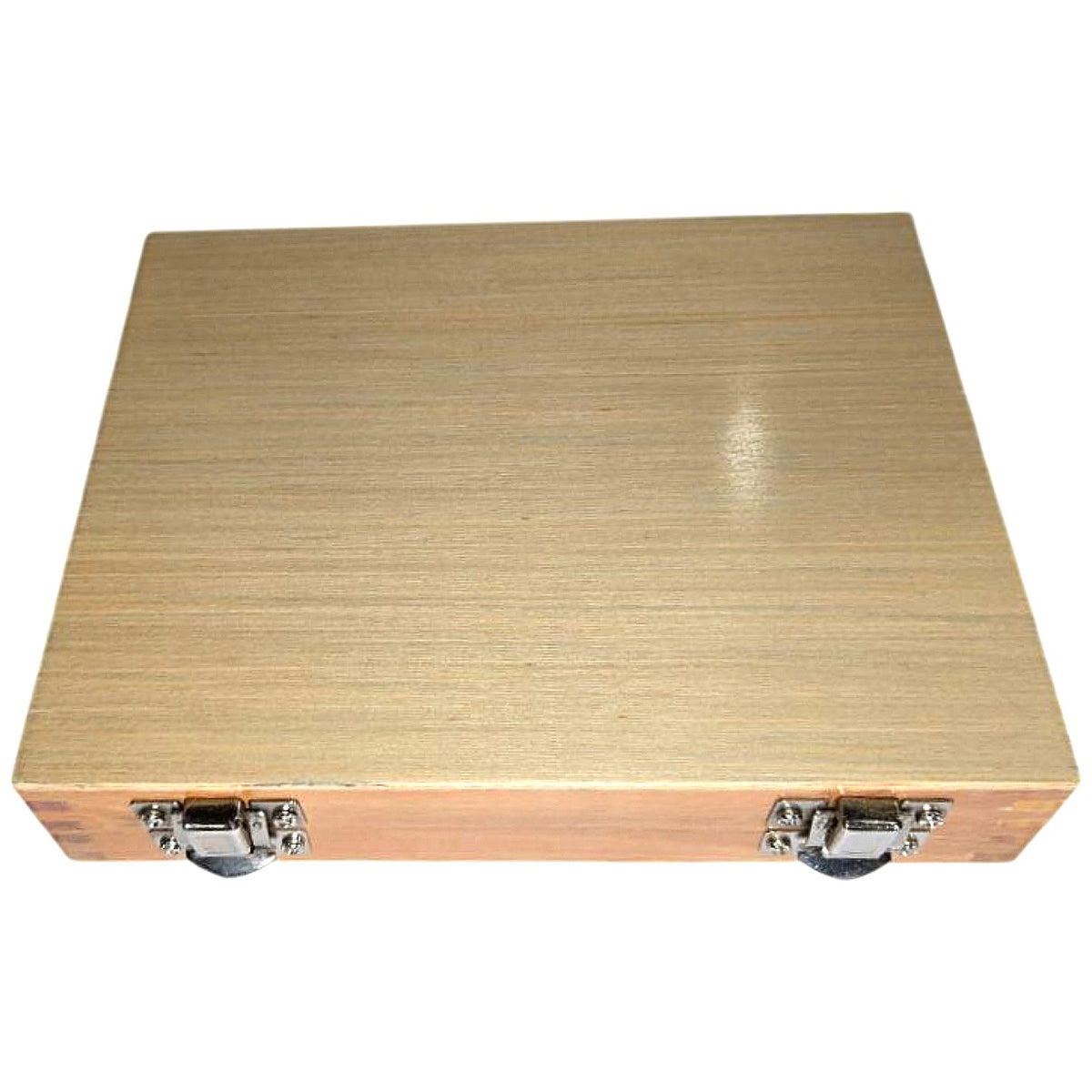

| Case Type | Fitted hardwood case w/ foam insert |
| Country of Origin | India |
| Condition | New |
