SPI 13-548-3 Electronic 1.2-1.6in 0.00005in 3-Point Internal Micrometer
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

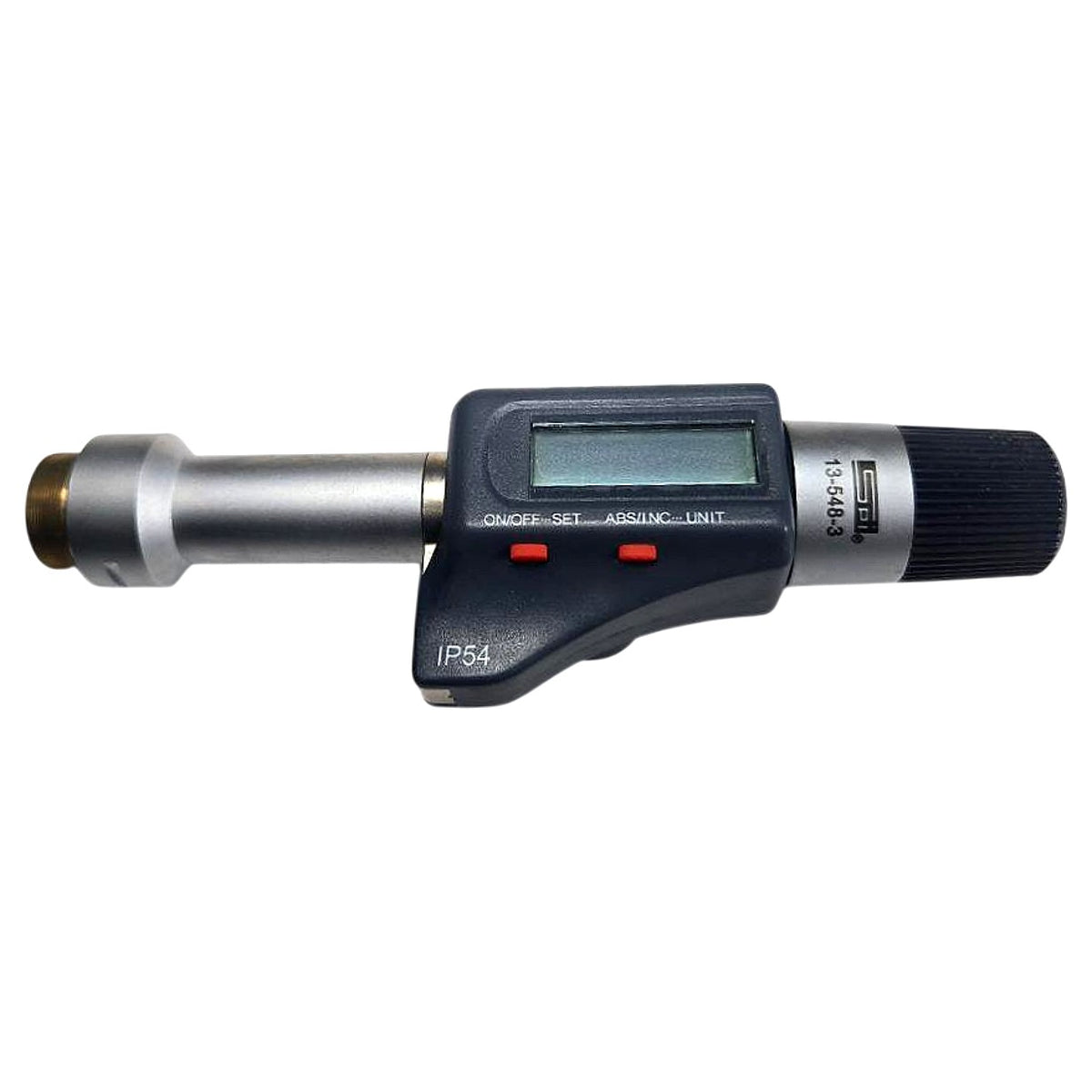

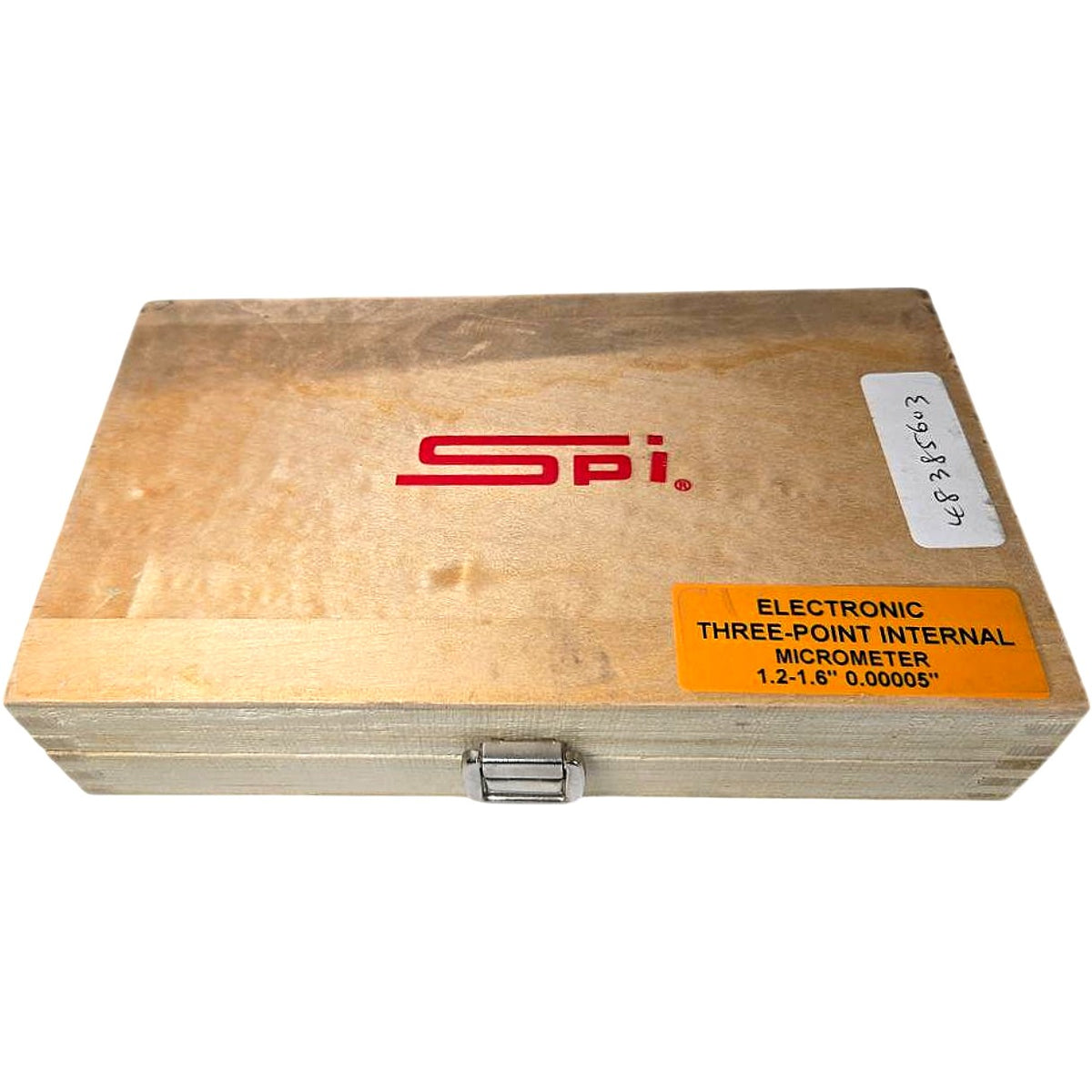

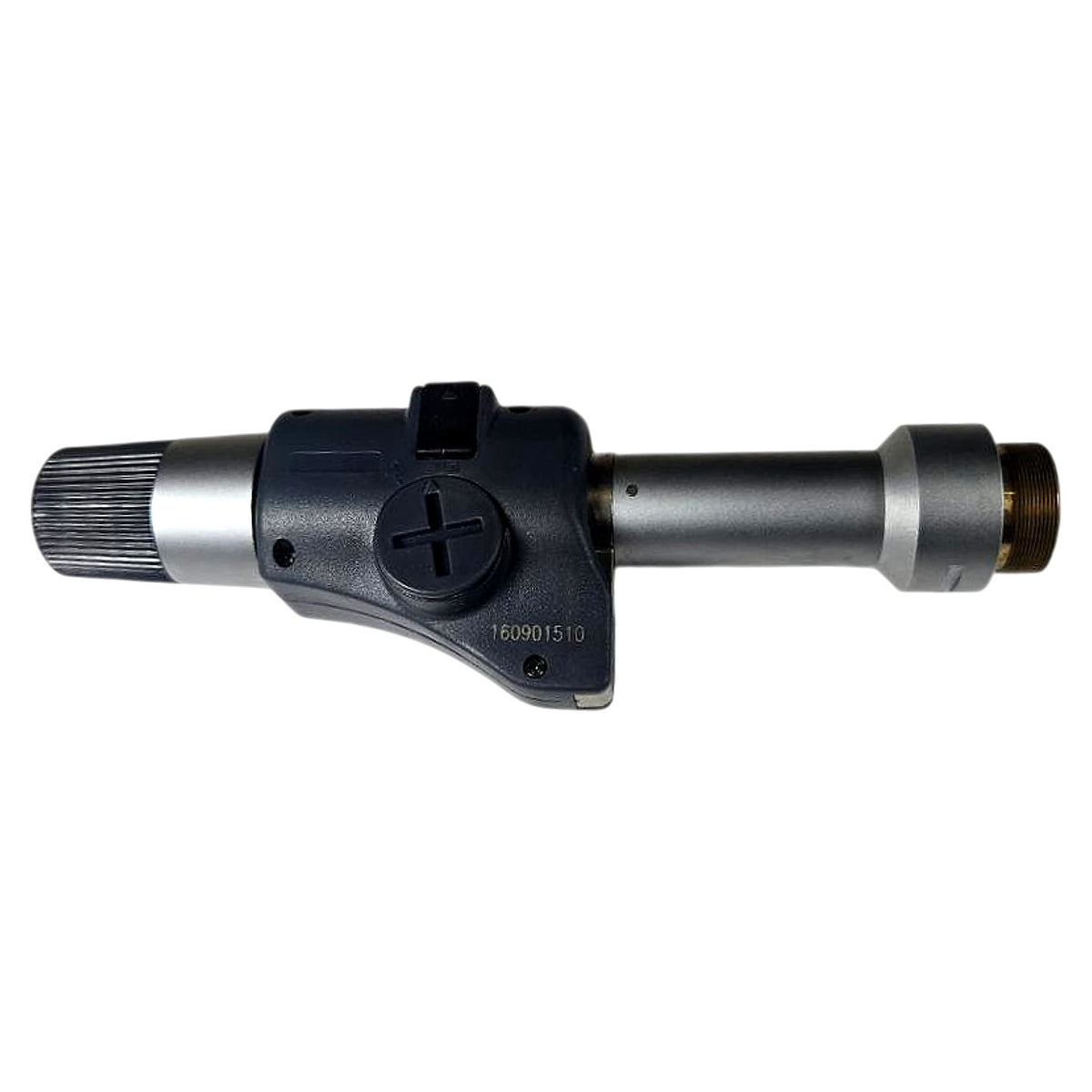

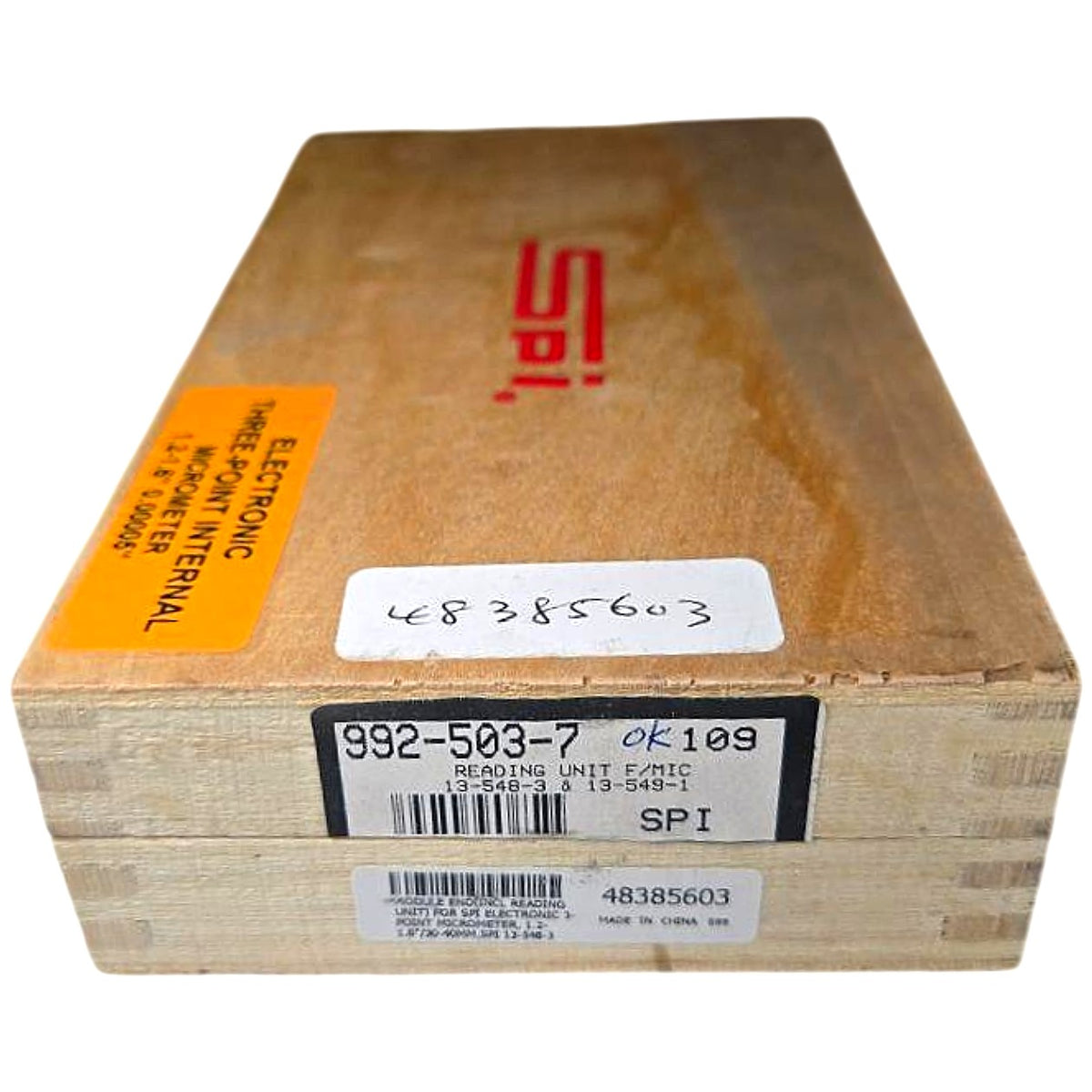

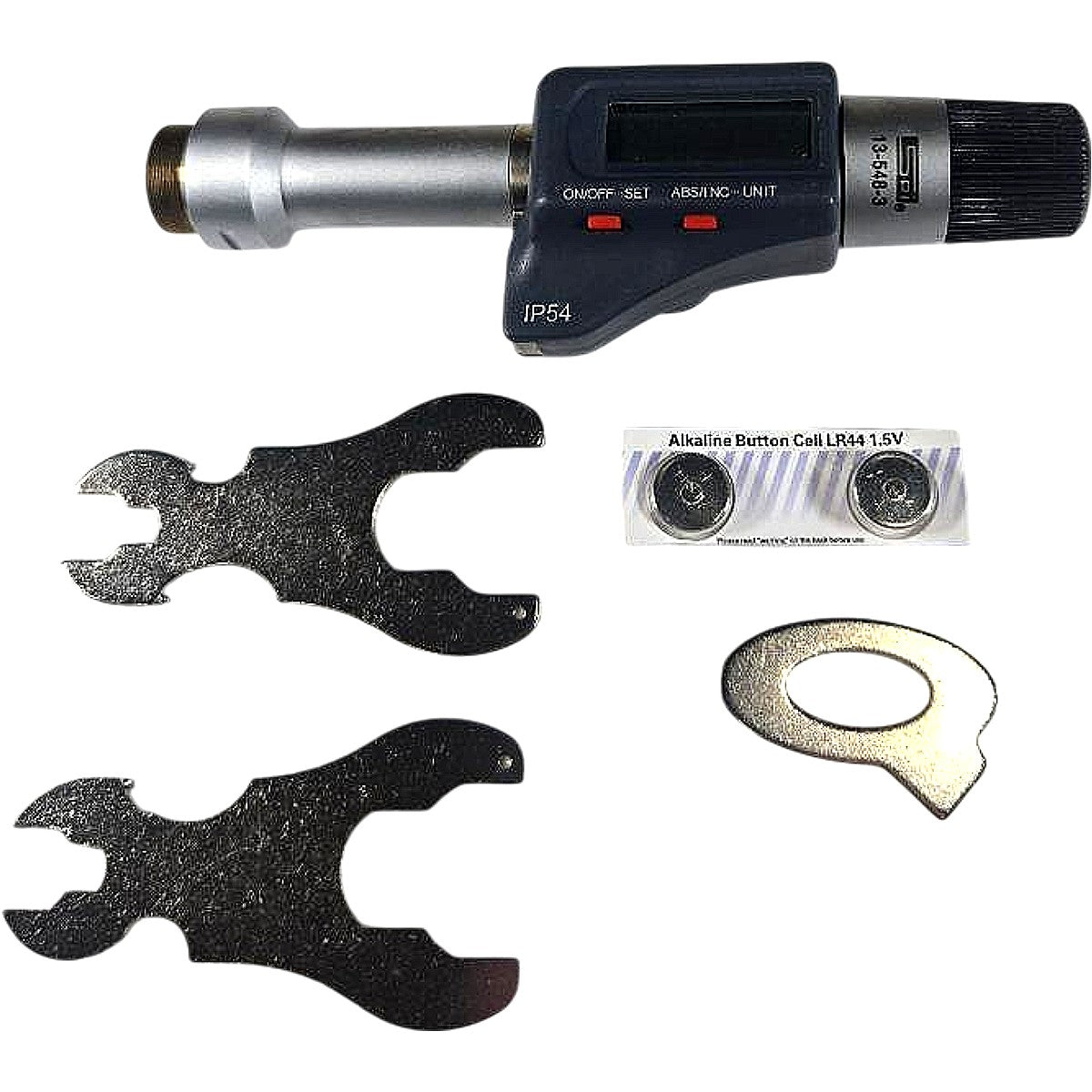

This SPI electronic three-point internal micrometer (bore gauge) head, model 13-548-3, measures bores from 1.2 to 1.6 in (30-40 mm) with a resolution of 0.00005 in. The three-point contact design self-centers in the bore for accurate diameter readings, and the digital LCD reading unit has ON/OFF-SET, ABS/INC and UNIT (in/mm) buttons plus an IP54 rating for protection against dust and splashing. The reading unit, supplied under SPI part number 992-503-7, is also listed for use with the SPI 13-549-1 micrometer. The item is new and ships in a fitted wooden case with two spanner wrenches, a setting washer and two LR44 alkaline button cell batteries.
Product Specifications
| Brand | SPI |
| MPN | 992-503-7 |
| Model | 13-548-3 |
| Compatible Model | 13-549-1 |
| Alternate Part Number | 48385603 |
| Measuring Range | 1.2-1.6 in |
| Metric Range | 30-40 mm |
| Resolution | 0.00005 in |
| Type | Electronic Three-Point Internal Micrometer |
| Number of Contact Points | 3 |
| Display | Digital LCD |
| IP Rating | IP54 |
| Battery Type | LR44 1.5V Alkaline Button Cell |
| Battery Quantity | 2 |
| Country of Origin | China |
| Included Accessories | Wooden case, 2 spanner wrenches, setting washer, 2 batteries |
