SPI 20-158-2 0-100mm 0.01mm Dial Depth Gage Set
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

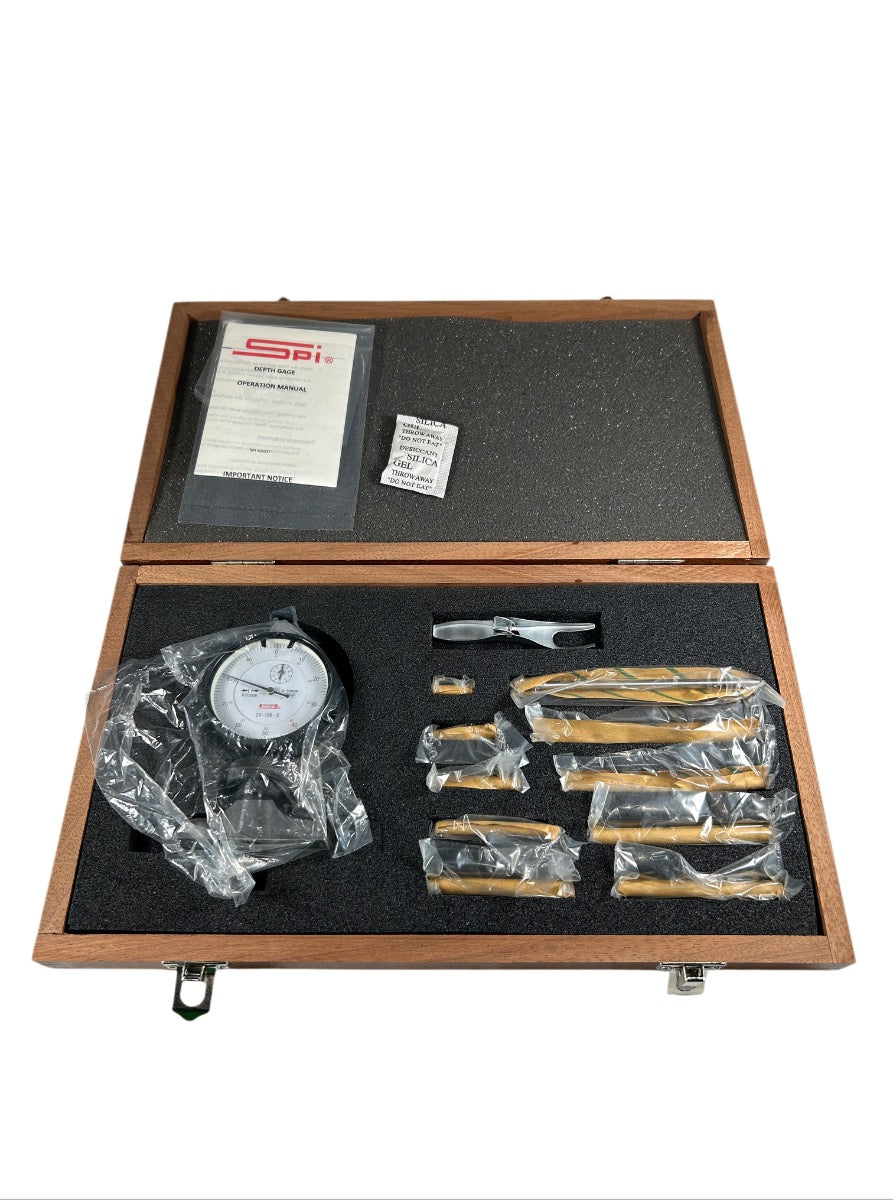

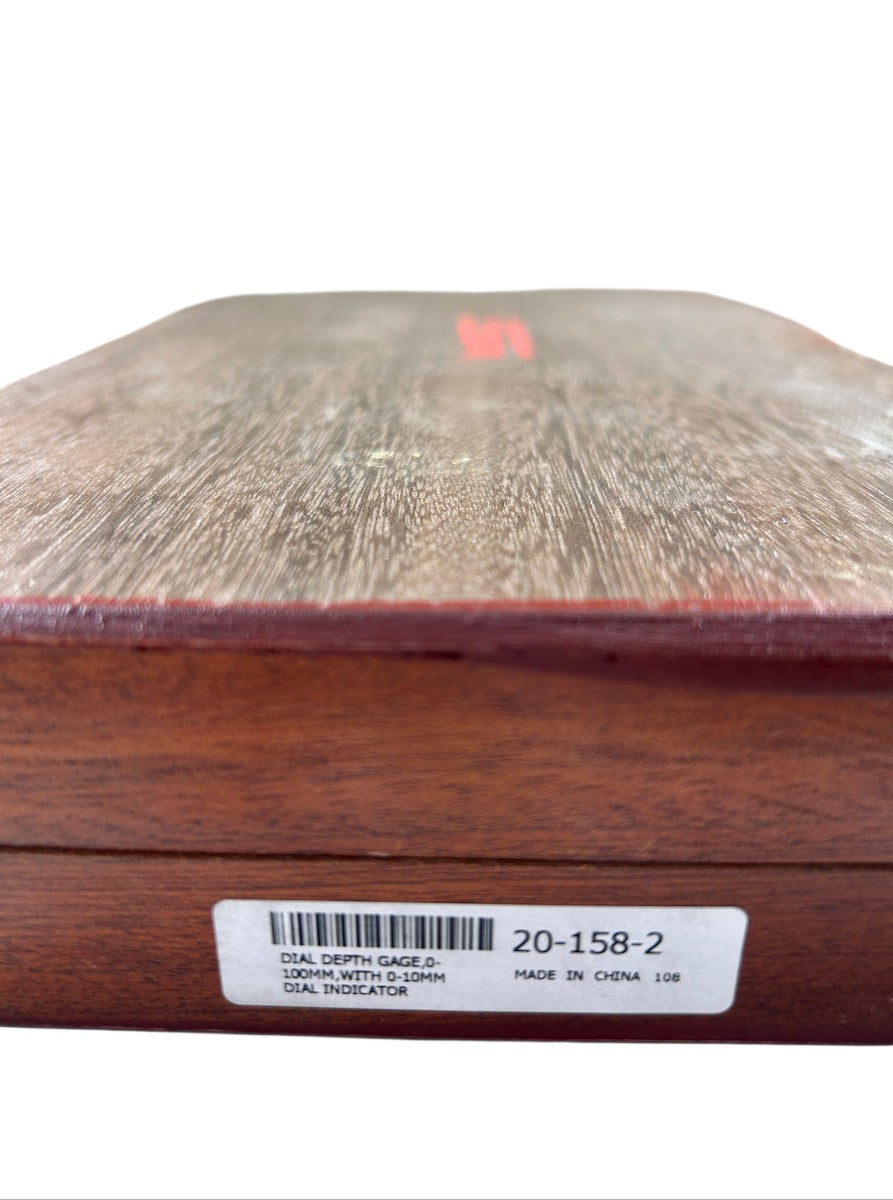

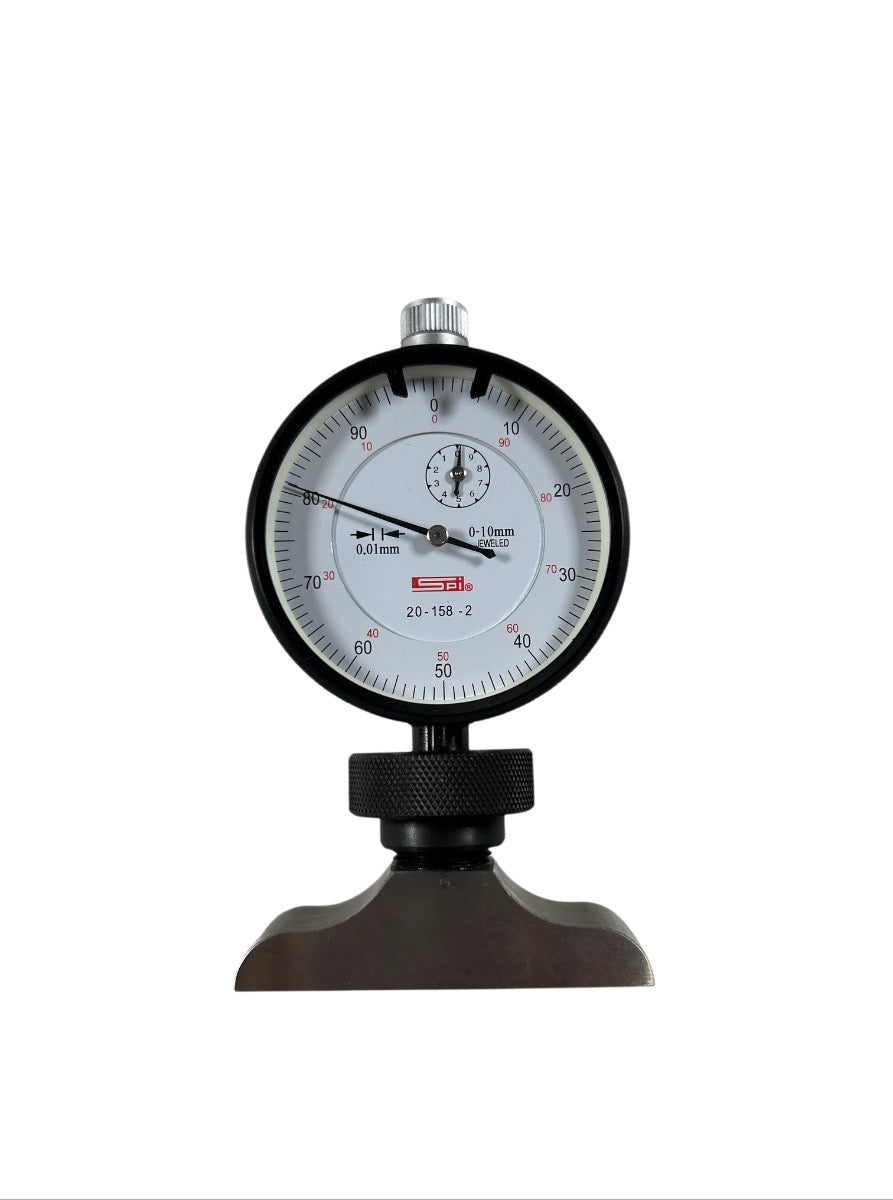

The SPI 20-158-2 is a new metric dial depth gage set with a measurement range of 0–100mm and a 0.01mm graduation, as confirmed by both the dial face markings and the box label. The integrated dial indicator reads 0–10mm per revolution on a jeweled movement, with the revolution counter subdial tracking full rotations to reach the 100mm total range; the large-diameter black bezel dial is mounted on a hardened and ground steel base that bridges the reference surface while the probe rod descends into the feature being measured. The set ships in a fitted hardwood storage case and includes multiple interchangeable extension rods (visible in the case photo) and a point-changing tool, allowing the operator to configure probe depth as needed for measuring blind holes, slots, recesses, and step depths across a variety of workpiece geometries. The knurled locking collar on the gauge body secures the probe rod at any position for transfer readings.
Product Specifications
| Brand | SPI |
| Model Number | 20-158-2 |
| Measurement Range | 0–100mm |
| Graduation (Resolution) | 0.01mm |
| Dial Indicator Range (per revolution) | 0–10mm |
| Dial Movement Type | Jeweled |
| Measurement System | Metric |
| Dial Face Numbering | 0–50–0 (balanced) |
| Base Type | Hardened and ground steel bridge base |
| Included Accessories | Multiple interchangeable extension rods, point-changing tool, operation manual, silica gel desiccant |

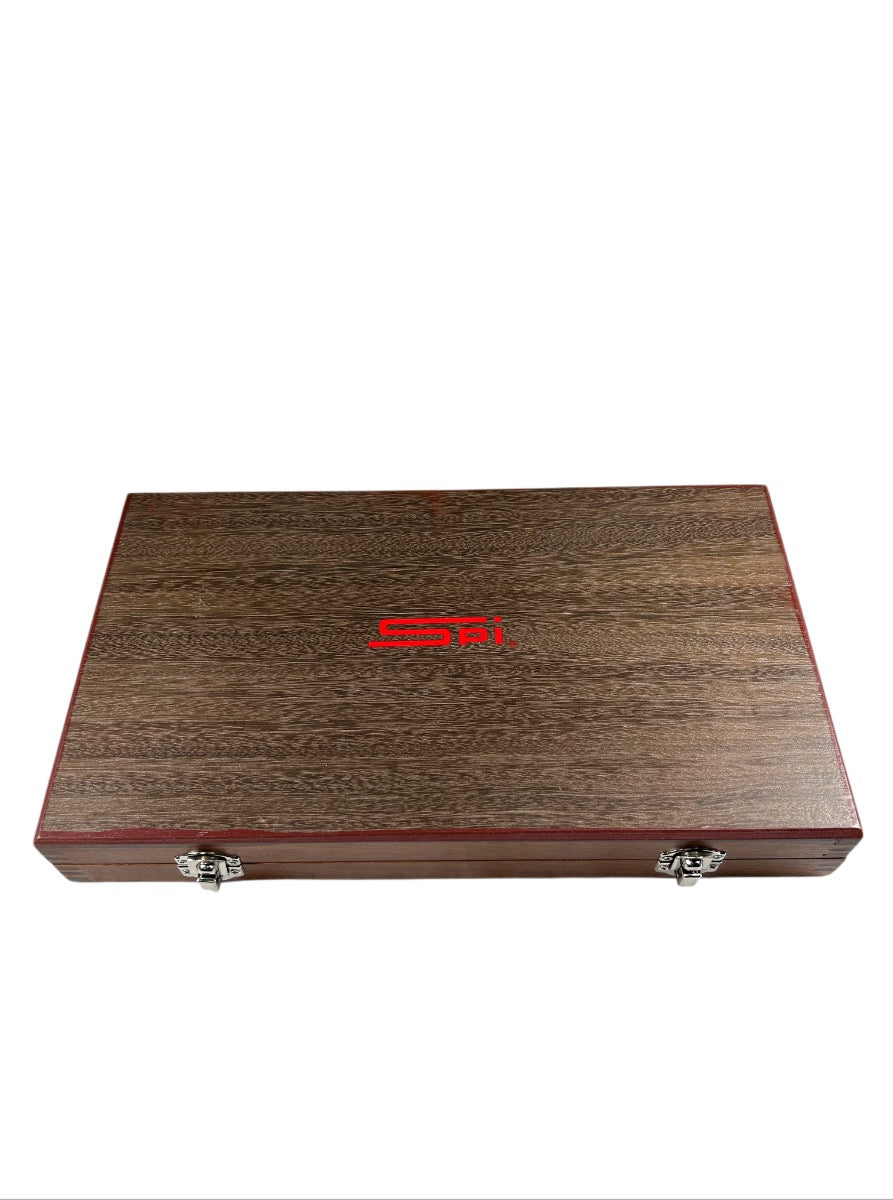

| Case Type | Fitted hardwood storage case with foam insert |
| Condition | New |
| Country of Origin | China |
