SPI 20-665-6 0-1in 90-127° 0.001in Dial Chamfer Gage
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

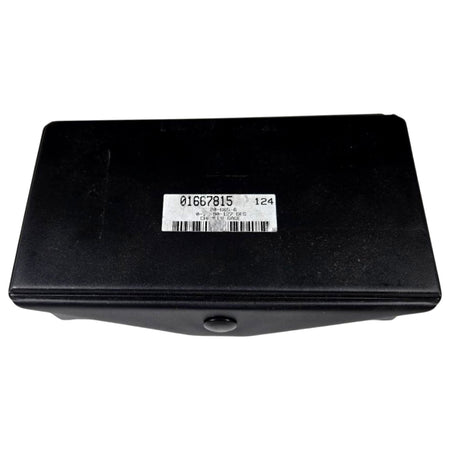

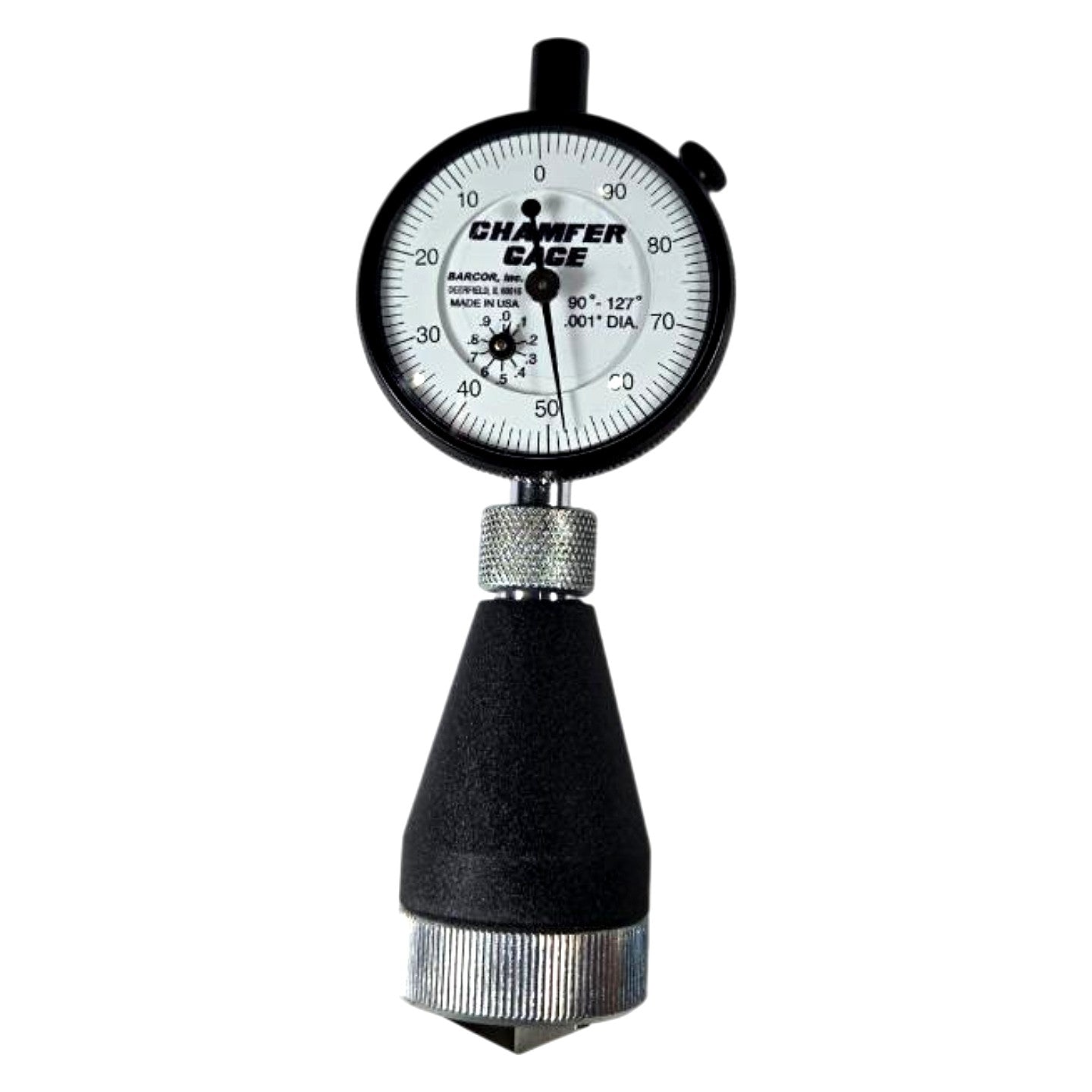

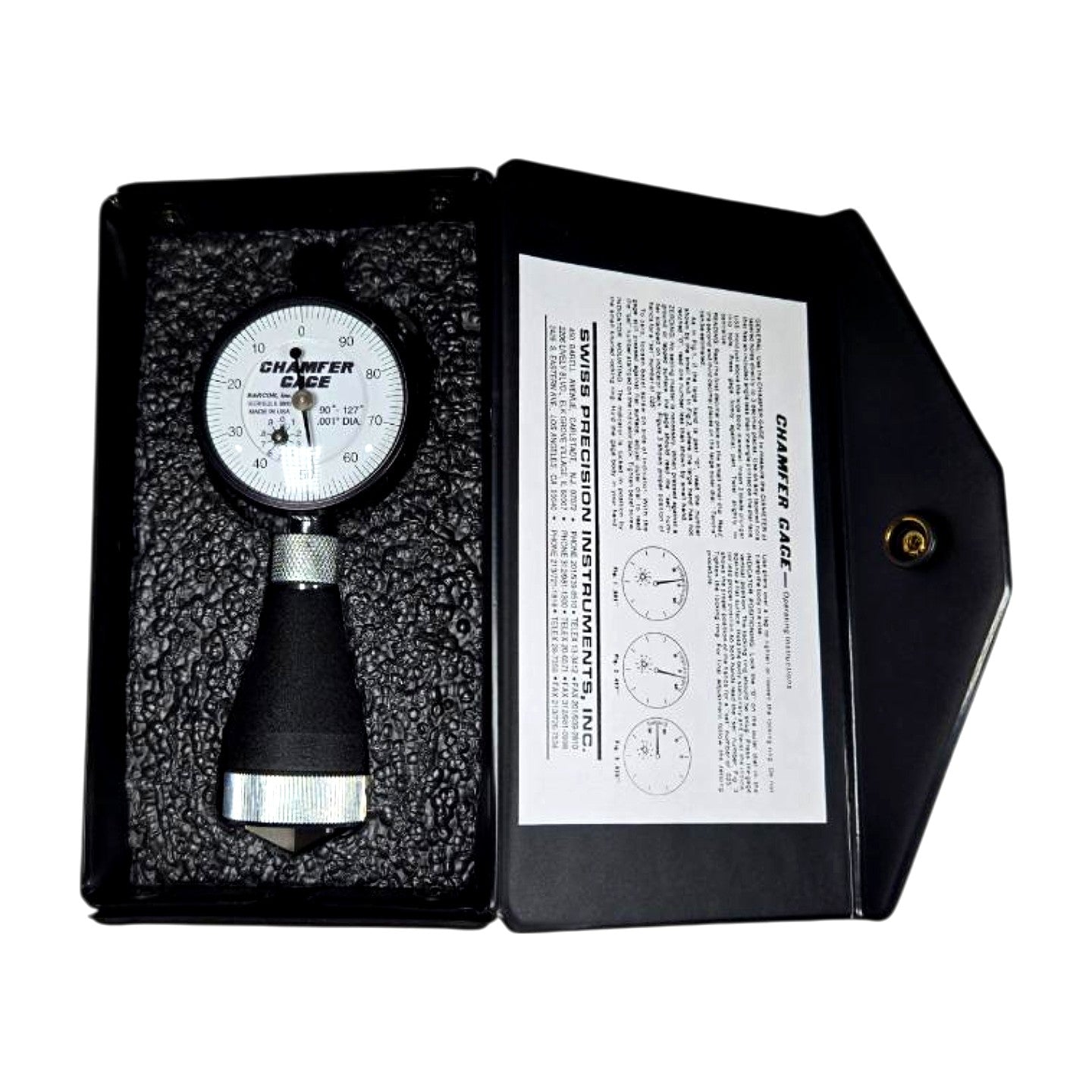

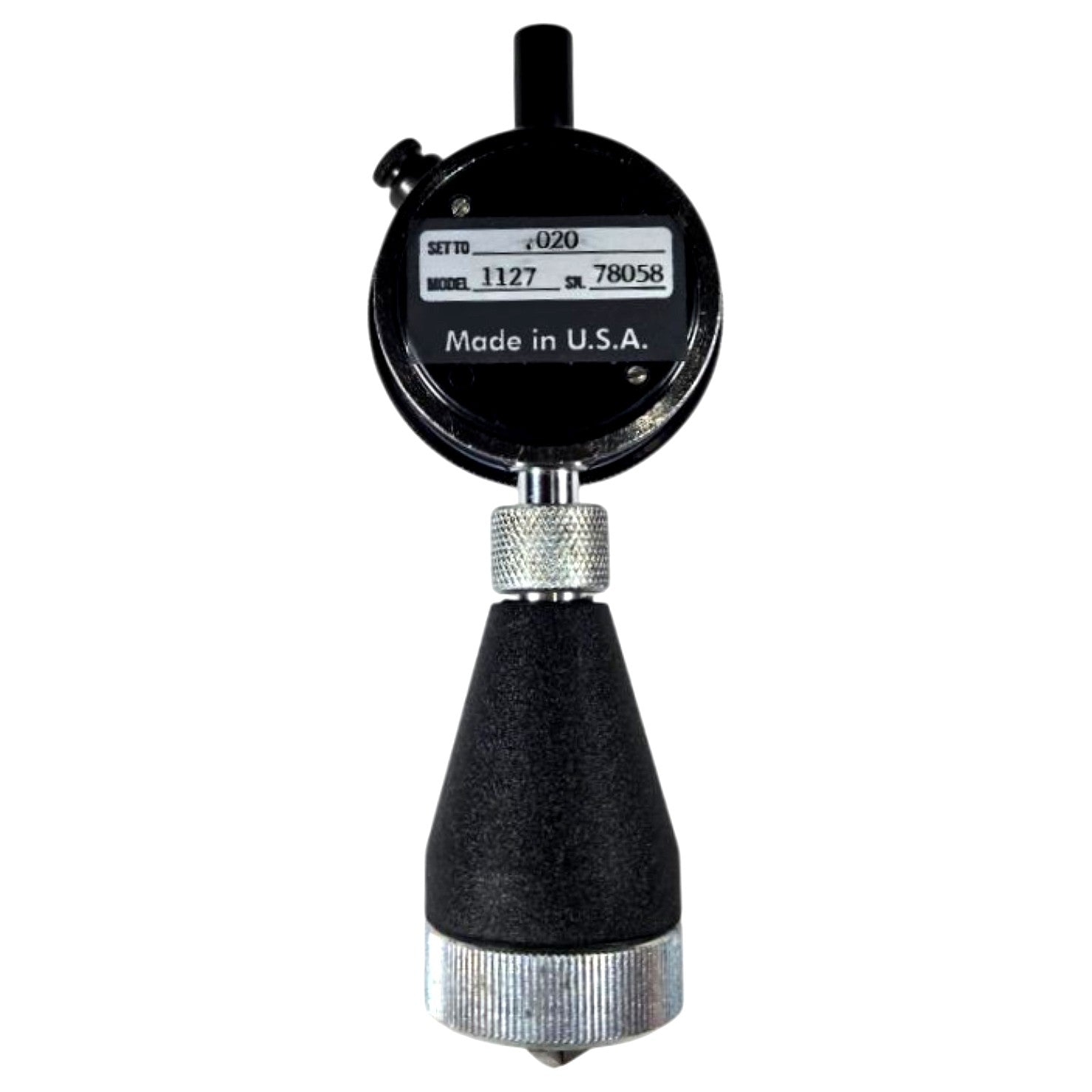

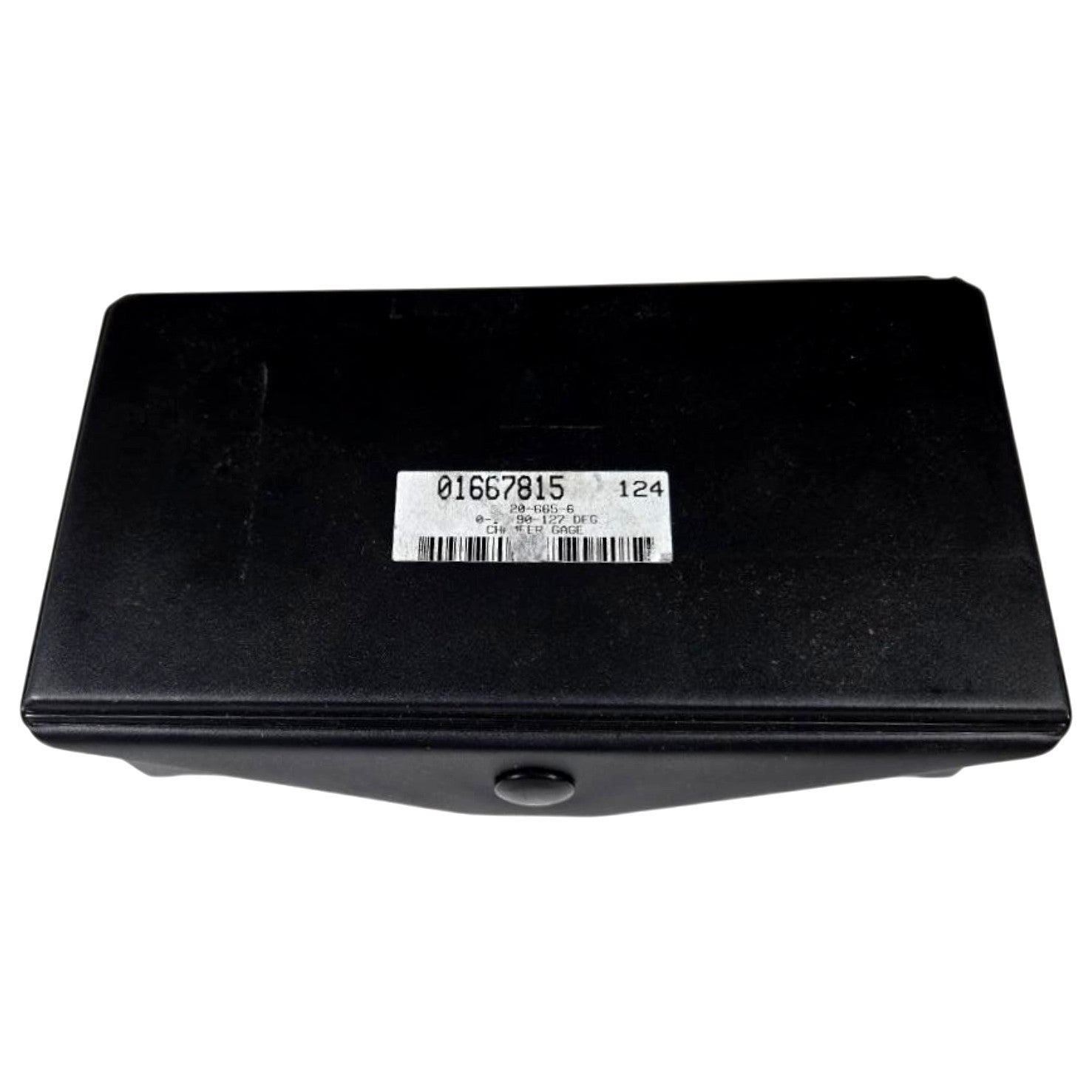

The SPI 20-665-6 is a new Barcor-made dial chamfer gage designed to measure the diameter of internal or external chamfers with angles ranging from 90° to 127°, reading directly in diameter over a 0 to 1 inch range with 0.001 inch graduation. The instrument uses a three-blade conical plunger contact that self-centers in the chamfer, translating the chamfer diameter to the balanced dial indicator via a mechanical linkage; the knurled locking collar locks the indicator position for comparative gauging. The dial face is clearly marked '90°–127° / .001" DIA' and the rear label confirms Model 1127, serial 78058, set to .020, consistent with Barcor Model 1127 production. Distributed by SPI (Swiss Precision Instruments) under part number 20-665-6, this instrument ships in a fitted black metal case with foam insert and operating instruction sheet, as visible in the photos. Typical applications include inspection of countersinks, counterbores, and chamfered holes on machined parts in high-volume production or tool room environments.
Product Specifications
| Brand | SPI / Barcor |
| Manufacturer Part Number | 20-665-6 |
| Barcor Model | 1127 |
| Measurement Range | 0 to 1 in |
| Chamfer Angle Range | 90° to 127° |
| Graduation / Resolution | 0.001 in DIA |
| Accuracy | 0.002 in |
| Indicator Type | Balanced dial, 0–50–0 |
| Contact / Plunger Type | 3-blade conical self-centering plunger |
| Measurement Type | Diameter of chamfer |
| Set To (as shipped) | .020 in |
| Case Included | Yes, fitted black metal case w/ foam |
| Country of Origin | USA |
| Condition | New |
