SPI 23-187-8 5/8-11 UNC-2A NOTGO PD 0.5589 Adjustable Thread Ring Gauge
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

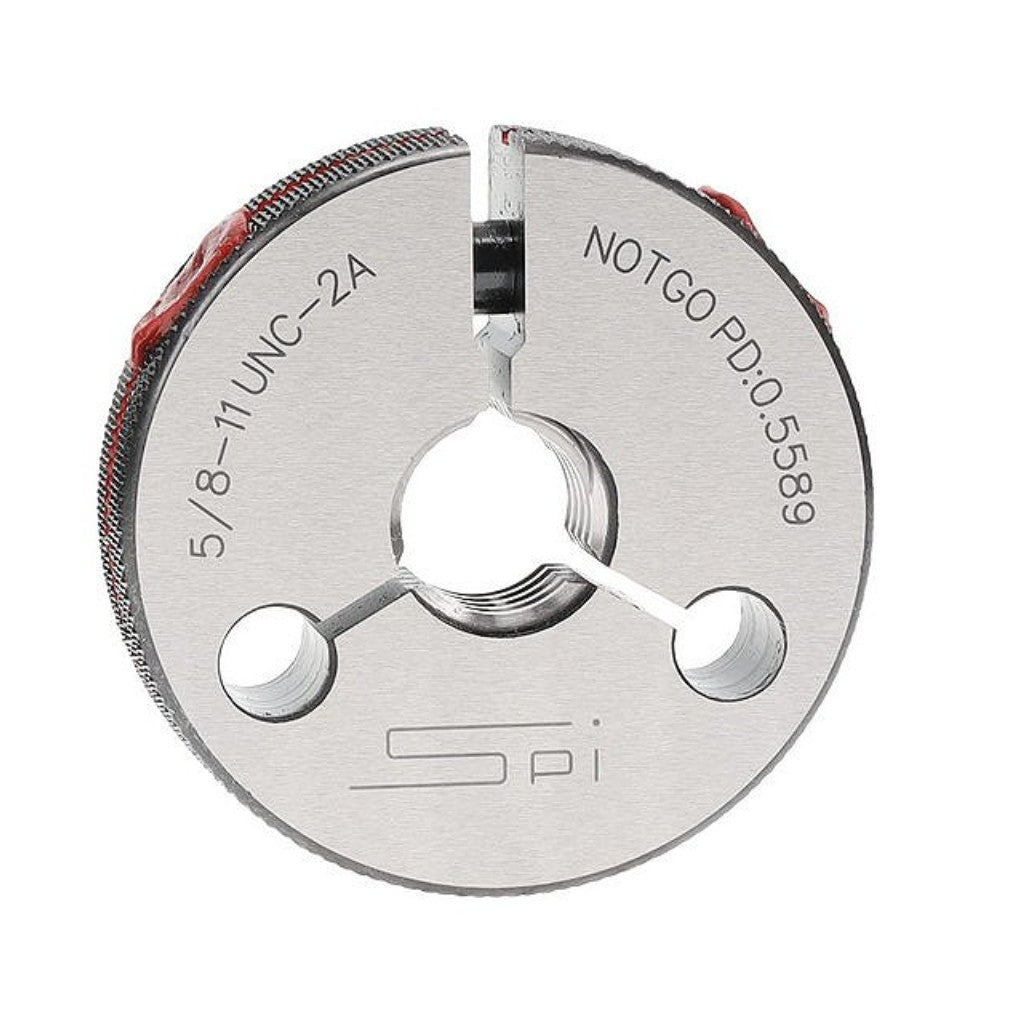

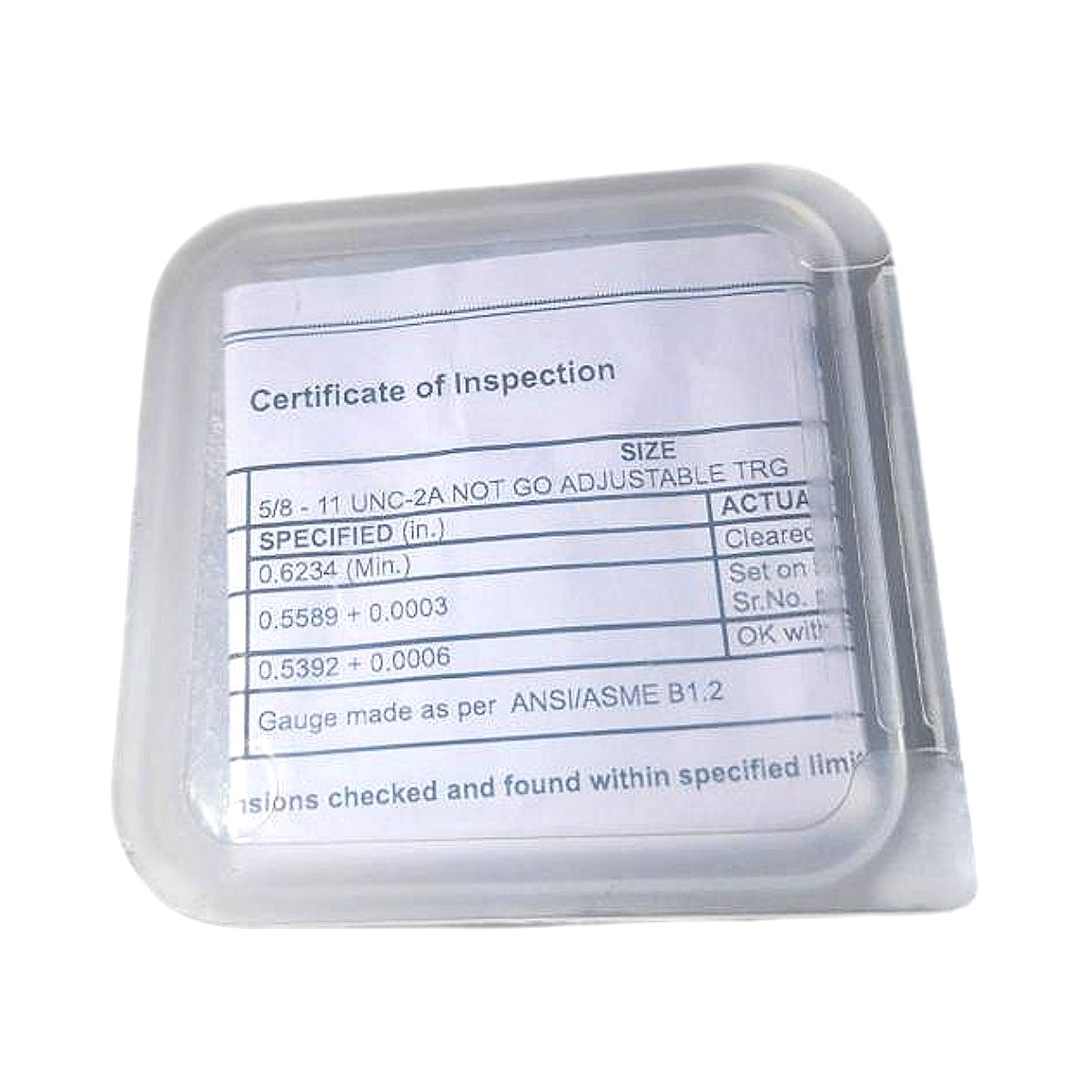

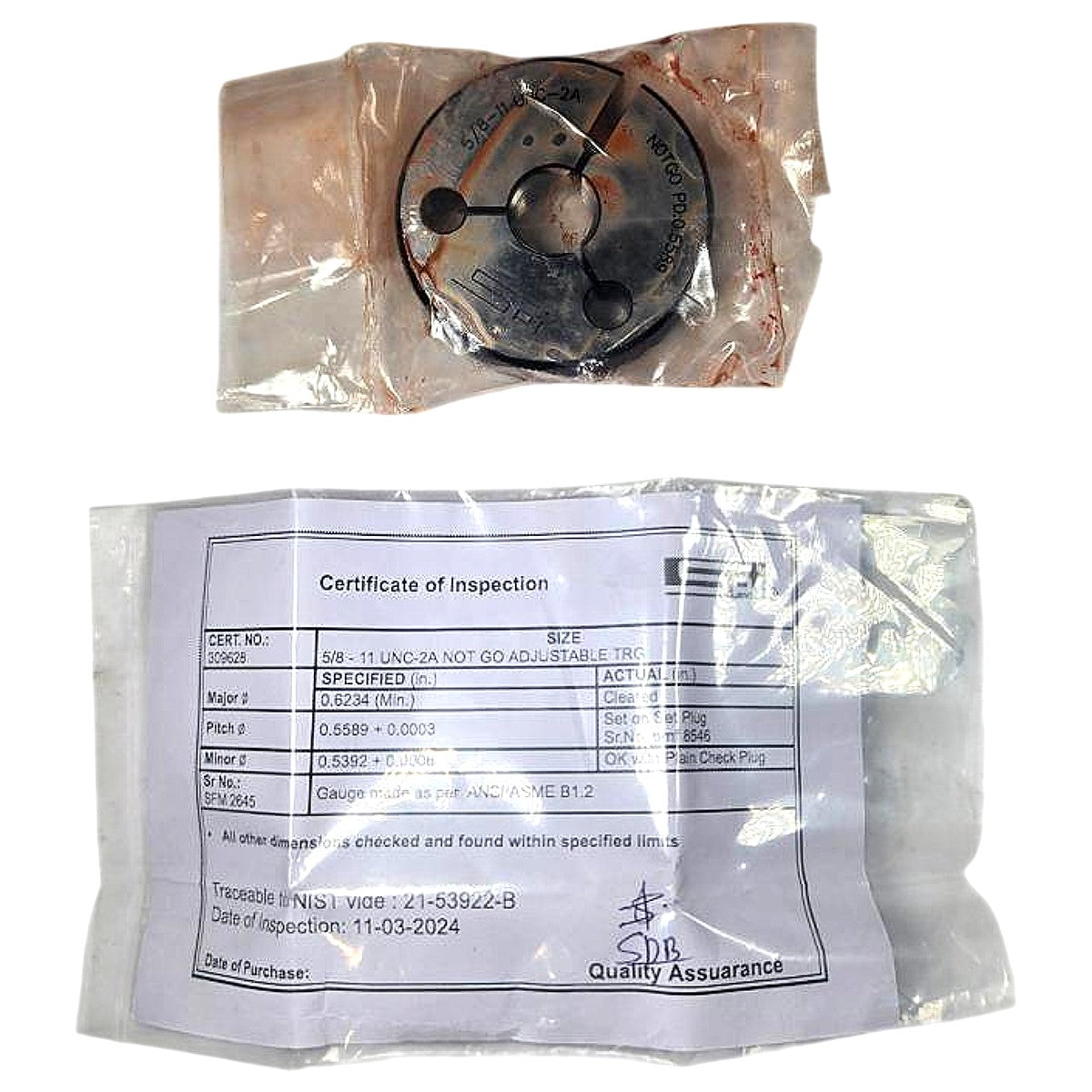

This is a new SPI (Serial No. SFM 2645) 5/8-11 UNC Class 2A NOT GO adjustable thread ring gauge, manufactured to ANSI/ASME B1.2 standards and traceable to NIST (Cert No. 309625, NIST vide 21-53922-B, dated 11-03-2024). The gauge is used to verify that external (male) threads do not fall below the minimum acceptable pitch diameter — the NOT GO ring must not pass freely over a conforming thread. Engraved specifications confirm a NOT GO pitch diameter of 0.5589 in, with a specified pitch diameter tolerance of 0.5589 +0.0003 in, a major diameter minimum of 0.6234 in, and a minor diameter of 0.5392 +0.0006 in. The adjustable (split-ring) design, identified by the slotted body and two locking-screw holes visible on the face, allows field re-setting to the set plug; the gauge was set on set plug Sr. No. 8546 and verified OK with a plain check plug at the time of certification. Supplied sealed in original VCI packaging with the Certificate of Inspection included.
Product Specifications
| Brand | SPI |
| Serial No. | SFM 2645 |
| Thread Size | 5/8 in |
| Thread Pitch (TPI) | 11 TPI |
| Thread Series | UNC (Unified National Coarse) |
| Tolerance Class | 2A (external thread) |
| Gauge Function | NOT GO |
| Gauge Type | Adjustable Thread Ring Gauge |
| NOT GO Pitch Diameter | 0.5589 in |
| Pitch Diameter Tolerance | 0.5589 +0.0003 in |
| Major Diameter (Min.) | 0.6234 in |
| Minor Diameter | 0.5392 +0.0006 in |
| Standard | ANSI/ASME B1.2 |
| Cert. No. | 309625 |
| NIST Traceability | NIST vide 21-53922-B |
| Date of Inspection | 11-03-2024 |
| Certificate of Inspection | Included |
| Condition | New (sealed in original VCI packaging) |
