SPI 31-843-6 Dual Channel ±200µm/±0.200in Electronic Digital Comparator
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

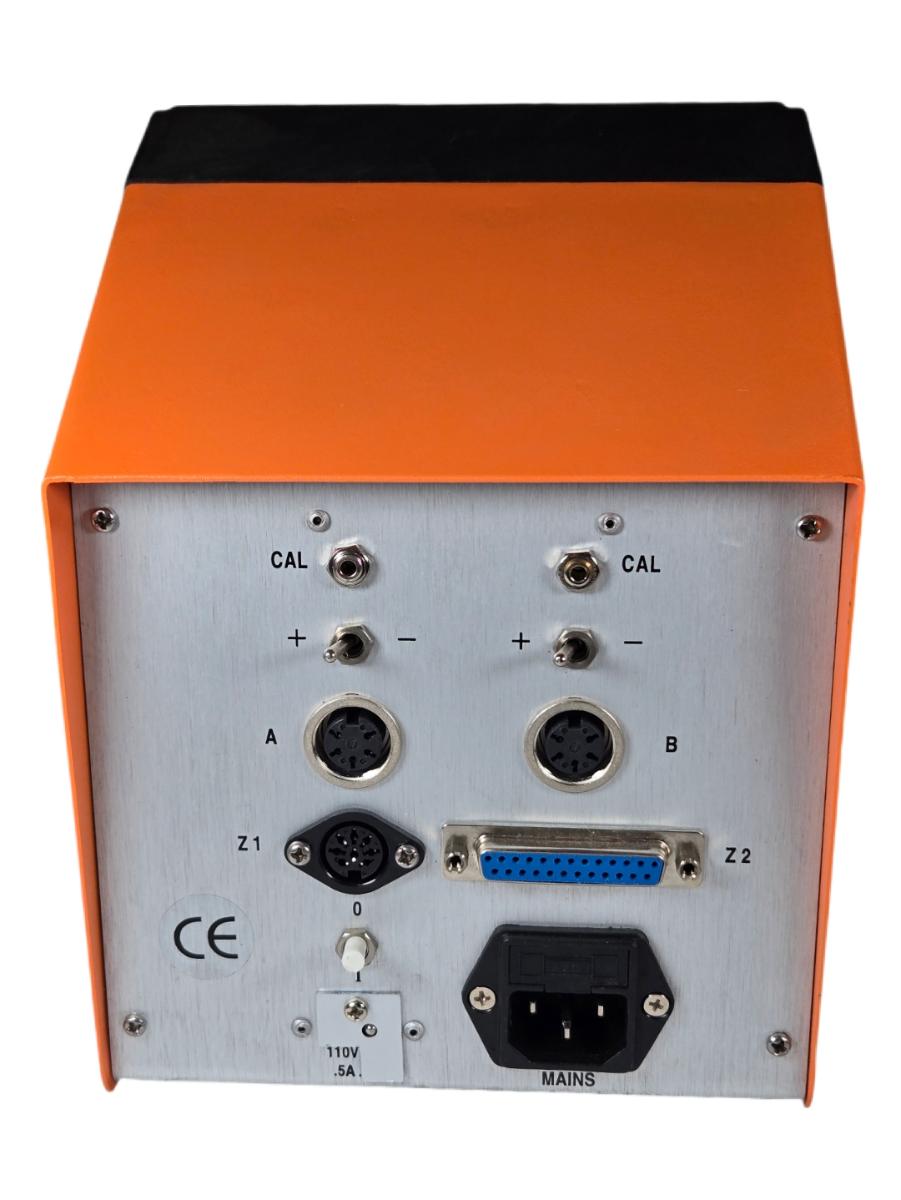

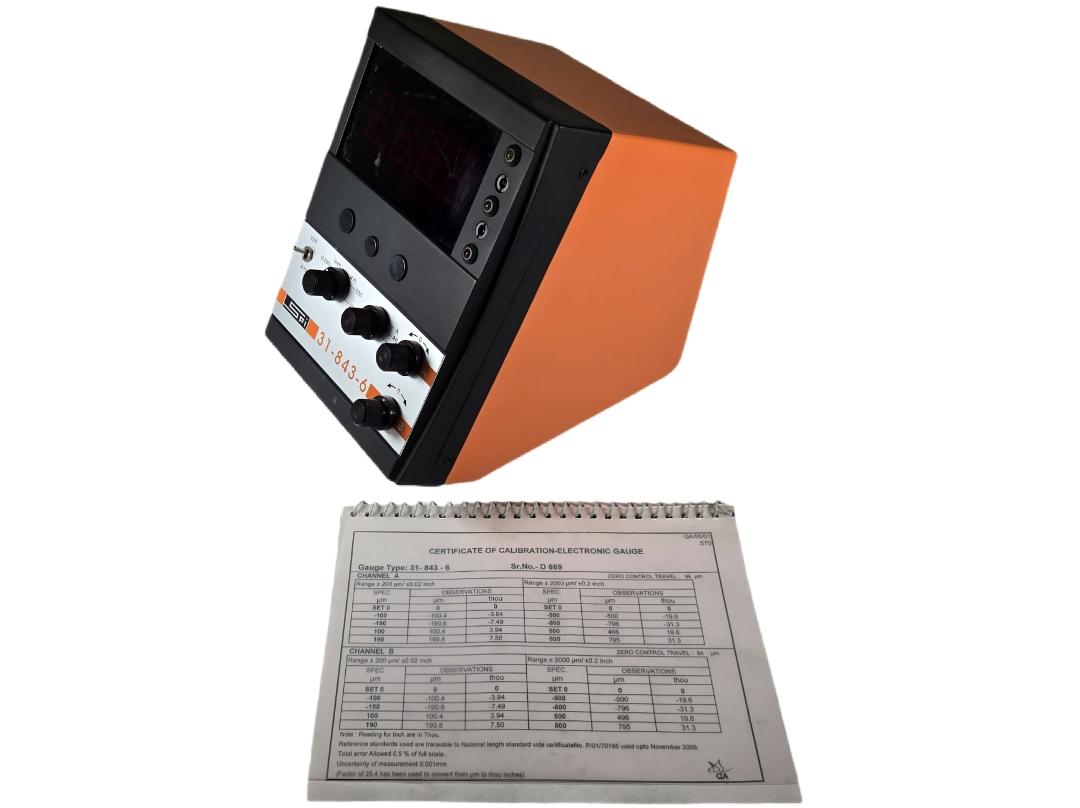

The SPI 31-843-6 is a new dual-channel electronic digital comparator readout unit designed for precision dimensional gauging applications, accepting two independent LVDT or analog probe inputs (Channels A and B) simultaneously via DIN-style connectors on the rear panel. The large 4-digit LED display shows comparative measurements with selectable ranges of ±200 µm / ±0.200 inch (resolution 0.020 inch / 20 µm) or ±2000 µm / ±0.200 inch (resolution 0.020 inch / 200 µm), switchable via front-panel rotary controls, with separate zero-set knobs for each channel. The rear panel provides individual CAL trimmer ports and +/− calibration jacks for each channel, a Z1 multi-pin DIN output connector, a Z2 DB-15 interface port for data output or external connectivity, a power toggle switch, and an IEC mains inlet rated 110V / 0.5A. The included calibration certificate (S/N D669) confirms NABL-traceable calibration with total allowable error of 0.5% of full scale and measurement uncertainty of 0.001 mm, valid through November 2009, and a factor of 25.4 is noted for µm-to-inch conversion. Three front-panel indicator LEDs (yellow, green, red) provide go/no-go tolerance status, and three push-button controls handle display and function selection.
Product Specifications
| Brand | SPI (Swiss Precision Instruments) |
| Model / Part Number | 31-843-6 |
| Serial Number | D669 |
| Number of Channels | 2 (Channel A and Channel B) |
| Display Type | 4-digit LED (7-segment) |
| Measuring Range — Low Range | ±200 µm / ±0.200 inch |
| Measuring Range — High Range | ±2000 µm / ±0.200 inch (2000 µm full scale) |
| Resolution — Low Range | 0.020 inch / 20 µm |
| Resolution — High Range | 0.200 inch / 200 µm |
| Measurement Units | inch and µm (selectable) |
| Total Error Allowed | 0.5% of full scale |
| Measurement Uncertainty | 0.001 mm |
| Zero Control Travel — Channel A | 90 µm |
| Zero Control Travel — Channel B | 94 µm |
| Probe Input Connectors (Channels A & B) | DIN-style multi-pin circular connectors (rear panel) |
| Data Output Port Z1 | Multi-pin DIN circular connector |
| Data Output Port Z2 | DB-15 (DE-15) female connector |
| Power Supply Voltage | 110V AC |
| Power Supply Current Rating | 0.5A |
| Power Inlet | IEC C14 mains connector |
| Tolerance Indicators | 3 LED indicators (yellow, green, red) for go/no-go status |

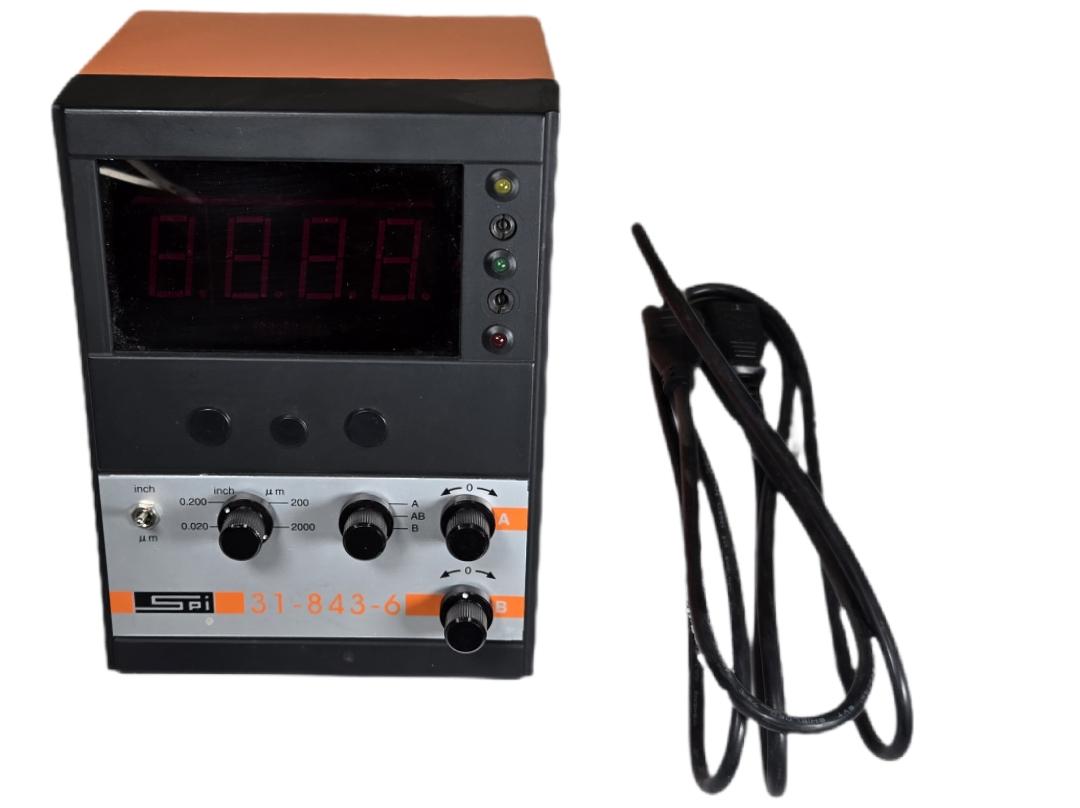

| Front Panel Controls | 3 push-buttons, range selector knob (inch/µm), resolution selector knob, channel A/B/AB selector, individual zero knobs for A and B |
| Rear Panel Calibration Ports | Individual CAL trimmer port and +/− jacks for each channel |
| Calibration Traceability | National length standards, certificate No. P/01/70185, valid through November 2009 |
| µm to inch Conversion Factor Used | 25.4 |
| Compliance Marking | CE |
| Condition | New |
