SPI 34-387-1 3/8-16 UNC 2B GO/NO-GO Thread Plug Gage
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

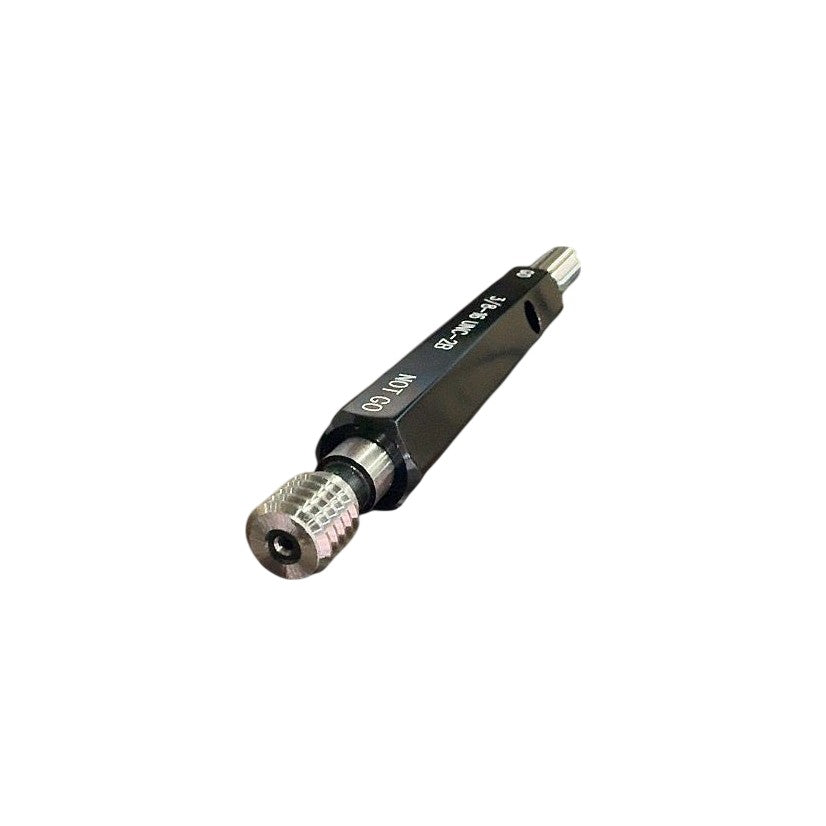

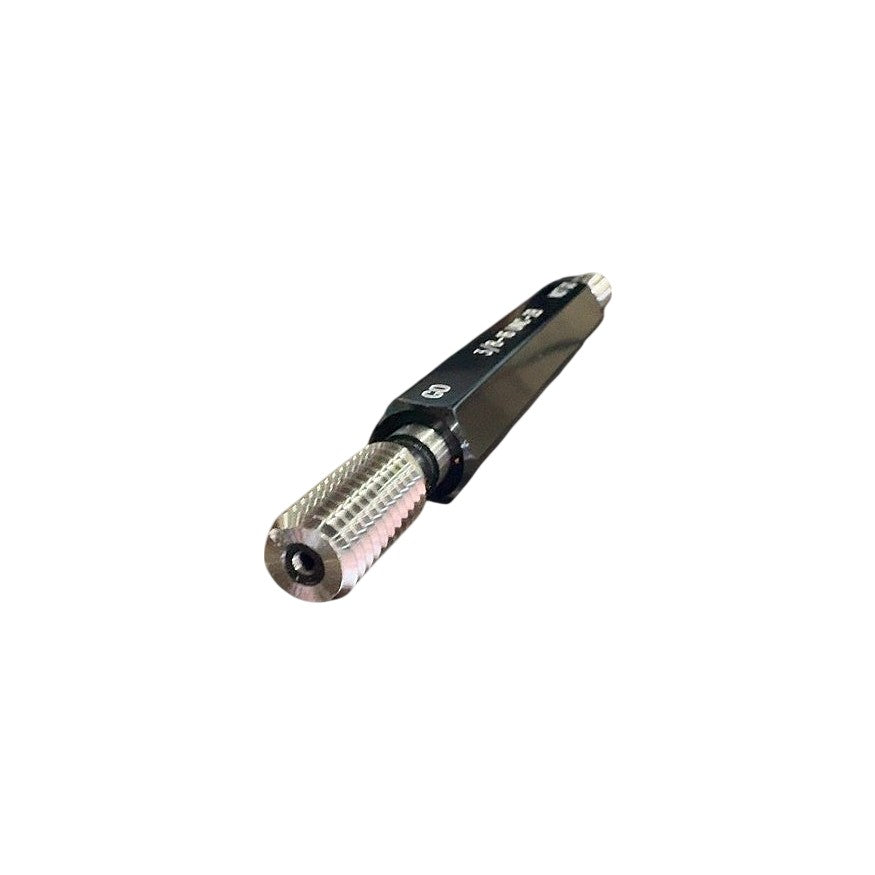

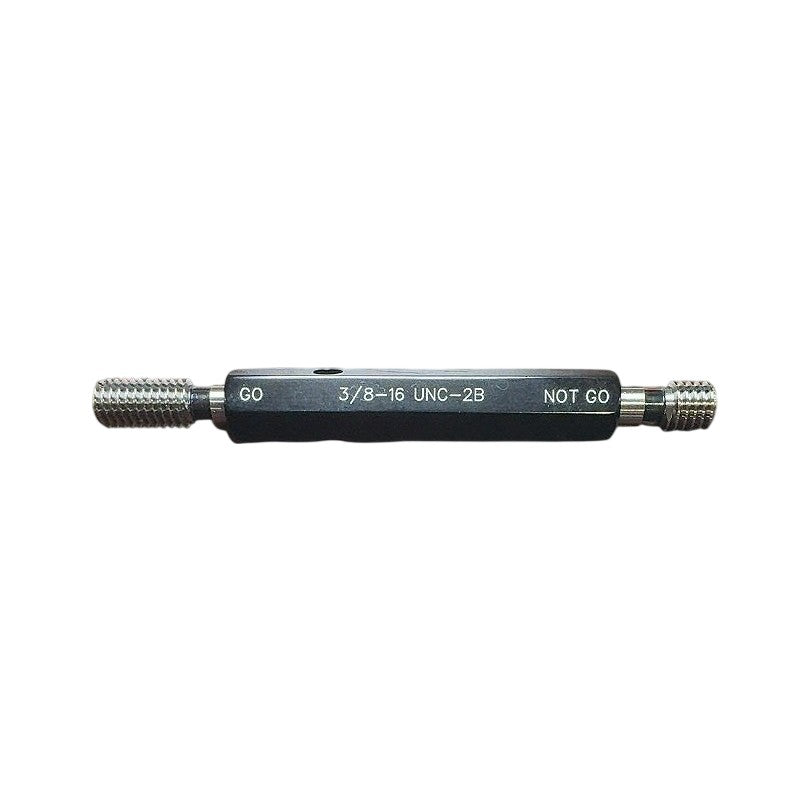

This is a new SPI (Swiss Precision Instruments) double-ended thread plug gage, part number 34-387-1, designed to inspect 3/8-16 UNC (Unified National Coarse) internal threads to Class 2B tolerance per ASME B1.2 standards. The gage features a GO member on one end and a NOT GO member on the other end, both mounted in a knurled, reversible handle with a black anodized aluminum body for easy identification and handling. The GO member verifies that the thread falls within the minimum material condition (maximum minor diameter), while the NOT GO member confirms the thread does not exceed the maximum material condition, ensuring functional assembly compatibility. This gage is suitable for production floor inspection, incoming quality control, and machining verification of 3/8-16 UNC tapped holes in any material. The plug members are ground and lapped tool steel, marked with the thread designation and GO/NOT GO identification on both the handle and individual members.
Product Specifications
| Brand | SPI (Swiss Precision Instruments) |
| Part Number | 34-387-1 |
| Thread Size | 3/8 in |
| Threads Per Inch (TPI) | 16 |
| Thread Series | UNC (Unified National Coarse) |
| Thread Class | 2B |
| Gage Type | Double-ended GO/NO-GO thread plug gage |
| Standard | ASME B1.2 |
| Handle Material | Anodized aluminum |
| Plug Member Material | Ground & lapped tool steel |
| Condition | New |
| Application | Inspection of 3/8-16 UNC 2B internal threads |
